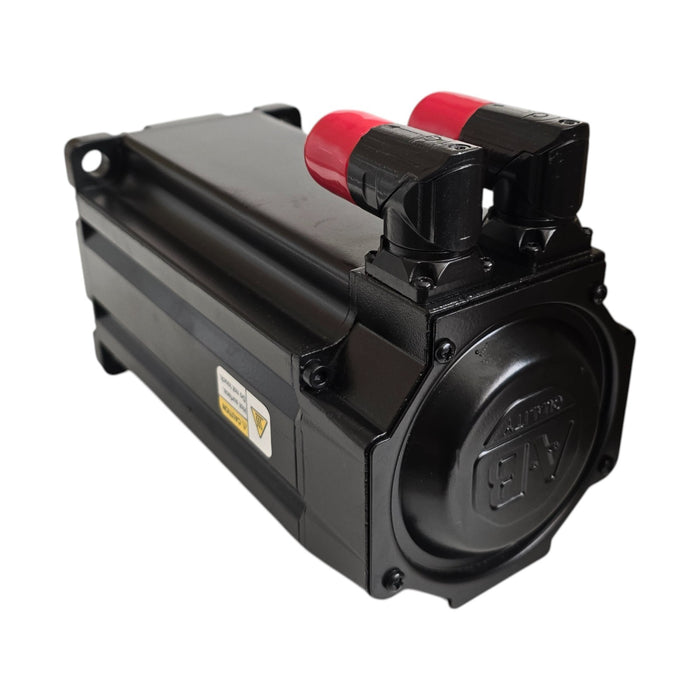

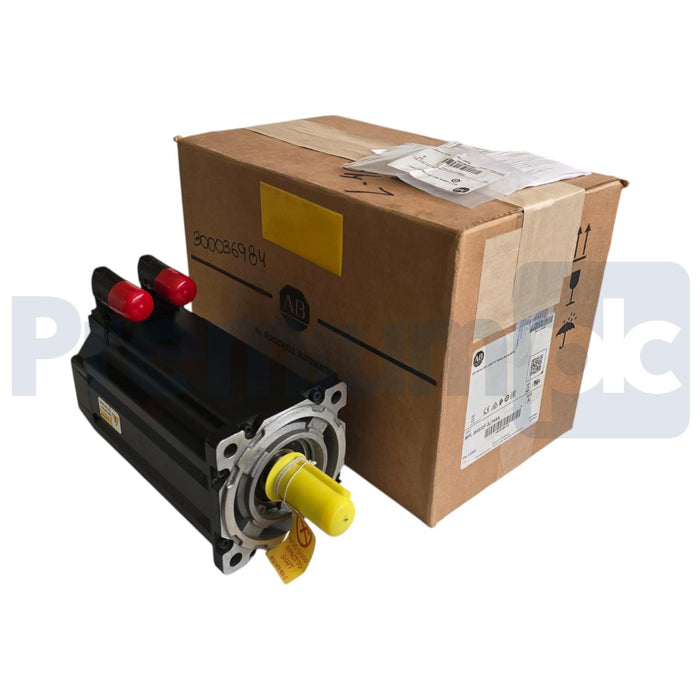

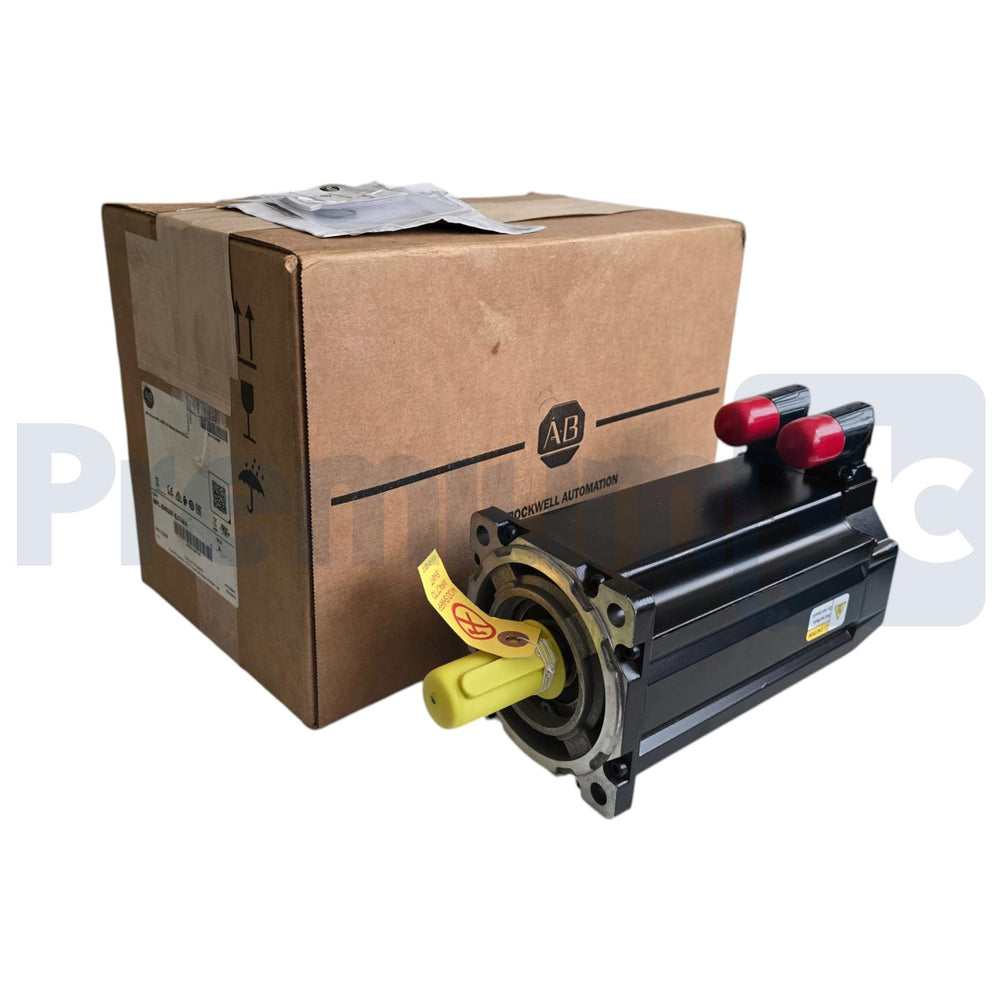

ALLEN BRADLEY MPL-B4530F-SJ74AA /A Kinetix MPL AC SERVO MOTOR 460V w/BRAKE NSMP
$3,450.00
ALLEN BRADLEY MPL-B4530F-SJ74AA /A Kinetix MPL AC SERVO MOTOR 460V w/BRAKE 24VDC NSMP
Kinetix MPL Low-inertia Servo Motors
Bulletin MPL - Low-Inertia Brushless Servo Motors Product, 460 V, Frame Size 45 130 mm (5.12 in.), Stack Length 30 76.2 mm (3.0 in.), 3000 RPM, Single-turn High-resolution Encoder. Keyed Shaft Extension, SpeedTEC DIN Connector, Right Angle, 180° Rotatable (Quick Connect), 24V DC Brake, IEC Metric, Free Mounting Holes (Type FF)
Product Details
| PRODUCT SELECTION | |
|---|---|
| Product Type | Bulletin MPL - Low-Inertia Brushless Servo Motors Product |
| Voltage | 460 V |
| Frame Size | 45 130 mm (5.12 in.) |
| Magnet Stack Length | 30 76.2 mm (3.0 in.) |
| RPM | 3000 RPM |
| Feedback | Single-turn High-resolution Encoder |
| Enclosure | Keyed Shaft Extension |
| Connectors | SpeedTEC DIN Connector, Right Angle, 180° Rotatable (Quick Connect) |
| Brake Option | 24 V DC Brake |

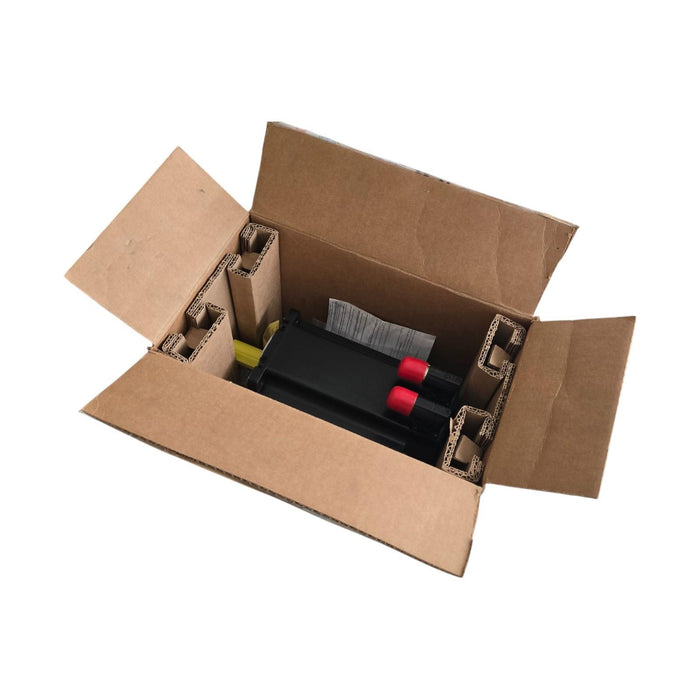

CONDITION: NSMP - New Surplus Manufacturer Package (OEM).
(QTY 3 AVAILABLE MFY's: 2022,2023, & 2024)
WARRANTY: 120 DAYS (LIMITED 1 YEAR)
SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST.
(CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT)
