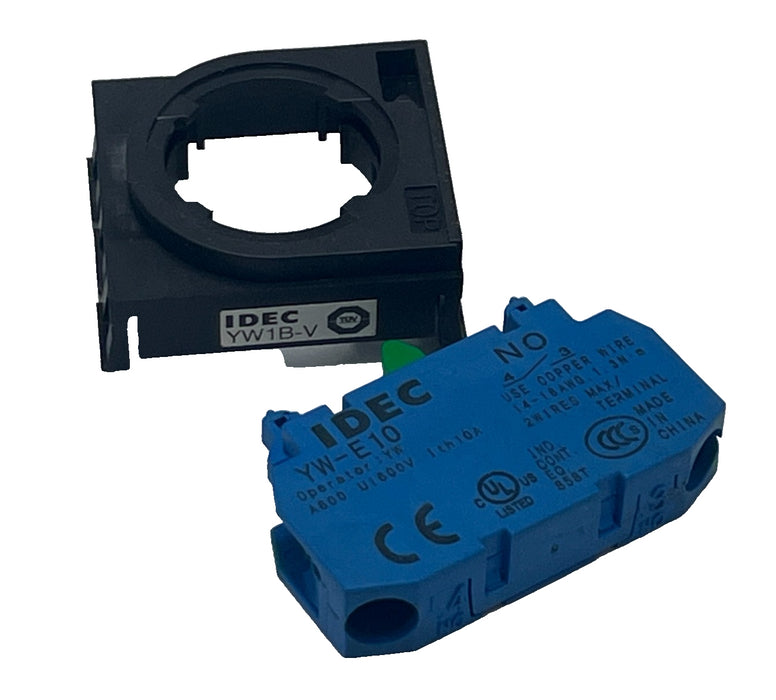

(2) IDEC YW-E10 Contact Blocks 1NO, W/ (2) YW-1B-V Selector Switch operator head
$89.95
(2) IDEC YW-E10 Contact Blocks 1NO, W/ (2) YW-1B-V Selector Switch operator head

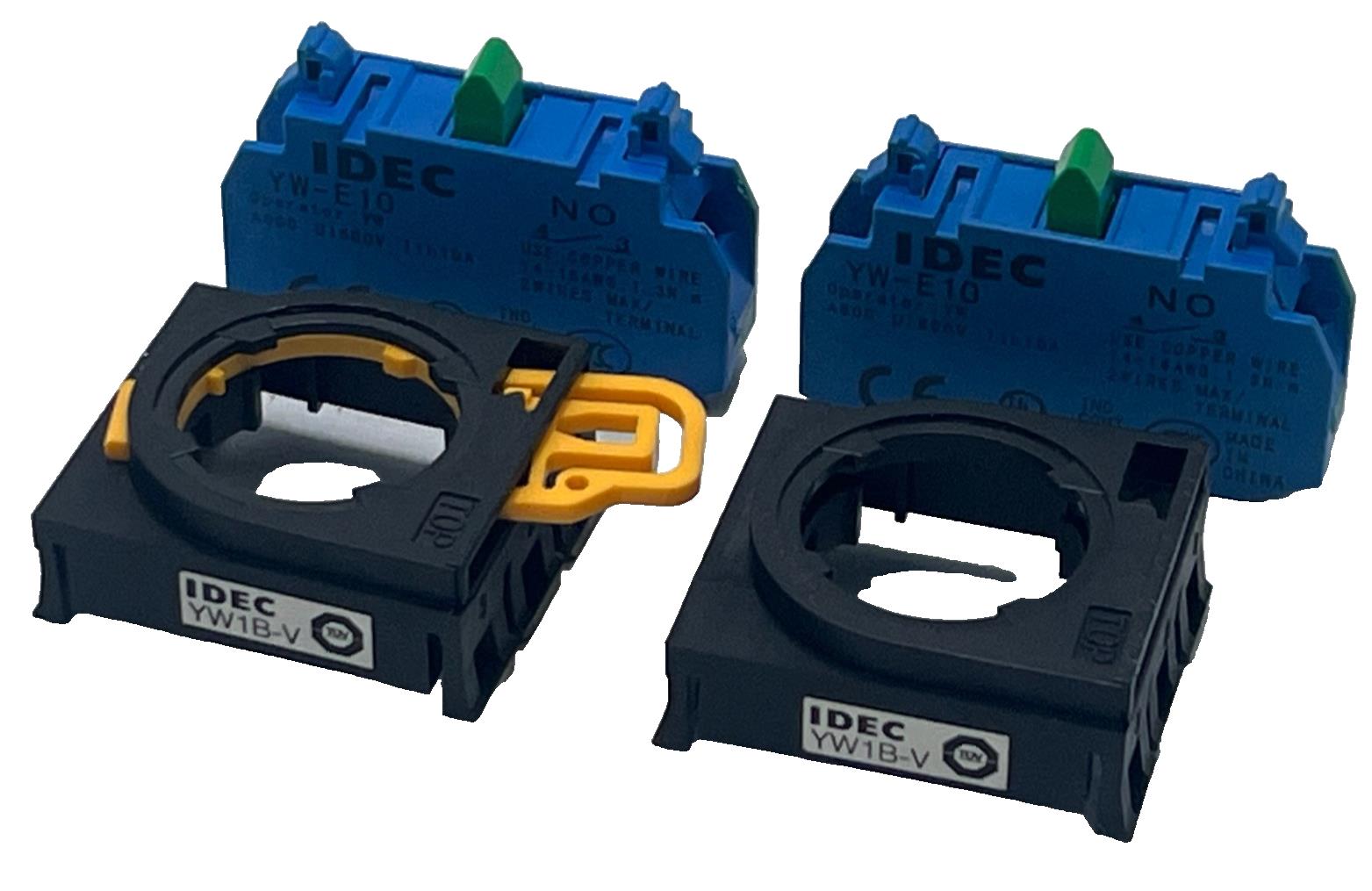

ONE OF THE OPERATOR HEADS IS MISSING THE YELLOW CENTER OPERATOR PLASTIC PIECE, SEE PICS
Description:

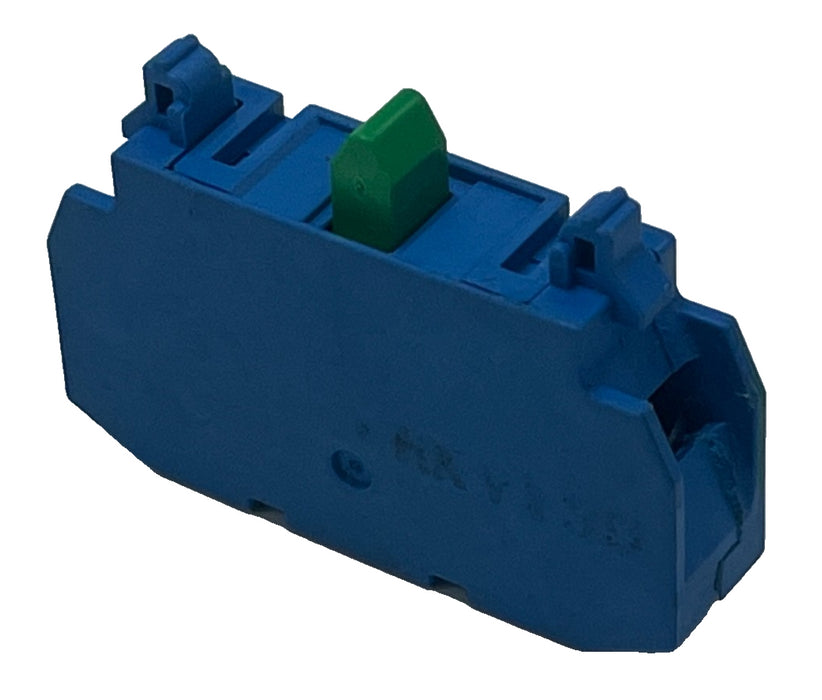

This listing is for one (1) genuine IDEC YW-E10 Contact Block. This component is designed for use with the IDEC YW and CW series of 22mm pushbuttons and selector switches, providing reliable operation for industrial control applications.
This listing is for one (1) genuine IDEC YW-E10 Contact Block. This component is designed for use with the IDEC YW and CW series of 22mm pushbuttons and selector switches, providing reliable operation for industrial control applications.
Key Features:
- Contact Configuration: 1 Normally Open (1NO) contact.
- Compatibility: Designed for use with IDEC YW and CW Series 22mm control units.
- High Current Rating: Rated for a maximum contact current of 10 Amps.
- Voltage Rating: Maximum operating voltage of 120V AC.
- Safety Features: Features finger-safe IP20 contacts as standard for enhanced safety.
- Durable Construction: Small, lightweight, and robust plastic construction suitable for industrial environments.
- Easy Installation: Features secure screw terminals for straightforward wiring.
- IP Rating: IP67 international protection rating (when installed correctly with a compatible switch).
Specifications:
- Manufacturer: IDEC
- Part Number:
- Series: YW / CW Series
- Contact Type: Single Contact Block, SPST-NO
- Max Current: 10A
- Max Voltage: 120VAC
- Terminal Type: Screw terminals
- Mounting: Panel Mount (connects to switch actuator)
- Operating Temperature Range: -40°F to 185°F (-40°C to 85°C)
Product Description
This listing is for one IDEC YW-1B-V selector switch operator head from the rugged YW series. This operator features a unique 2-position functionality with a spring-return-to-center operation (momentary left/right, returns to center off position). It is designed for standard 22mm panel mounting and provides reliable, robust control input for industrial machinery.
NOTE: This listing is for the operator head only. To create a complete functioning switch, this head requires separate purchase of a compatible mounting bracket (e.g., YW9Z-A11) and appropriate YW series contact blocks (e.g., YW0K-10, YW0K-01, sold separately).
Key Features & Specifications
- Brand: IDEC
- Model: YW-1B-V
- Series: YW Series (22mm)
- Product Type: Selector Switch Operator (Actuator)
- Operation Type: Spring Return from both sides (Returns to center OFF position)
- Number of Positions: 2 Positions (Momentary Left/Right, center off)
- Handle Style: Standard Black Handle
- Mounting Hole Size: 22.5 mm (Standard panel cutout)
- Illumination: Non-illuminated
- Environmental Ratings: IP65 (Dust-tight and jet-proof)
- Material: Heavy-duty plastic bezel/housing
- Certifications: UL Listed, CSA Certified, CE Marked, TUV, RoHS
Applications
Ideal for use in industrial control panels, hoist/crane controls (up/down momentary control), or any application requiring momentary input with a positive center-off resting state.
CONDITION: NSNP - New Surplus No Manufacturer Package (OEM)
WARRANTY: 120 DAYS
