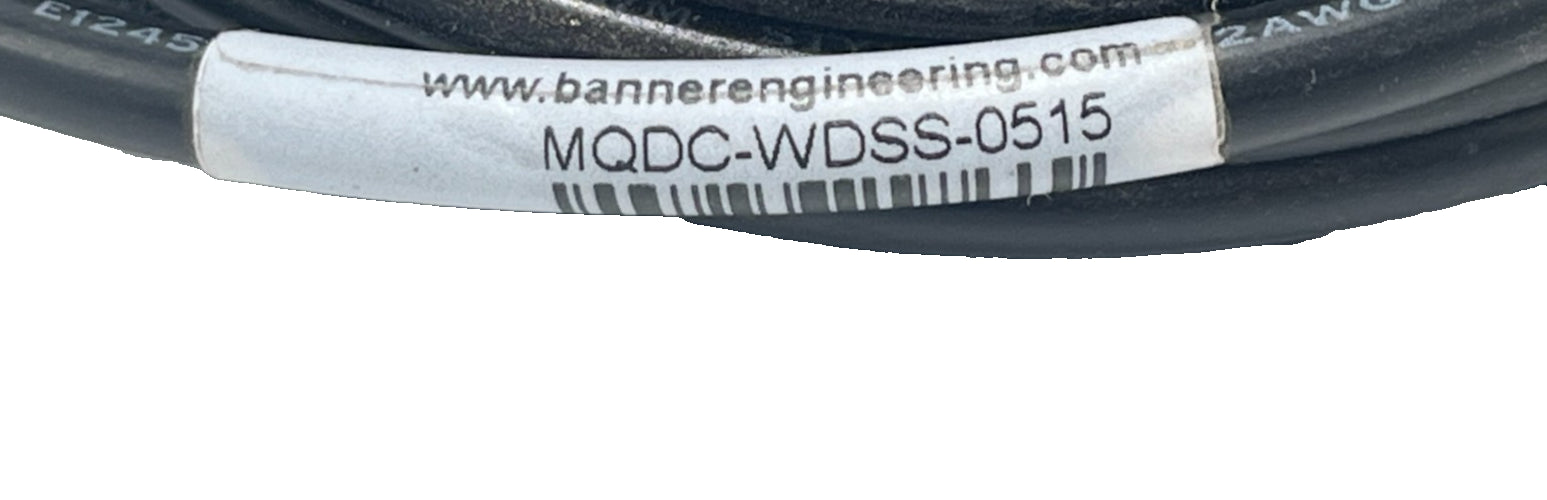

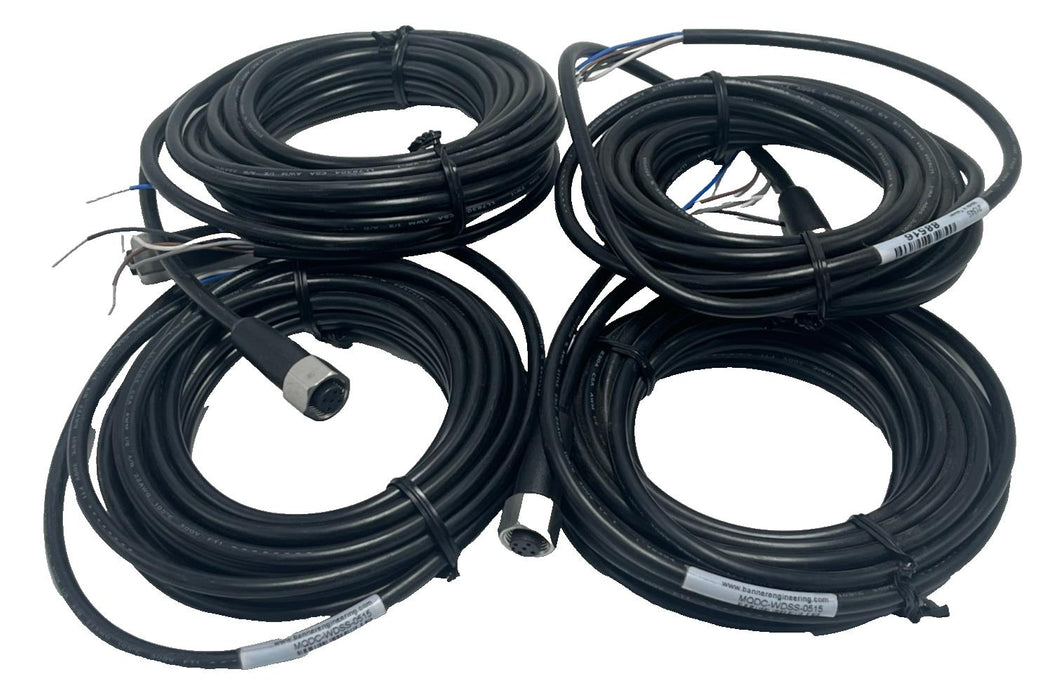

(4) BANNER MQDC-WDSS-0515 CORDSET M12 FEMALE STRAIGHT 5M MQDCWDSS0515, NSNP
Item Description
Brand: Banner Engineering
Model / Part Number: MQDC-WDSS-0515 (Also referenced as Part # 88516) Banner Engineering+2ramcoi.com+2

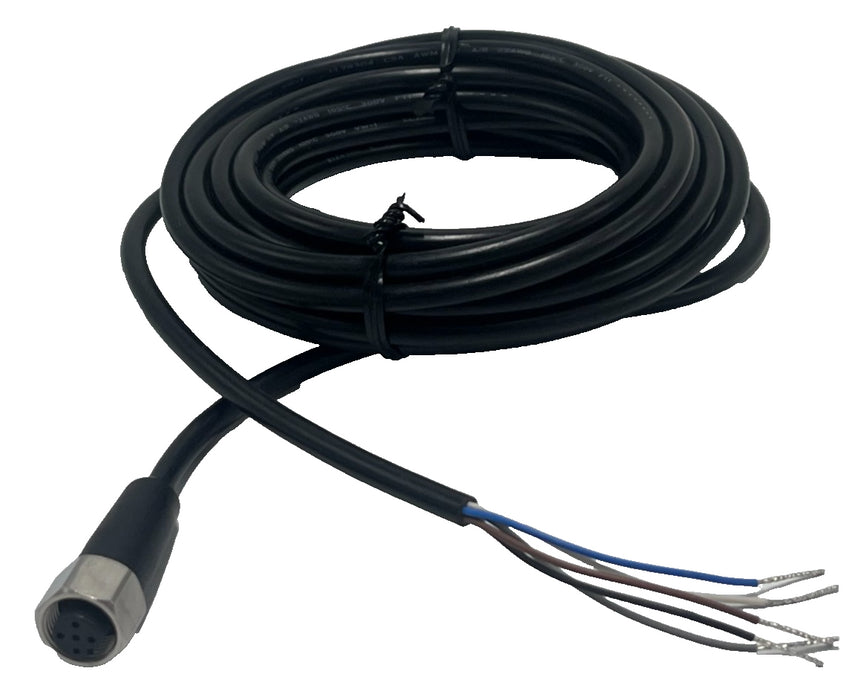

Type: Single-Ended Cordset, Euro-style quick disconnect (female straight M12 5-pin connector to flying leads) kleen-ritecorp.com+1
Length: 5 m (≈ 15 ft) kleen-ritecorp.com+1
Cable Jacket / Construction: Black PVC jacket, abrasion resistant, stainless steel (300 series / 316) hex coupling nut, EPDM O-ring kleen-ritecorp.com+1
Connector Details: M12, A-code, female, straight orientation; 5 contacts. Banner Engineering+1
Electrical / Environmental Specs:
-
Rated for up to 250 V AC/DC kleen-ritecorp.com+1
-
Current rating: 4 A Banner Engineering
-
Cable diameter approx. 5.16 mm Banner Engineering
-
Temperature range: –40 °C to +70 °C (some sources give –40 F to +221 F) kleen-ritecorp.com+1
-
Ingress protection: IP69 (washdown rated)
