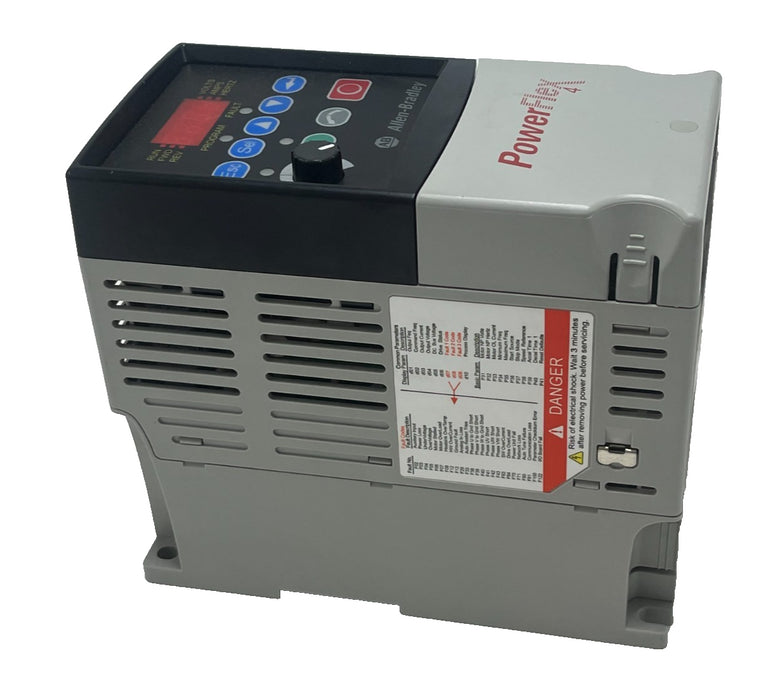

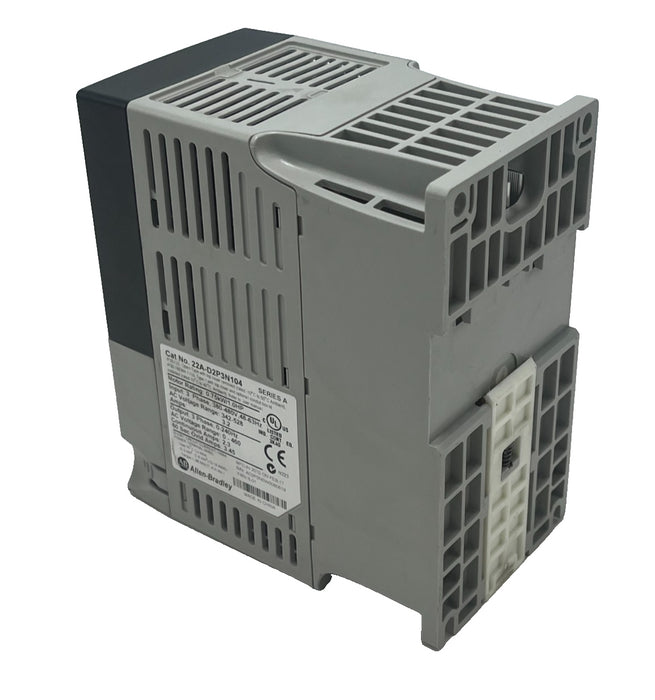

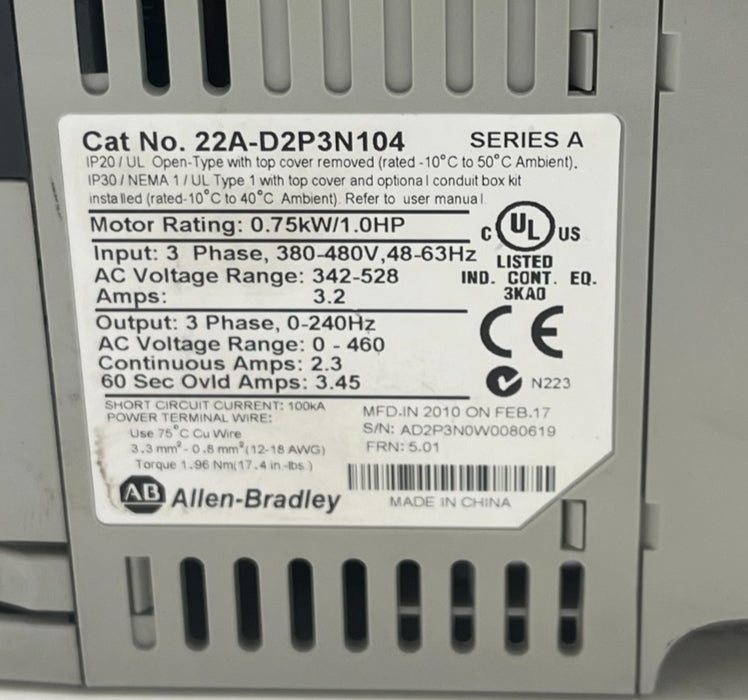

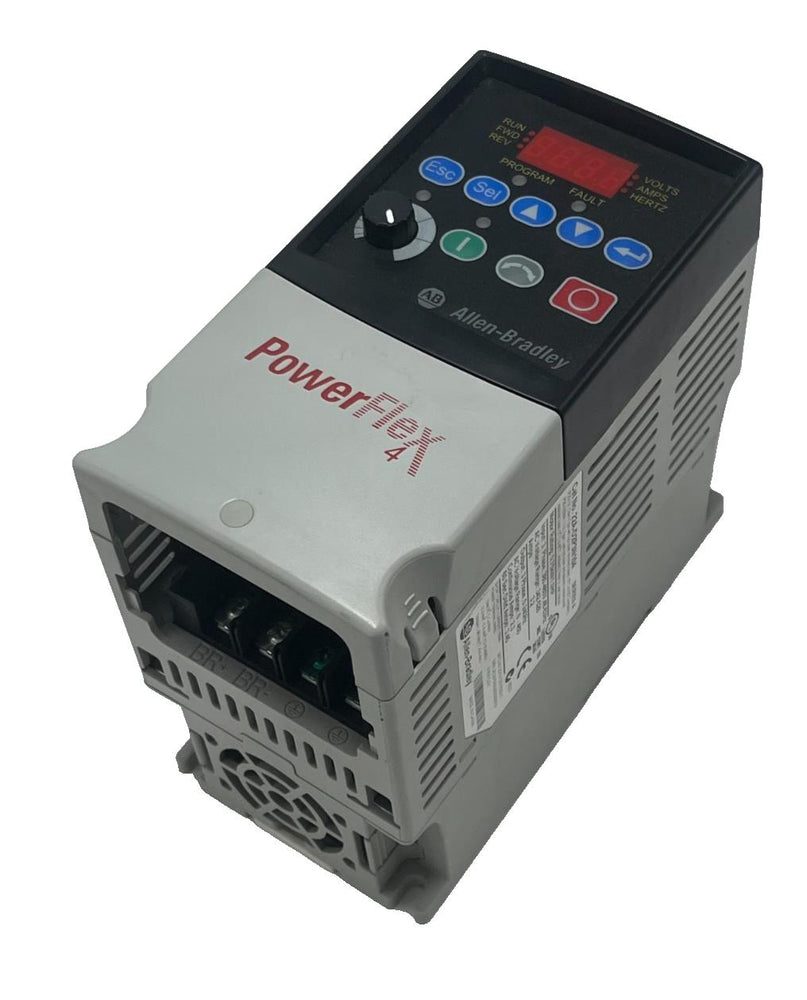

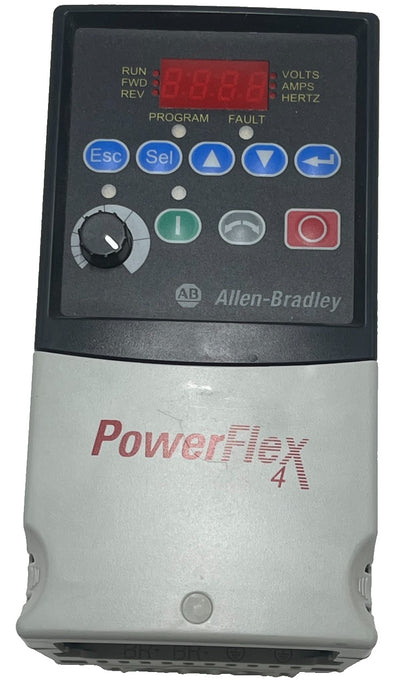

ALLEN-BRADLEY 22A-D2P3N104 PowerFlex 4 AC Drive 1.0HP 480V Ser A FRN 5.01 VFD
$200.00
ALLEN-BRADLEY 22A-D2P3N104 PowerFlex 4 AC Drive 1.0HP 480V Ser A FRN 5.01 VFD
CLEAN DRIVE IN GOOD CONDITION, REMOVED FROM WORKING PRODUCTION
Item Specifics
- Brand: Allen-Bradley
- Model: PowerFlex 4
- MPN: 22A-D2P3N104
- Series: A
- Firmware Revision (FRN): 5.01
- Product Type: General Purpose AC Drive
- Maximum Load: 1.0 HP (0.75 kW)
- Input Voltage: 480V AC, 3-Phase
- Output Current: 2.3 A
- Enclosure: IP20, NEMA/UL Type Open
- Control Method: Volts per Hertz (V/Hz), Sensorless Vector Control (SVC)
- Communication Protocol: RS485 (Built-in communication port)
- Input Type: Keypad
Item Description
Allen-Bradley 22A-D2P3N104 PowerFlex 4 AC Drive (FRN 5.01)
This is a genuine Allen-Bradley PowerFlex 4 AC Drive, part number 22A-D2P3N104, with firmware revision 5.01. This compact variable frequency drive (VFD) is designed to meet global OEM and end-user requirements for simple, space-saving, and cost-efficient motor control. It is ideal for various applications including fans, pumps, conveyors, and machine tools, providing reliable speed control for 1.0 HP motors.
Key Features and Benefits:
- Simple Operation: Features an integral keypad with local potentiometer and control keys that are active right out of the box.
- Durable Design: Built with a robust design and IP20 (Open Type) enclosure rating for use in standard industrial environments.
- Flexible Control: Supports both Volts per Hertz (V/Hz) and Sensorless Vector Control (SVC) methods.
- Integrated Communication: Includes a built-in RS485 communication port for easy networking with other industrial control systems.
- Protective Features: Offers protection against overcurrent at a 200% hardware limit and 300% instantaneous fault limit for 3 seconds.
Technical Details:
- MPN: 22A-D2P3N104
- Input Power: 3-Phase, 480V AC, 50-60 Hz
- Output Power: 1.0 HP (0.75 kW), 2.3 Amps
- Enclosure Type: Frame A, Panel Mount (IP20 Open Type)
- Display: LED Display
- Weight: Approx. 2.06 lbs (0.94 kg)
CONDITION: USPI - Used Surplus Previously Installed (OEM)
WARRANTY: 90 DAYS
SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST.
(CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT)
