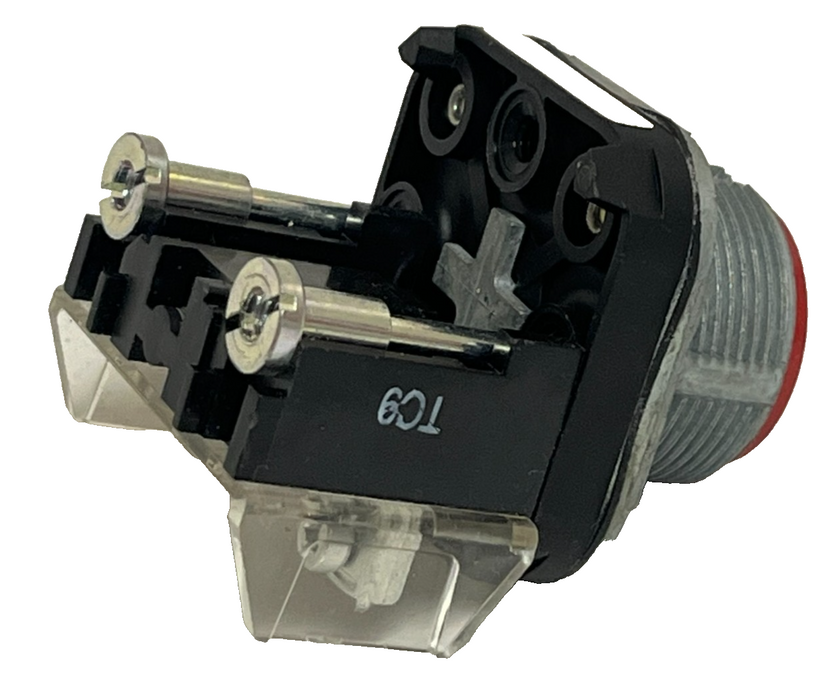

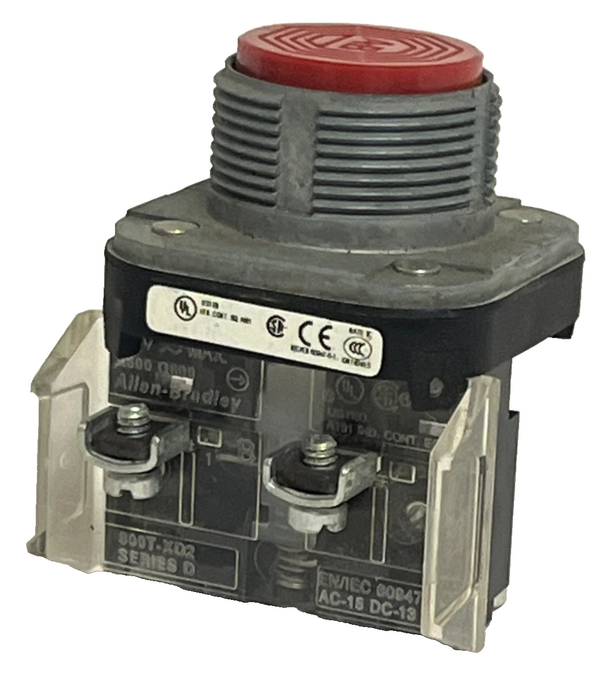

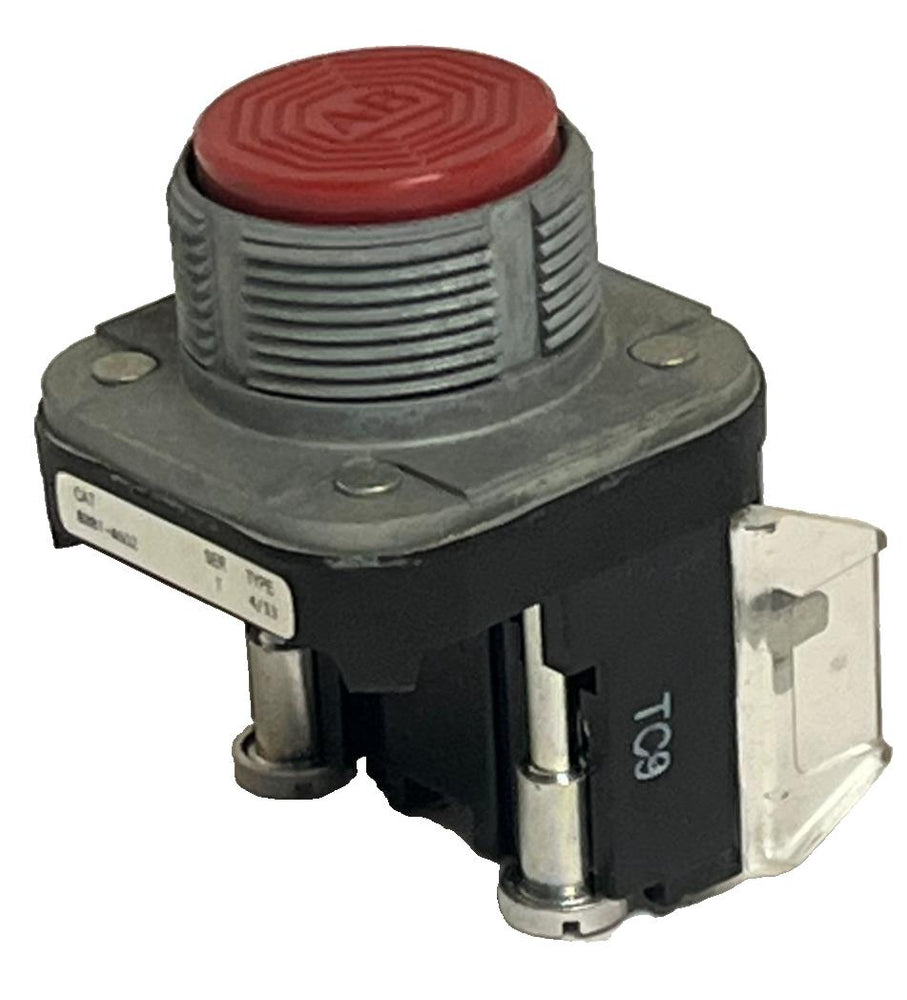

Allen-Bradley 800T-A6D2 Ser. T 30mm Momentary Push Button - Flush Head - Red

Product Overview: The Allen-Bradley 800T-A6D2 is a heavy-duty, industrial-grade pushbutton designed for demanding environments. This Series T operator features a rugged metal construction and is built for high-reliability momentary control.

Key Features:

• Industrial Durability: Features a metal head and is rated for NEMA 4/13 (oil-tight and water-tight) performance.

• Flush Head Design: The red flush head provides a clean look and prevents accidental actuation in busy panels.

• Standard Contacts: Comes factory-equipped with one normally closed (NC) standard contact block.

• Long Life: Non-illuminated momentary operators are rated for up to 10,000,000 mechanical life cycles.

Technical Specifications:

• Thermal Continuous Current (Ith): 10 A AC / 2.5 A DC

• Ingress Protection: Type 1/4/12/13

• Operating Temperature: -40 to +131 °F (-40 to +55 °C)

• Standards: UL, CSA, CE, CCC, MARINE, and KC
