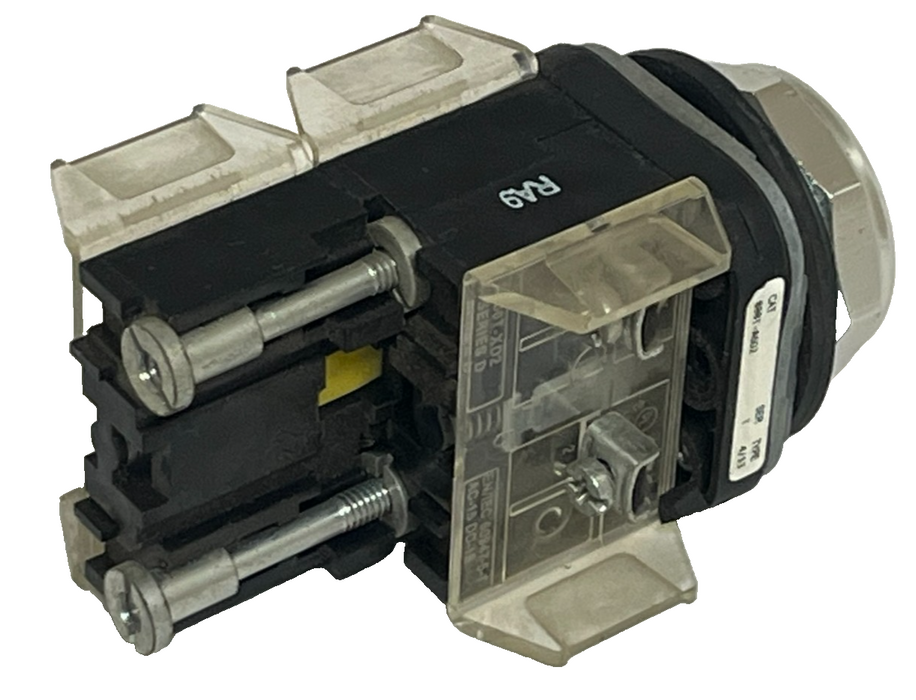

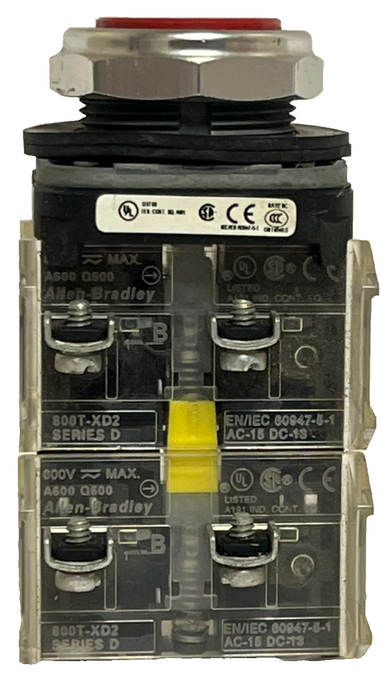

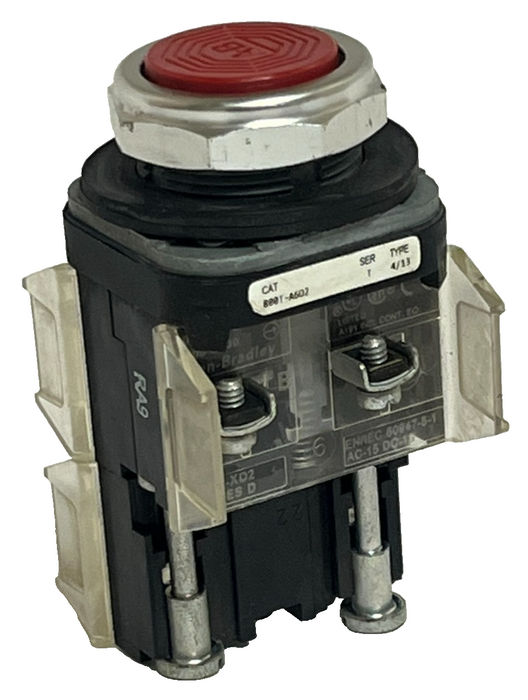

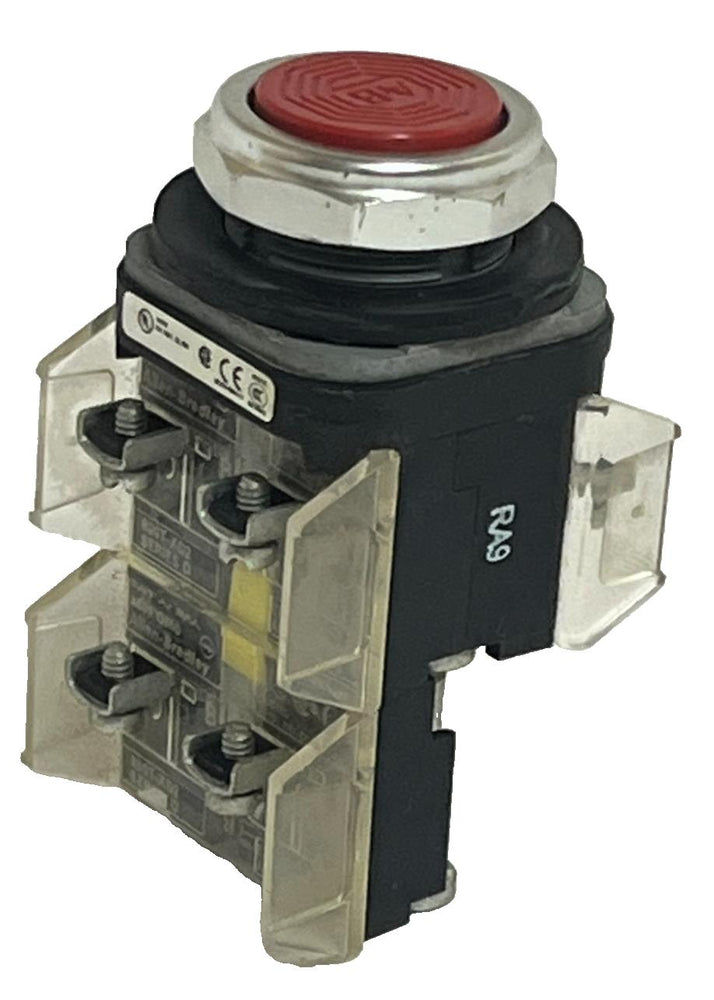

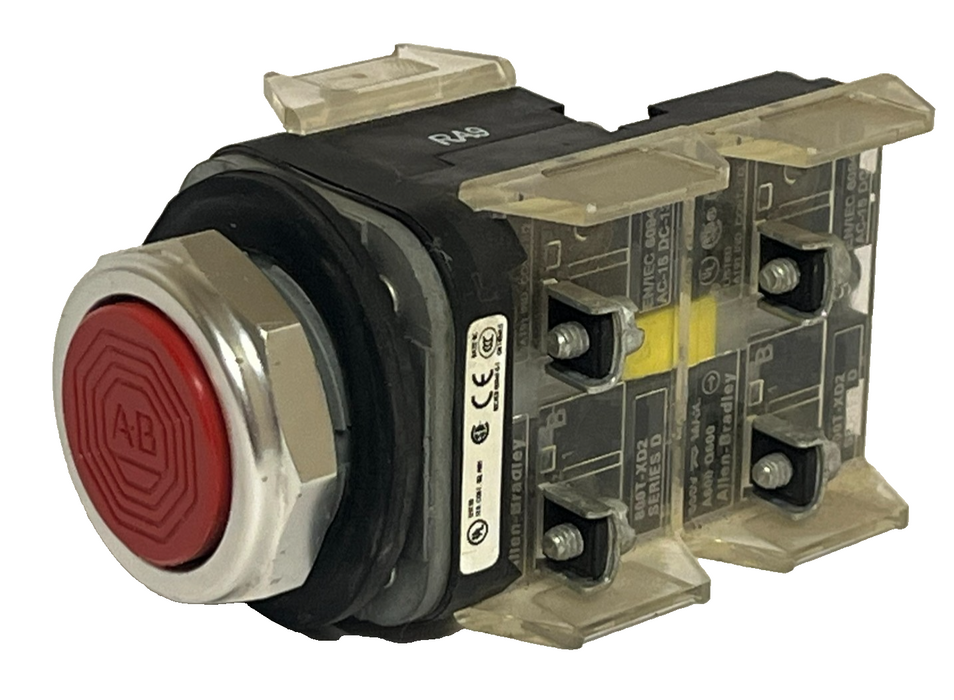

Allen-Bradley 800T-A6D2 Ser T Red Flush Push Button w/ (3) 800T-XD2 Ser D Blocks

Product Overview: This listing is for a heavy-duty Allen-Bradley 800T-A6D2 industrial push button. It is configured with three (3) 800T-XD2 Series D shallow contact blocks, providing a total of 3 NC circuits for your control application.

Key Features:

• Custom Contact Stack: Includes three 800T-XD2 contact blocks, each rated for 10A @ 600VAC.

• Rugged Design: Part of the Bulletin 800T line, featuring zinc alloy castings and a stainless steel return spring for long-life durability.

• Environmental Protection: Rated NEMA 4/13 (oil-tight and water-tight) when properly mounted, suitable for demanding industrial environments.

• Diaphragm Seal: Features a non-lubricated diaphragm seal that protects the internal mechanism from liquids and corrosives.

Technical Specifications:

• Action: Momentary (Spring Return)

• Contacts: 3 NC Shallow Blocks (Slow double-make/break)

• Thermal Current (Ith): 10 A AC / 2.5 A DC

• Operating Temp: -40 to +131 °F

• Certifications: UL Listed, CSA, CE, and CCC
