Amran PT101-480 Potential Transformer | 480V:120V Ratio 4:1 | 150VA | 600V Class

Amran PT101-480 Potential Transformer | 480V:120V Ratio 4:1 | 150VA | 600V Class

ONLY SIGNS OF WEAR OR USE IS THE WASHER MARKS ON MOUNTING HOLES, OTHERWISE IN EXCELLENT CONDITION

Description

Product Overview The Amran PT101-480 is a high-performance voltage transformer engineered for high-accuracy metering and relaying applications. Encapsulated in a polyurethane/epoxy resin, this unit is built to withstand industrial environments while maintaining its 0.6% accuracy class.

Key Technical Features

• Superior Accuracy: Rated at Accuracy Class 0.6, providing precise voltage signals for critical monitoring devices.

• High Thermal Capacity: Offers a robust 150VA thermal rating at 30°C, ensuring cool operation even under significant burdens.

• Standardized Ratio: The 4:1 ratio (480V to 120V) is the industrial standard for stepping down 480V power systems to standard 120V instrumentation levels.

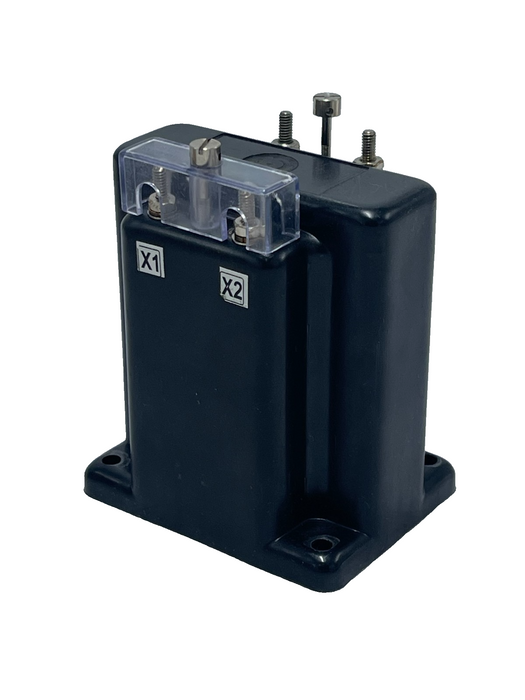

• Durable Construction: Features a single-phase design with rugged primary and secondary terminals for secure wiring.
