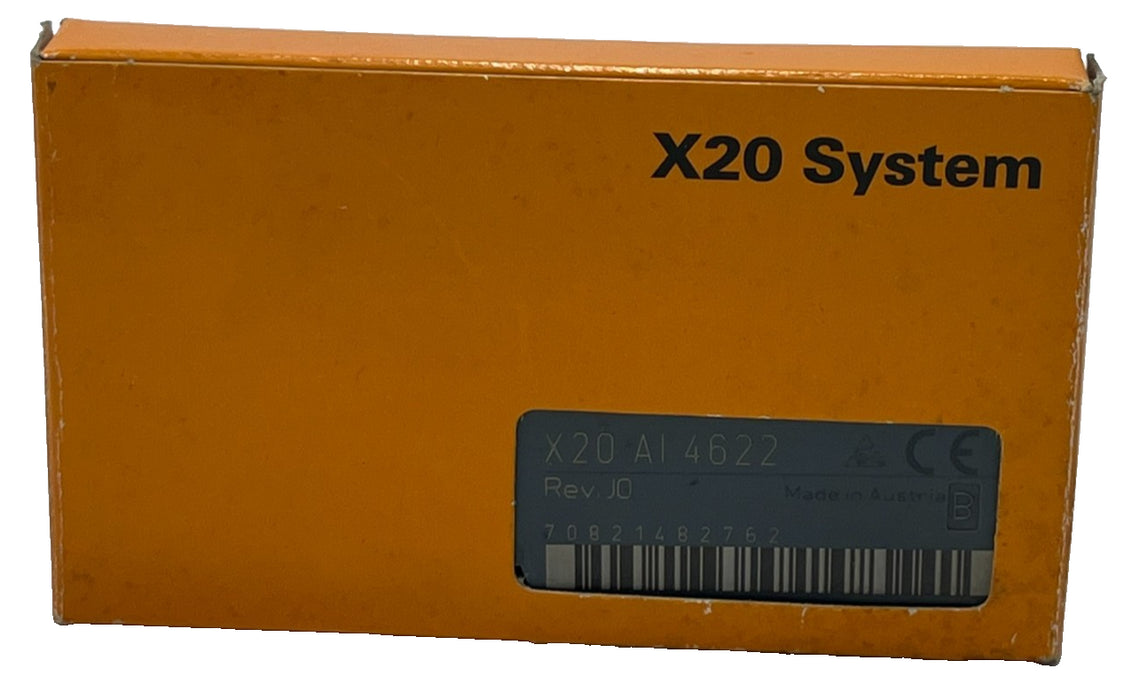

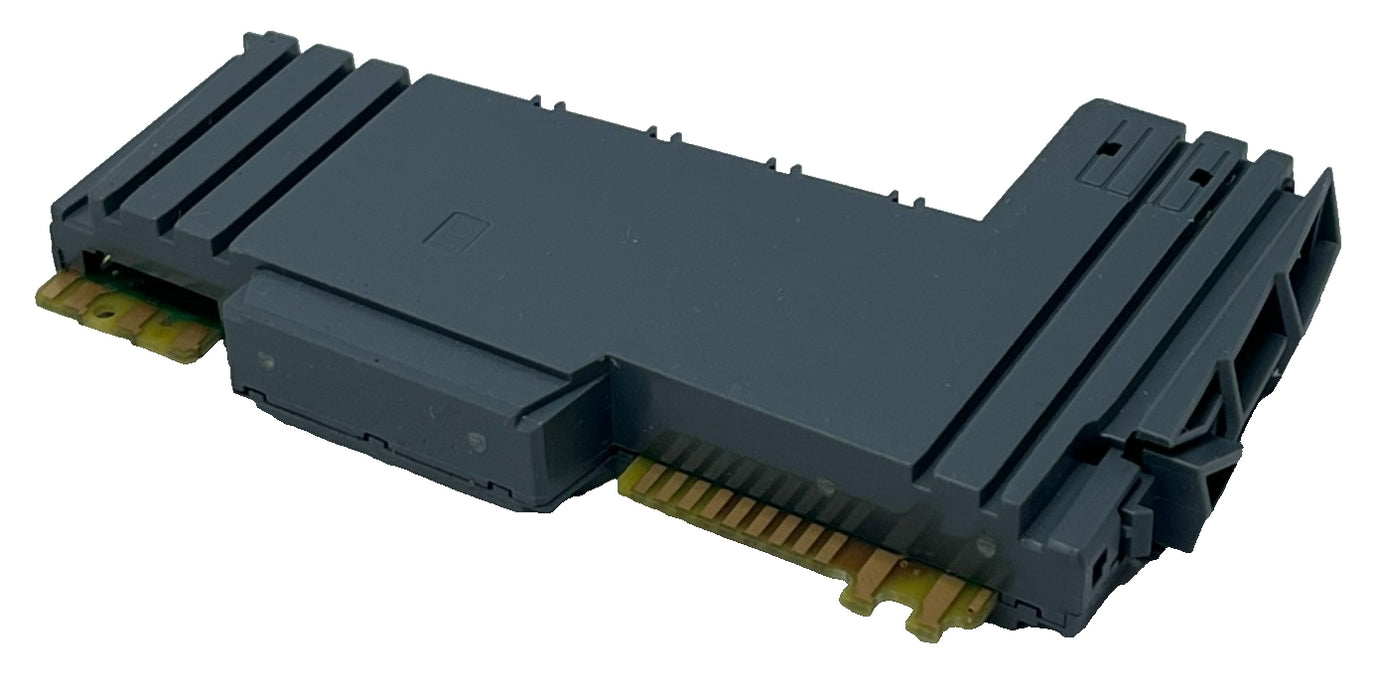

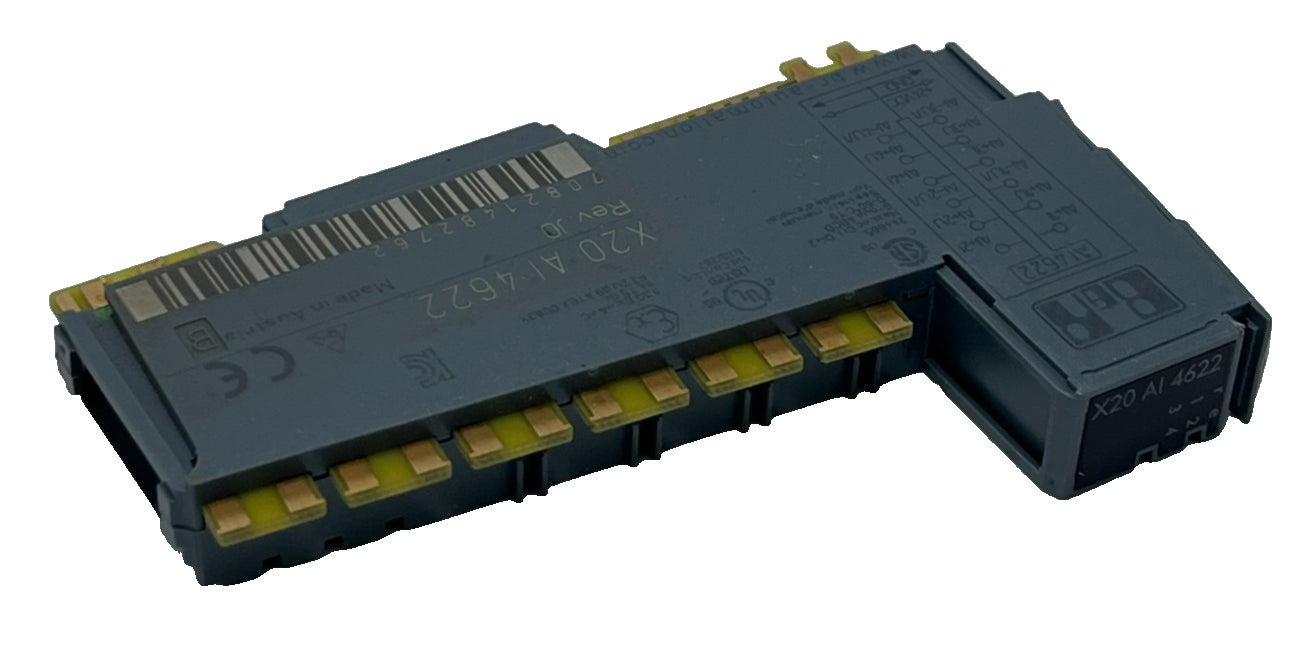

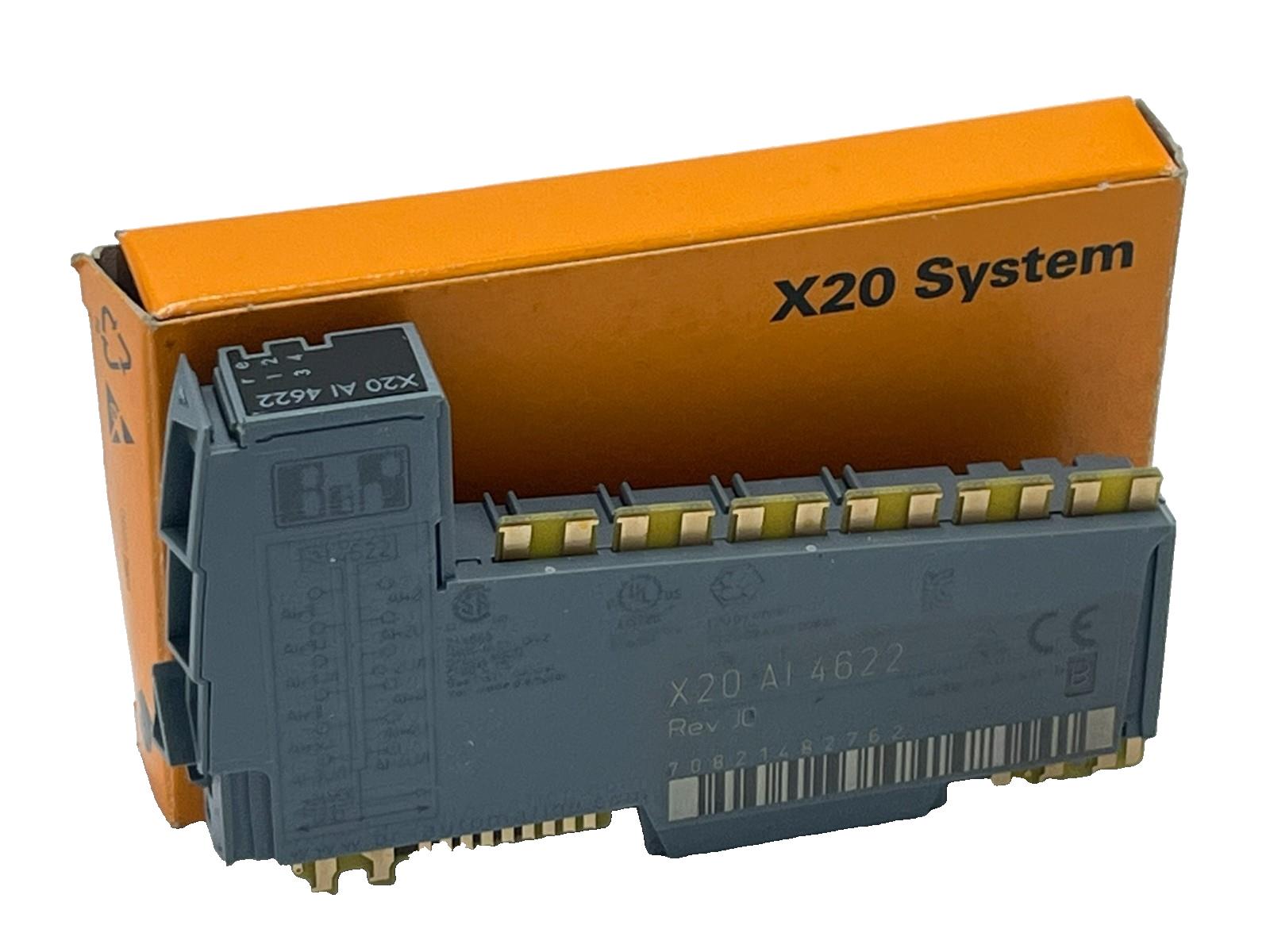

B&R X20AI4622 Analog Input Module 4-Channel ±10V / 0-20mA X20 System PLC, NSMP
$250.00
B&R X20AI4622 Analog Input Module 4-Channel ±10V / 0-20mA X20 System PLC- Brand: B&R Industrial Automation
- MPN: X20AI4622
- Model: X20 System
- Type: PLC Analog Input Module
- Number of Inputs: 4 Channels
- Input Signal Range: ±10 V or 0 to 20 mA / 4 to 20 mA
- Resolution: 13-bit (including sign)
- Country/Region of Manufacture: Austria
- Industry: Industrial Automation / PLC Control
B&R Industrial Automation X20AI4622 Analog Input Module
This listing is for a genuine analog input module. This high-performance 4-channel module is part of the versatile B&R X20 System, designed for precision data acquisition and process monitoring in industrial automation environments.
The features four independent analog inputs that can be individually configured for either voltage (±10 V) or current (0 to 20 mA or 4 to 20 mA) signals using different terminal connection points. With 13-bit converter resolution and a configurable software input filter, it provides stable and accurate signal processing for a wide variety of industrial sensors.
Key Features:
- 4 Configurable Inputs: Flexible measurement of either ±10V voltage or 0/4-20mA current signals.
- 13-Bit Resolution: High-precision SAR (Successive Approximation Register) digital conversion for accurate monitoring.
- Software Input Filter: Includes a configurable 3rd-order low-pass filter (1 kHz cutoff) to filter out industrial noise.
- Diagnostic LEDs: Integrated LED status indicators for I/O function per channel, operating state, and module status.
- Modular Backplane: Snaps easily onto X20 bus modules (typically X20BM11) for seamless integration into the X2X Link bus.
- Differential Inputs: Designed as differential inputs for improved noise immunity in electrical cabinets.
Specifications:
| Feature | Detail |
|---|---|
| Manufacturer | B&R Industrial Automation |
| Model | X20AI4622 |
| Input Type | 4 x Analog (Voltage/Current) |
| Input Signal | ±10 V / 0 to 20 mA / 4 to 20 mA |
| Resolution | 13-Bit (12-Bit + Sign for Voltage) |
| Conversion Time | 400 µs for all inputs |
| Isolation | 500 Veff (Channel to Bus) |
| Power Consumption | 0.01 W (Bus) / 1.1 W (Internal I/O) |
| Operating Temp | -25°C to +60°C (Horizontal mounting) |
CONDITION: NSMP - New Surplus Manufacturer Package (OEM)
WARRANTY: 120 DAYS
SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST.
(CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT)
