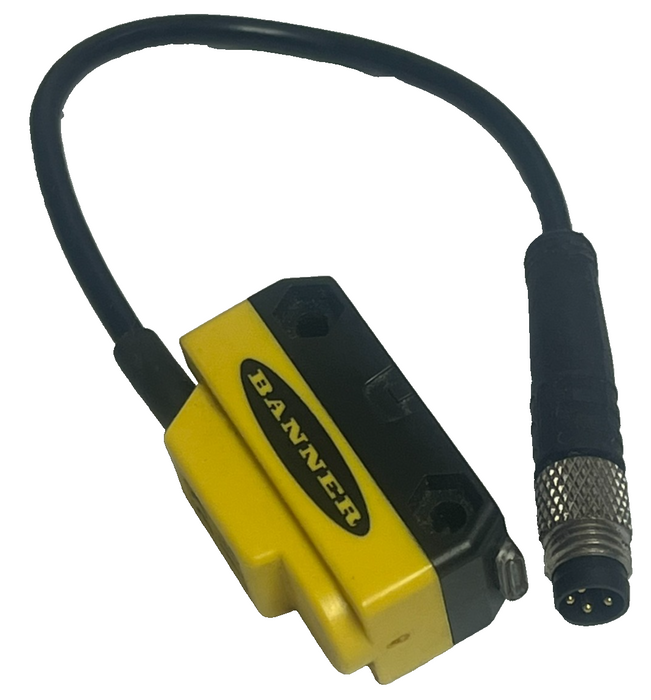

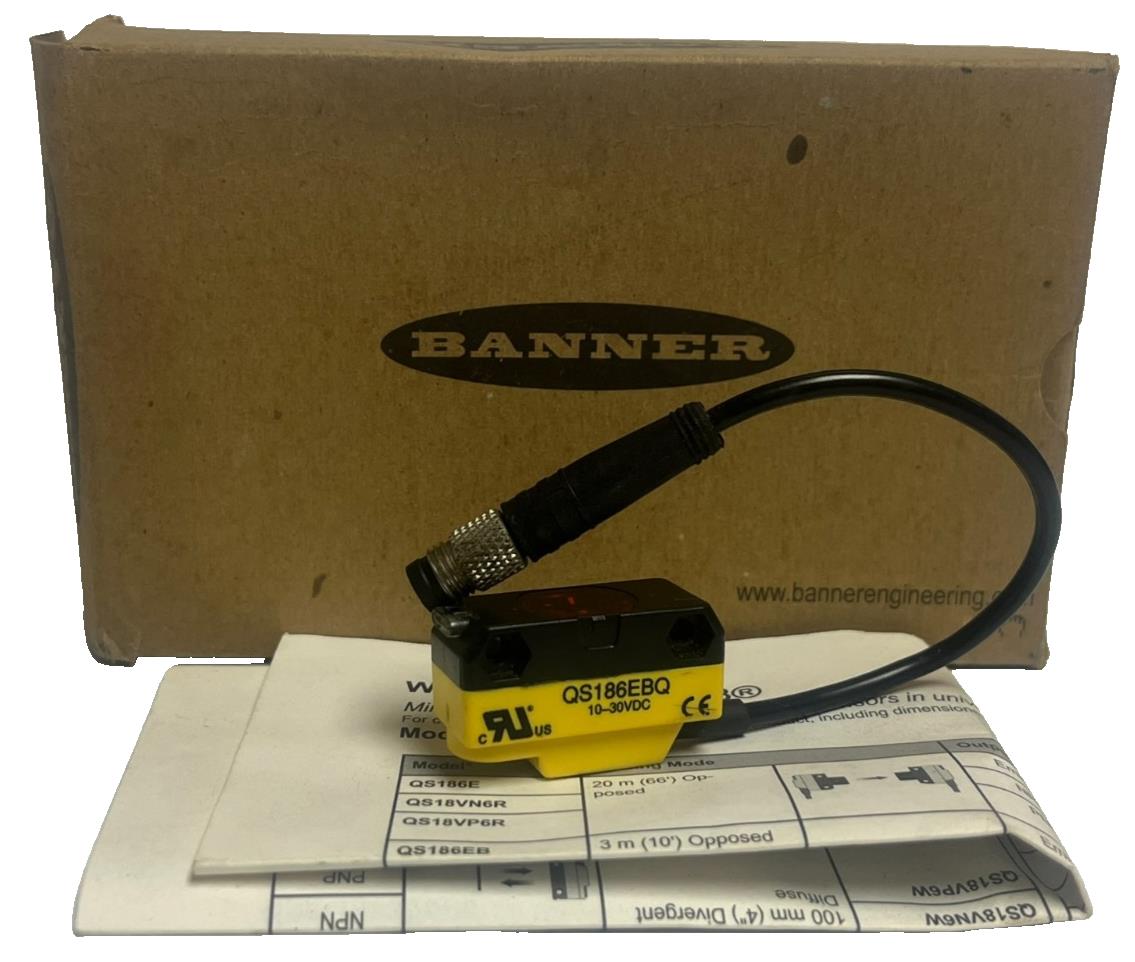

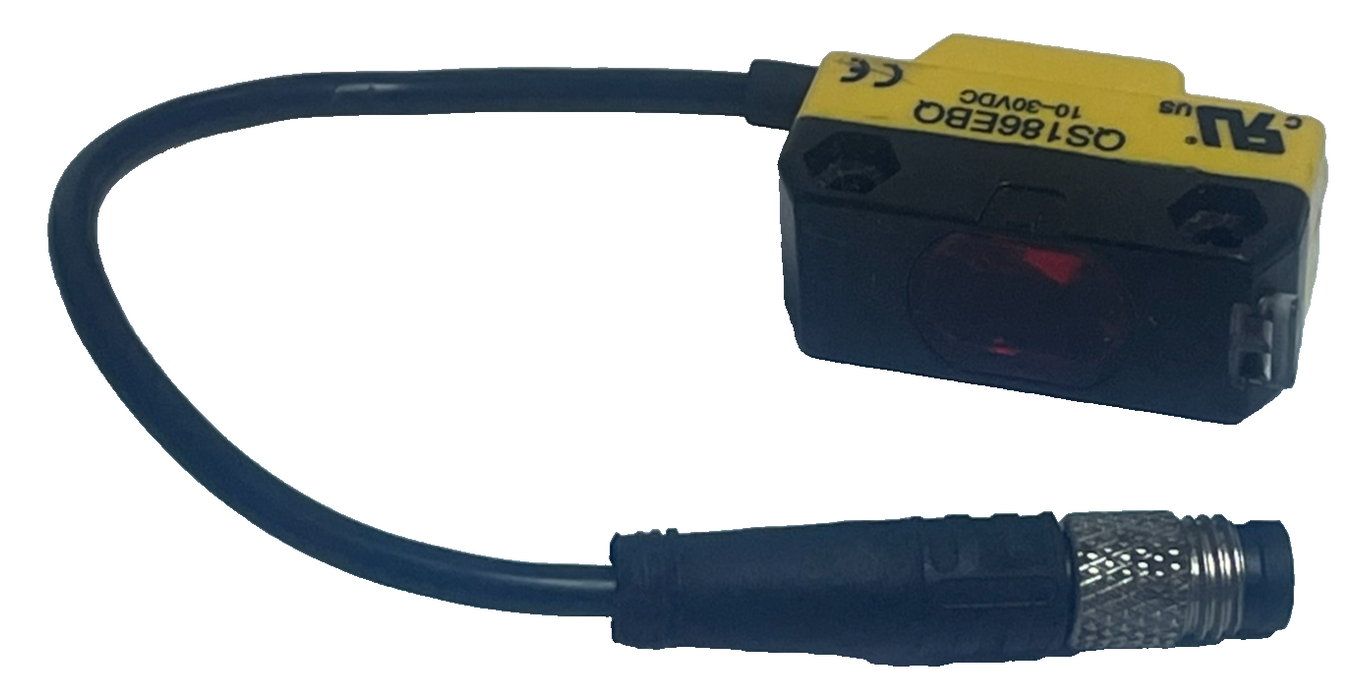

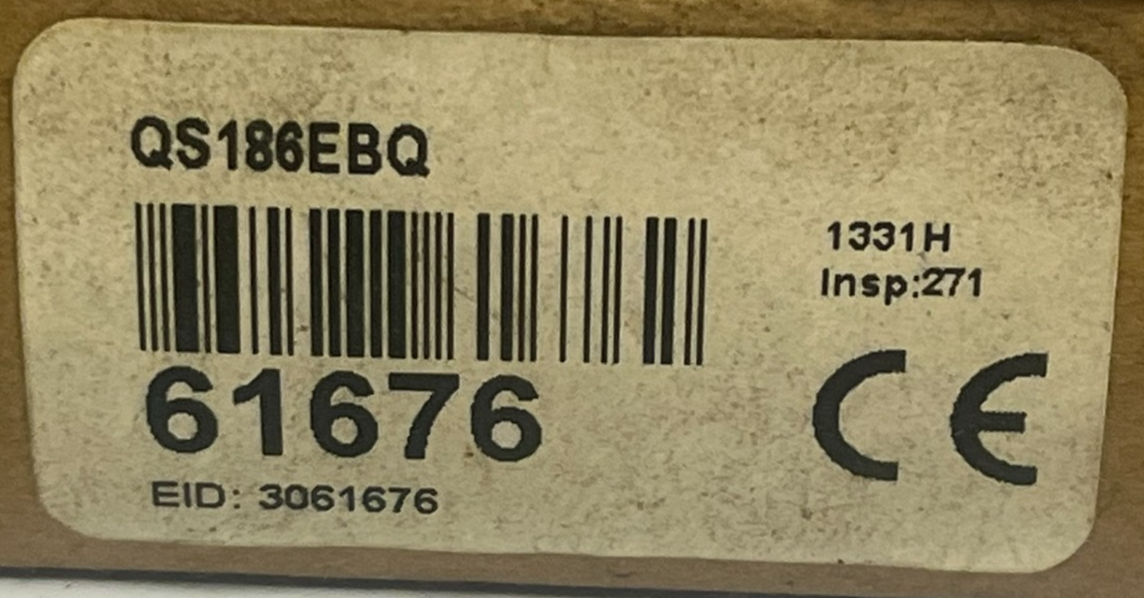

BANNER QS186EBQ Photoelectric Sensor Diffuse Mode 18mm Barrel 6" Range M12 NPN
$59.95
BANNER QS186EBQ Photoelectric Sensor Diffuse Mode 18mm Barrel 6" Range M12 NPNKey Features:
- Diffuse Sensing Mode: Detects targets by using light reflected from the object itself (Self-Contained/Proximity).
- Fixed Short Range: Reliable detection up to 6 inches (150 mm), ideal for precise placement in assembly applications.
- NPN Output: Standard NPN Normally Open output for compatibility with common PLC inputs.
- M12 Quick Disconnect: Uses a standard 4-pin M12 connector for fast installation and maintenance.
- High Environmental Rating: IP67 and NEMA 6 rated, protecting against dust and water immersion/washdown.
- Diagnostic LEDs: Integrated LED indicators provide immediate visual feedback for power and output status.
Technical Specifications (2026 Reference Data):
| Feature | Detail |
|---|---|
| Manufacturer | Banner Engineering |
| Part Number | QS186EBQ |
| Sensing Mode | Diffuse (Proximity) |
| Max Range | 6 inches (150 mm) |
| Operating Voltage | 10 to 30 VDC |
| Output Type | NPN (N.O. - Normally Open) |
| Connection | M12 QD 4-Pin |
| Housing Style | 18mm Threaded Barrel |
| Enclosure Rating | IP67 / NEMA 6 |
CONDITION: NSMP - New Surplus Manufacturer Package (OEM)
WARRANTY: 120 DAYS
SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST.
(CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT)
