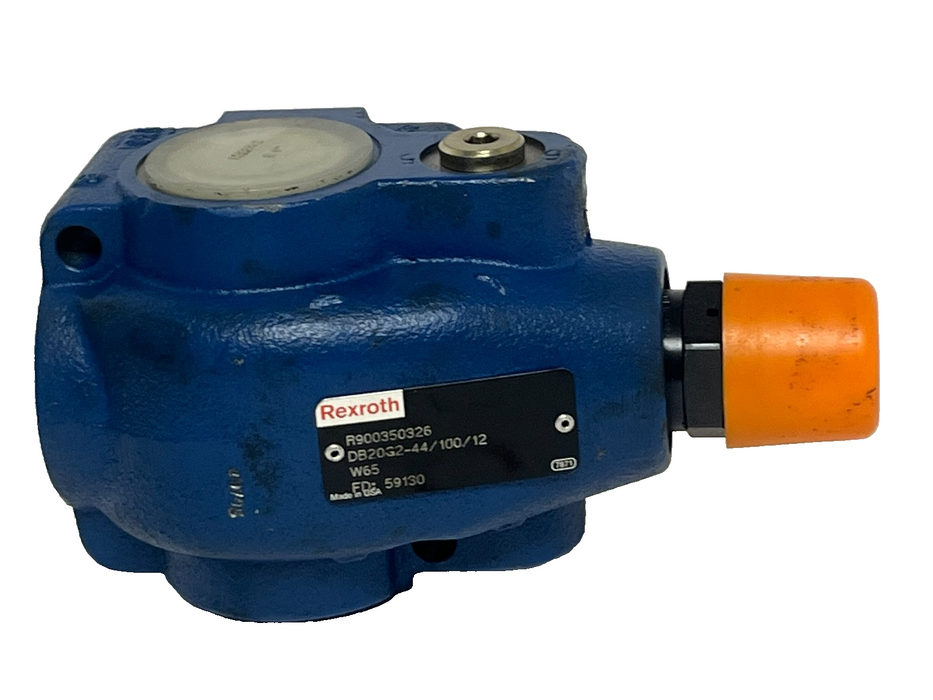

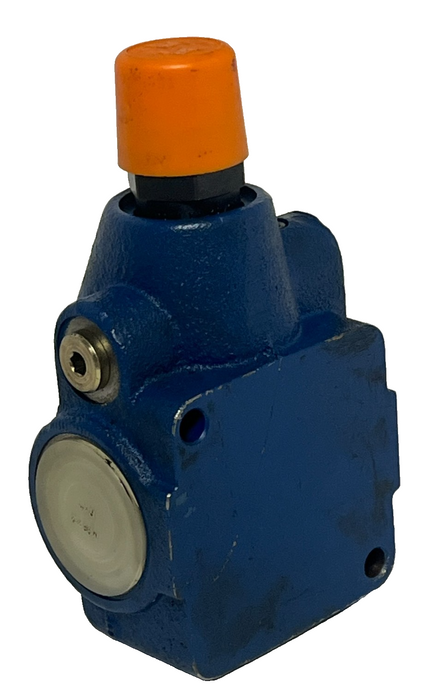

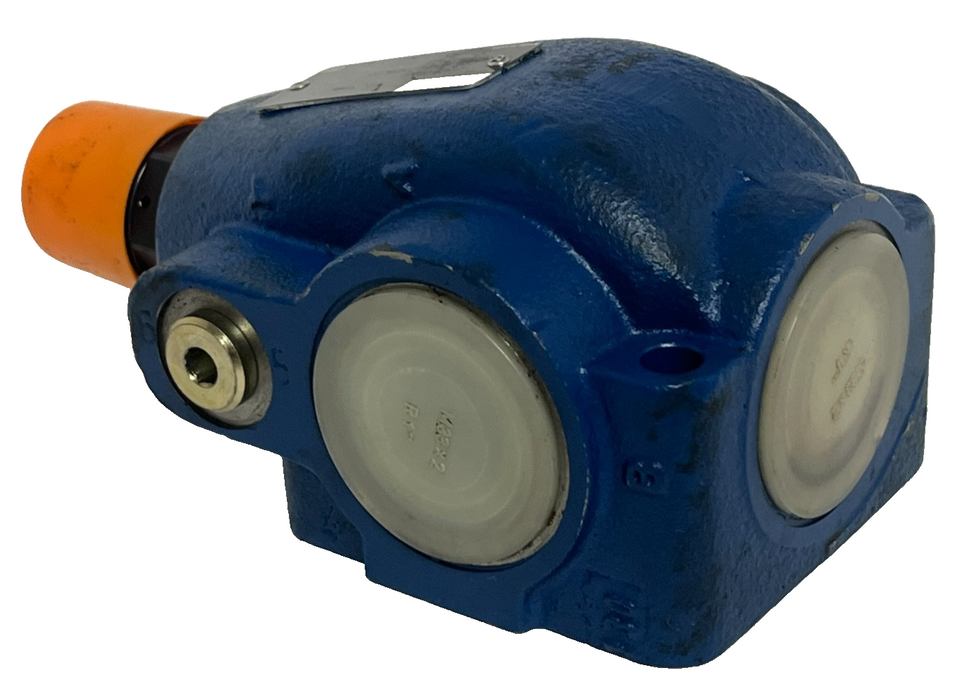

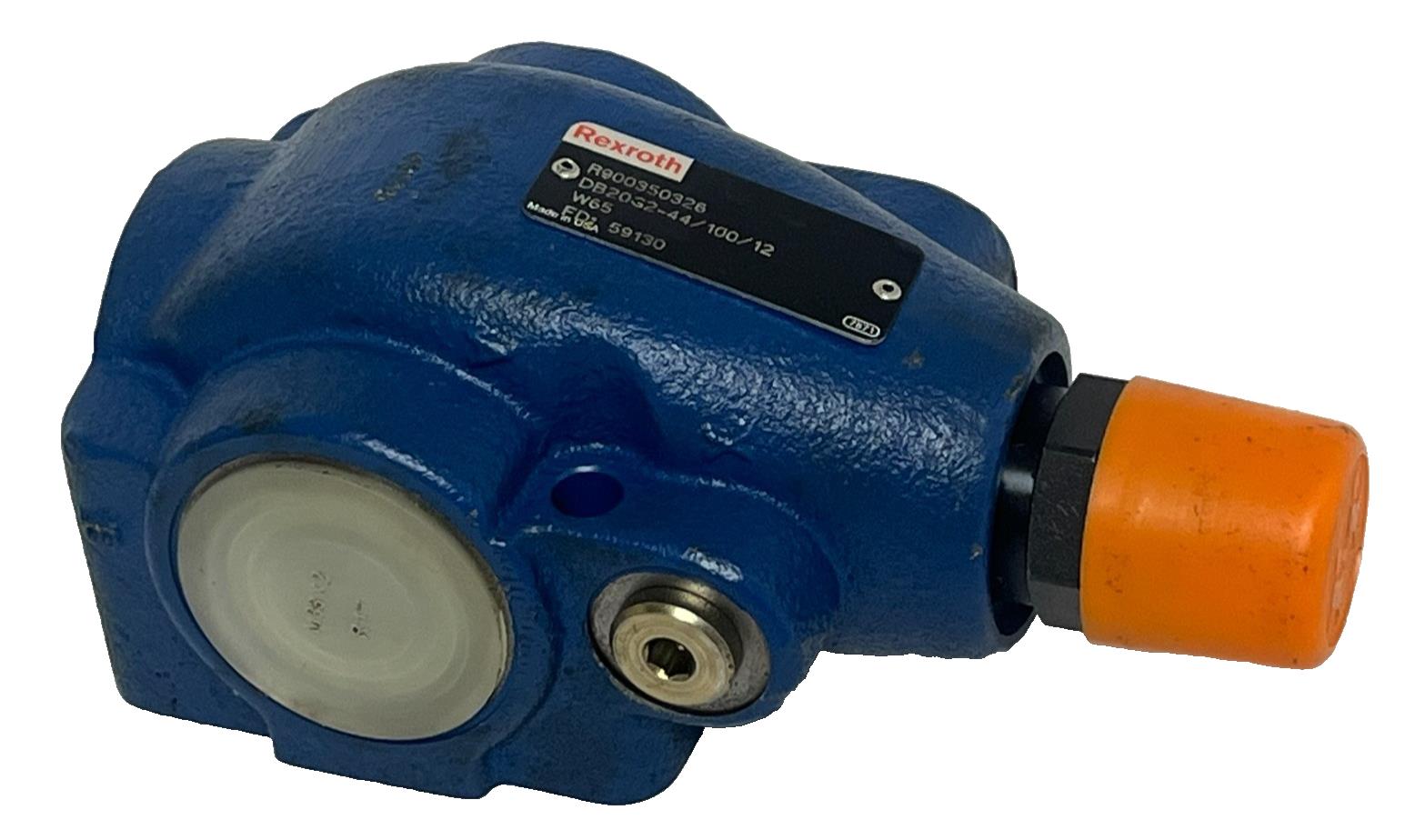

Bosch Rexroth R900350326 Pressure Relief Valve - DB20G2-4X/100/12W65 - NG20

Bosch Rexroth R900350326 Pressure Relief Valve - DB20G2-4X/100/12W65 - NG20

UNUSED SURPLUS ITEM, SOME COSMETIC SHELF WEAR, OTHERWISE IN EXCELLENT CONDITION

Technical Specifications:

• Part Number: R900350326

• Model Code: DB20G2-4X/100/12W65

• Valve Type: Pilot-Operated Pressure Relief

• Size (NG): 20

• Pressure Rating: Set pressure up to 100 bar (approx. 1450 psi)

• Max Operating Pressure: 350 bar (5076 psi)

• Adjustment Type: Internal hexagon with protective cap

• Mounting Type: Threaded connection (G 1 porting)

• Seal Material: NBR (Buna-N)

• Weight: 3.3 kg (approx. 7.3 lbs)

Key Features:

• Stable Control: The pilot-operated design ensures consistent pressure relief even during fluctuations in flow.

• Versatile Application: Suitable for a wide range of hydraulic fluids including mineral oils (HL, HLP), bio-degradable oils, and flame-resistant fluids.

• Component Series 4X: Part of the reliable 4X series, known for long service life and standardized mounting dimensions.

• Adjustability: Features an internal hexagon adjustment mechanism for secure, tamper-resistant pressure settings.
