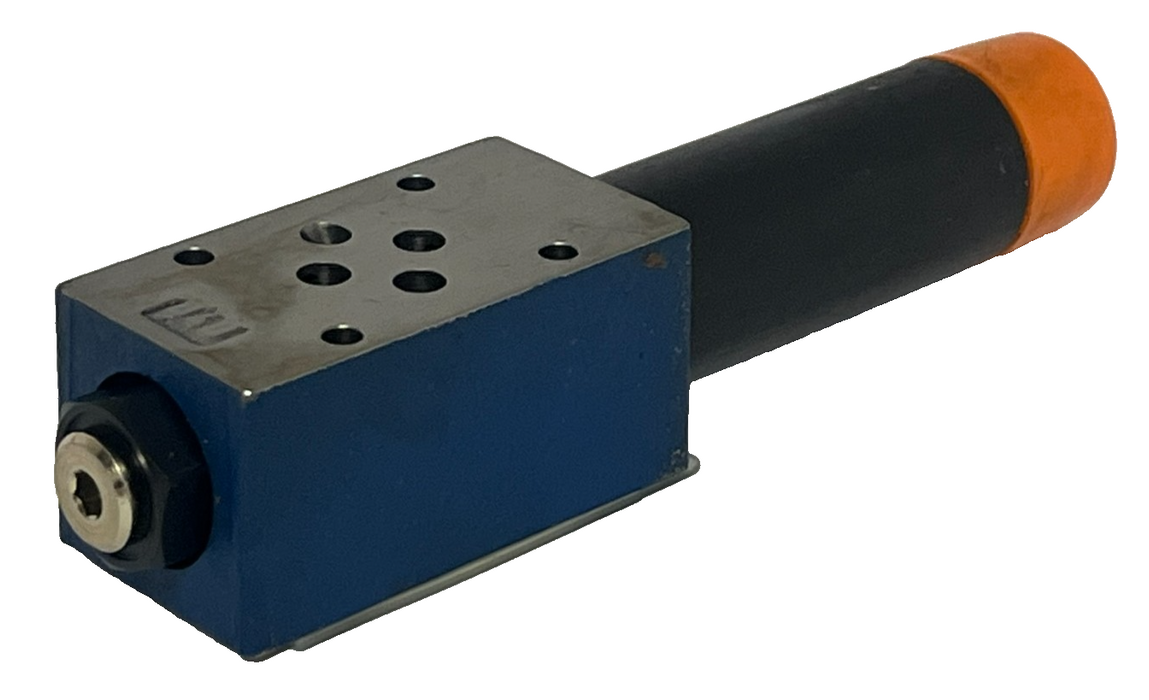

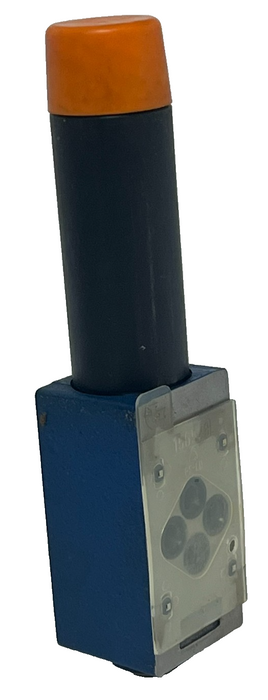

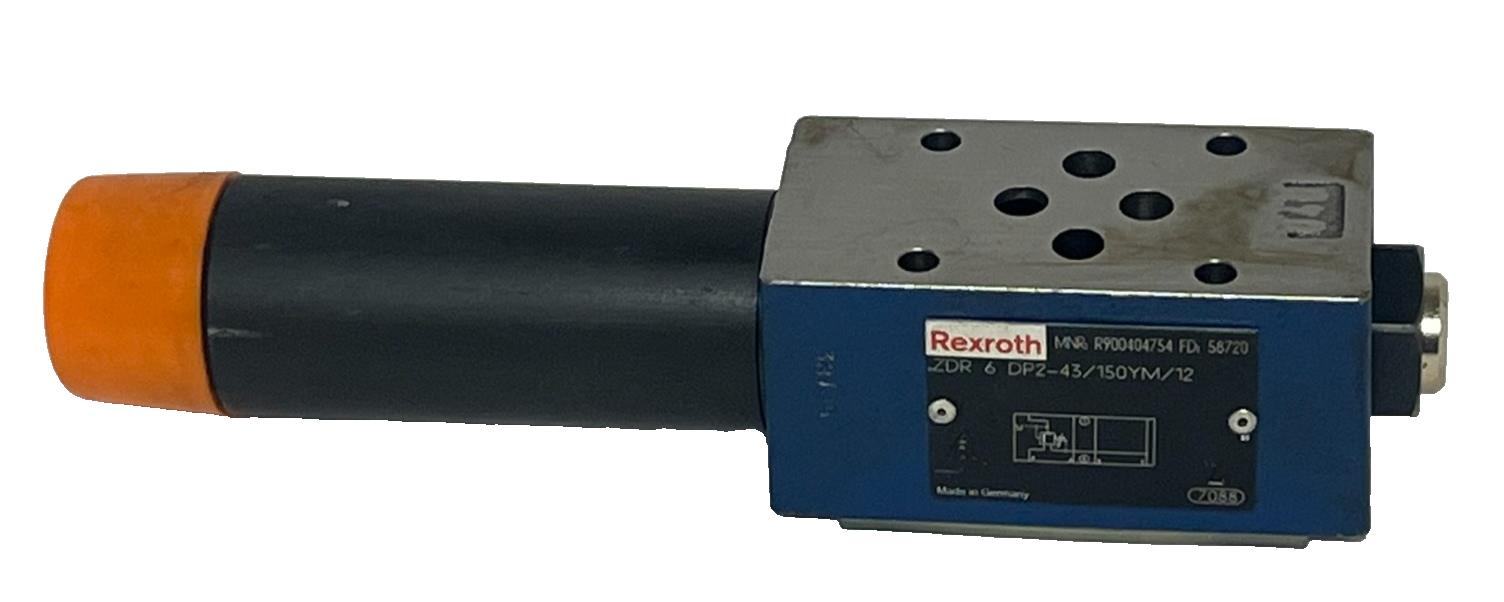

Bosch Rexroth R900404754 Pressure Reducing Valve - ZDR6DP2-4X/150YM/12 - NG6
Bosch Rexroth R900404754 Pressure Reducing Valve - ZDR6DP2-4X/150YM/12 - NG6
Technical Specifications:

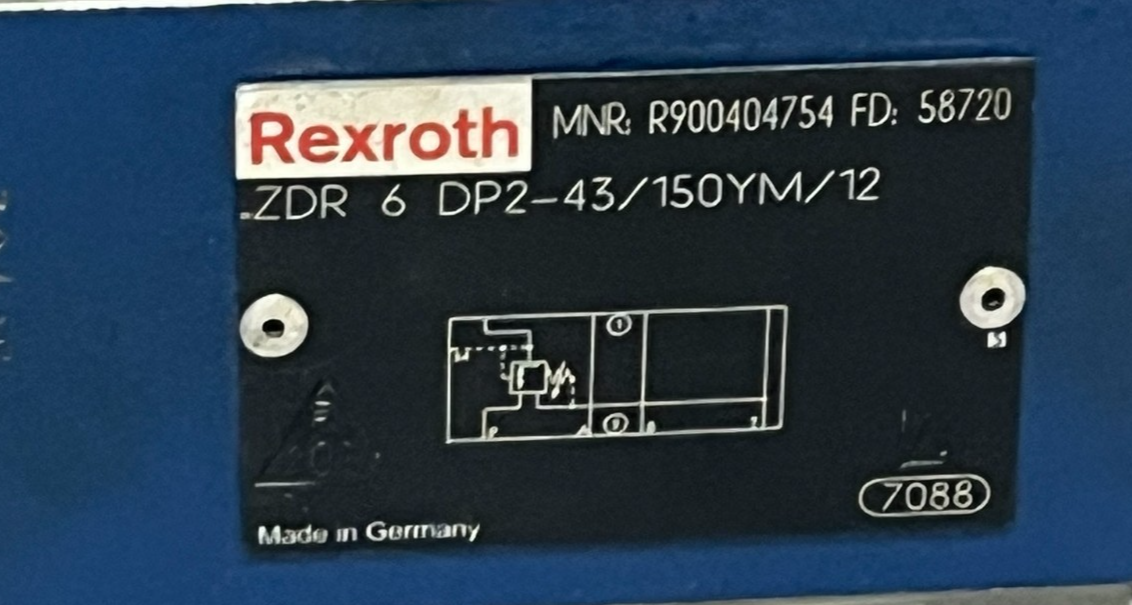

Part Number: R900404754
Model Code:
ZDR6DP2-4X/150YM/12 Valve Type: 3-Way Direct Operated Pressure Reducing Valve
Size (NG): 6 (D03 / CETOP 3)
Pressure Adjustment Range: 5 to 150 bar (72 to 2175 psi)
Max Operating Pressure: 350 bar (5076 psi)
Max Flow Rate:
50 L/min (approx. 13.2 GPM) Adjustment Type: Sleeve with hexagon and protective cap
Mounting Pattern:
ISO 4401-03-02-0-05 Seal Material: NBR (Buna-N)
Weight:
1.44 kg (approx. 3.17 lbs)
Key Features:
Sandwich Plate Design: Ideal for stacking in modular valve manifolds to save space and reduce piping.
Reliable Pressure Limitation: Ensures the secondary circuit remains at the preset pressure even if the primary system pressure fluctuates.
Corrosion Protection: Designed for durability in harsh environments with a corrosion-resistant finish.
Internal Pilot Supply: Features internal pilot oil supply and external leakage oil drain (Type Y).
Versatile Compatibility: Suitable for use with mineral oils (HL, HLP) and flame-resistant fluids (HFC).
