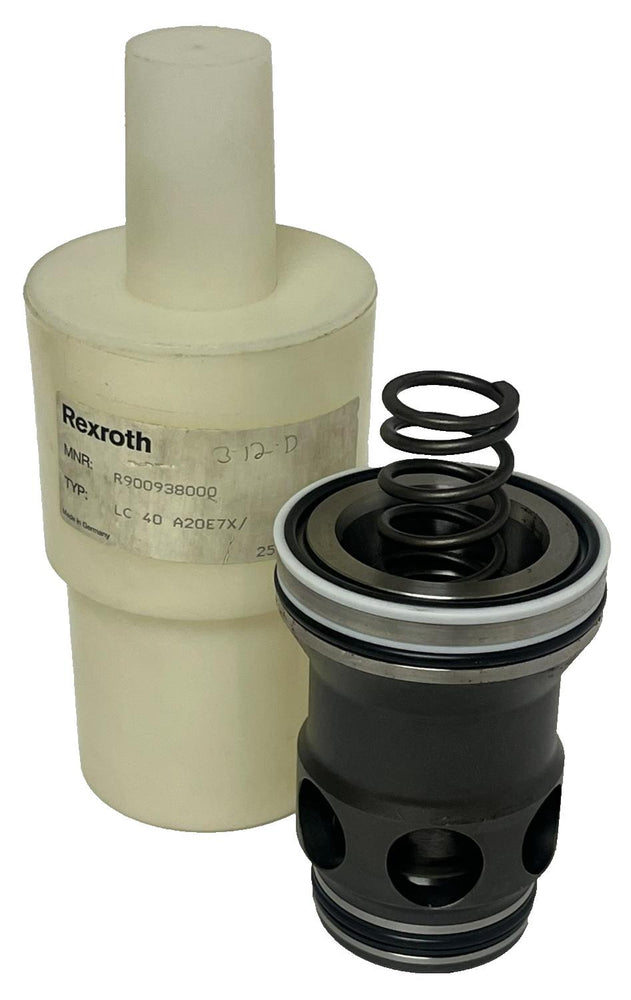

Bosch Rexroth R900938000 Logic Cartridge Valve - LC40A20E7X/ - NG40 2-Way, NSMP

Technical Specifications:

• Part Number: R900938000

• Model Code: LC40A20E7X/

• Size (NG): 40

• Function: Directional Control (A → B, B → A)

• Cracking Pressure: Approx. 2 bar (29 psi)

• Max Operating Pressure: 350 bar (5076 psi)

• Max Flow Rate: Up to 400 L/min

• Area Ratio (A1:A2): 2:1 (Standard for directional functions)

• Seals: NBR (Buna-N)

• Weight: 1.78 kg (3.92 lbs)

Key Features:

• Modular Design: Optimized for compact block installation using standardized ISO 7368-10-7-1-16 cavities.

• Versatile Actuation: Hydraulically pilot-operated seat valve design ensuring leak-free blocking of flow in one direction.

• Damping Function: Includes an internal poppet damping feature for smoother switching and reduced hydraulic shock.

• Compatibility: Works with a wide range of fluids including HLP, HVLP, and HFC fire-resistant hydraulic oils.
