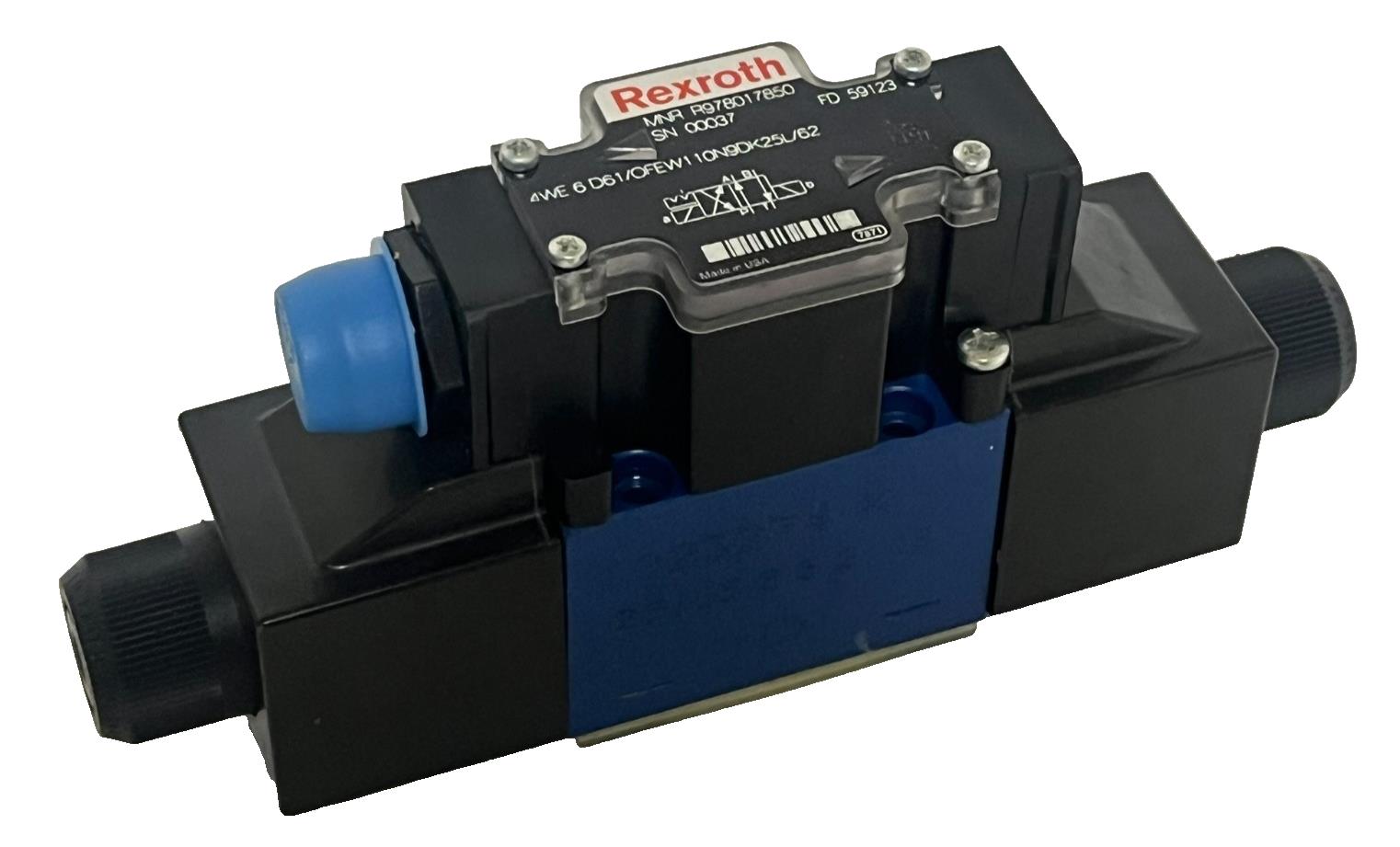

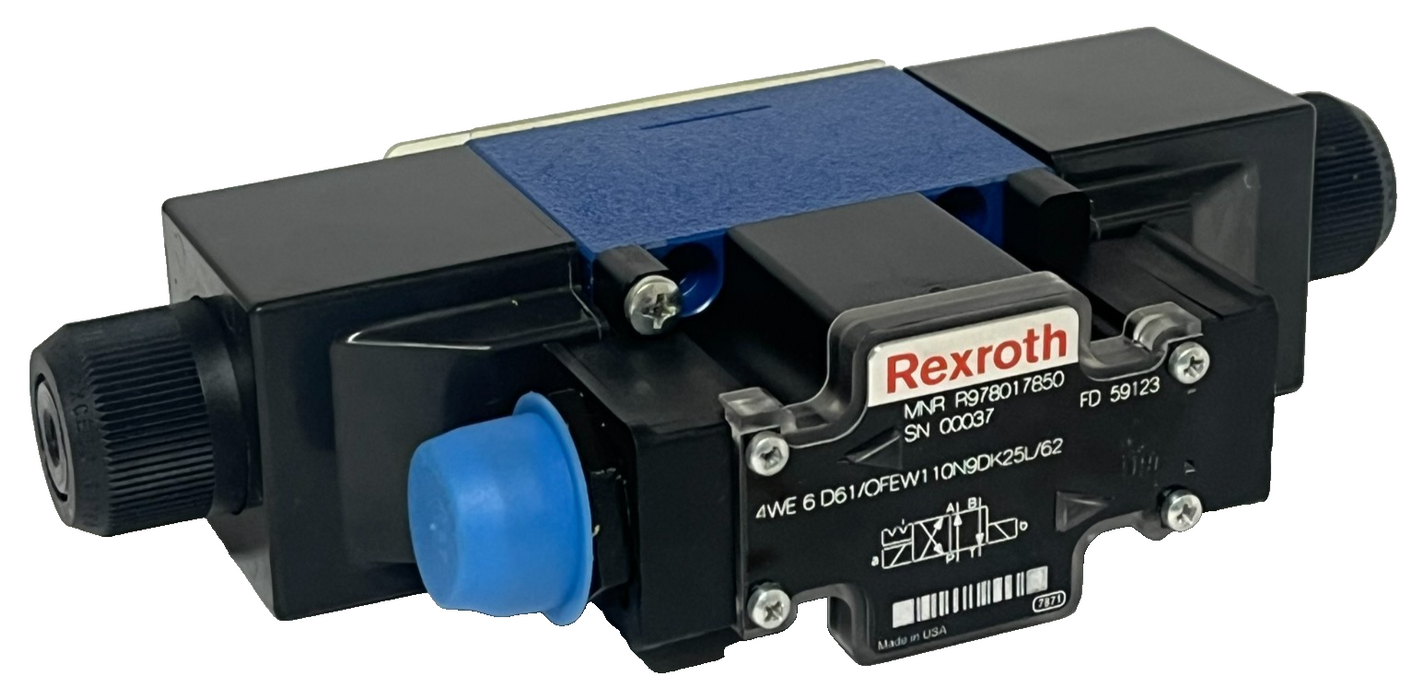

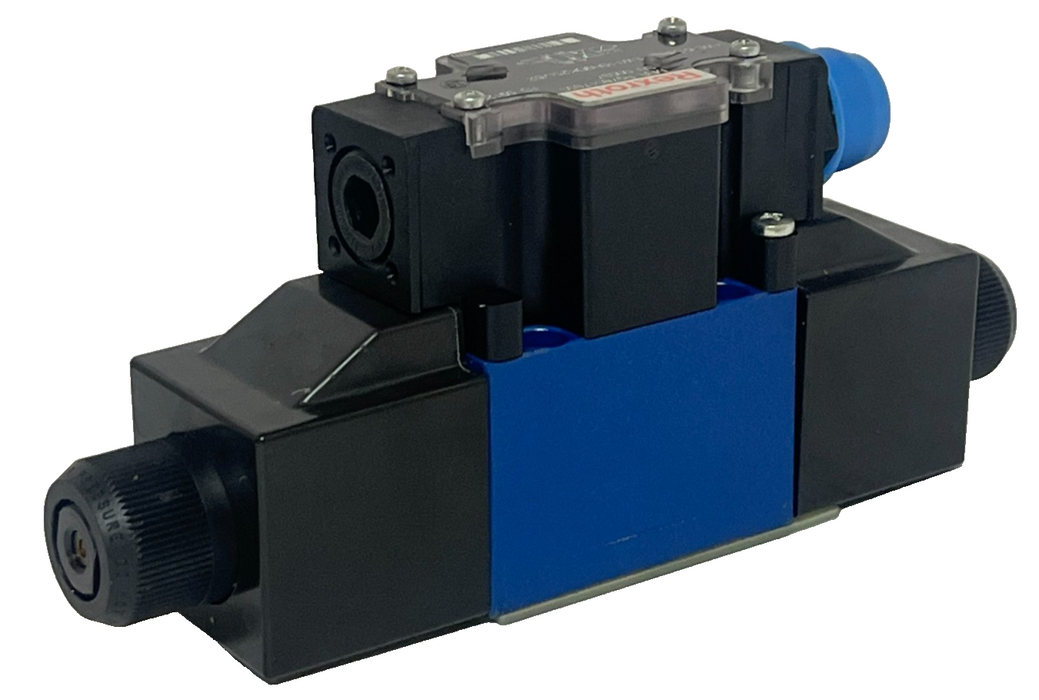

Bosch Rexroth R978017850 Directional Spool Valve - 4WE 6 D62/OFEW110N9DK25L/62
Bosch Rexroth R978017850 Directional Spool Valve - 4WE 6 D62/OFEW110N9DK25L/62
Technical Specifications:
Part Number: R978017850
Model Code:
4WE 6 D62/OFEW110N9DK25L/62 Valve Type:
Directional Spool Valve Configuration: 4-Way, 2-Position (4/2)
Spool Symbol: D (With Detent)
Control Voltage: 110V AC (50/60 Hz) / 120V AC (60 Hz)
Max Flow Rate: Approx.
16 GPM (60 L/min) Max Operating Pressure: 350 bar (5076 psi)
Electrical Connection: 5-pin male connector (with LED status indicator)
Manual Override: Concealed "N9" type
Seals: NBR (Buna-N)
Key Features:
Detent Spool: The "D" symbol with detent ensures the spool remains in its last switched position even after the solenoid is de-energized.
Heavy-Duty Build: Designed for high-pressure industrial applications with high-power wet-pin solenoids and detachable coils.

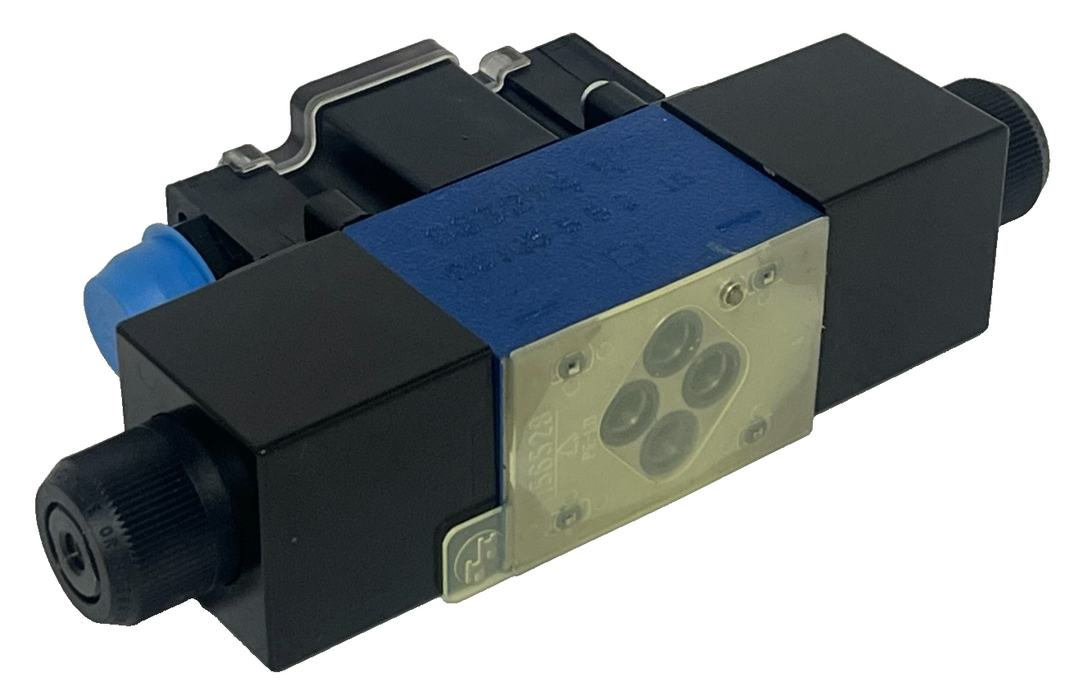

Subplate Mounting: Standardized porting pattern according to
ISO 4401-03-02-0-05 Integrated LED: Provides clear visual confirmation of the electrical switching state directly on the valve connector.
