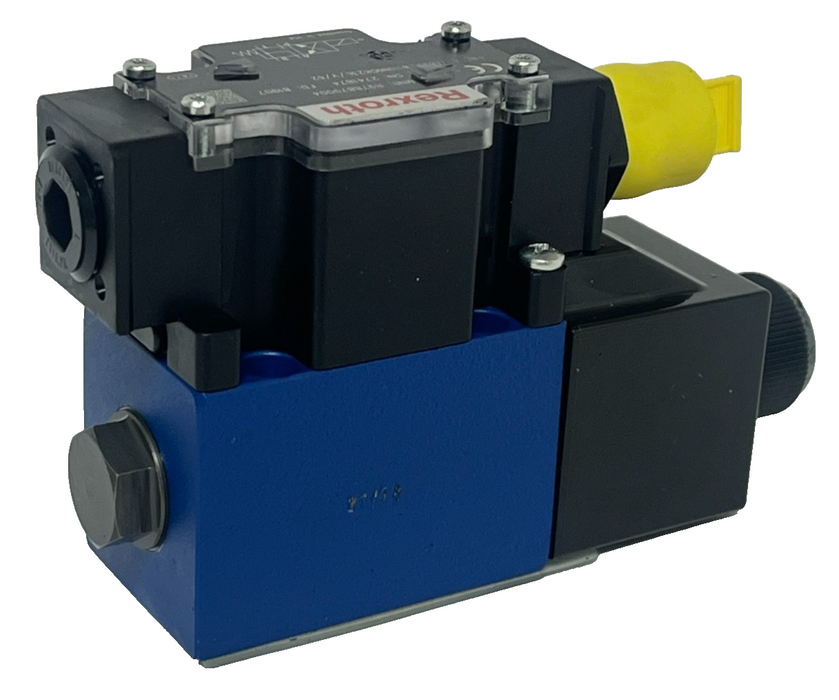

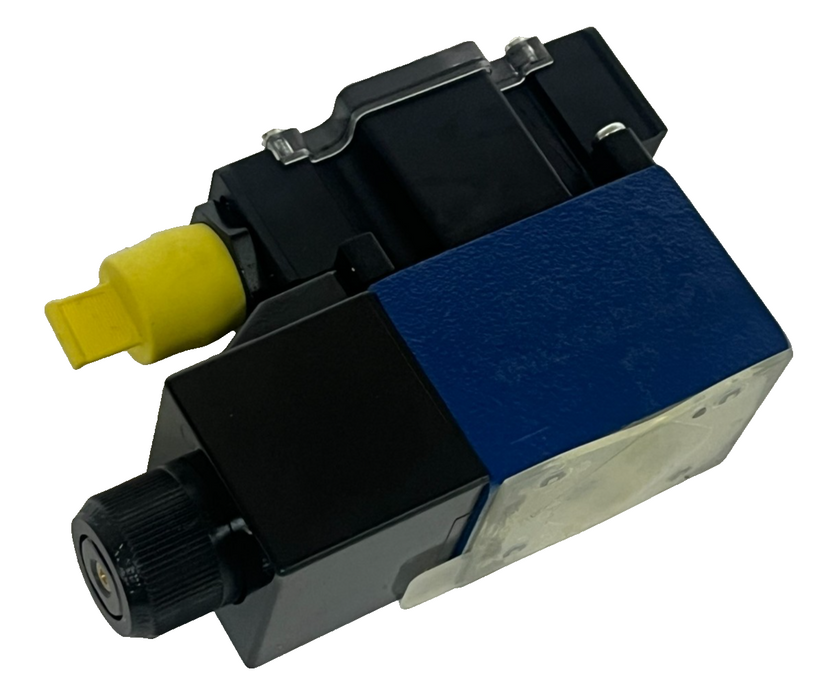

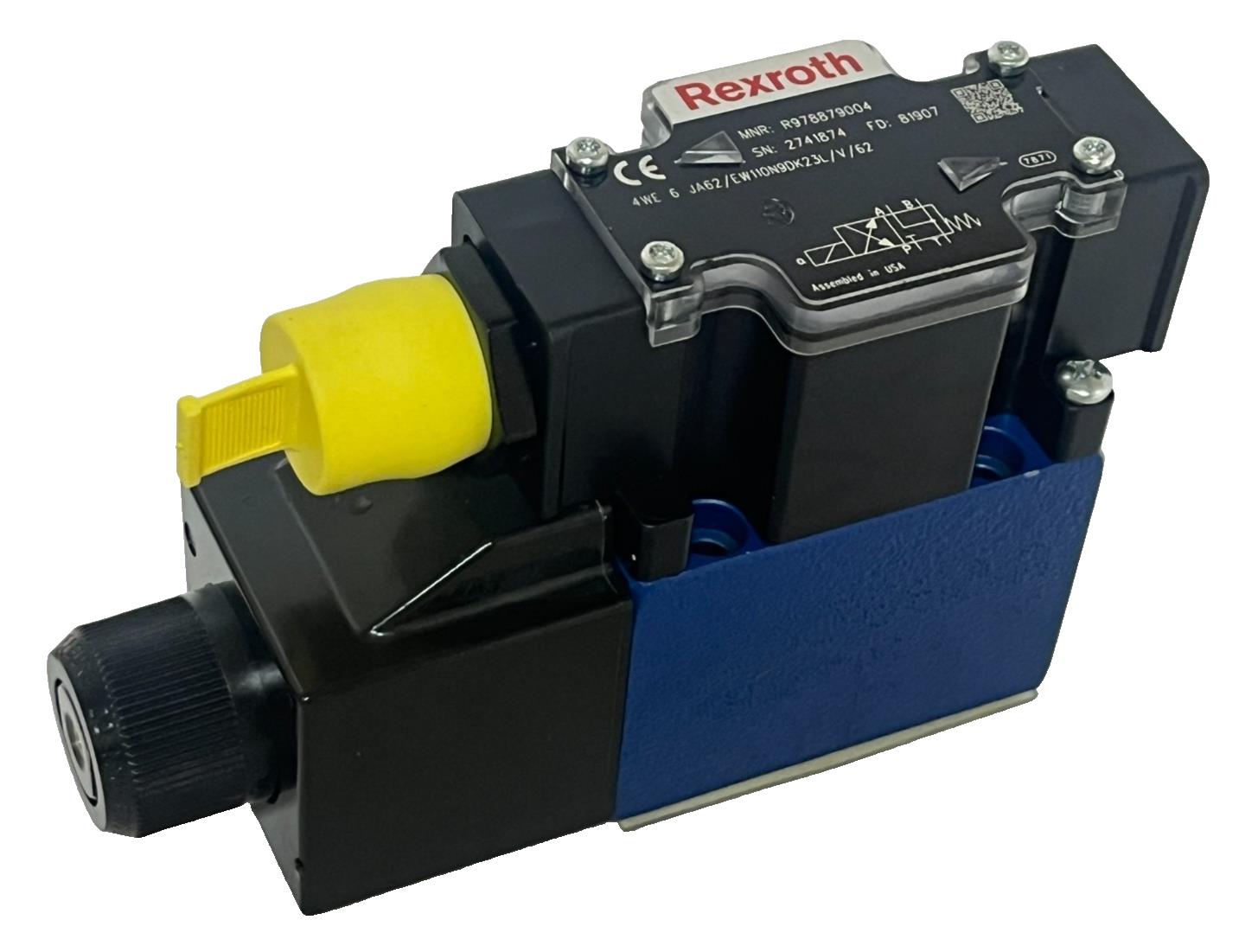

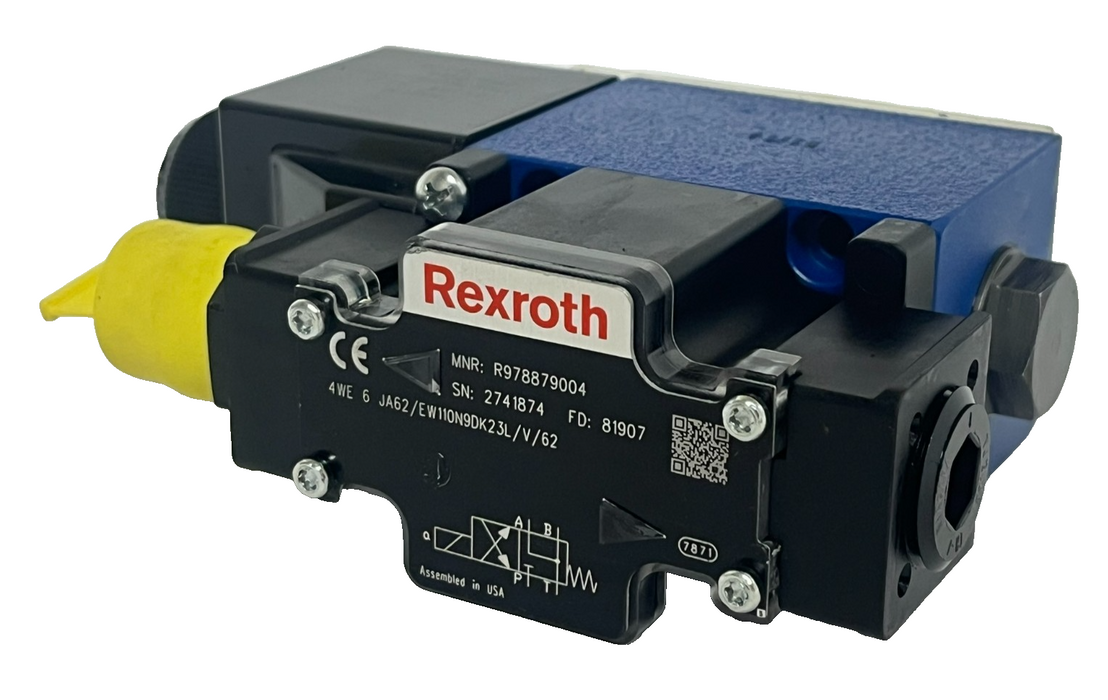

Bosch Rexroth R978879004 Directional Spool Valve - 4WE6JA6X/EW110N9DK23L/V/62

Bosch Rexroth R978879004 Directional Spool Valve - 4WE6JA6X/EW110N9DK23L/V/62

Technical Specifications:

• Part Number: R978879004

• Model Code: 4WE6JA6X/EW110N9DK23L/V/62

• Valve Type: Directional Spool Valve (Direct Actuated)

• Size (NG): 6 (CETOP 3 / D03)

• Spool Symbol: Symbol J

• Control Voltage: 110V AC (50/60 Hz)

• Max Operating Pressure: 350 bar (5076 psi)

• Max Flow Rate: Up to 80 L/min (DC) / 60 L/min (AC)

• Seals: Viton (FKM) — Ideal for high-temperature or specialized fluid applications.

• Manual Override: Included (Concealed "N9" type)

• Connection Pattern: ISO 4401-03-02-0-05

Key Features:

• Robust Design: Featuring wet-pin AC solenoids with detachable coils for easy maintenance.

• Reliable Switching: Proven component series 6X technology for long-service-life industrial applications.

• Standardized Mounting: Fits all standard NFPA D03 / ISO 4401-03 subplates and manifolds.

• Environmental Compatibility: Equipped with Viton seals for enhanced chemical and heat resistance compared to standard NBR.
