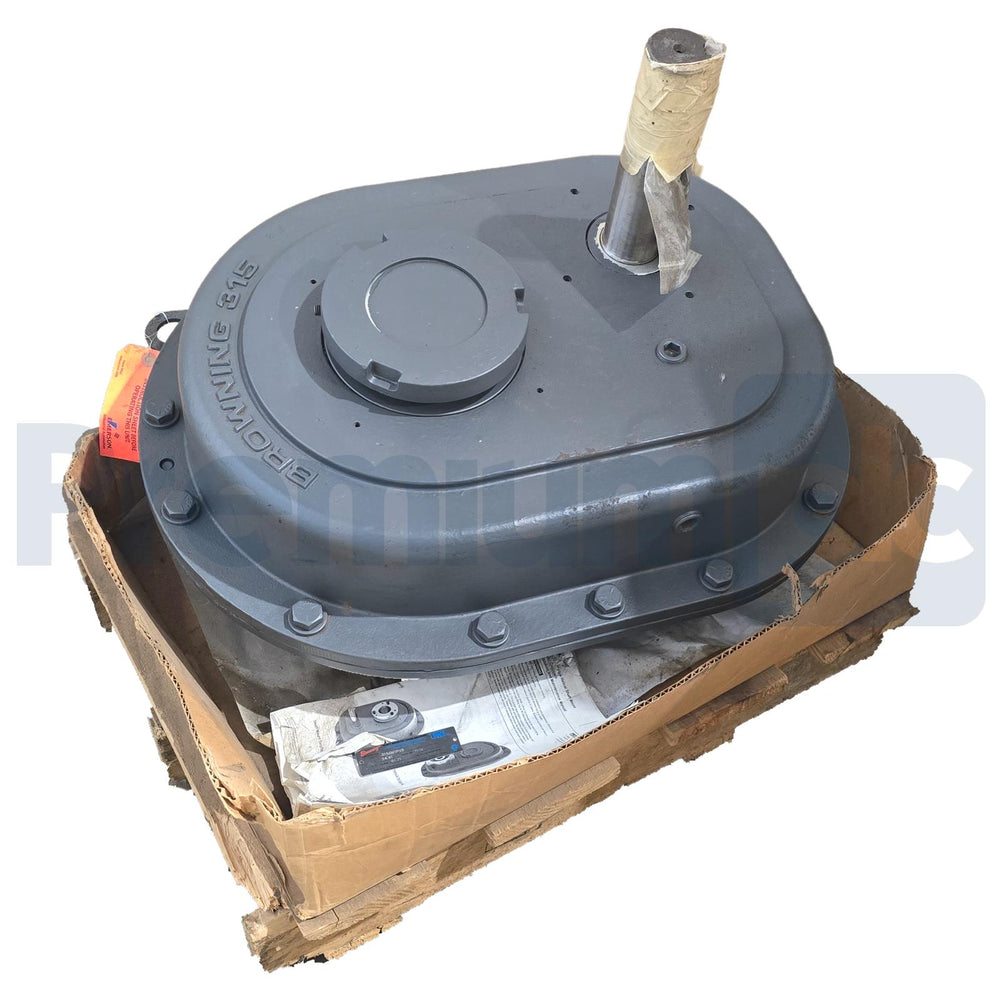

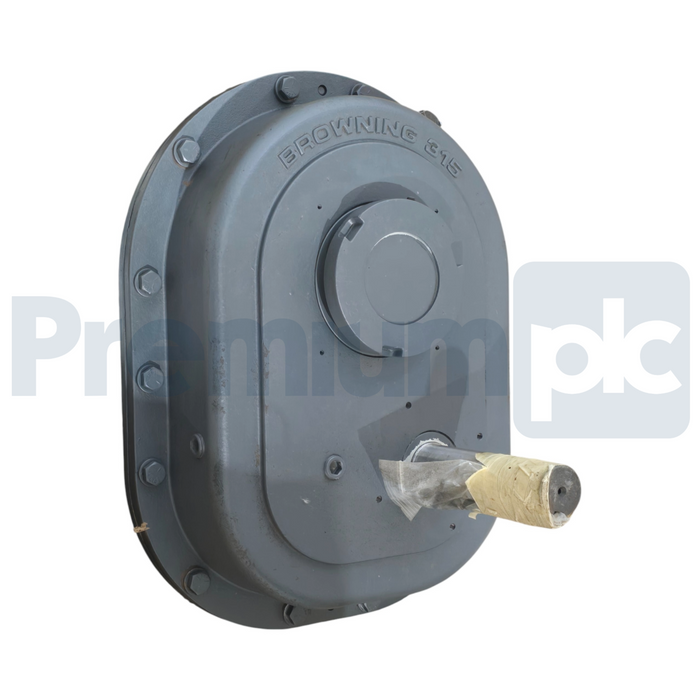

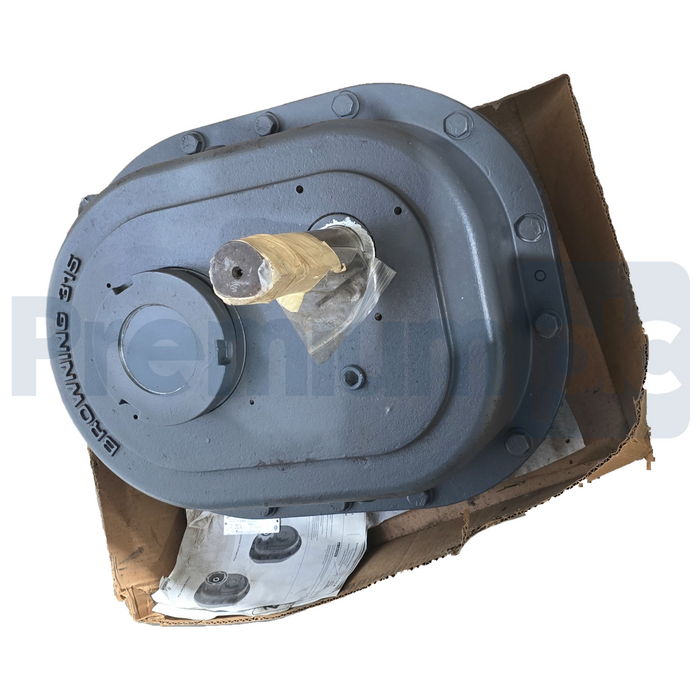

BROWNING 315SMTP-25 / 315SMPT25 SHAFT MOUNT SPEED REDUCER 25:1 P/N: PH0004 NSNP
Sold out
$14,500.00
BROWNING 315SMTP-25 / 315SMPT25 SHAFT MOUNT SPEED REDUCER 25:1 P/N: PH0004 NSNP
Technical Specifications
Efficiency:
80
Input Torque:
36.013 in-Lbs @1750 input rpm, 1 HP
Ratio:
25:1
Output Speed:
70
Input Speed:
1750
Bolt Size (in):
0.625 in
Product Type:
TorqTaper Plus (SMTP)
Housing Width (in):
19.9 in
Standards met:
AGMA
Housing Length (in):
14.5 in
Housing Height (in):
26.35 in
Maximum Output Size (in):
3.9375 in
Ratio Range:
25:1
Maximum Output Bore:
3.9375
Gear Type:
Helical
Reducer Size:
315
Input Style:
Shaft
Mounting Style:
Shaft mount
Output Bore:
Tapered Bushing
Drive Type:
Torque Arm
Maximum Output RPM:
80
Reduction:
Double
Input Shaft Diameter:
2.125
Output Torque Rating (in-lb):
900.34 in-Lbs @1750 input rpm, 1 HP in/lbs
Output Shaft:
Tapered Bore
Housing Material:
Cast Iron
Input Shaft Keyseat (in):
1/2 x 1/2 x 7 1/2 in
| Efficiency: | 80 | Input Torque: | 36.013 in-Lbs @1750 input rpm, 1 HP |
| Ratio: | 25:1 | Output Speed: | 70 |
| Input Speed: | 1750 | Bolt Size (in): | 0.625 in |
| Product Type: | TorqTaper Plus (SMTP) | Housing Width (in): | 19.9 in |
| Standards met: | AGMA | Housing Length (in): | 14.5 in |
| Housing Height (in): | 26.35 in | Maximum Output Size (in): | 3.9375 in |
| Ratio Range: | 25:1 | Maximum Output Bore: | 3.9375 |
| Gear Type: | Helical | Reducer Size: | 315 |
| Input Style: | Shaft | Mounting Style: | Shaft mount |
| Output Bore: | Tapered Bushing | Drive Type: | Torque Arm |
| Maximum Output RPM: | 80 | Reduction: | Double |
| Input Shaft Diameter: | 2.125 | Output Torque Rating (in-lb): | 900.34 in-Lbs @1750 input rpm, 1 HP in/lbs |
| Output Shaft: | Tapered Bore | Housing Material: | Cast Iron |
| Input Shaft Keyseat (in): | 1/2 x 1/2 x 7 1/2 in |
General Specifications
UPC:
662460500362
Weight:
474.00 LB
Packaged Length:
27.50 IN
Packaged Width:
20.00 IN
Packaged Height:
23.50 IN
HTC:
8483.40.1000
Country of Origin:
United States of America
| UPC: | 662460500362 | Weight: | 474.00 LB |
| Packaged Length: | 27.50 IN | Packaged Width: | 20.00 IN |
| Packaged Height: | 23.50 IN | HTC: | 8483.40.1000 |
| Country of Origin: | United States of America |
CONDITION: NSMP - New Surplus Manufacturer Package (OEM).
WARRANTY: 120 DAYS (LIMITED 1 YEAR)
SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST.
(CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT)
