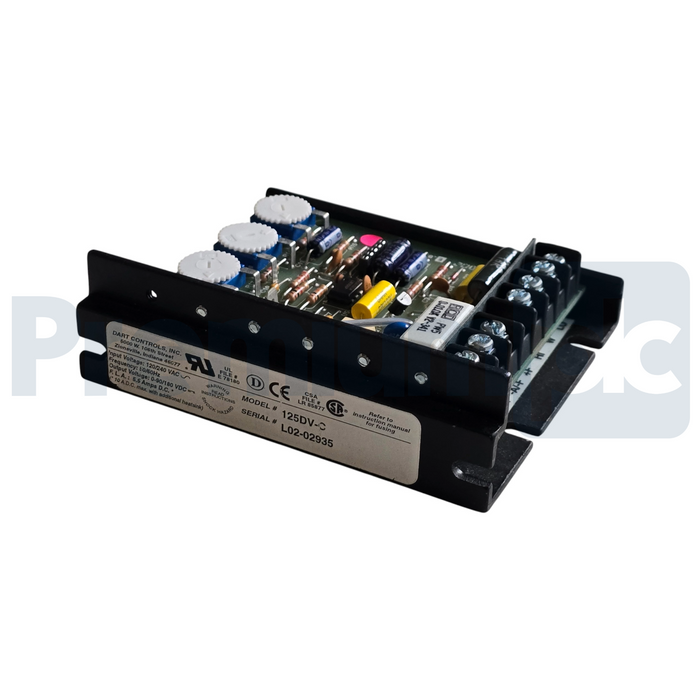

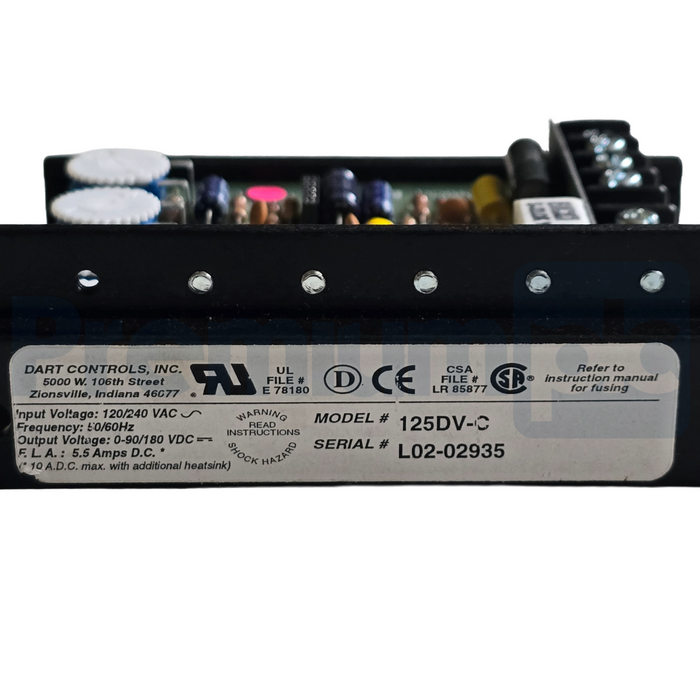

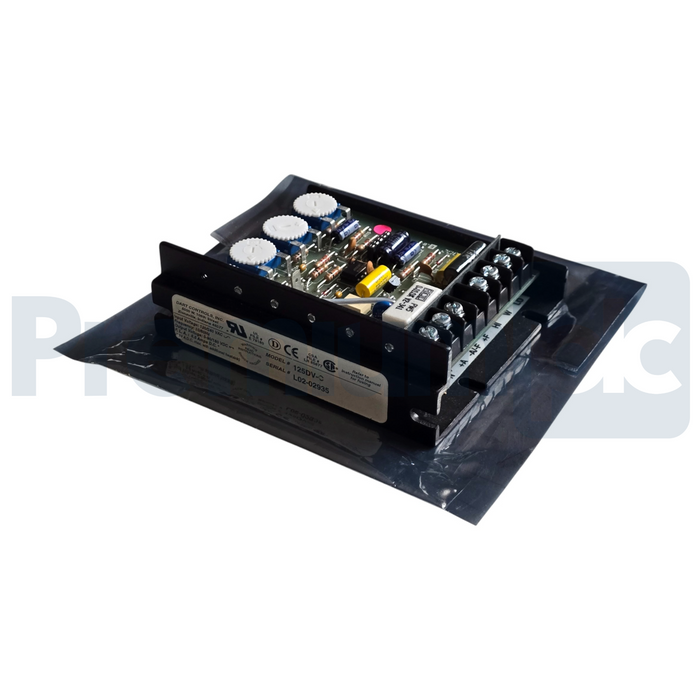

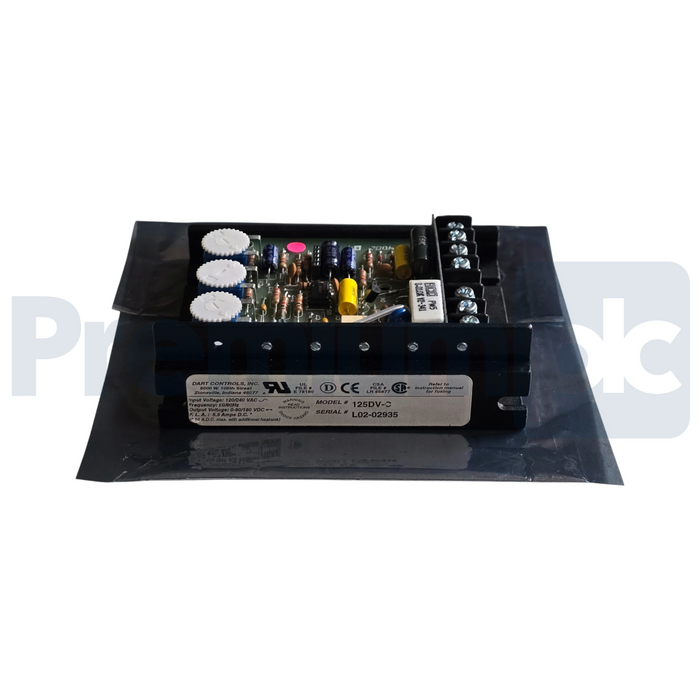

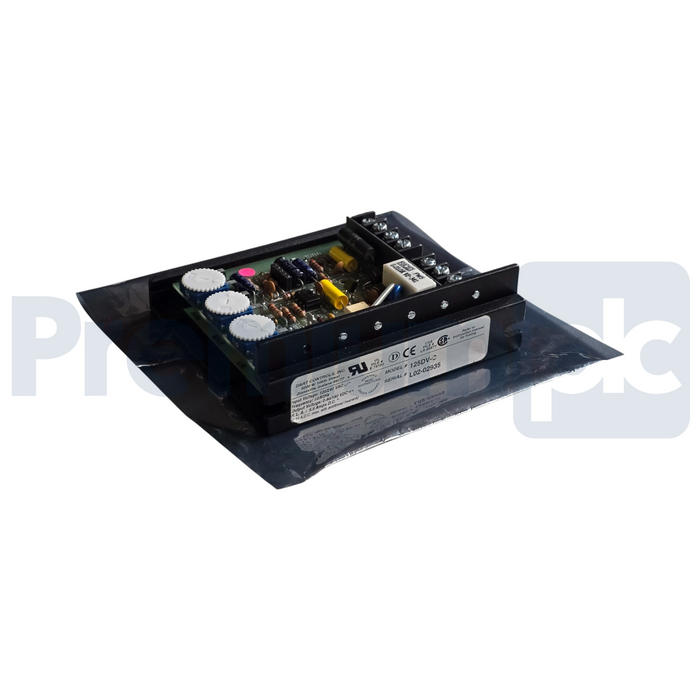

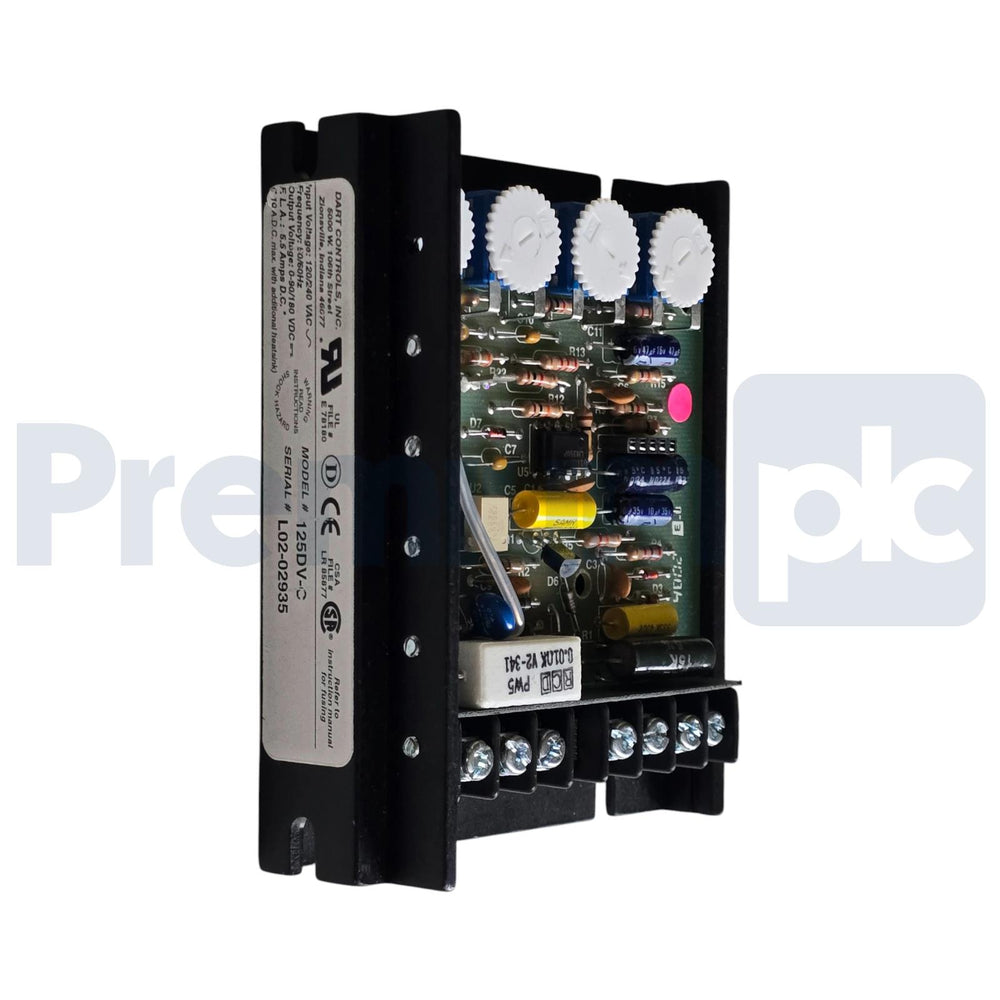

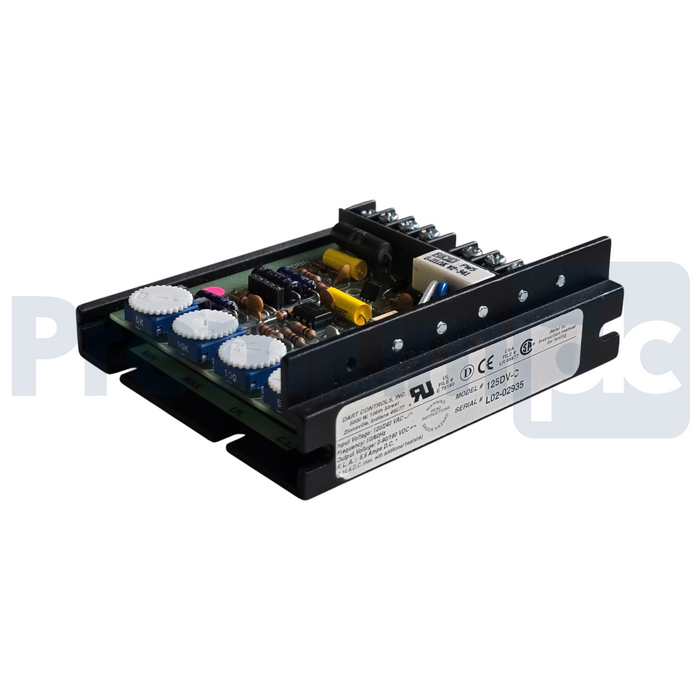

Dart Controls 125DV-C | 125DVC DC Motor Speed Control 120/240VAC In 5.5A NSNP
Sold out
$255.00
Dart Controls 125DV-C | 125DVC DC Motor Speed Control 120/240VAC In 5.5A NSNP
The is a compact and reliable SCR (Silicon Controlled Rectifier) speed control drive. Designed for use with Permanent Magnet, Shunt Wound, and Universal DC motors, this open chassis drive converts single-phase AC line voltage into full-wave rectified DC for high-precision motor regulation.
Technical Specifications
-
Horsepower Rating:
- 1/8 – 1/2 HP @ 120VAC.
- 1/4 – 1 HP @ 240VAC.
- Speed Range: 50:1 Speed Range with 1% speed regulation.
- Control Method: SCR Full Wave Bridge Supply.
- Adjustments: Barrier-type terminal strip with trimpots for Minimum Speed, Maximum Speed, IR Compensation, and Current Limit.
- Safety Features: Transient voltage protection and an inhibit circuit for low-power start/stop operation.
- Dimensions: 3.63" x 4.25" x 1.30".
CONDITION: NSNP - New Surplus No Manufacturer Package (OEM)
(COMES AS SHOWN IN PHOTOS SOME MINOR SHELF WEAR, DOES NOT INCLUDE ANY ASSC.)
WARRANTY: 120 DAYS
SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST.
(CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT)
