Dayton 2M167D Permanent Magnet DC Motor | 1/4 HP 1725 RPM 90V | 56C TEFC

Dayton 2M167D Permanent Magnet DC Motor | 1/4 HP 1725 RPM 90V | 56C TEFC

Item Specifics

• Brand: Dayton

• MPN: 2M167D (Cross-ref: 2M167A / 2M167)

• Horsepower: 1/4 HP

• RPM: 1725 - 1750 RPM

• Voltage: 90V DC

• Amperage: 2.5 Amps (Full Load)

• Frame: 56C

• Enclosure: Totally Enclosed Fan-Cooled (TEFC)

• Rotation: Reversible (CW/CCW)

• Shaft Diameter: 5/8"

Description

Product Overview

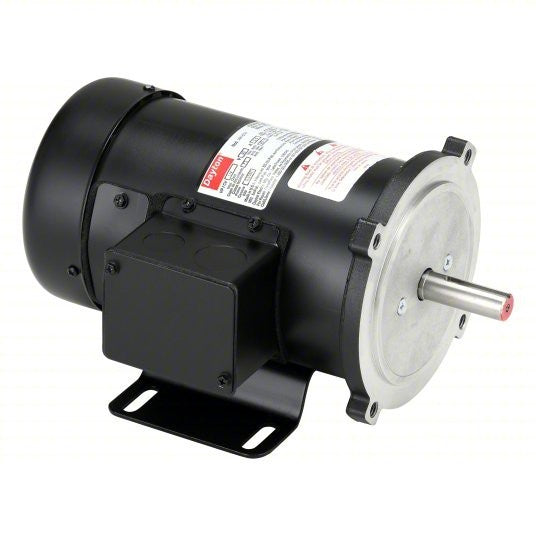

This is a Dayton 2M167D Permanent Magnet DC Motor, built for variable speed industrial applications. With its TEFC enclosure, it is designed to operate reliably in harsher environments where dust and debris may be present. The motor features a standard 56C frame for easy mounting via its face or removable base.

Key Features

• Variable Speed Control: Optimized for use with NEMA Type K DC power supplies or speed controllers.

• Continuous Duty: Rated for constant or diminishing torque applications with Class F insulation.

• Reversible Rotation: Simple wiring allows for both Clockwise and Counter-Clockwise operation.

• Rugged Build: Features ball bearings for a long service life and a 10-13/16" overall length for a compact footprint.

Condition Notes

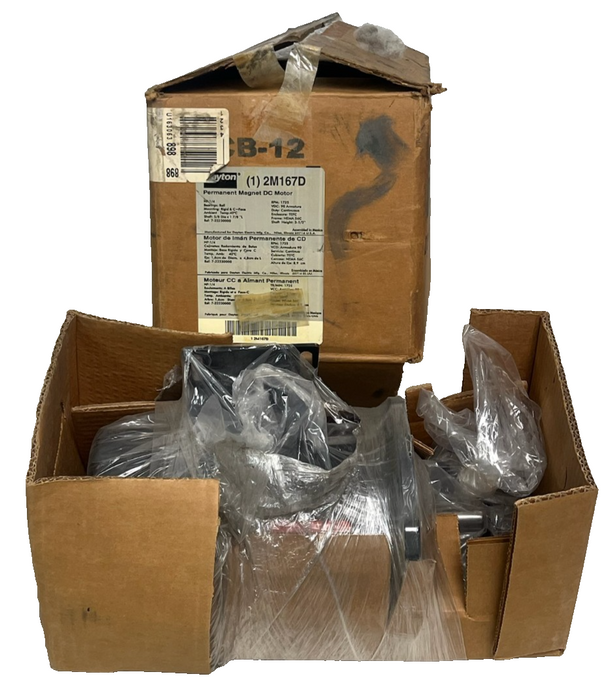

• Functional Status: [e.g., Brand new in box / Professionally pulled and tested for continuity and smooth rotation].

• Cosmetic Condition: [e.g., Excellent, clean terminals, no shaft wear].

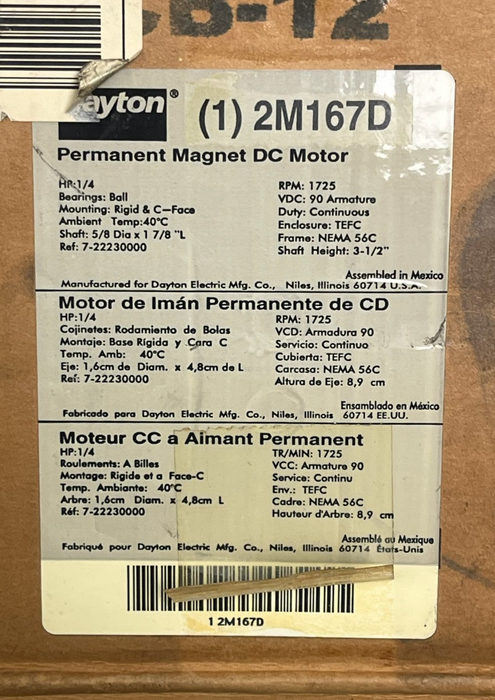

• Revision: [Note the E-Stand or specific date code from the nameplate if visible].
