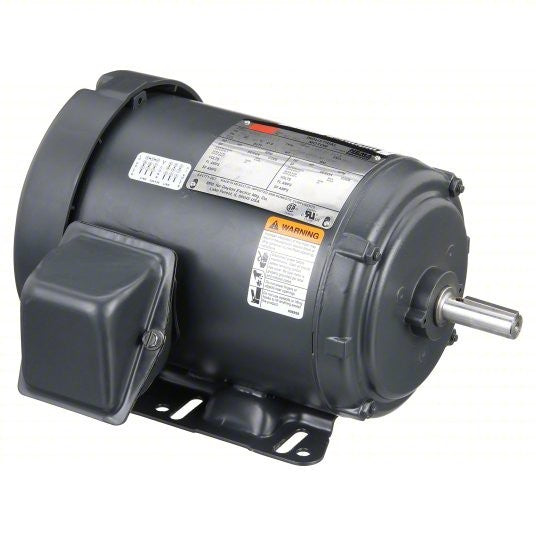

Dayton 48ZJ86 1.5 HP General Purpose Motor 3-Phase 3465 RPM | TEFC | 56H Frame

Item Specifics

• Brand: Dayton

• Model / MPN: 48ZJ86

• Horsepower: 1-1/2 HP

• Phase: 3-Phase

• Voltage: 208-230/460V AC

• RPM: 3465 (Nameplate)

• Frame: 56H

• Enclosure: TEFC (Totally Enclosed Fan-Cooled)

• Mounting: Rigid Base

• Shaft Diameter: 5/8"

Description

For sale is a Dayton 48ZJ86 1.5 HP Three-Phase Motor. This is a versatile, high-speed general-purpose motor designed for continuous duty in demanding industrial applications. Its TEFC enclosure makes it ideal for use in environments with dust, dirt, or non-hazardous moisture.

Key Performance Specs:

• Rotation: CW/CCW (Reversible)

• Full Load Amps: 3.9/1.9 A

• Service Factor: 1.15

• Frequency: 60/50 Hz

• Efficiency: 84% (NEMA Premium Efficient)

• Insulation Class: B

• Bearings: Ball Bearings (Double Sealed)
