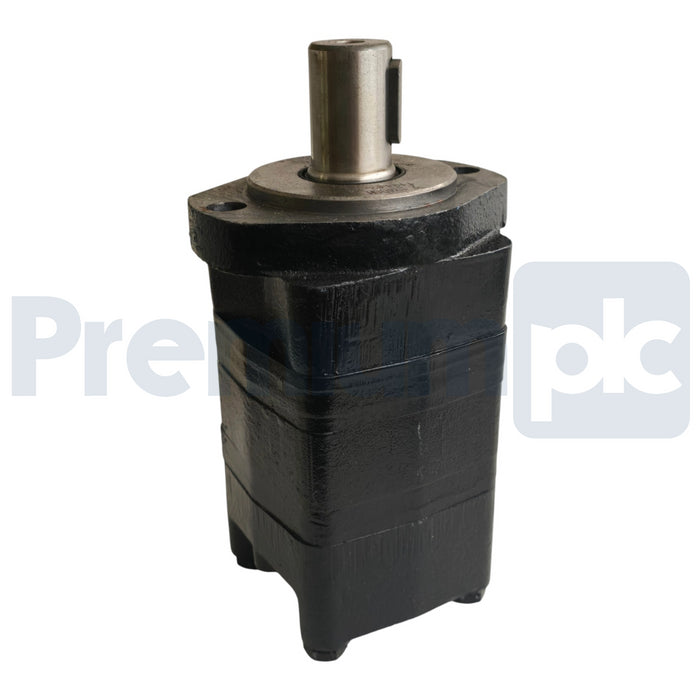

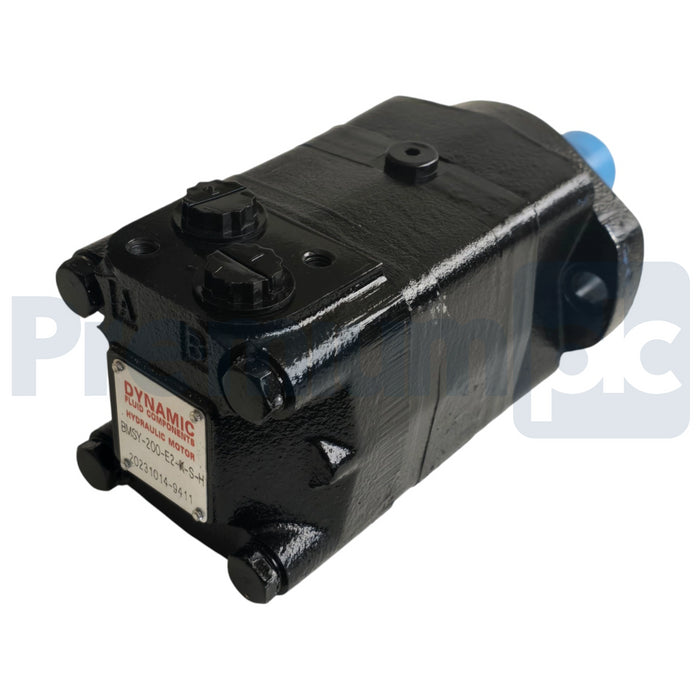

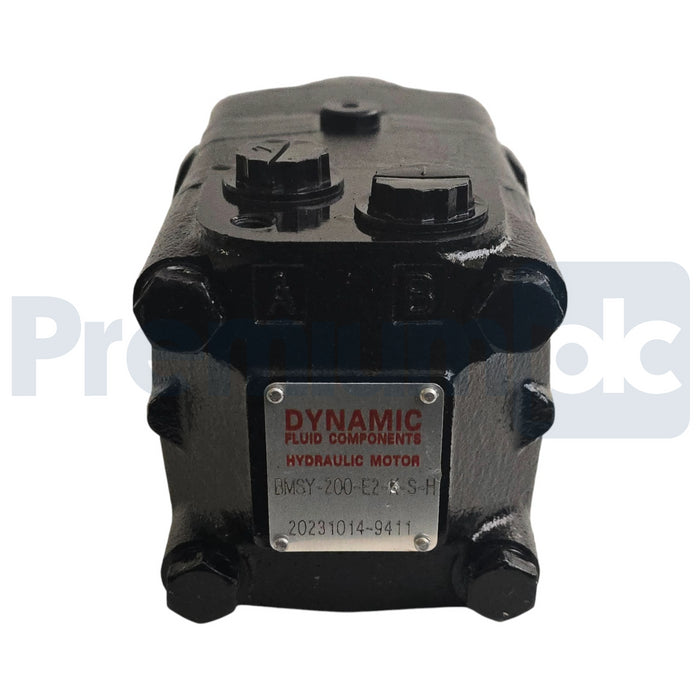

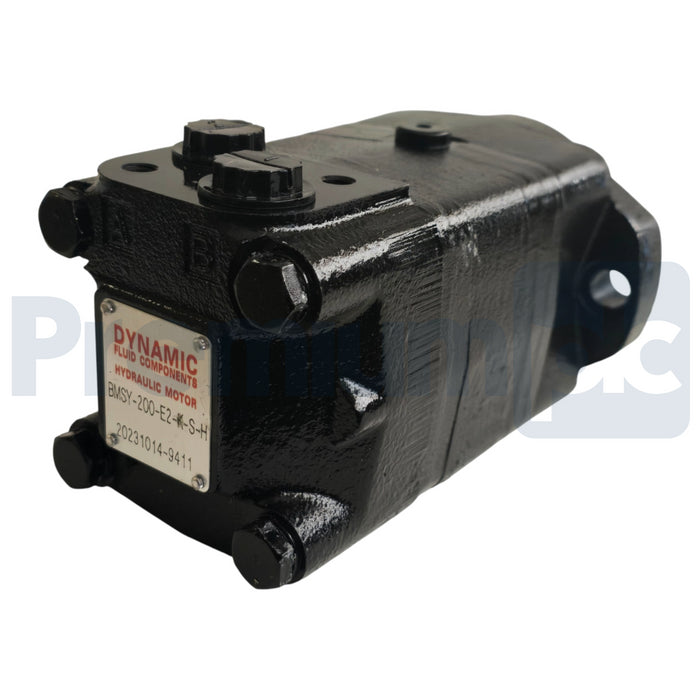

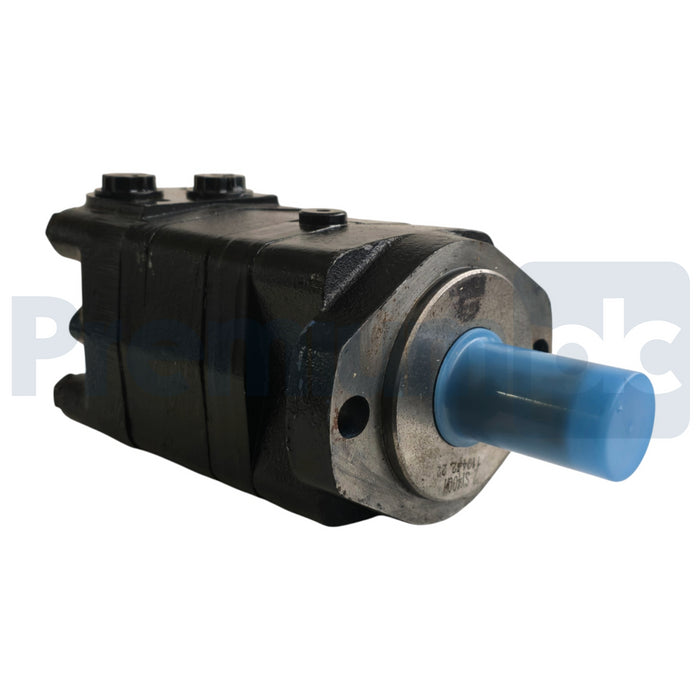

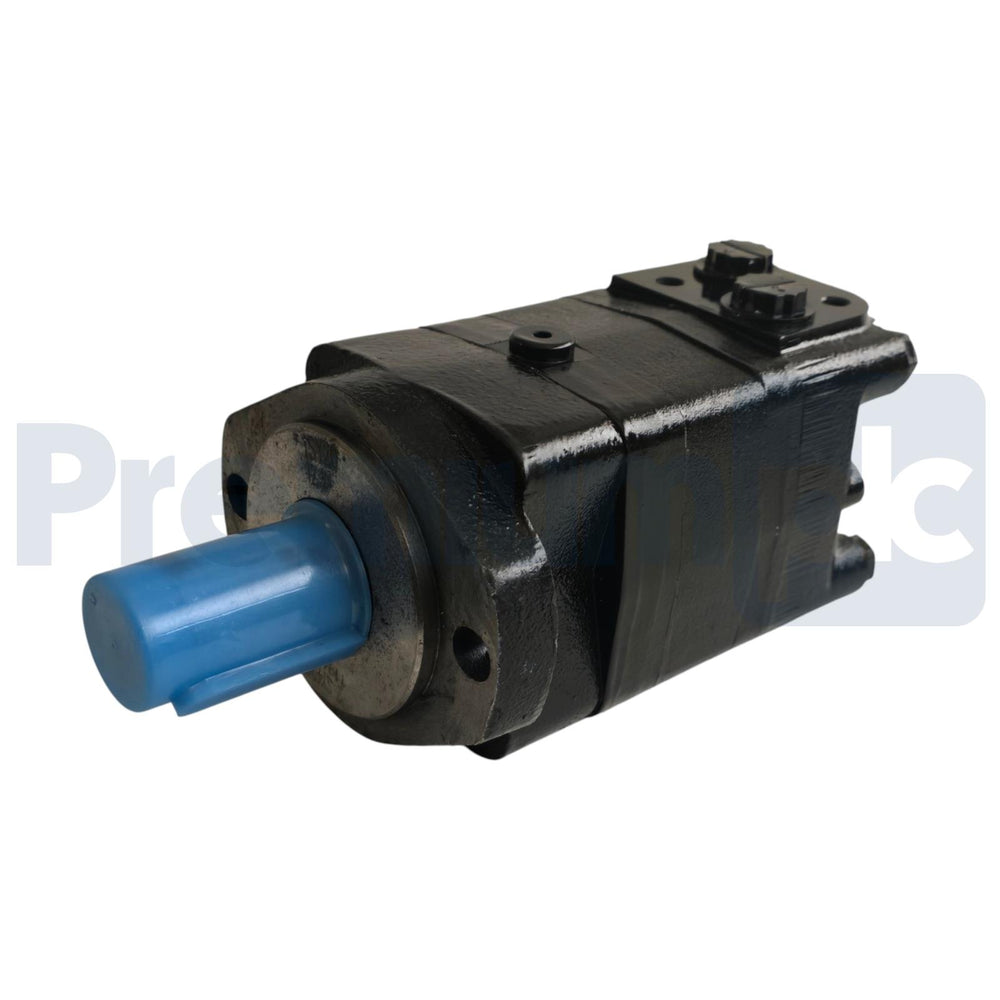

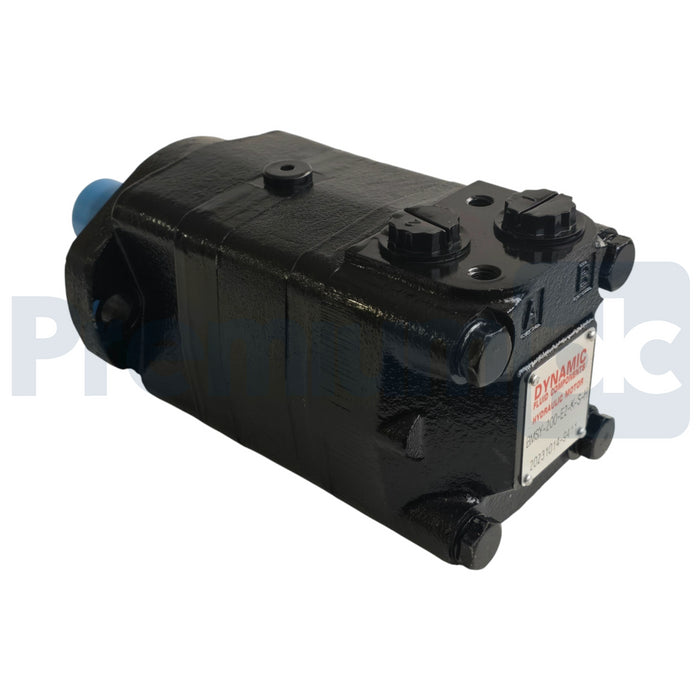

Dynamic Fluid Components BMSY-200-E2-K-S-H Hydraulic Motor, Shaft 1" Key NSNP
$425.00
Dynamic Fluid Components BMSY-200-E2-K-S-H Hydraulic Motor, Shaft 1" Key NSNP
Key Features & Specifications:
- Brand: Dynamic Fluid Components
- Model:
- Motor Type: Gerotor / Orbital LSHT (Low Speed, High Torque)
- Displacement: 11.83 cu. in./rev (194 cm³/rev)
- Max Continuous Pressure: 3045 PSI (210 bar)
- Max Intermittent Pressure: 3265 PSI (225 bar)
- Max Continuous Torque: 5185 in-lbs (586 Nm)
- Max Continuous Speed: 375 RPM
- Max Continuous Flow: 19.8 GPM (75 L/min)
- Mounting: 2-bolt SAE A mount

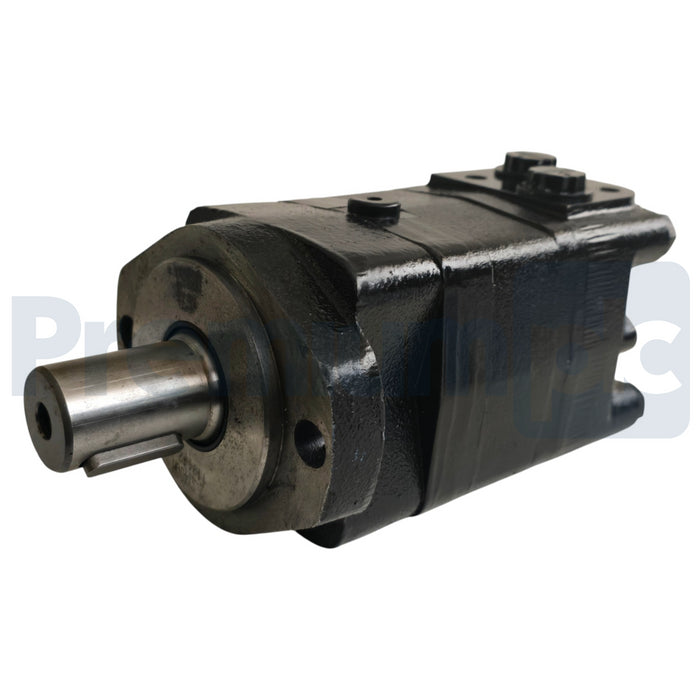

- Shaft: 1" diameter x 1.64" long shaft with 1/4" keyway (Woodruff key assumed by standard K option)
- Ports: #10 SAE (5/8") side ports (7/8"-14 SAE thread)
- Bearings: Tapered roller bearings on output shaft for high axial and radial load capacity
- w/ Special Option Letter: H
- Weight: Approx. 26.15 lbs (11.86 kg)
- Interchangeable with: Char-Lynn 2000, Danfoss OMS / OMSS, White RE / DH, Parker Ross MB / TF
CONDITION: NSNP - New Surplus No Manufacturer Package (OEM)
WARRANTY: 120 DAYS
SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST.
(CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT)
