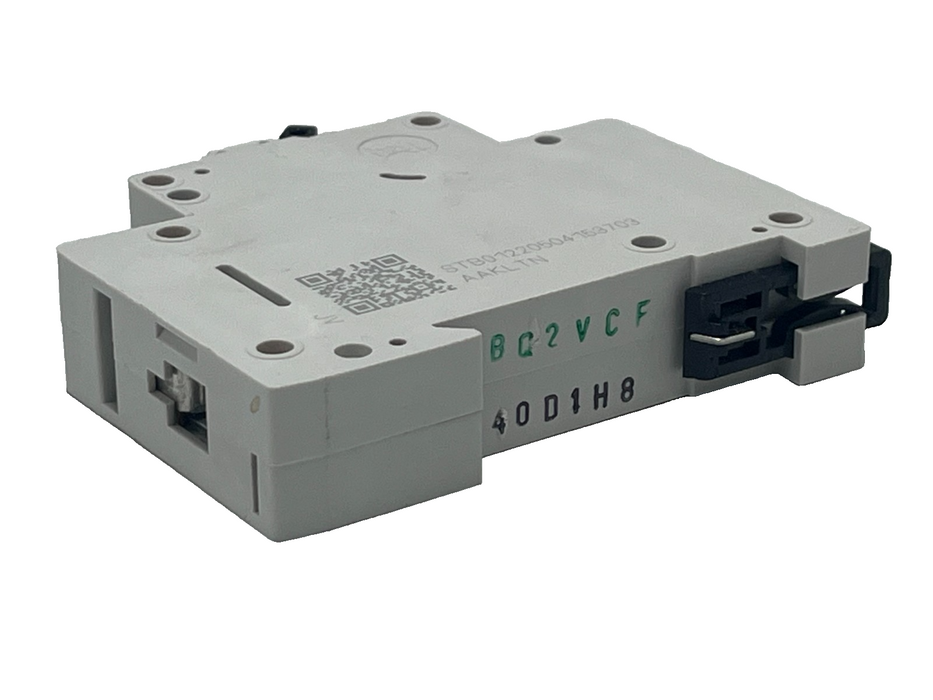

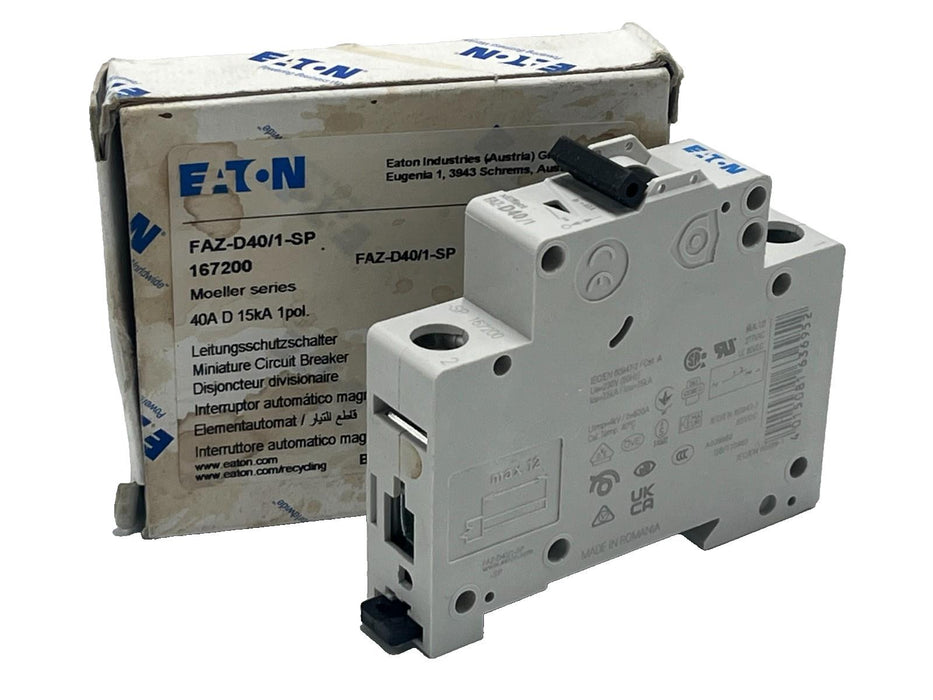

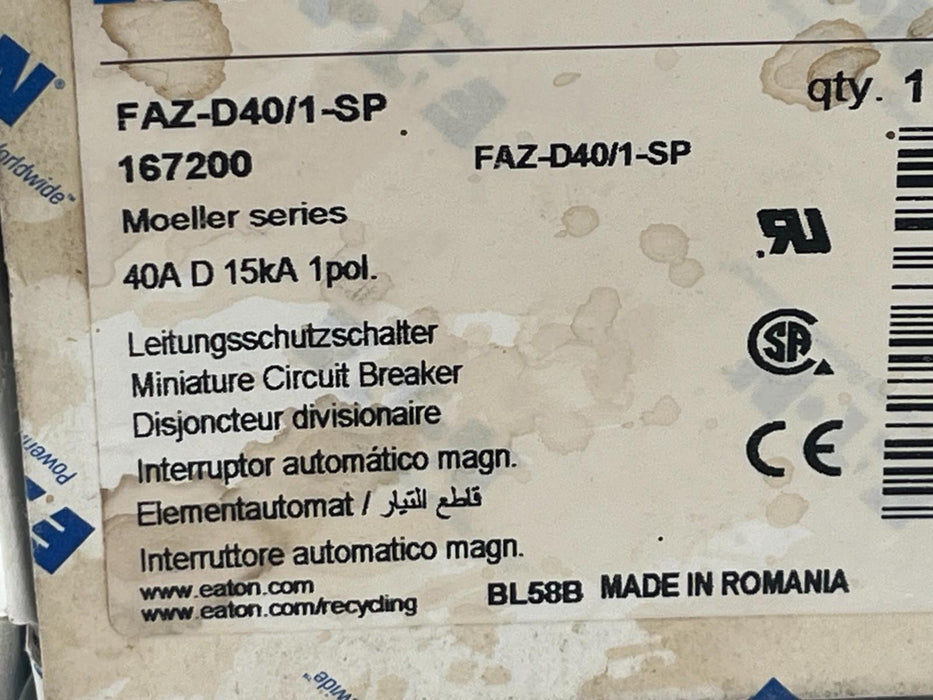

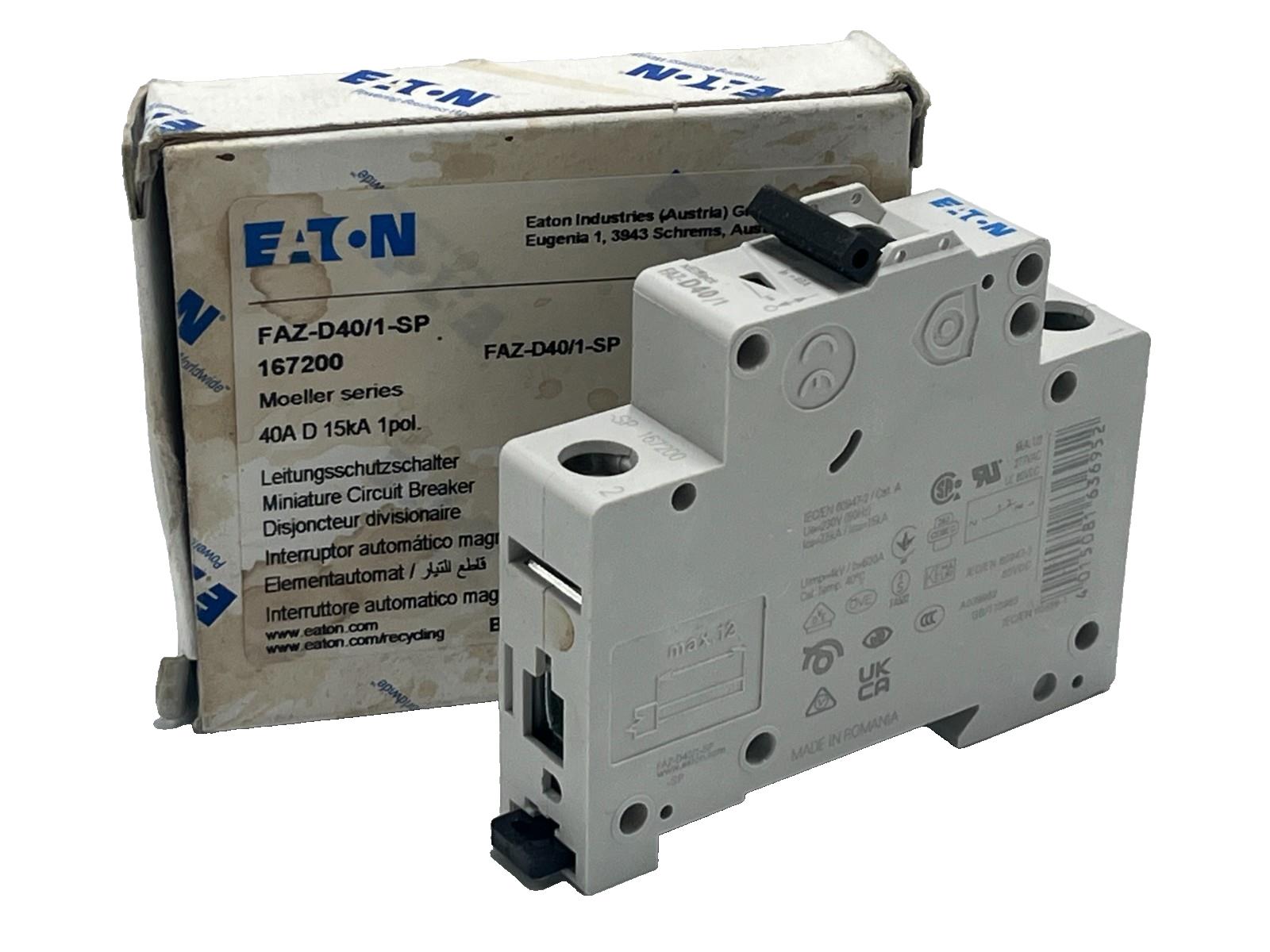

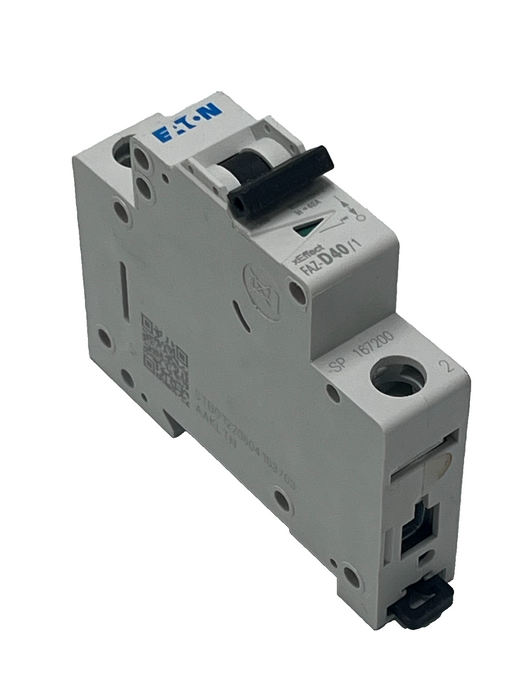

Eaton FAZ-D40/1-SP Miniature Circuit Breaker 40A Single Pole D Curve UL 1077
$29.95
Eaton FAZ-D40/1-SP Miniature Circuit Breaker 40A Single Pole D Curve UL 1077
Product Description
This listing is for one miniature circuit breaker, designed for reliable supplementary protection in various industrial and commercial applications. It features a D-curve trip characteristic, making it suitable for applications where high inrush currents are expected, such as in motor control circuits or with transformers.
Key Features
- Brand: Eaton (Cutler-Hammer)
- Model: FAZ-D40/1-SP
- Amperage Rating: 40 A
- Number of Poles: 1 (Single-Pole)
- Trip Curve: D Curve (Magnetic trip range 10-20x rated current)
- Voltage Rating: 277 VAC / 48 VDC
- Interrupting Rating: 15 kAIC at 240/415 VAC; 10 kA at 277 VAC
- Mounting: 35mm DIN Rail Mount
- Trip Type: Thermal Magnetic
- Certifications: UL 1077 Recognized, CSA C22.2 No. 235, IEC 60947-2, CE Marked
- Features: Current-limiting design, contact position indicator (red/green), finger-safe terminals, trip-free mechanism
CONDITION: NSMP - New Surplus Manufacturer Package (OEM)
WARRANTY: 120 DAYS
SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST.
(CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT)
