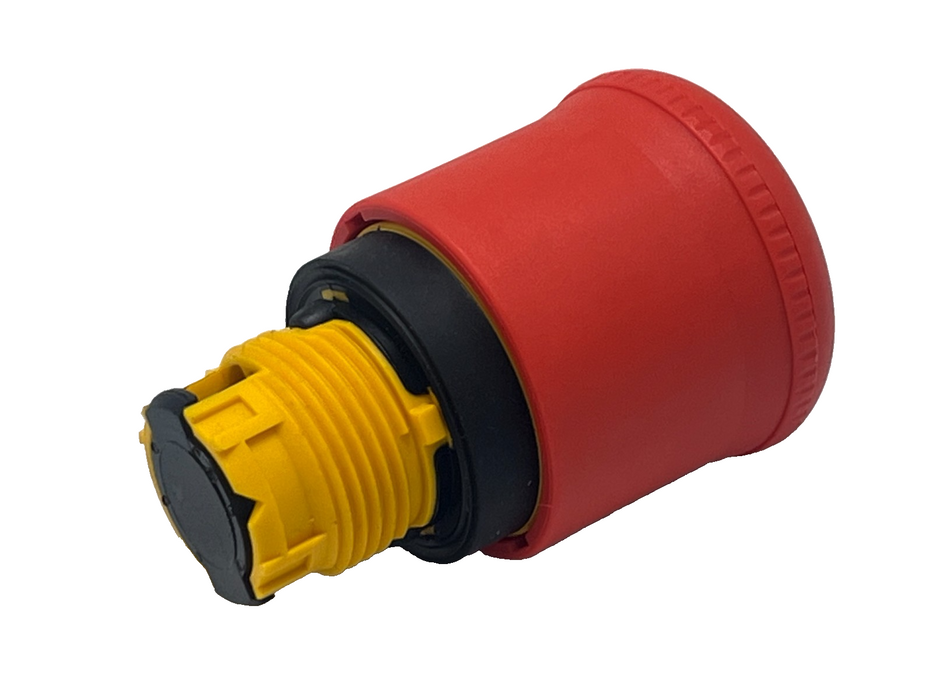

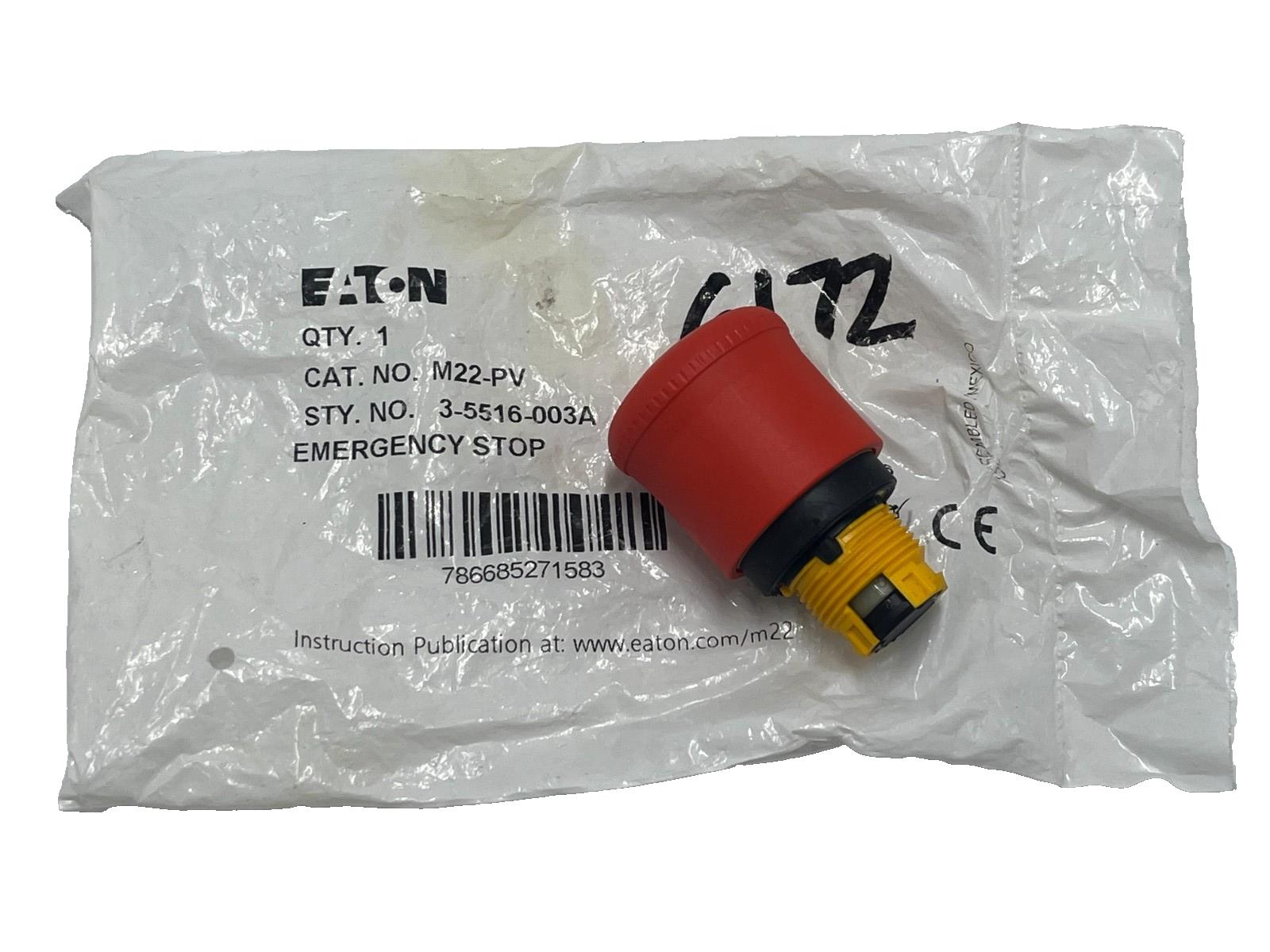

Eaton M22-PV Emergency Stop Pushbutton Operator 35mm Red Push-Pull 22.5mm
$24.95
Eaton M22-PV Emergency Stop Pushbutton Operator 35mm Red Push-Pull 22.5mm
Product Description
This listing is for one
Eaton M22-PV
emergency stop operator head from the RMQ-Titan series. This non-illuminated, red mushroom-shaped button is designed for panel mounting in a standard 22.5 mm hole. It features a reliable push-to-stop, pull-to-release (maintained action) function for safety applications.
NOTE: This listing is for the operator head/actuator only and includes the contact block mounting adaptor. To create a complete, functional emergency stop device, you must purchase compatible M22 series contact blocks separately (e.g., M22-K01 or M22-K10). The contact blocks provide the electrical connections.
Key Features & Specifications
- Brand: Eaton (Cutler-Hammer)
- Model:
- Series: RMQ-Titan (22.5 mm modular system)
- Product Type: Emergency Stop Pushbutton Operator
- Operation Type: Maintained (Push-to-stop, pull-to-release function)
- Button Color: Red
- Button Diameter: 35 mm
- Mounting Hole Size: 22.5 mm (Standard panel cutout)
- Illumination: Non-illuminated
- Bezel Material: Plastic, Silver-colored
- Environmental Ratings: IP67, IP69K, NEMA 4X, 13 (Suitable for washdown/dusty environments)
- Mechanical Life: >100,000 operations
- Certifications: UL Listed, CSA Certified, CE Marked, CCC, Bureau Veritas
Applications
Ideal for use in industrial control panels and machinery as a robust, universally recognized emergency stop control device. The tamper-proof design meets ISO 13850/EN 418 standards.
CONDITION: NSNP - New Surplus No Manufacturer Package (OEM)
WARRANTY: 120 DAYS
SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST.
(CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT)
