FANUC A06B-0859-B190 Alpha α22 AC Spindle Motor w/ MZ Sensor 22kW NSMP (read)
$12,500.00
FANUC A06B-0859-B190 Alpha α22 AC Spindle Motor w/ MZ Sensor 22kW NSMP (read)

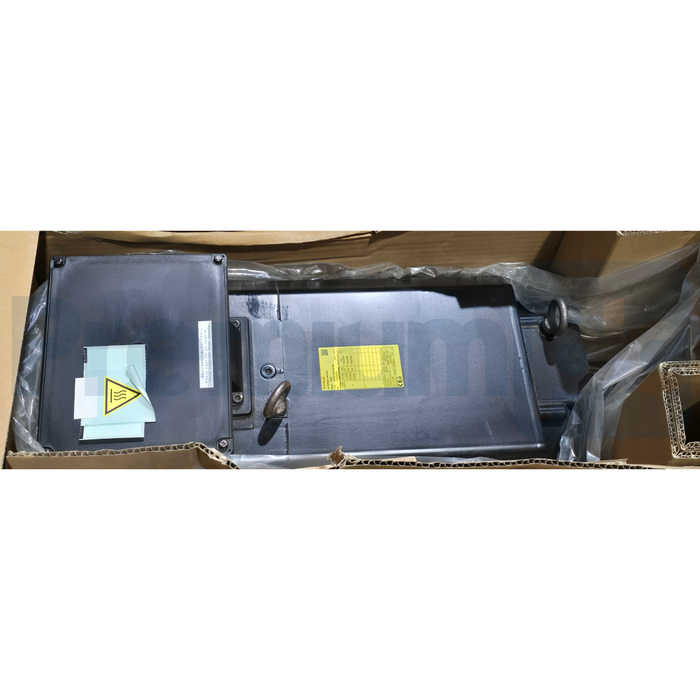

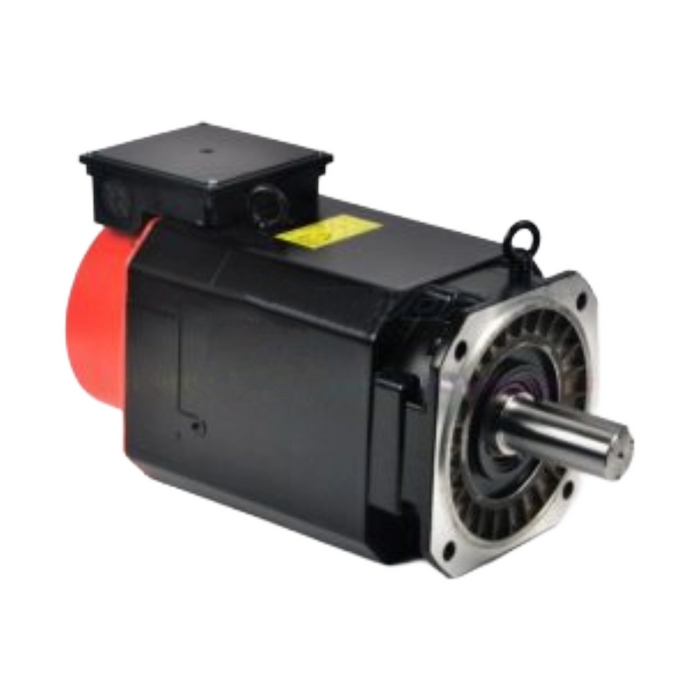

(read - SECOND PHOTO IS FOR REFERENCE ONLY SEE ADDITIONAL PHOTOS FOR ACTUAL MOTOR FACTORY BOX DOES HAVE DAMAGE FROM STORAGE)
Up for sale is a FANUC AC Spindle Motor α22 with an integrated MZ Sensor. This high-performance motor is a critical component for CNC machining applications requiring precision and high torque.
Motor Specifications
- Brand: FANUC
- Model: α22
- Type: A06B-0859-B190
- Type: AC Spindle Motor
- Sensor Type: MZ Sensor
- Frame Size: Alpha Series A22
- Mounting: Flange Mount
- Serial No.: C15XS0200
- Manufacturing Date: 2015.10
- Weight: 143 kg
- Manual No.: B-65152E

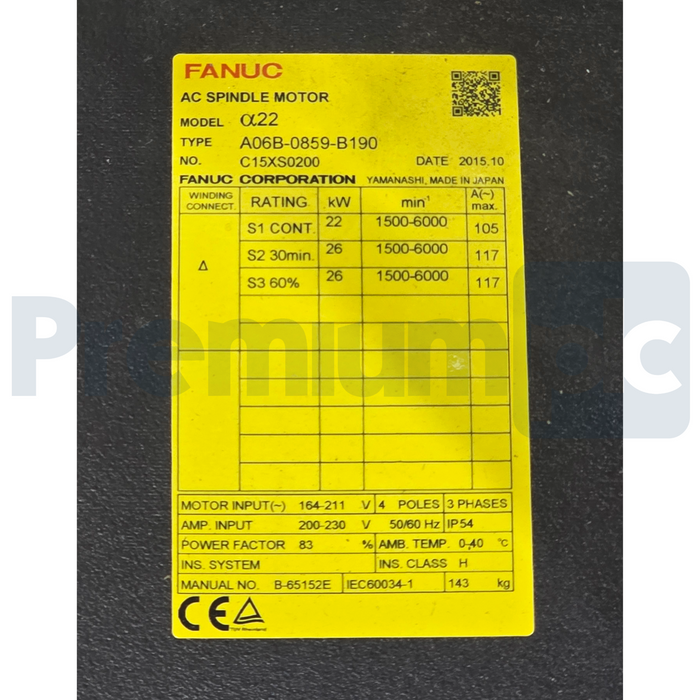

Performance Ratings
The motor features different ratings based on duty cycle:
- S1 (Continuous): 22 kW at 1500–6000 min, drawing 105 A
- S2 (30 min): 26 kW at 1500–6000 min, drawing 117 A
- S3 (60%): 26 kW at 1500–6000 min, drawing 117 A
Electrical & Operational Data
- Input: 164–211 V (Motor) / 200–230 V (Amp) at 50/60 Hz
- Poles/Phases: 4 Poles, 3 Phases
- Insulation Class: H
- Protection Rating: IP54
- Ambient Temperature Range: 0–40 °C
CONDITION: NSMP - New Surplus Manufacturer Package (OEM)

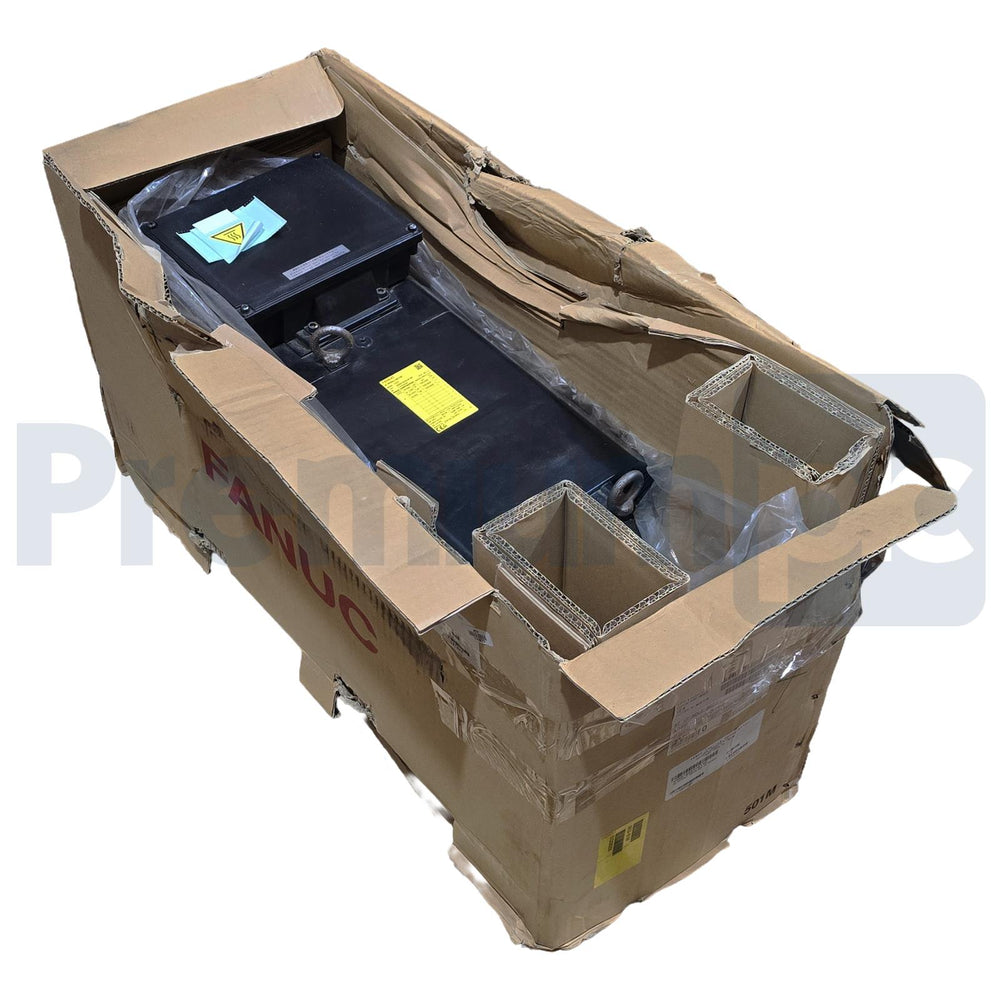

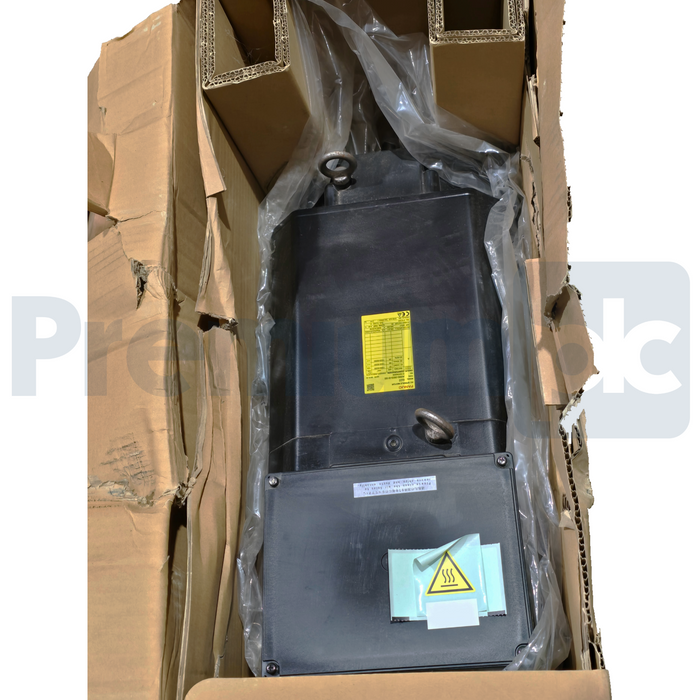

(FACTORY BOX DOES HAVE SOME DAMAGE FROM STORAGE SEE PHOTOS)
WARRANTY: 120 DAYS (LIMITED 1 YEAR)
SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST.
(CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT)
