Festo 531030 MS6B Air Service Unit Combo G1/2 FRL MSB6-AGD-C4:j23:F1:V39-WP NSFS
$895.00
Festo 531030 MS6B Air Service Unit Combo G1/2 FRL MSB6-AGD-C4:j23:F1:V39-WP NSFS
Configured Component Breakdown
- AGD: Pneumatic sub-base connection plate G1/2.
- C4: Pressure regulator with a 12 bar maximum regulation range.
- J23: Specialized pressure sensor or gauge interface (Check unit for digital vs. analog display).
- F1: Fine filter (typically 5 µm or 1 µm filtration grade for high air purity).
- V39: Integrated electrical on/off or soft-start valve (typically 24V DC compatible).
- WP: Mounting bracket for wall or surface installation.
Technical Specifications
- Brand: Festo
- Part Number:
- Configuration Code: MSB6-AGD-C4:J23:F1:V39-WP
- Size: MSB6 (62 mm Grid Width)
- Pneumatic Connection: G1/2 Sub-base (AGD)
- Pressure Regulation Range: 1 bar to 12 bar (14.5 to 174 psi)
- Operating Pressure: Max 20 bar (290 psi)
- Standard Nominal Flow Rate: 1,700 to 4,800 l/min (Configuration dependent)
- Mounting Type: Wall mounting plate (WP) included
- Flow Direction: Left to Right
CONDITION: NSMP - New Surplus Manufacturer Package (OEM)

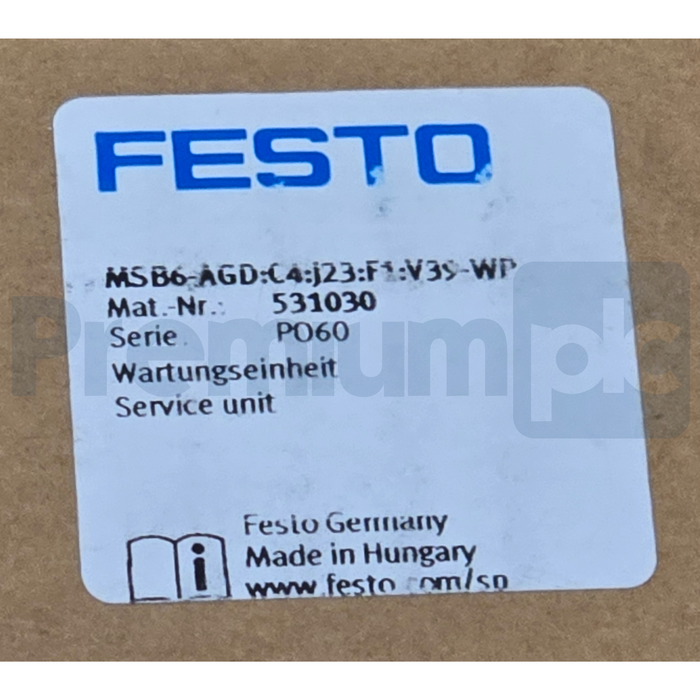

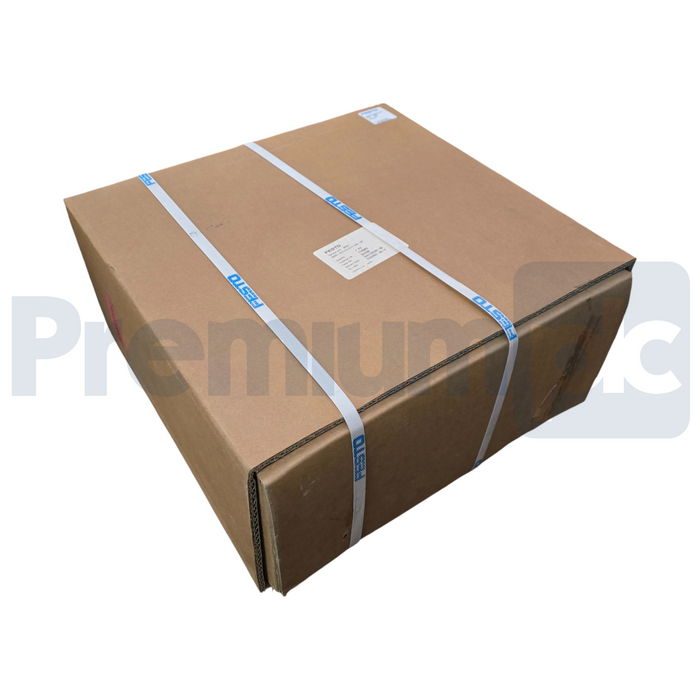

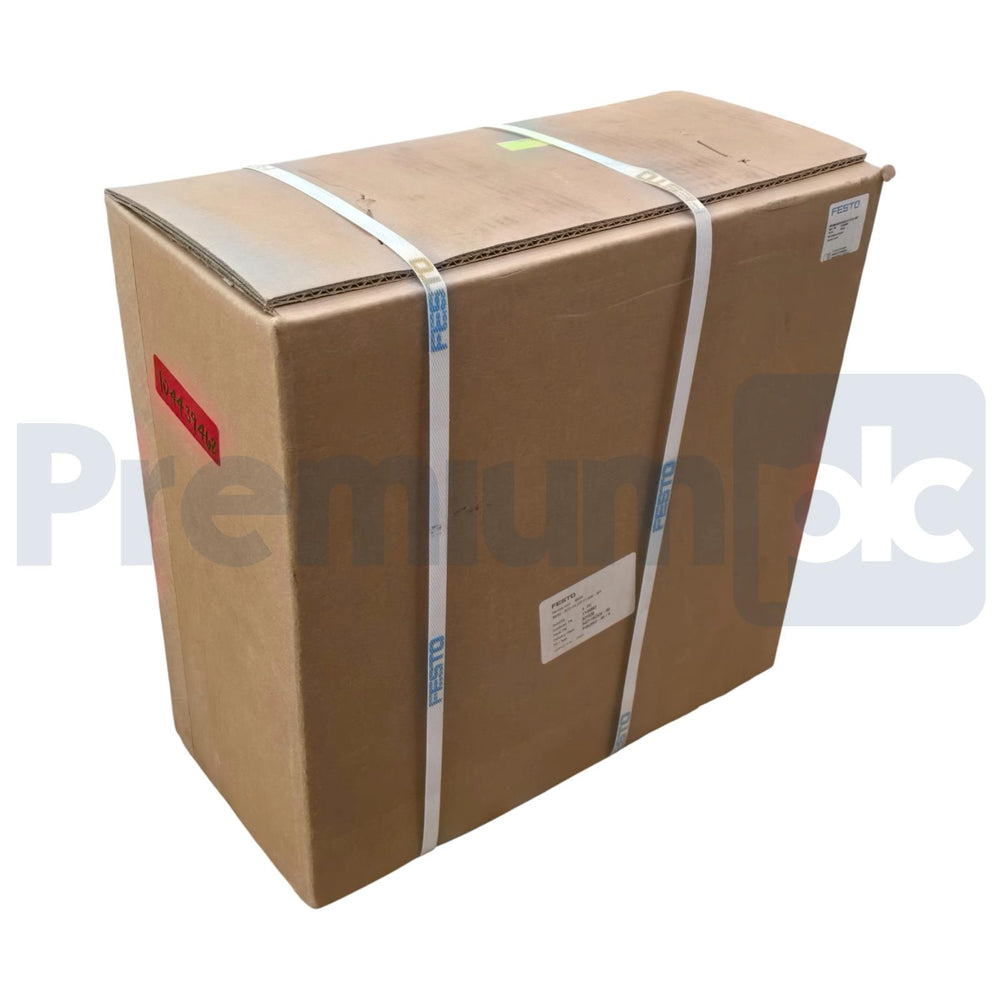

(LAST PHOTO IS FOR REFERENCE BOX IS STILL SEALED)
WARRANTY: 120 DAYS
SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST.
(CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT)
