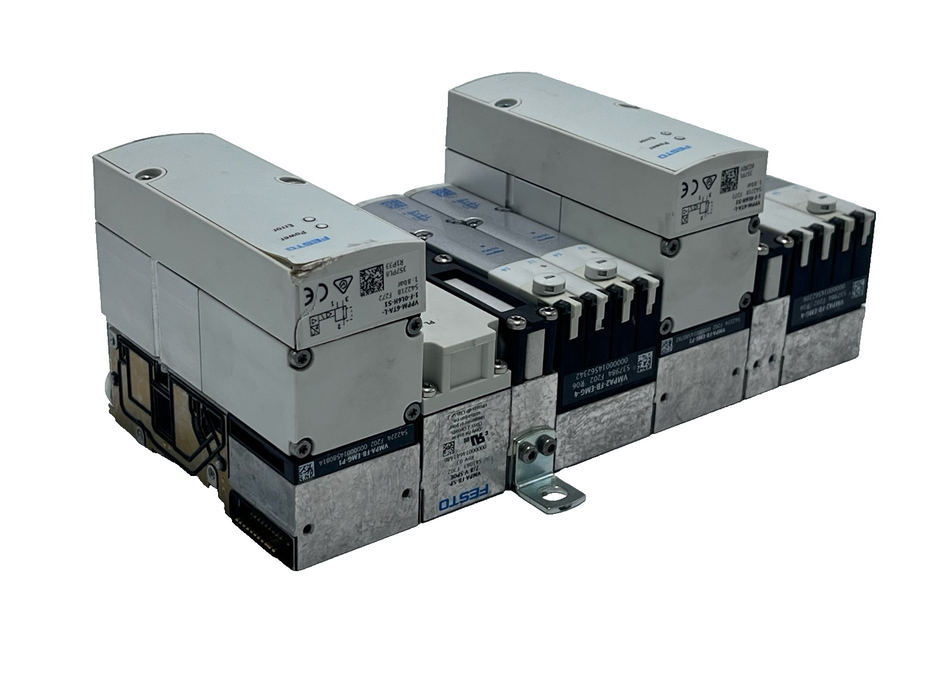

FESTO ASSEMBLY: MPA-S Manifold 2x VPPM-6TA Valves 3x VMPA2 Solenoids 7/8" Supply

Festo MPA-S Manifold | 2x VPPM-6TA Proportional Valves | 3x VMPA2 Solenoids | 7/8" Supply

Product Description

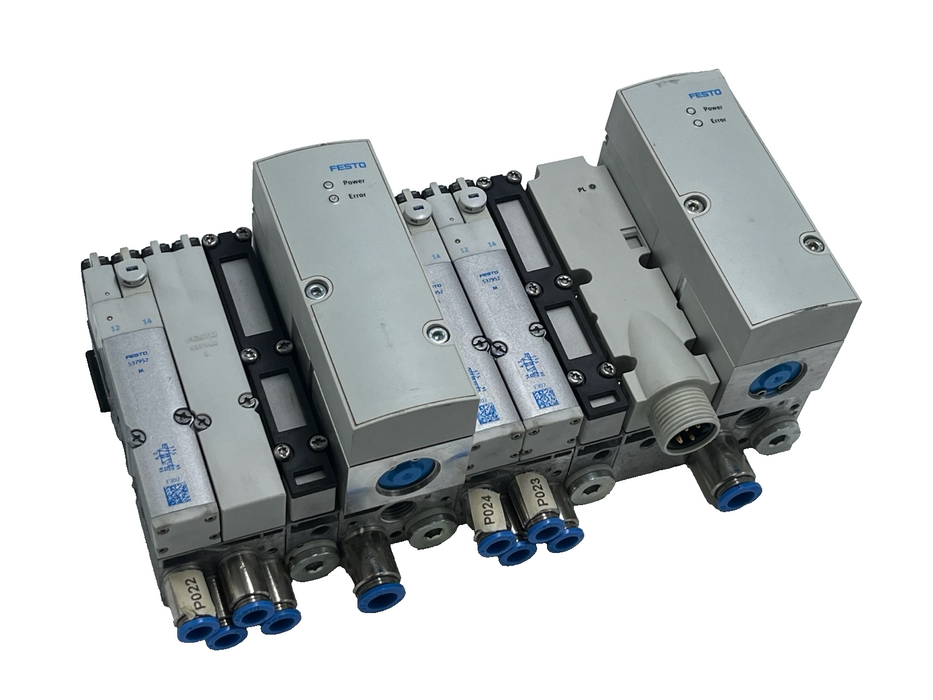

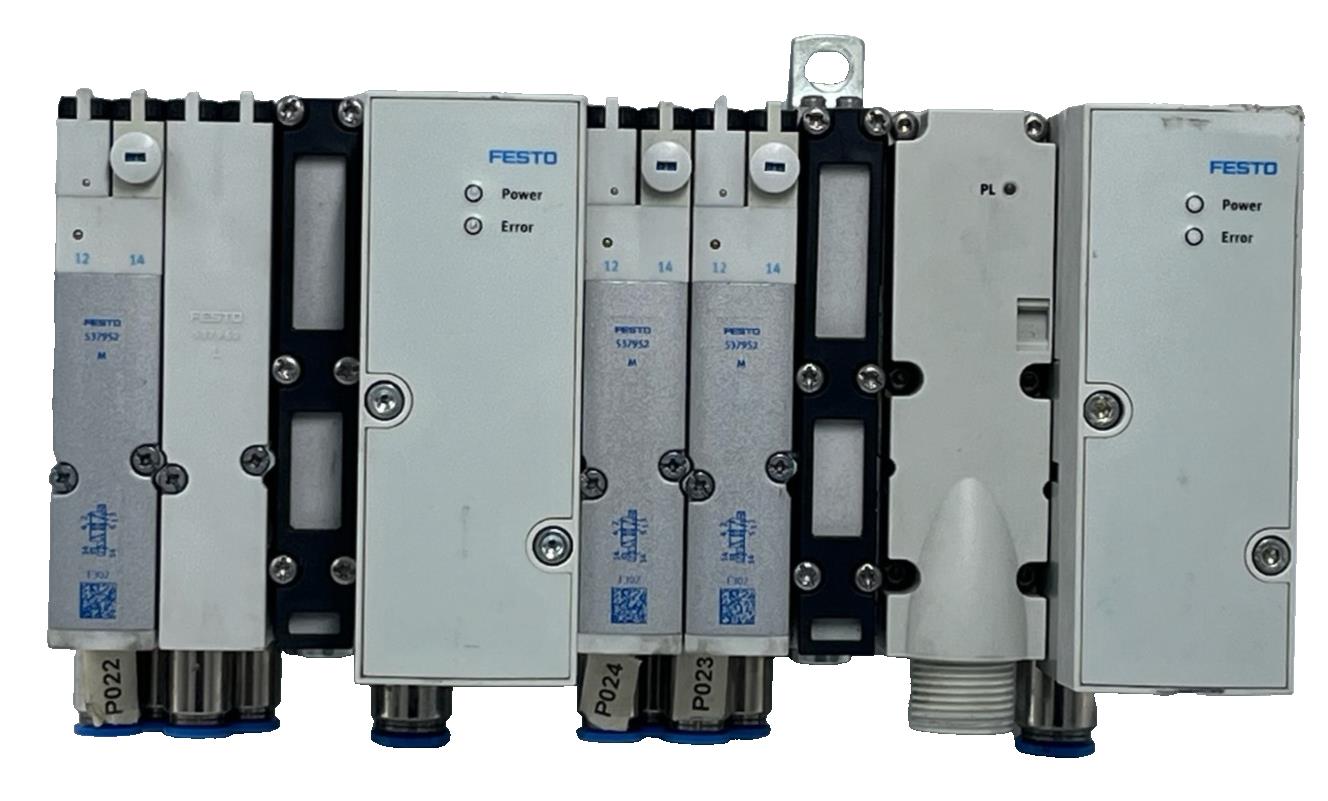

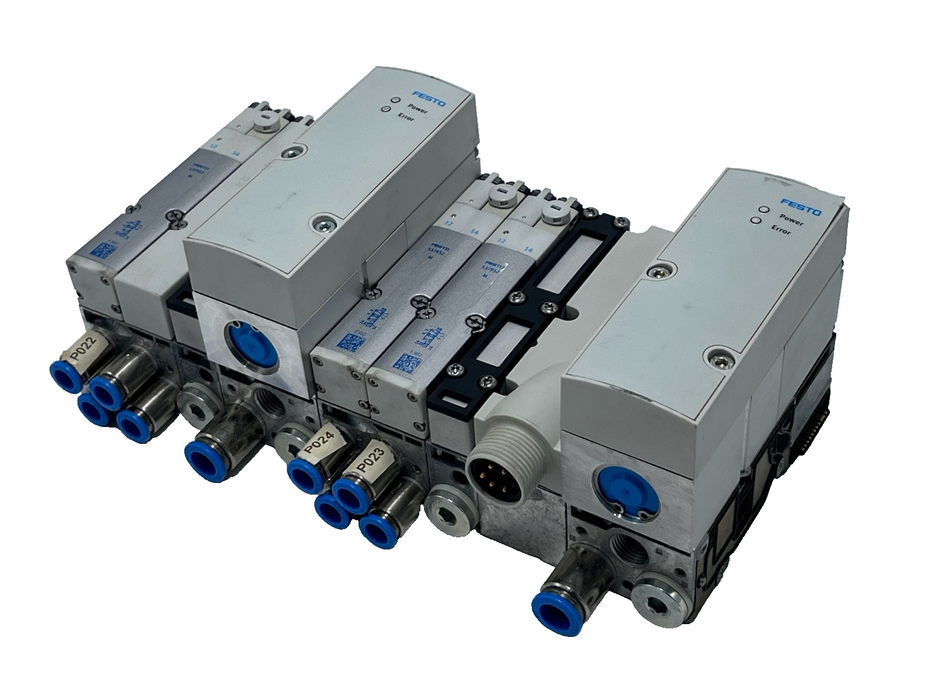

Item Overview: This is a high-configuration Festo MPA-S series pneumatic valve terminal. It combines precision electronic pressure regulation with standard directional control valves in a single, modular manifold stack. This assembly is ideal for complex automation tasks where both variable pressure and high-speed switching are required.

Detailed Configuration:

1. Proportional Pressure Section (Dual Zone):

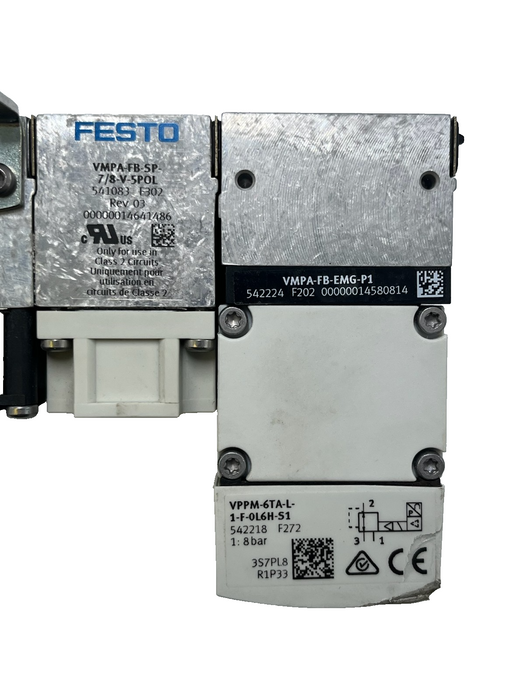

• 2x VPPM-6TA-L-1-F-0L6H-S1 Valves: High-accuracy proportional regulators (0.06-6 Bar).

• 2x VMPA-FB-EMG-P1 Electronics Modules: Individual control modules for the proportional units.

• 2x VMPA-FB-AP-P1 Sub-bases: Rugged metal bases for the VPPM valves.

2. Power & Air Supply:

• 1x VMPA-FB-SP-7/8-V-5POL Electrical Supply Plate: Provides 24VDC power via a heavy-duty 5-pin 7/8" connection.

• 1x VMPA1-FB-SPU Supply Plate: Central air intake for the manifold.

3. Solenoid Valve Section:

• 3x VMPA2-M1H-M-PI Solenoid Valves: 5/2-way monostable directional valves.

• 2x VMPA2-FB-AP-2-1 Bases: Sub-bases for VMPA2 size valves.

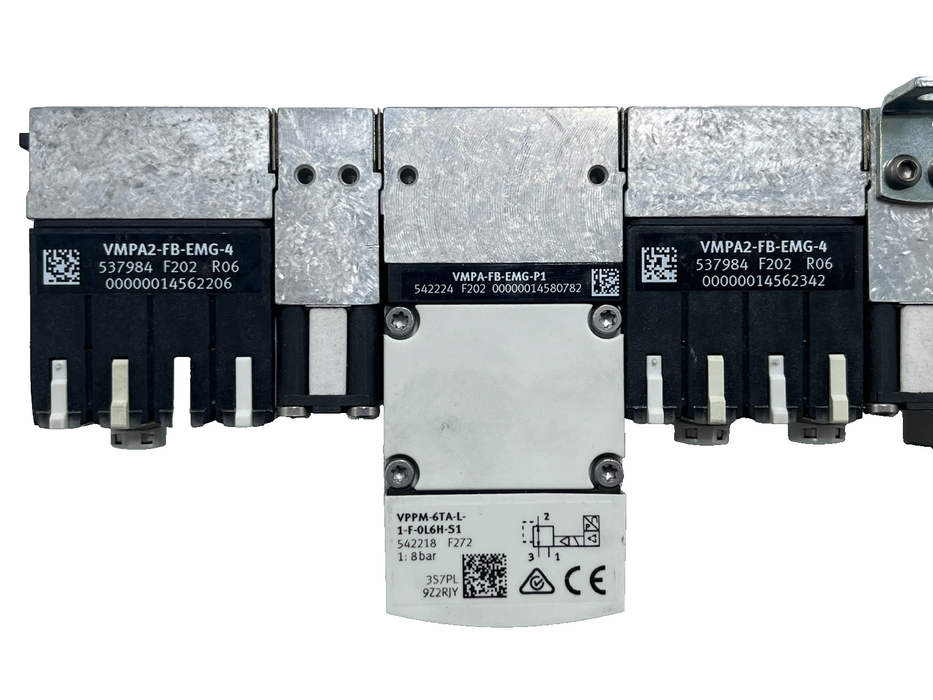

• 1x VMPA2-FB-EMG-4 Electronics Module: Multi-pin interface for the solenoid bank.

• 1x VMPA2-RP Cover Plate: Blanking plate installed on the unused valve slot, allowing for future expansion.

4. End Plate:

• 1x VMPA1-FB-EPLM-GU: Right-hand end plate for manifold termination and grounding.
