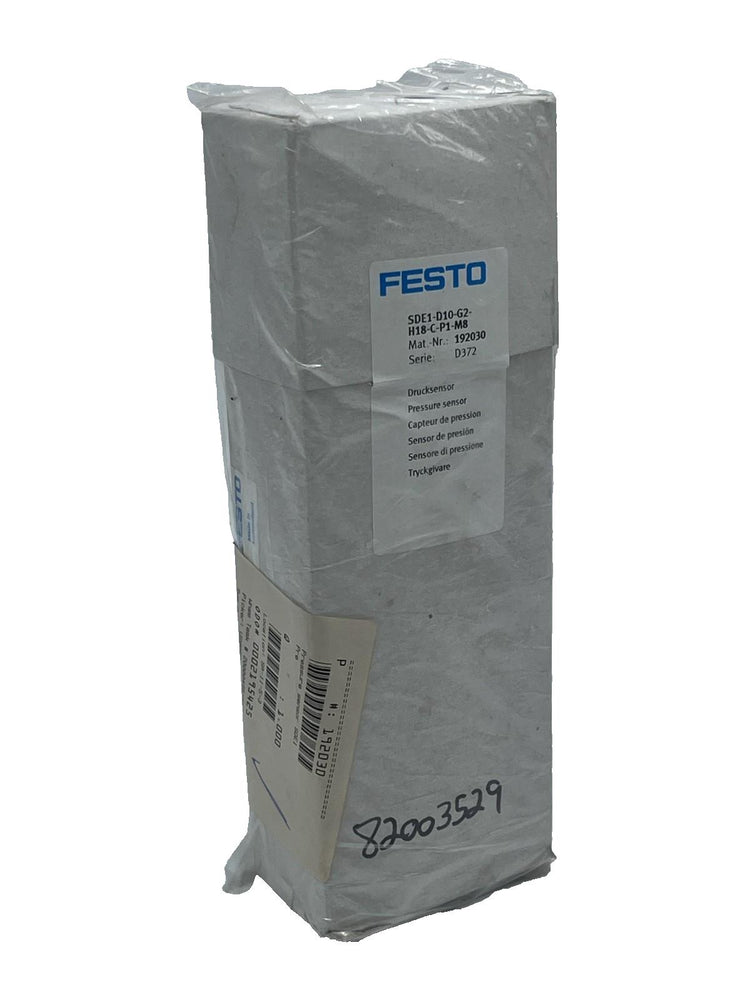

Festo SDE1-D10-G2-H18-C-P1-M8 Pressure Sensor 192030 0-10 Bar PNP Backlit LCD
Festo SDE1-D10-G2-H18-C-P1-M8 Pressure Sensor 192030 0-10 Bar PNP Backlit LCD
This is a high-precision Festo SDE1 series digital pressure sensor/switch. It is designed for monitoring relative pressure in compressed air systems, featuring a clear, integrated backlit LCD display for easy onsite diagnostics and setpoint adjustment.
Technical Breakdown:
SDE1-D10: Optimized for a 0 to 10 bar pressure range.
G2: High-accuracy variant (2% Full Scale).
H18: G1/8 female pneumatic connection designed for DIN H-rail mounting.
C: User-optimized backlit LCD display.
P1: Single PNP switching output, freely programmable (Teach-in).
M8: Standard M8x1 3-pin electrical connector.
Key Specifications:
Supply Voltage: 15 – 30V DC.
Max Output Current: 150 mA.
Protection Class: IP65 (dust-tight and protected against water jets).
Temperature Range: 0°C to 50°C.
Housing Material: Reinforced Polyamide (PA) and POM.
