GE DS200ACNAG1A | DS200ACNAG1ADD Mark V Turbine ArcNet LAN Connection Board NSNP
$3,250.00
GE DS200ACNAG1A | DS200ACNAG1ADD Mark V Turbine ArcNet LAN Connection Board NSNP
The (also known as the ACNA board) is a high-performance ARCNET LAN Connection Board from General Electric's Mark V Speedtronic series. It is a critical component used in gas and steam turbine control systems to facilitate data link communication between the main controller, IOS, protection modules, and the turbine control panel.
Technical Specifications:
- Manufacturer: General Electric (GE)
- Model Number:
- Revision Level: DS200ACNAG1ADD (Revision DD)
- Series Compatibility: Mark V Speedtronic
- Abbreviation: ACNA Terminal Board
- Network Speed: 2.5 Mbps (ARCNET protocol)
-
Connections:

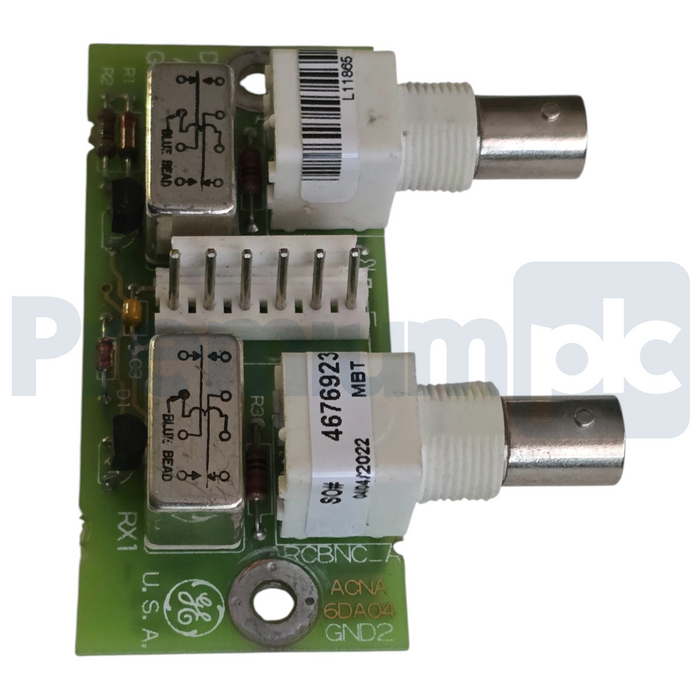

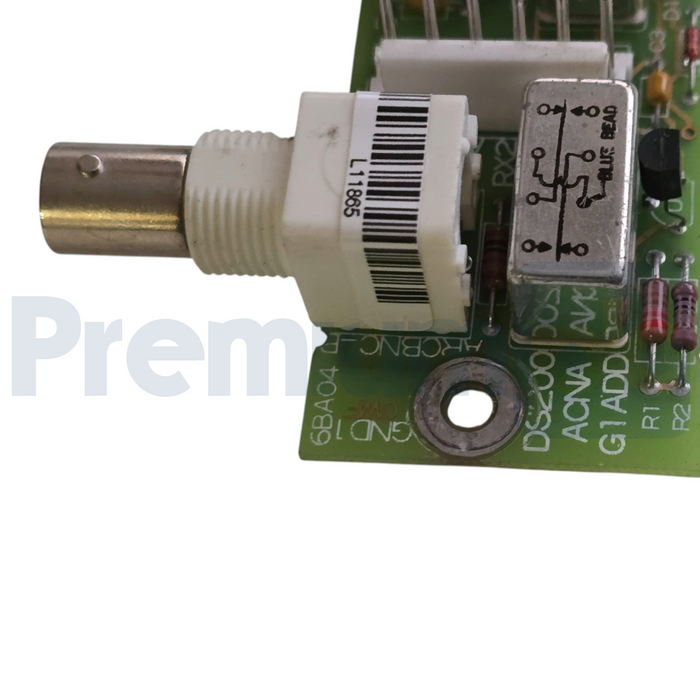

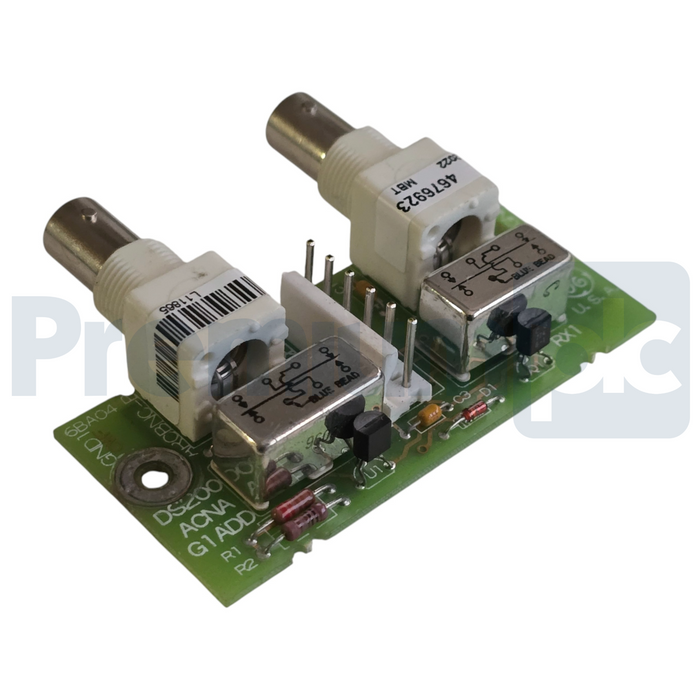

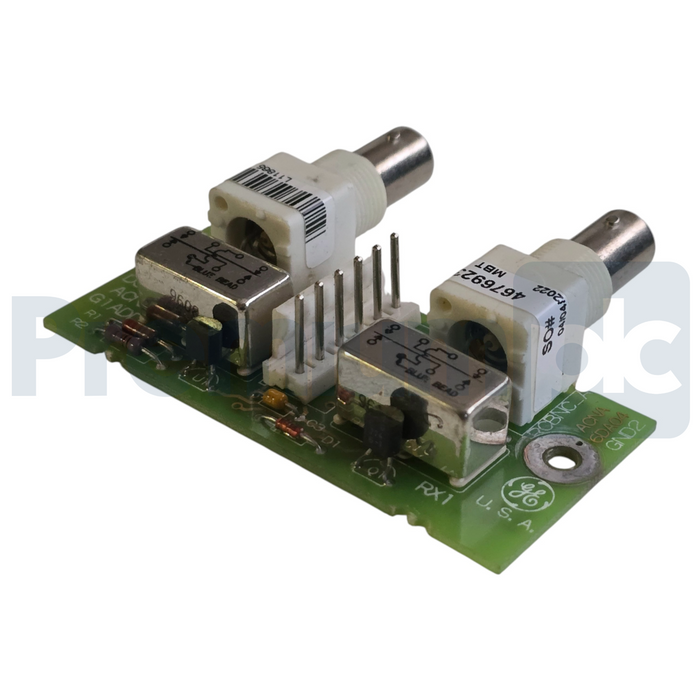

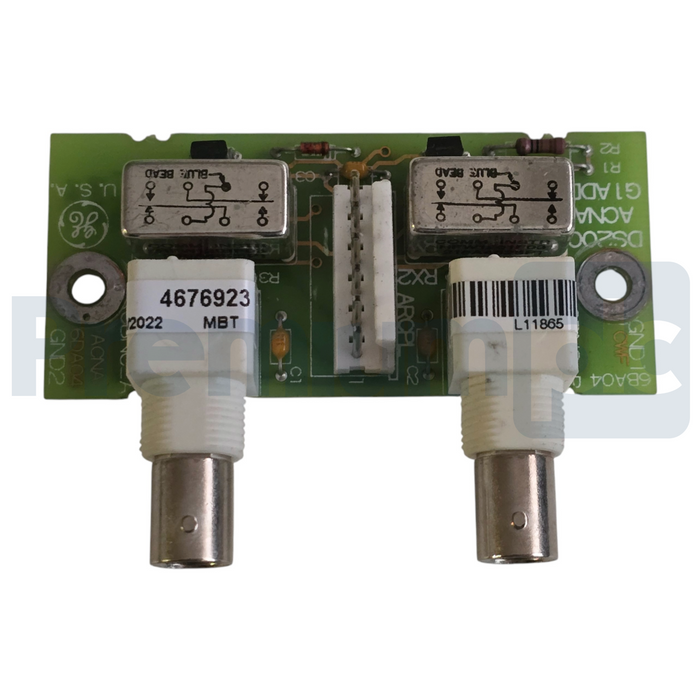

- 2x Female BNC Plugs: For LAN coaxial cable communications.
- 1x Vertical 6-Pin Male Terminal: Located in the center for system integration.
- On-Board Components: Two communications relays, four metal film resistors, three capacitors, and protective grounding holes (GND1/GND2).
- Coating: G1 group designation indicating a standard protective PCB coating for moisture and dust resistance.

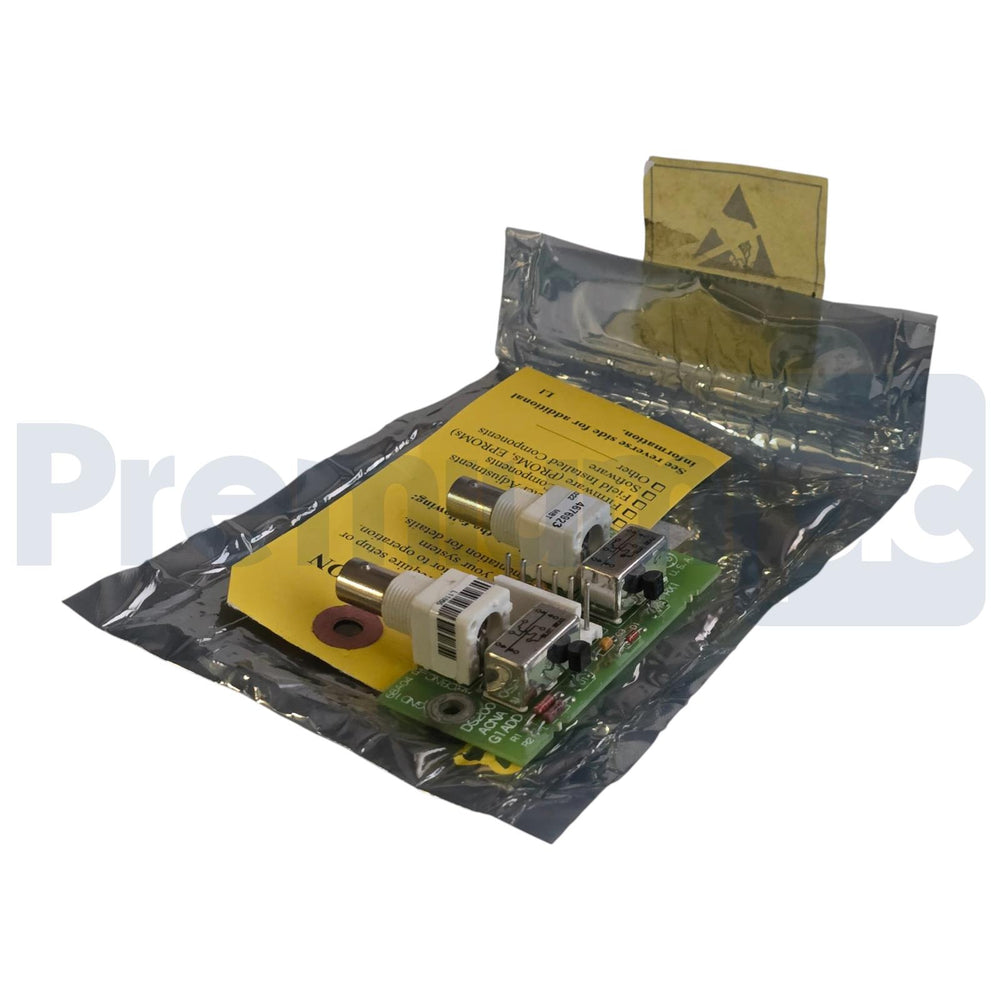

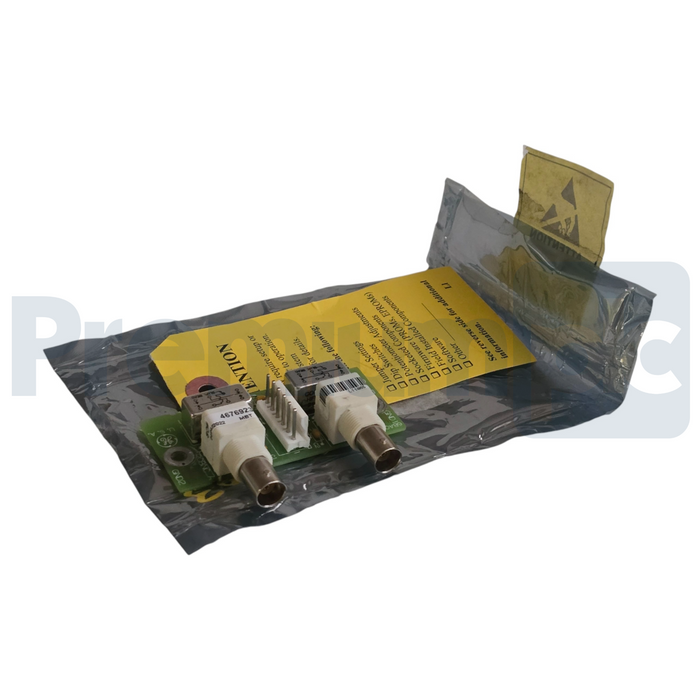

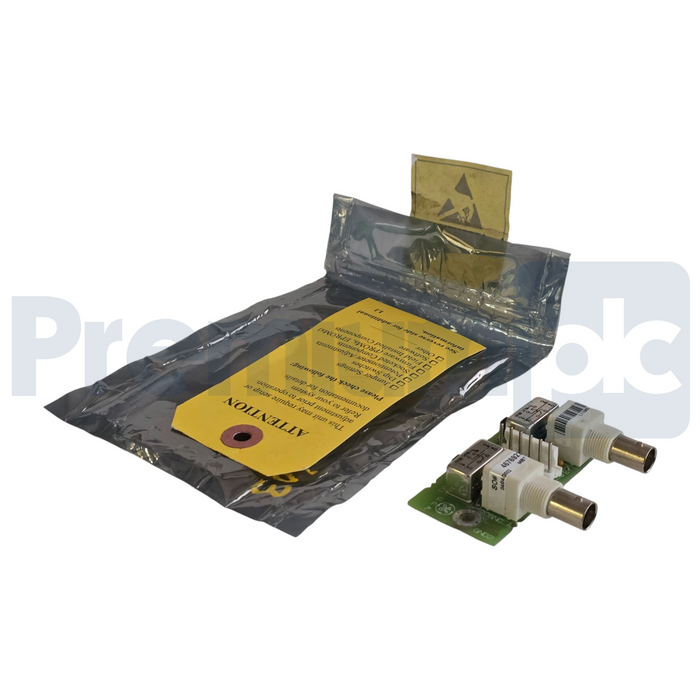

CONDITION: NSNP - New Surplus No Manufacturer Package (OEM)
WARRANTY: 120 DAYS (LIMITED 1 YEAR)
SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST.
(CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT)
