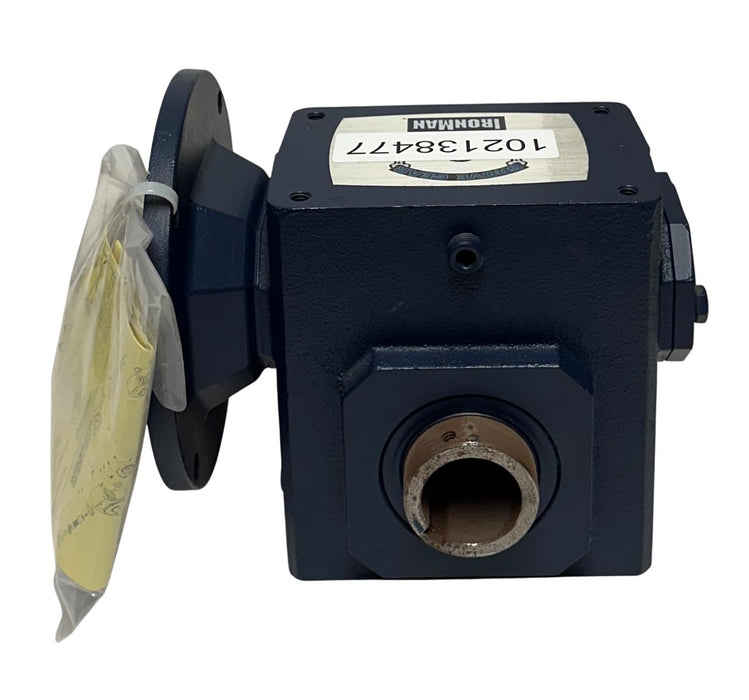

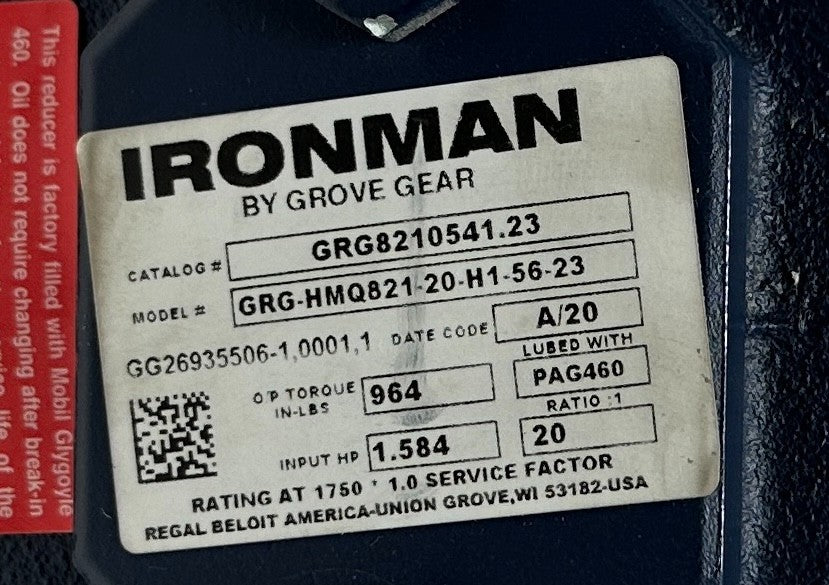

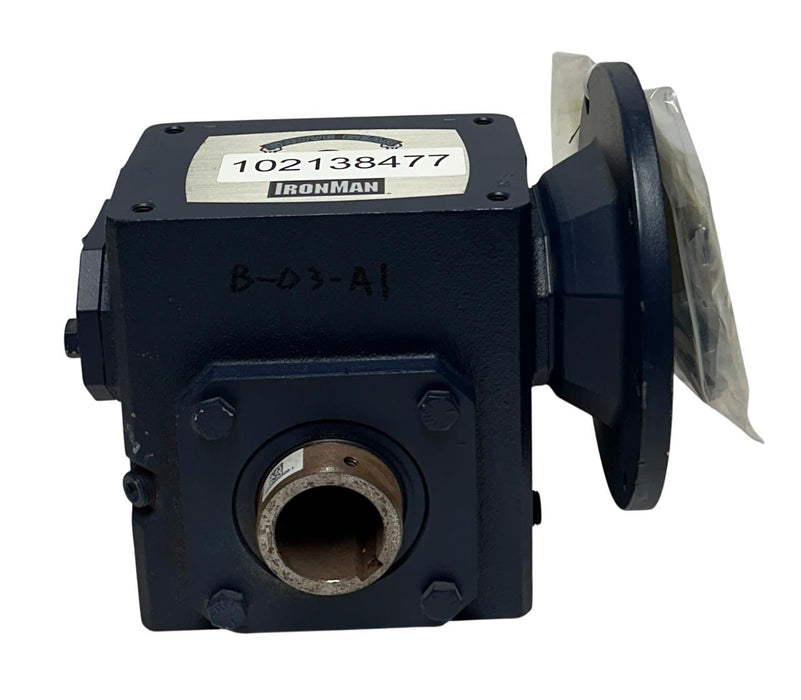

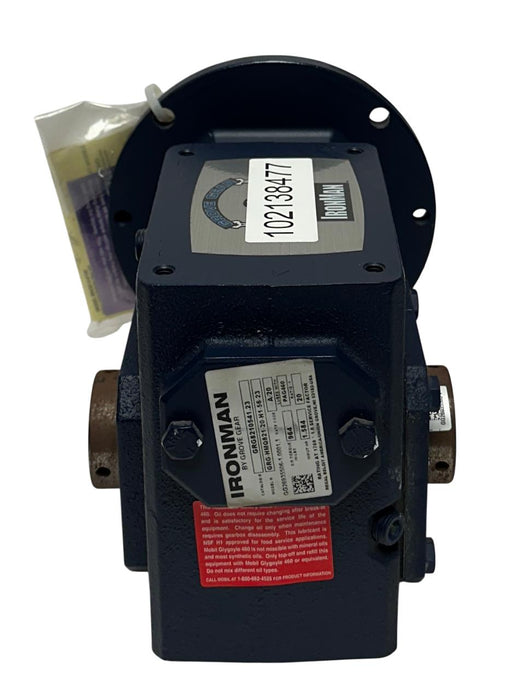

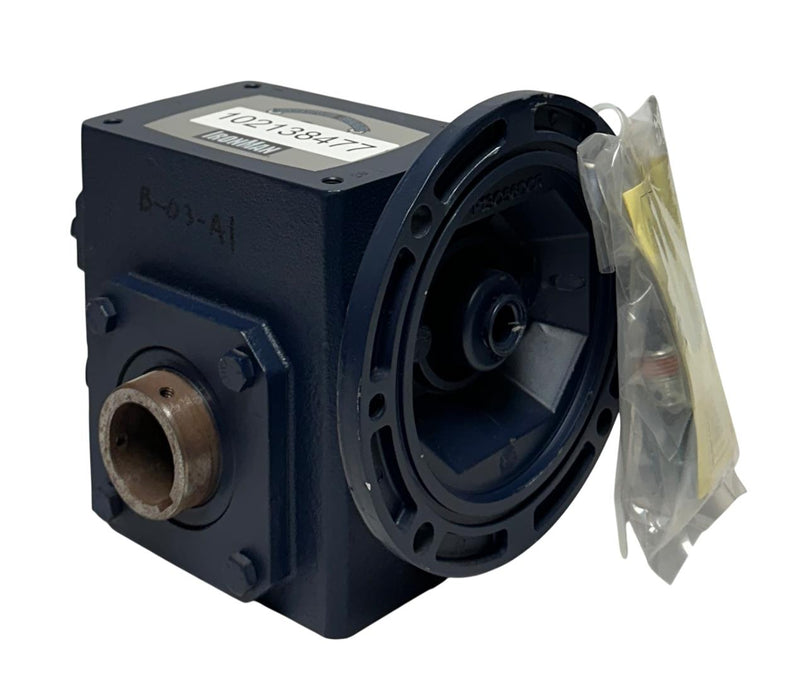

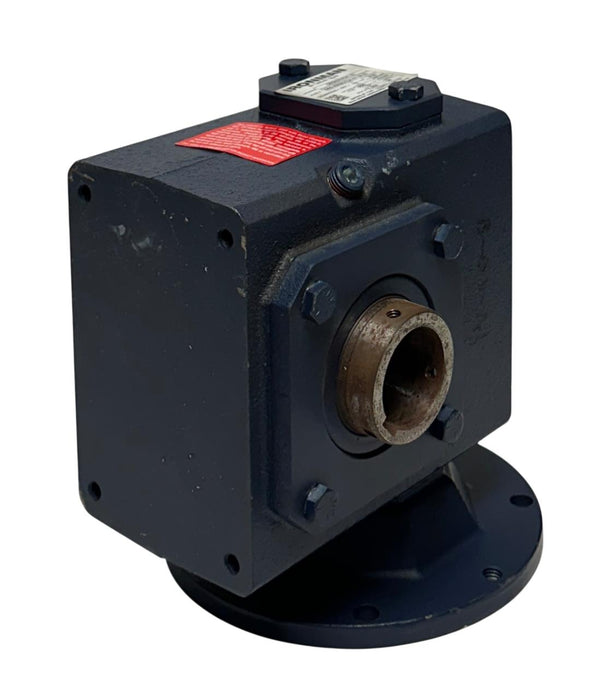

GROVE GEAR IRONMAN GRG-HMQ821-20-H1-56-23 / GRG8210541.23 WORM REDUCER 20:1 NSNP
$1,450.00
GROVE GEAR IRONMAN GRG-HMQ821-20-H1-56-23 / GRG8210541.23 GEAR REDUCER 20:1 NSNP
Technical Specifications
| Mounting Style: | Shaft Mount | Reducer Style: | Worm - Right Angle |
| Keyway: | 3/16 X 3/32 | Output HP: | 1.338 |
| Series Code: | GRG | Input Style: | C-Face Quill |
| Output Shaft Orientation: | H1 | Output Key: | 3/8 X 3.00 |
| Series Type: | Cast Iron 800 Worm Gear Reducers | Input HP: | 1.584 |
| Bore Code: | 23 | Frame Size: | 56C |
| Input RPM: | 1,750 | Output Style: | H1 |
| Series Style: | GRG-HMQ-H1 | Output Shaft Assembly Code: | H1 |
| Output RPM: | 87 | No. of Gear Reductions: | Single |
| Ratio: | 20:1 | Input HP @ 1750 RPM: | 1.584 |
| Input Keyway: | 3/16 X 1.38 in | Thrust Rating - output shaft: | 1144 |
| Input Diameter (in): | 0.625 in | Gear Type: | Worm |
| Product Type: | Right Angle | Input Keyway (C Face): | 3/16 X 3/32 |
| Output Diameter (in): | 1.4375 in | Series: | GR Series - Ironman Worm Gear Reducers |
| Model Code: | HMQ821 | Shaft Seal Material: | Viton |
| Ratio Range: | 20:1 | Center Distance (in): | 2.06 |
| Input Bore (C Face): | 0.625 | Input Quill Diameter (in): | 0.625 in |
| Product Line: | GR Series - Ironman Worm Gear Reducers | Service Factor: | 1 |
| Motor Frame Size: | 56 | Reducer: | Worm - Right Angle |
| Motor HP Rating: | 1.5 | Assembly: | HMQ-H1 |
| Reduction: | Single | Output Shaft Direction: | H1 |
| Output Shaft: | Hollow Bore | Overhung Load Rating (Output Shaft(lb)): | 1,175 lb |
| Housing Material: | Cast Iron | Output Torque Rating (in-lb): | 964 in/lbs |
CONDITION: NEW SURPLUS NO BOX, COMES WITH HARDWARE
WARRANTY: 120 DAYS
SAME DAY SHIPPING AVAILABLE ON ALL ORDERS MADE BEFORE 4PM EST
