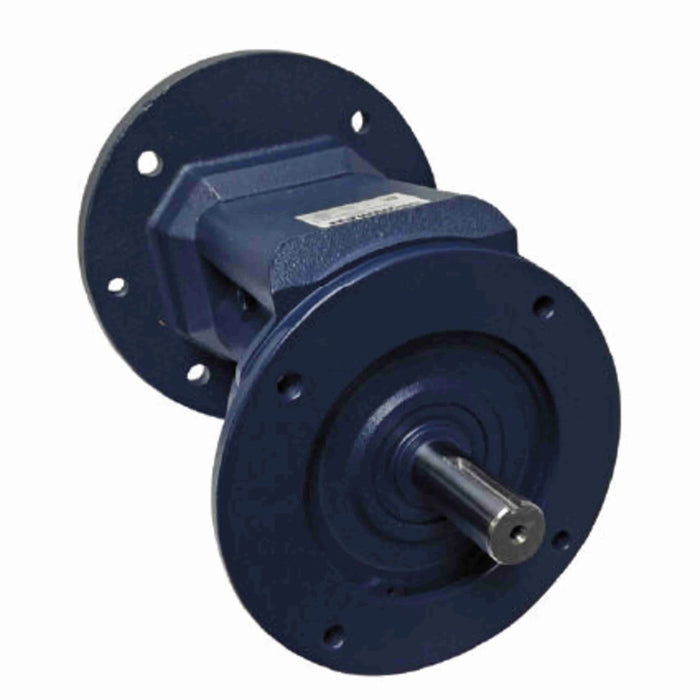

GROVE GEAR TXMQ3-2.964-180-180 - 707069L HELICAL RATIO MULTIPLIER 3:1 180TC NSMP
Sold out
$1,250.00
GROVE GEAR IRONMAN TXMQ3-2.964-180-180 - 707069L HELICAL RATIO MULTIPLIER 3:1 180TC NSMP
Technical Specifications
| Output RPM: | 590 | Series Code: | RM |
| Reducer Style: | TXMQ3 | Output HP: | 12.72 |
| Input/Output Flange: | 180-180 | Material Type: | Cast Iron |
| Size: | 3 | Gearbox Style: | TXMQ3 |
| Reduction: | Single | Ratio: | 2.964 |
| Series: | Cast Iron Ratio Multipliers | Input RPM: | 1,750 |
| Mounting Style: | Block | Input Style: | C-Face Quill |
| Output Style: | Solid Output Shaft | Product Type: | Ratio Multiplier |
| Output Diameter (in): | 1.125 in | Product Line: | Ratio Multiplier |
| Gear Type: | Helical | Ratio Range: | 3:1 |
| Nominal Motor HP Rating to HP @ 1750 RPM: | 10 | Service Factor: | 1 |
| Input Diameter (in): | 1.125 in | Motor Frame Size: | 180TC |
| Overhung Load Rating (lb): | 900 lb | Output shaft: | Shaft |
| Output Torque Rating (in-lb): | 1357 in/lbs | Input HP @ 1750 RPM: | 12.98 |
| Housing Material: | Cast Iron |
CONDITION: NSMP - New Surplus Manufacturer Package (OEM)
WARRANTY: 120 DAYS
SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST.
(CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT)
