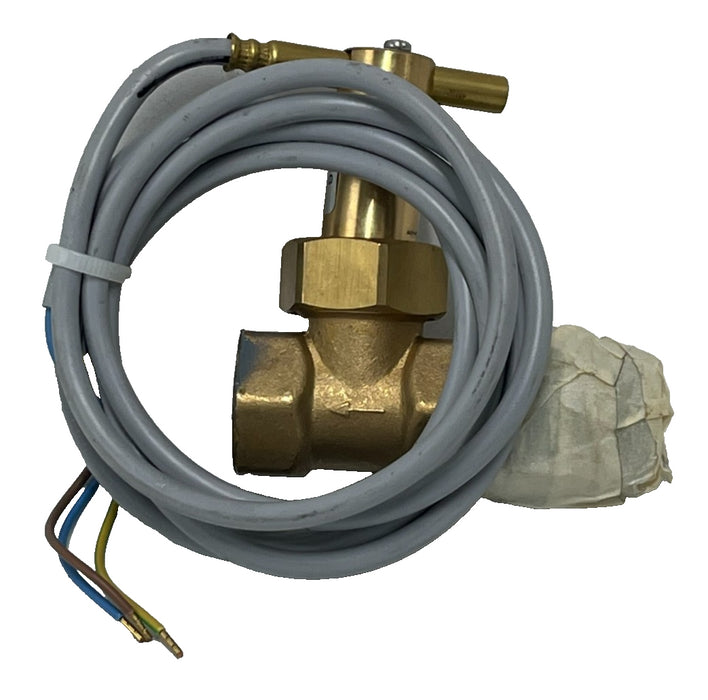

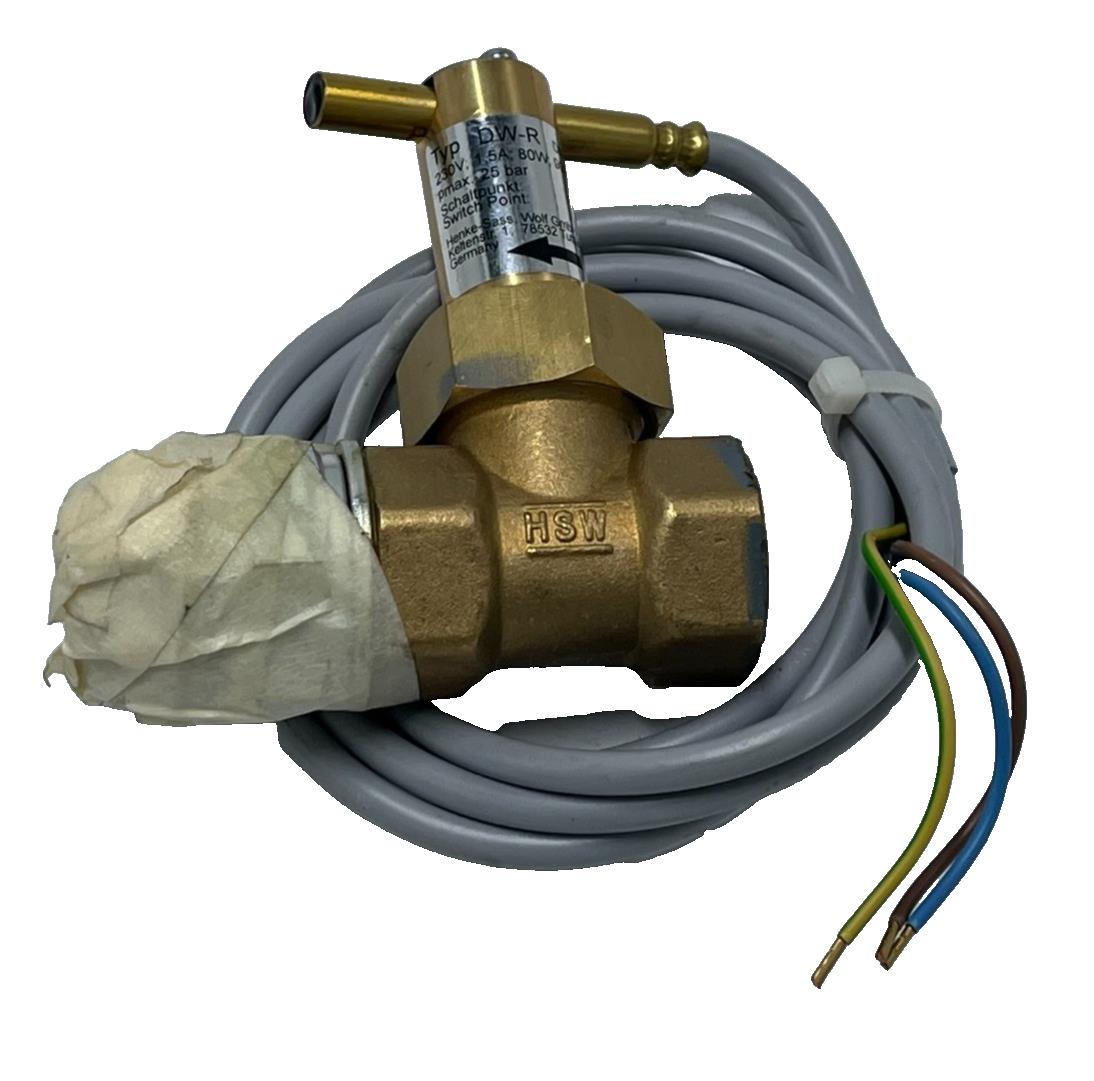

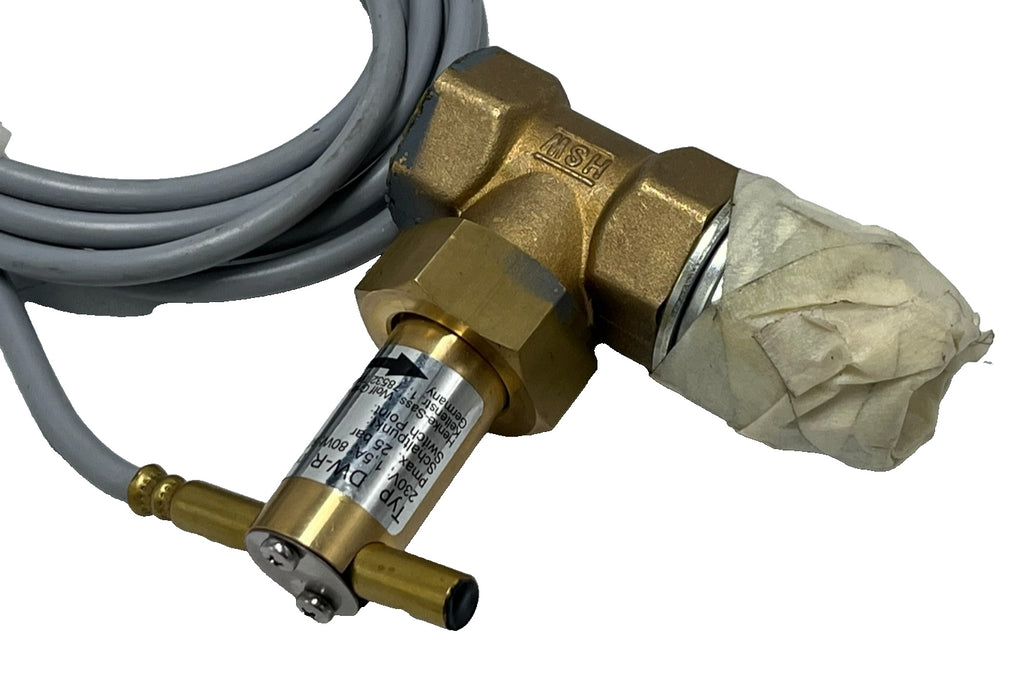

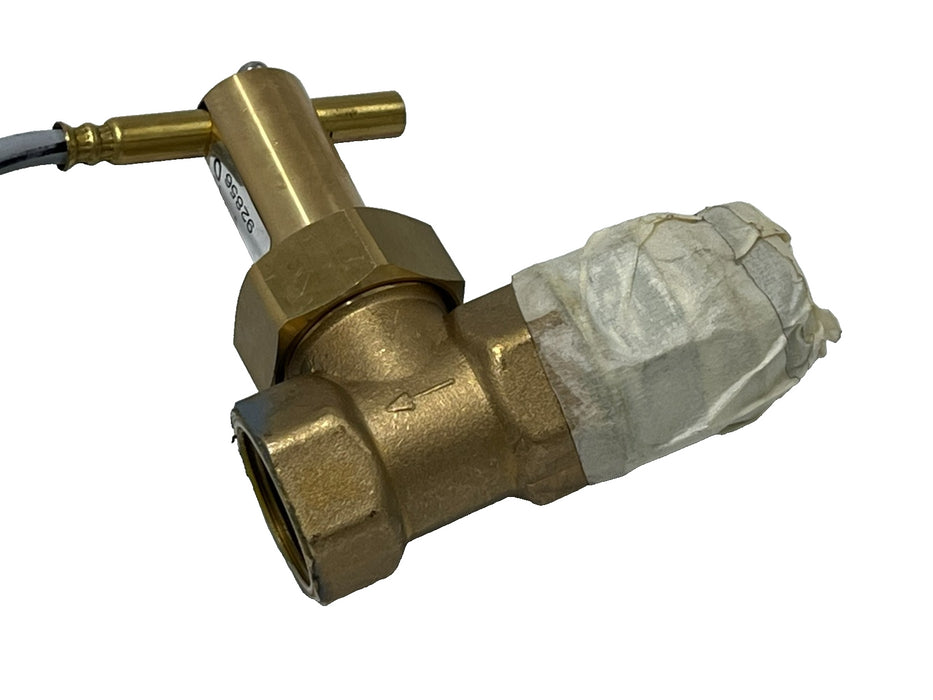

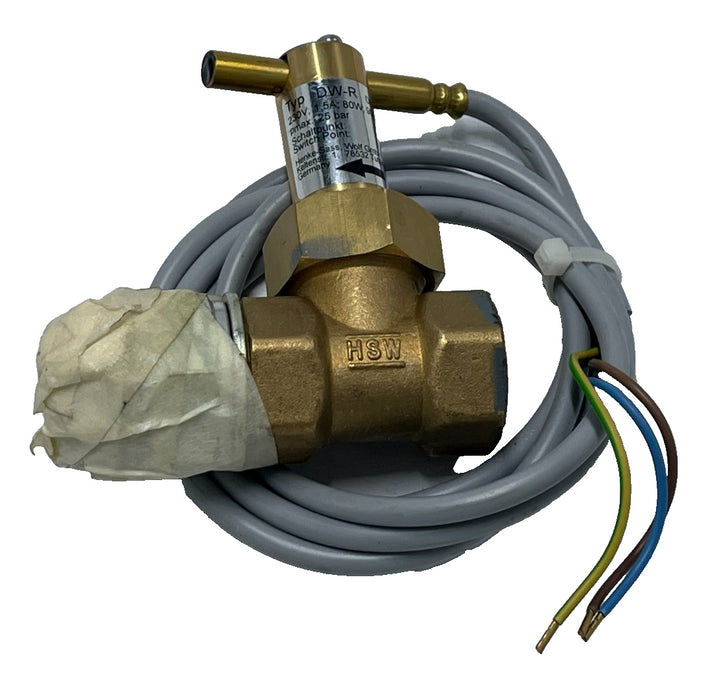

Henke Sass DW-R-20 Flow Switch HSW NW20 3/4" NPT 25 Bar 230V 1.5A
$79.95
Henke Sass DW-R-20 Flow Switch HSW NW20 3/4" NPT 25 Bar 230V 1.5A
NICE CLEAN VALVE IN GOOD CONDITION
- Brand: Henke Sass (HSW - Henke-Sass, Wolf GmbH)
- MPN: DW-R-20
- Model: DW-R (Type DW-R NW 20)
- Type: Flow Switch / Flow Monitor
- Nominal Diameter (NW): 20 mm (3/4")
- Maximum Pressure (PN): 25 bar (approx. 362 psi)
- Connection Type: 3/4" NPT external thread
- Voltage: 230 V AC
- Max Current/Power: 1.5 A / 80 W / 90 VA
- Media Type: Liquid (e.g., Water, Coolant, Lubricant)
- Material: Brass (Standard Type A housing)
- Max Temperature: 100°C (212°F)
Description
Overview
This listing is for a genuine
This listing is for a genuine
Henke Sass DW-R-20 Flow Switch
, a robust and reliable component used for monitoring fluid flow in industrial pipelines. Manufactured by Henke-Sass, Wolf GmbH, this unit operates on the non-contact pendulum principle, making it insensitive to polluted media and calcification (except magnetic particles).Key Features & Benefits
- Reliable Monitoring: Uses a proven way deflection system to monitor flow accurately with low pressure loss.
- Durable Construction: Features a robust brass housing and stainless steel pendulum system suitable for harsh industrial environments.
- Versatile Use: Can be used as either a normally closed or normally open contact, depending on wiring.
- High Specifications: Rated for a maximum pressure of 25 bar and medium temperatures up to 100°C.
- Simple Maintenance: Designed with a divided structure, allowing the upper part and pendulum system to be removed quickly for cleaning without adjustment.
Technical Specifications
- Brand: Henke Sass / HSW Wolf GmbH
- Model: DW-R-20
- Pipe Connection: 3/4" NPT External Thread (NW 20 mm)
- Max Operating Pressure: 25 Bar (362 psi)
- Power Supply: 230 V AC
- Max Load: 1.5 A, 80 W max
- Protection Type: IP 65
- Approx. Weight: 0.4 kg
- Fluid: Designed for water/liquids (gases on request with manufacturer)
CONDITION: USPI - Used Surplus Previously Installed (OEM)
WARRANTY: 90 DAYS
SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST.
(CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT)
