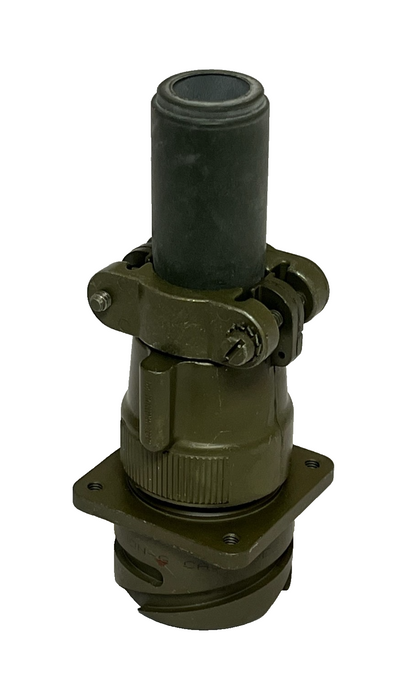

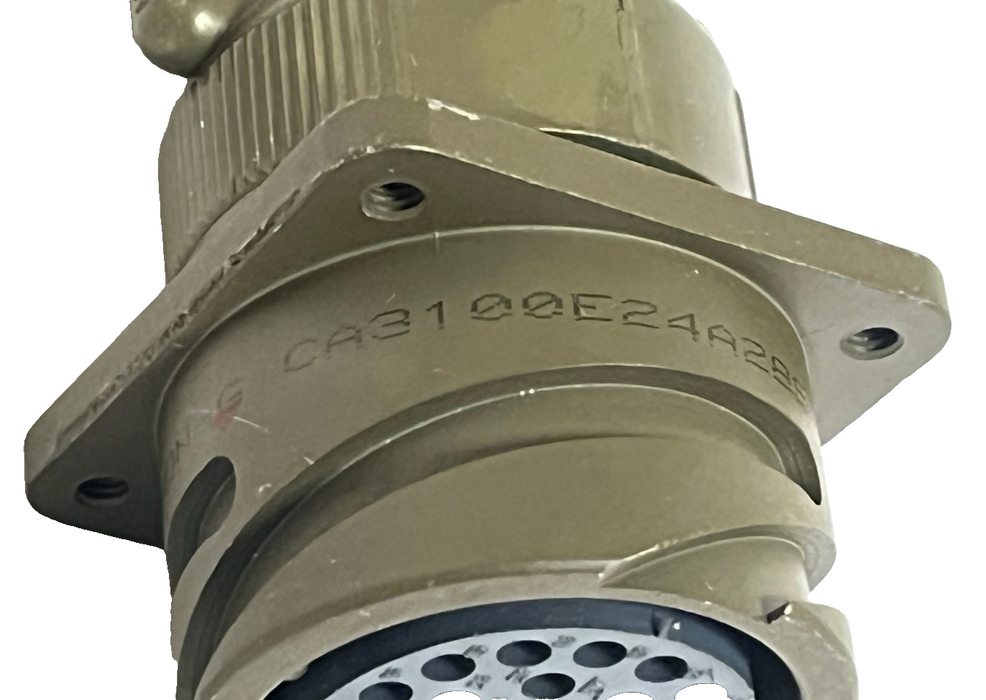

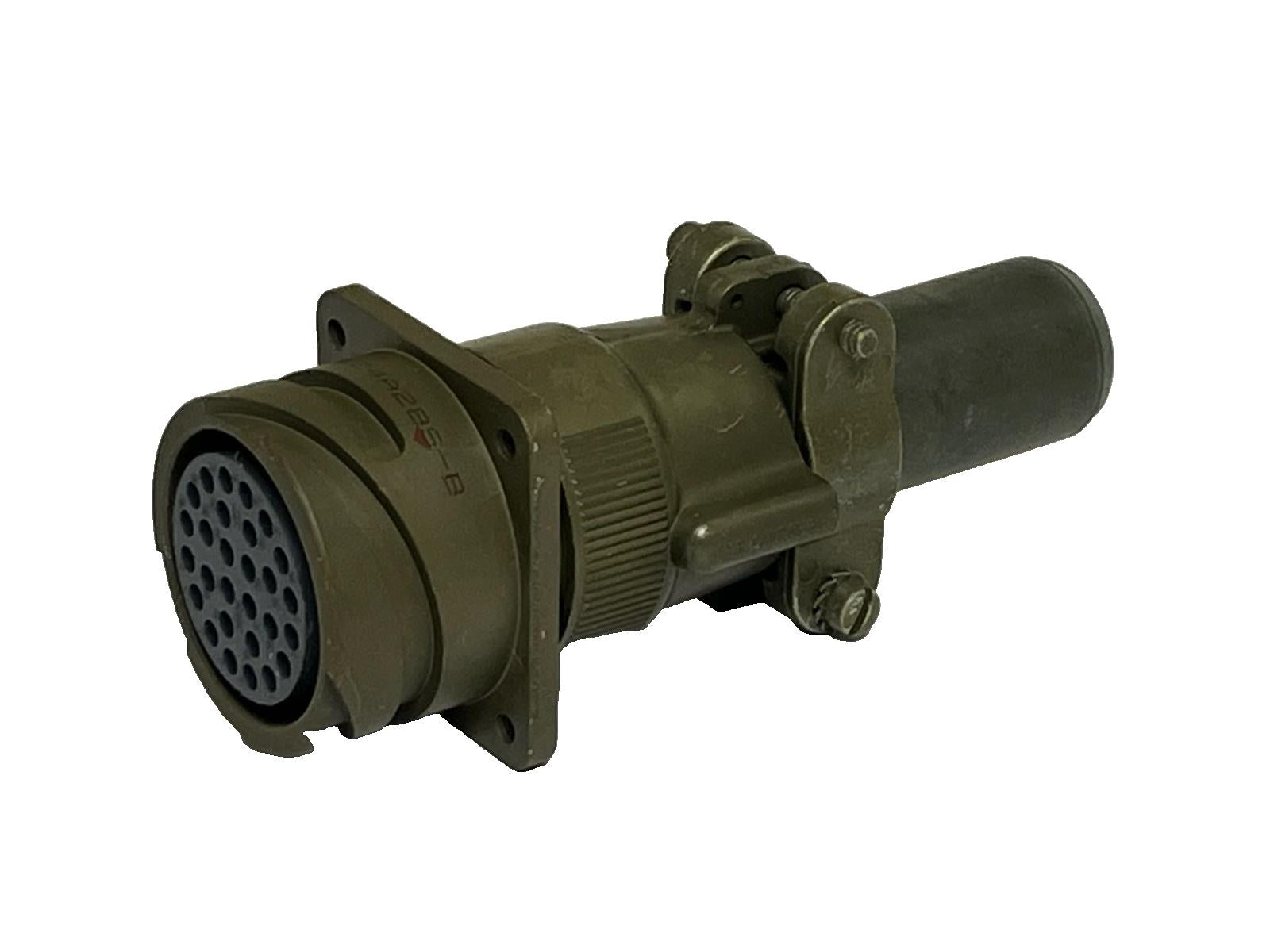

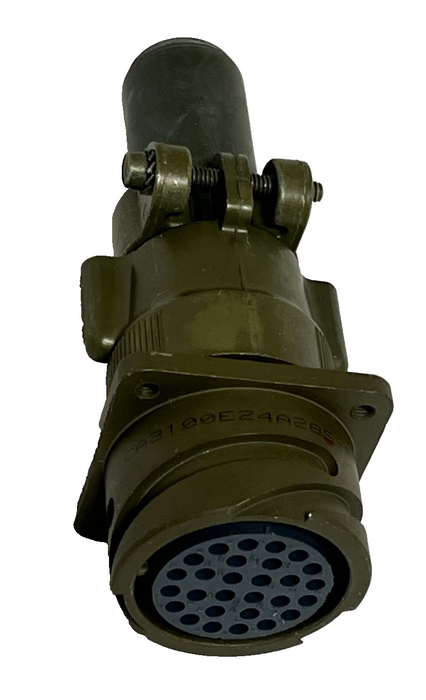

ITT Cannon CA3100E24A28SB Circular Connector 28-Way Socket Cable Adapter Assy.
ITT Cannon CA3100E24A28SB Circular Connector 28-Way Socket Cable Adapter Assy.
Technical Specifications:
Contact Arrangement: 24-A28
Termination Style: Crimp
Shell Material: Aluminum Alloy
Finish: Olive Drab Chromate over Cadmium (Standard Military Finish)
Ingress Protection: IP67 (Dust-tight and waterproof when mated)
Operating Temperature:
$-55\text{°C}$ to $+125\text{°C}$ Voltage Rating: 50V
Current Rating: Up to 22A per contact (approximate, based on AWG)
Key Features:
Reverse Bayonet Coupling: Allows for rapid mating and unmating with an audible and tactile "click" to ensure a secure connection.
Environmental Sealing: Includes an internal O-ring and grommet to prevent moisture and contaminant entry.
Exceptional Durability: Designed to withstand high shock and vibration levels.
