Maxcess Fife DSE-41 Digital Ultrasonic Sensor C104494-001 Web Guiding IP54 USPI
Sold out
$1,100.00

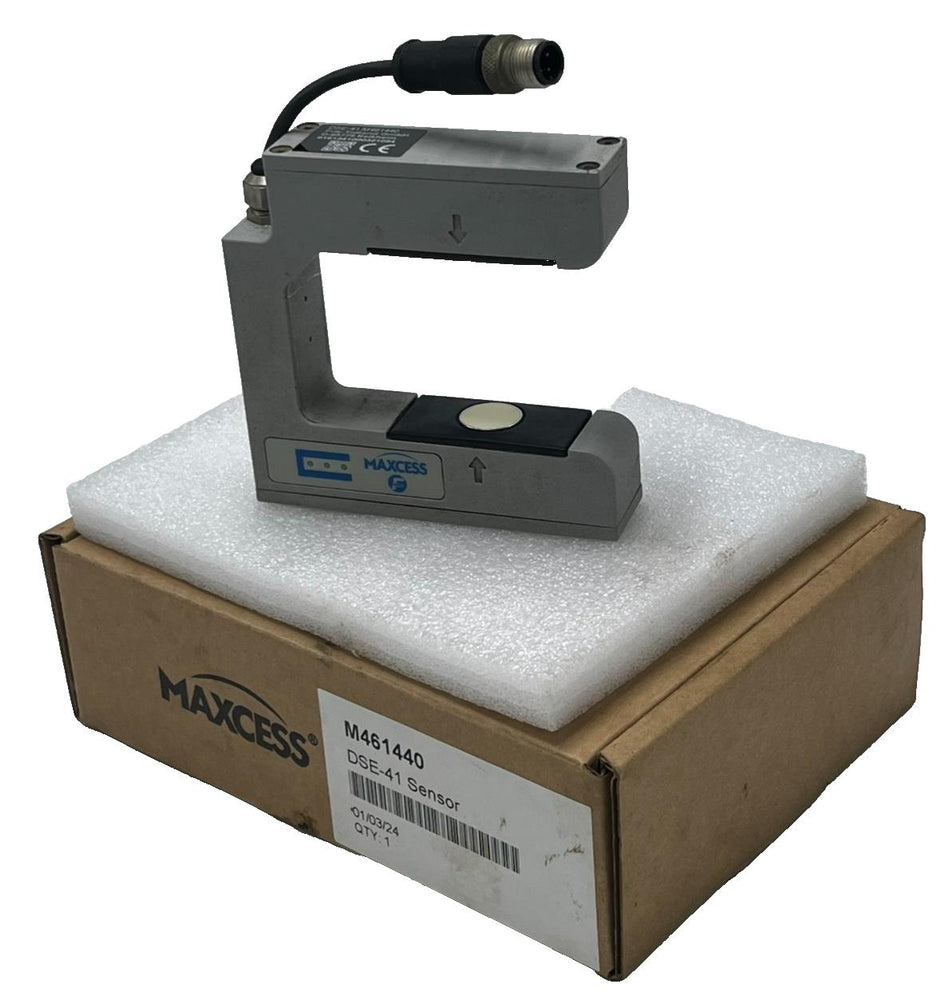

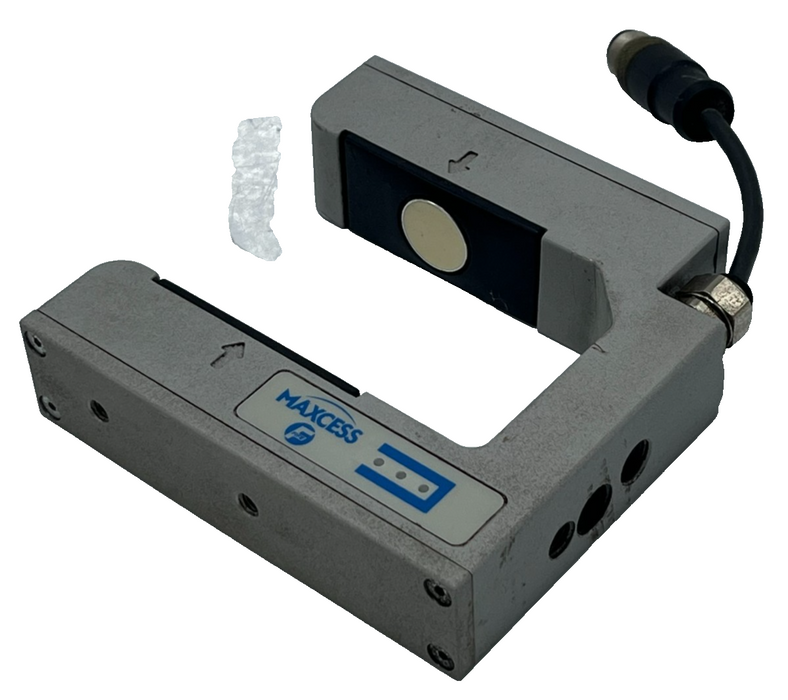

Maxcess Fife DSE-41 Digital Ultrasonic Sensor C104494-001 Web Guiding IP54 USPI
The is a high-precision digital ultrasonic sensor specifically designed for web guiding applications. It is engineered to detect the lateral position of various materials, including opaque materials and clear films, without being affected by ambient light or electrostatic discharge.
Technical Specifications
- Sensor Source: Ultrasonic (150 kHz).
- Proportional Band: 7.6 mm (0.30 in.).
- Power Supply: 10 - 28 VDC.
- Output Signal: 0-10 mA (12V mode) or 4-20 mA (24V mode).
- Protection Class: IP 54.
- Gap Width: 99 mm (3.9 in.).
- Display: Built-in LED display visible from both sides for status and error monitoring.
CONDITION: USPI - Used Surplus Previously Installed (OEM)
(USED SENSOR WITH SOME COSMETIC SURFACE WEAR, COMES IN ORIGINAL BOX.)
WARRANTY: 90 DAYS
SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST.
(CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT)
