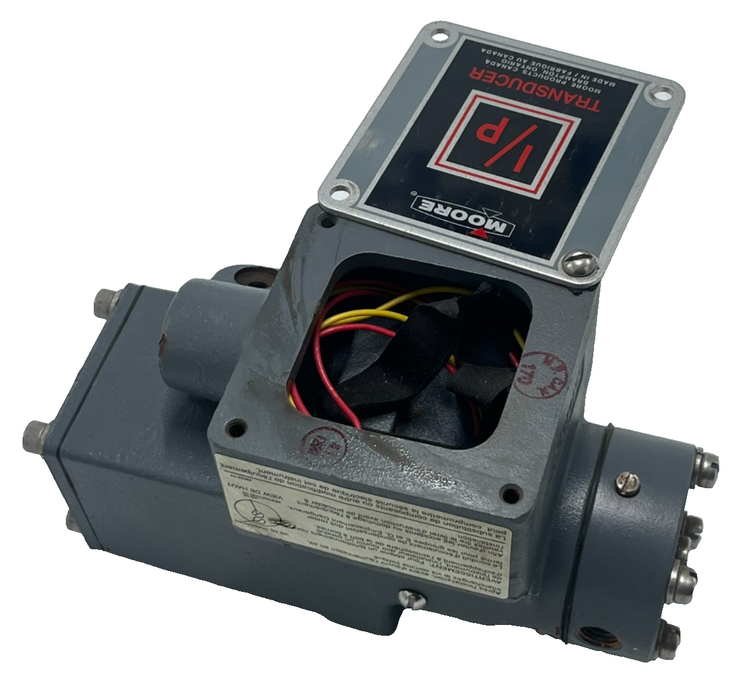

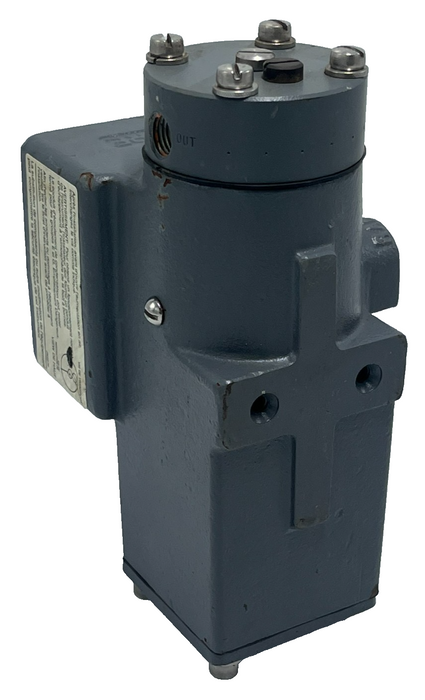

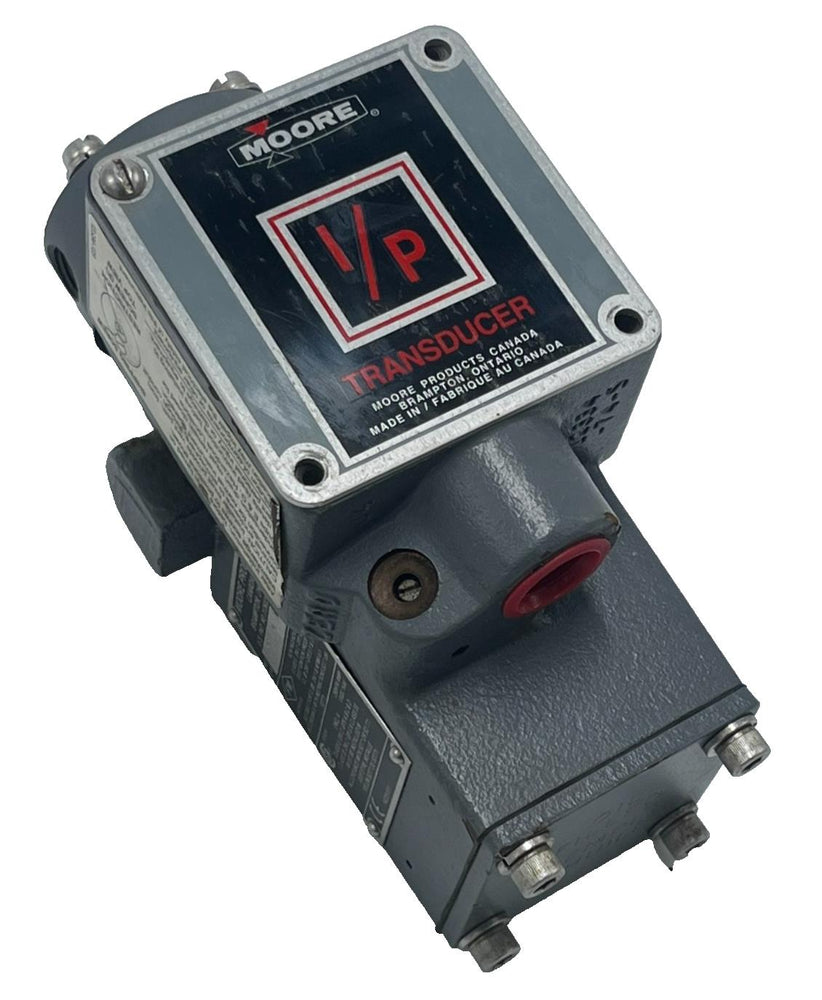

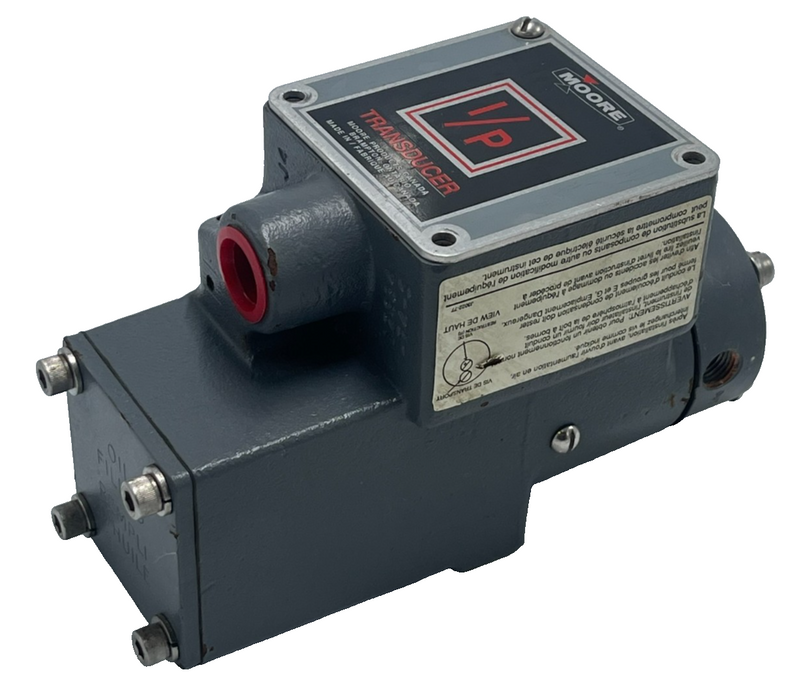

MOORE 771-16SNF2 | 77116SNF2 I/P Transducer 4-20mA Input 3-15 PSI Output XLNT
$450.00
MOORE 771-16SNF2 | 77116SNF2 I/P Transducer 4-20mA Input 3-15 PSI Output XLNT
LIGHTLY USED TRANSDUCER, SOME LIGHT COSMETIC WEAR, MISSING 3 OF 4 SCREWS FOR ELECTRICAL BOX COVERPLATE OTHERWISE IN GREAT CONDITION
Key Features:
- High Precision Conversion: Converts analog mA signals to air pressure with minimal hysteresis and high repeatability.
- Rugged Construction: Designed to withstand industrial vibration and temperature fluctuations.
- Field-Proven Reliability: The Moore 771 series is widely recognized for long-term stability in critical process loops.
- Standard Pneumatic Output: Delivers the 3-15 PSI range required for most pneumatic actuators and positioners.
- Compact Design: Easy to install in tight spaces or directly on the valve assembly.
Technical Specifications (2026 Reference Data):
| Feature | Detail |
|---|---|
| Manufacturer | Moore Industries |
| Part Number | 771-16SNF2 |
| Input Range | 4-20 mA DC |
| Output Range | 3-15 PSIG |
| Supply Pressure | 20 PSI Nominal (Up to 30 PSI Max) |
| Accuracy | ±0.25% of Span |
| Operating Temp | -40°C to +75°C (-40°F to +167°F) |
| Air Consumption | Low (Typically 0.03 SCFM) |
CONDITION: USPI - Used Surplus Previously Installed (OEM)
(SELLING AS USED BUT APPEARS TO BE NEW OTHER THEN THE MISSING SCREWS)
WARRANTY: 120 DAYS
SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST.
(CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT)
