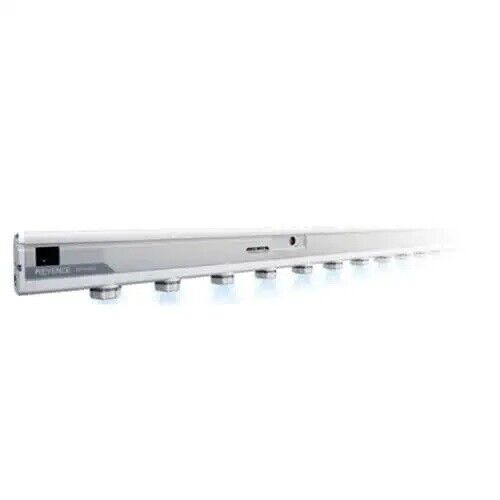

NEW KEYENCE SJ-H156A HIGH-SPEED SENSING STATIC BAR 1560mm (61.42") W/ SJ-C2U

Model

SJ-H156A

Type

HA

Ion generation method

Corona discharge method

Structure

Shock-proof, resistance-coupled type

Voltage application method/applied voltage

Pulse AC method/±7,000 V

Ion balance control method

Dual I.C.C.

Ion balance

±30 V*1

Operating distance

50 to 2,000 mm 1.97" to 78.74"

Control input

NPN open collector or non-voltage contact signal

Control output

NPN type photo-relay, 100 mA max. (40 V max.)

Major functions

Condition alarm, ion level alarm, alarm output

Air purge connection port

Rc 1/8

Air purge supplied pressure

0.5 MPa or less

Effective length

1,560 mm 61,.42"*2

No. ofelectrodes

24

Static elimination bar length

1,520 mm

Rating

Power voltage

24 to 36 VDC ±10 %

Current consumption

500 mA (at 24 VDC), 350 mA (at 36 VDC)

Overvoltage category

I

Pollution degree

2

Environmental resistance

Ambient temperature

0 to +40 °C 32 to 104 °F

Relative humidity

35 to 85 % RH (No condensation)

Material

Electrode probe

Tungsten

Main unit

ABS resin/PC

Weight

Static elimination bar

1,550 g
