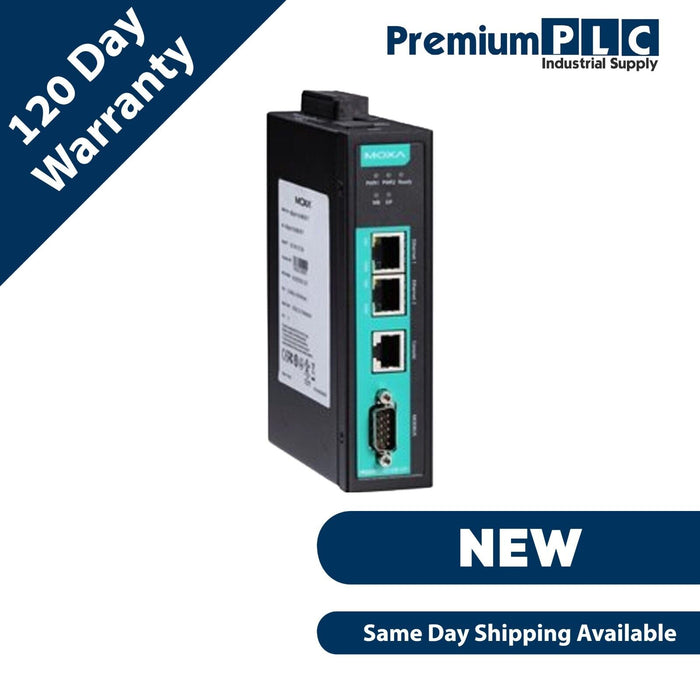

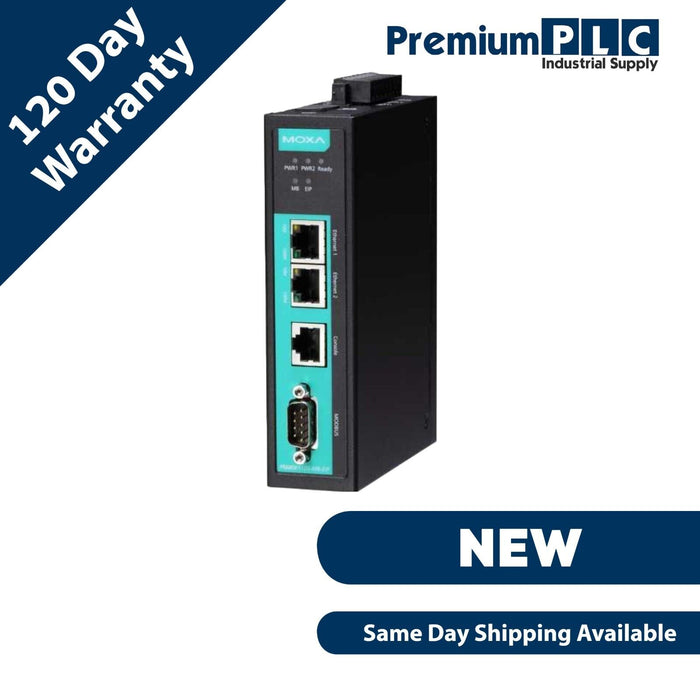

NEW MOXA MGate 5105-MB-EIP-T 1-PORT MODBUS RTU to EtherNet/IP GATEWAY 5105MBEIP
Sold out
$900.00
NEW MOXA MGate 5105-MB-EIP-T 1-PORT MODBUS RTU to EtherNet/IP GATEWAY (EXTENDED TEMPERATURE MODEL)
5105-MB-EIP-T IS THE SAME AS 5105-MB-EIP, ONLY THING DIFFERENT IS THE TEMPERATURE RANGE -40 to 75°C (-40 to 167°F)
| Ethernet Interface | |
| Protocol | EtherNet/IP, Modbus TCP |
| Number of Ports | 2 (Ethernet cascade) |
| Speed | 10/100 Mbps, Auto MDI/MDIX |
| Connector | 8-pin RJ45 |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
| • EtherNet/IP | |
| Class | Adapter, Scanner |
| CIP Objects Supported | Identity, Message Router, Assembly, Connection Manager, TCP/IP interface, Ethernet link, Port |
| Max. Number of Connections | MGate as Adapter: 16 connections for read-only, 1 connection for read/write MGate as Scanner: 100 connections |
| Max. Total I/O Data Size | Input: 2048 bytes (496 bytes per connection) Output: 2048 bytes (496 bytes per connection) |
| • Modbus | |
| Functions Supported | 1, 2, 3, 4, 5, 6, 15, 16, 23 |
| Max. Number of Commands | 100 |
| Max. Number of Connections | MGate as Modbus TCP Master: 32 connections MGate as Modbus TCP Slave: 16 connections |
| Max. Total I/O Data Size | Input: 2048 bytes Output: 2048 bytes |
| • Modbus Serial Interface | |
| Number of Ports | 1 |
| Serial Standards | RS-232/422/485, software selectable |
| Connectors | DB9 male |
| Isolation | 2 kV (built-in) |
| RS-485 Data Direction Control | ADDC® (automatic data direction control) |
| Pull High/Low Resistor for RS-485 | 1 KΩ, 150 KΩ |
| Terminator for RS-485 | 120 Ω |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | RTS/CTS |
| Baudrate | 50 bps to 921.6 Kbps |
| • External Storage Drive | |
| Interface | microSD |
| Standard | SDHC v2.0 |
| • Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| • Software | |
| Operation Modes | EtherNet/IP Adaptor/Scanner, Modbus RTU/ASCII/TCP Master/Slave |
| Configuration Options | Serial console, Windows utility |
| Utilities | MGate Manager for Windows 2000/XP/2003/Vista/Server 2008/7/8 (x86/x64), Windows Server 2008 R2/2012 (x64) |
| Bonus Features | QuickLink |
| • Physical Characteristics | |
| Housing | Metal (IP30) |
| Weight | 507 g |
| Dimensions | 36 x 105 x 140 mm (1.42 x 4.13 x 5.51 in) |
| • Environmental Limits | |
| Operating Temperature | Standard Models: 0 to 60°C (32 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Altitude | Up to 2000 m |
| Note | Please contact Moxa if you require products guaranteed to function properly at higher altitudes. |
| • Power Requirements | |
| Input Voltage | 12 to 48 VDC |
| Power Connector | Terminal block |
| Power Consumption | 455 mA @ 12 VDC, 125 mA @ 48 VDC |
| • Standards and Certifications | |
| Safety | UL 508, EN 60950-1 |
| EMC | CE, FCC |
| EMI | EN 55022 Class A, FCC Part 15 Subpart B Class A |
| EMS | EN 55024, EN 61000-4-2 (ESD) Level 4, EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 4, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8,(PFMF) Level 3 |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-6 |
| • Reliability | |
| MTBF (mean time between failures) | 513,139 hrs |

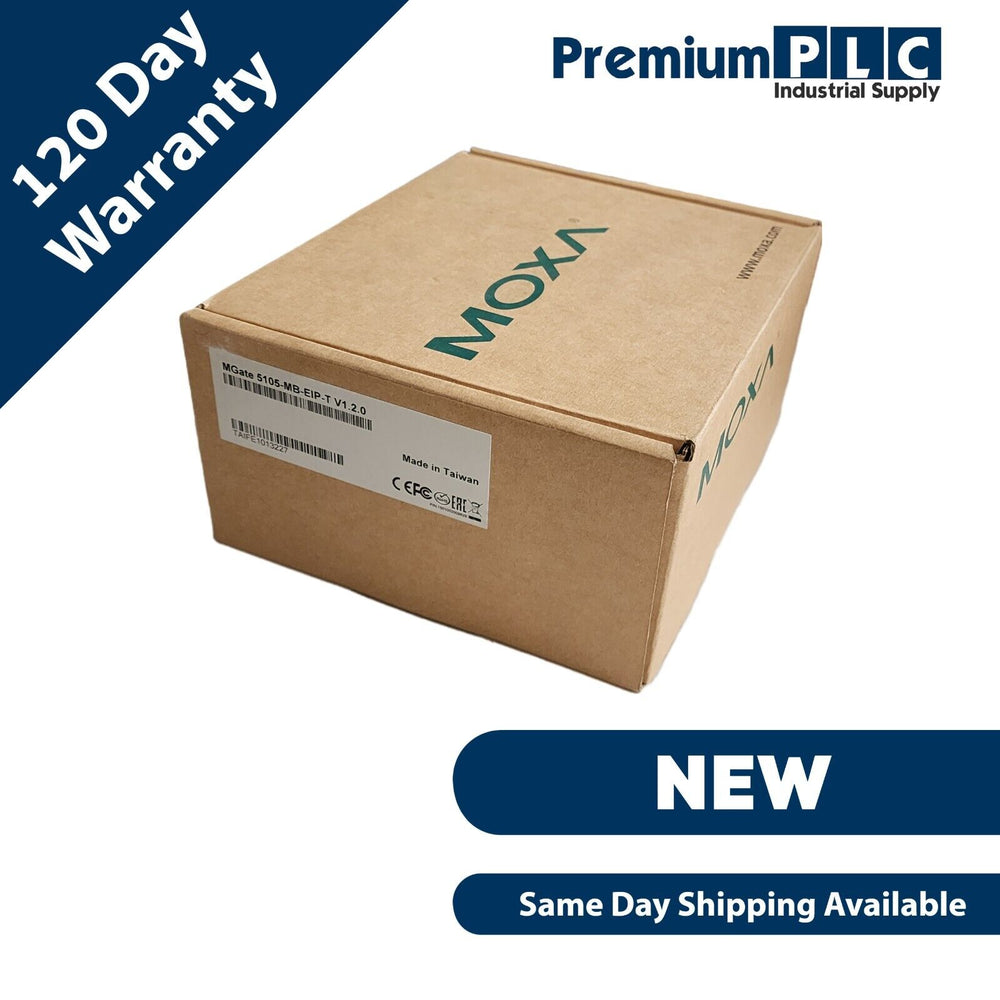

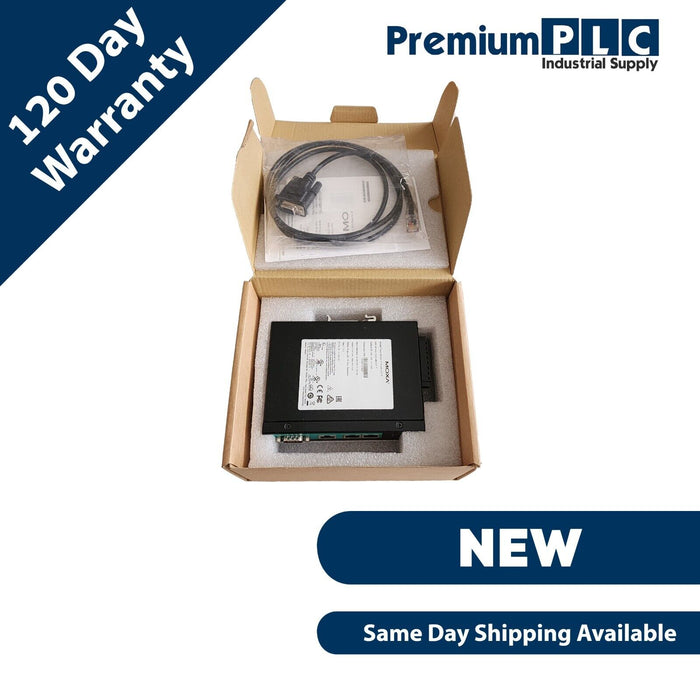

CONDITION: NEW IN FACTORY BOX
WARRANTY: 120 DAYS
SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST.
