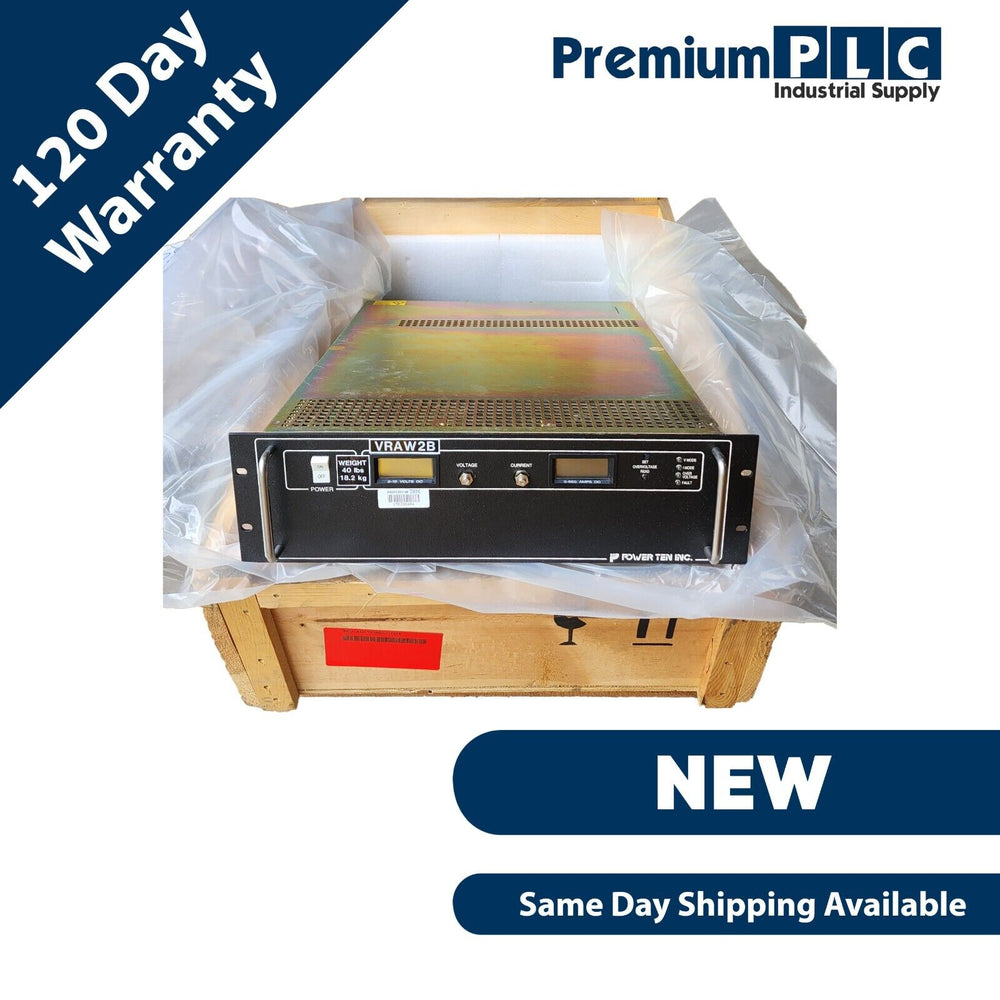

NEW POWER TEN P63C-10660D P63C SERIES VARIABLE POWER SUPPLY 10V 660A 10kW
$3,750.00
NEW POWER TEN P63C-10660D P63C SERIES VARIABLE POWER SUPPLY 10V 660A 10kW
- Output: 10V, 660A, 50mV Ouput P-P Ripple
- Input Voltage: 190-253 VAC, 47-63 Hz
- Input Current @ 208 VAC (Typical): At 10.0 kW Output: 41 A (Operates from Delta or Wye Source)
- Dimensions: 19" (W) X 5.25" (H) X 22" (D)
- AC Input Interface: 3 wire + GND (#10-32 threaded studs) (208 VAC)
- DC Output Interface
- Control/Monitor Interface: DB 25-pin female connector
- Regulation (Line or Load) Voltage: 0.1% of maximum rated output
- Current: 0.5% of maximum rated output
- Transient Response
- A 30% current step load will recover to within ±2% of set voltage within 10 msec.
- Stability
- ±0.05% of set point per 8 hours after 30 minutes warm-up at fixed line, load and temperature.
- Temperature Coefficient
- 0.02%/°C of rated output voltage
- 0.03%/°C of rated output current
- Operating Temperature
- 0 to +50° C, No derating
- Storage Temperature
- -20 to +70°C
- Cooling
- Internal fans
- Controls (Front Panel)
- On/Off switch, DC volts adjust, DC amps adjust, OVP preset adjust (limit set)
- Meters/Indicators
- LCD DC voltmeter, ammeter and OVP limit set. LED indicators for voltage mode, current mode. OVP fault and fault
- Built-In Protection
- Over Voltage, Current limit Fold back, Over Temperature, Brown Out, Turn On Surge Limit, Slow Start
- Remote Control/Monitor (Rear Panel)
- On/Off control via contact closure, 6-120 VDC, TTL or CMOS switch, output voltage and current monitor, OVP limit set, summary fault status on P60 Series.
- Remote Programming (Voltage (0 to 100%) Current (0 to 100%)):
- Resistive: 0-5K ohms 0-5K ohms
- Voltage: 0-5 VDC or 10 VDC 0-5 VDC or 10 VDC
- Optional IEEE 488.2 and RS 232 Programming with SCPI protocol
- Remote Sensing:
- Terminals provided to sense output voltage at load
- Operational Features:
- Master/Slave, Series, Parallel

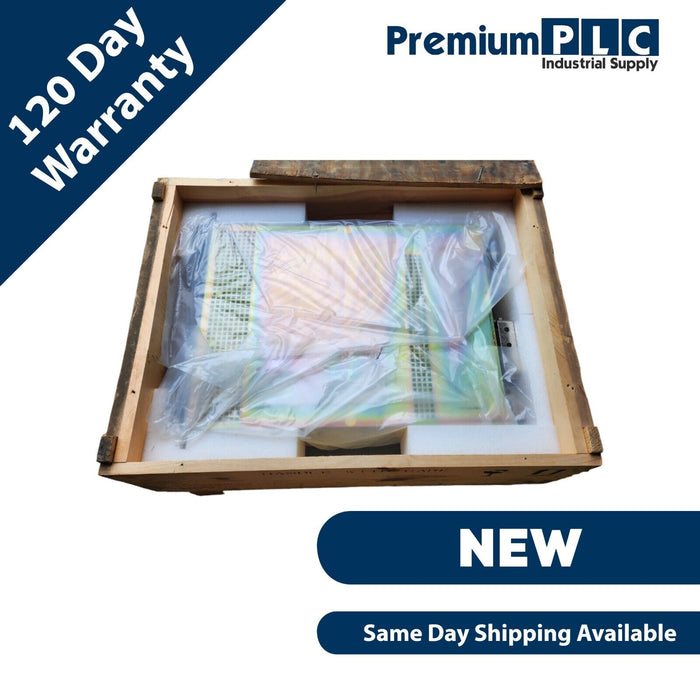

CONDITION: NEW IN CRATE
WARRANTY: 120 DAYS
