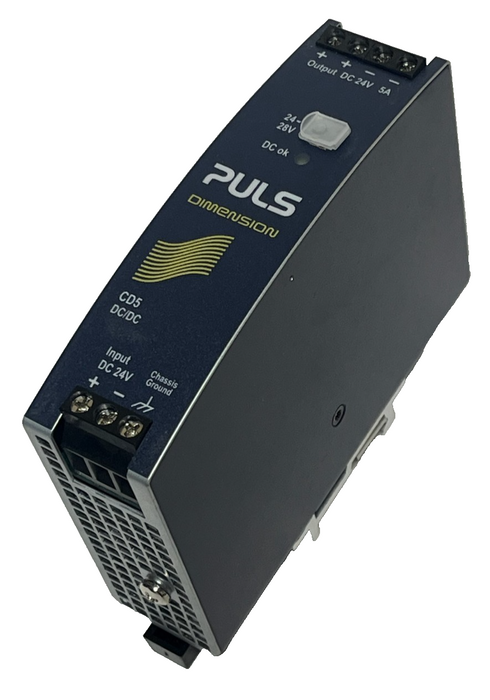

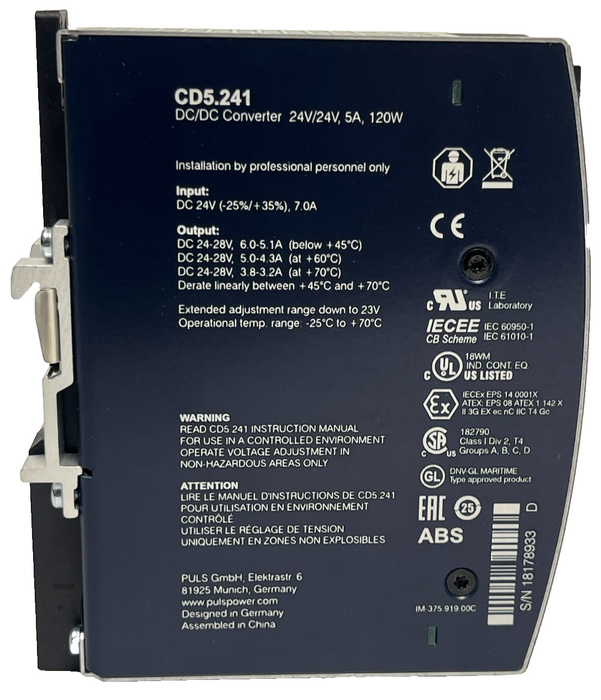

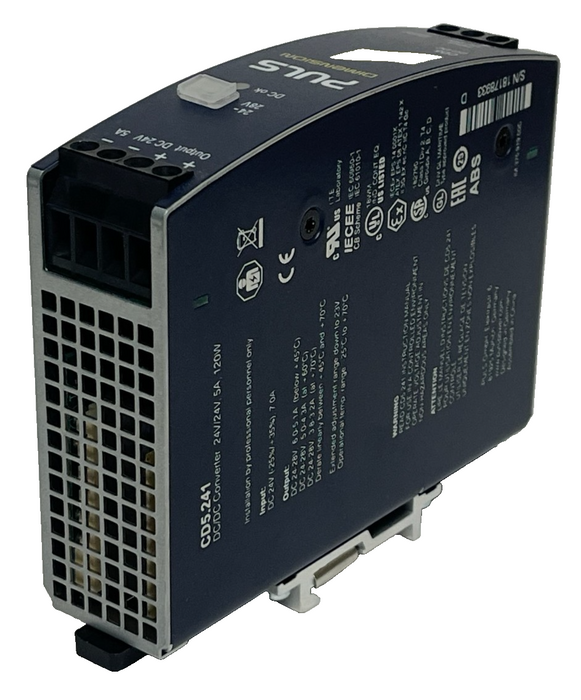

NEW PULS CD5.241 DC/DC Converter | 24V 5A 120W DIMENSION CD-Series DIN Rail

NEW PULS CD5.241 DC/DC Converter | 24V 5A 120W DIMENSION CD-Series DIN Rail

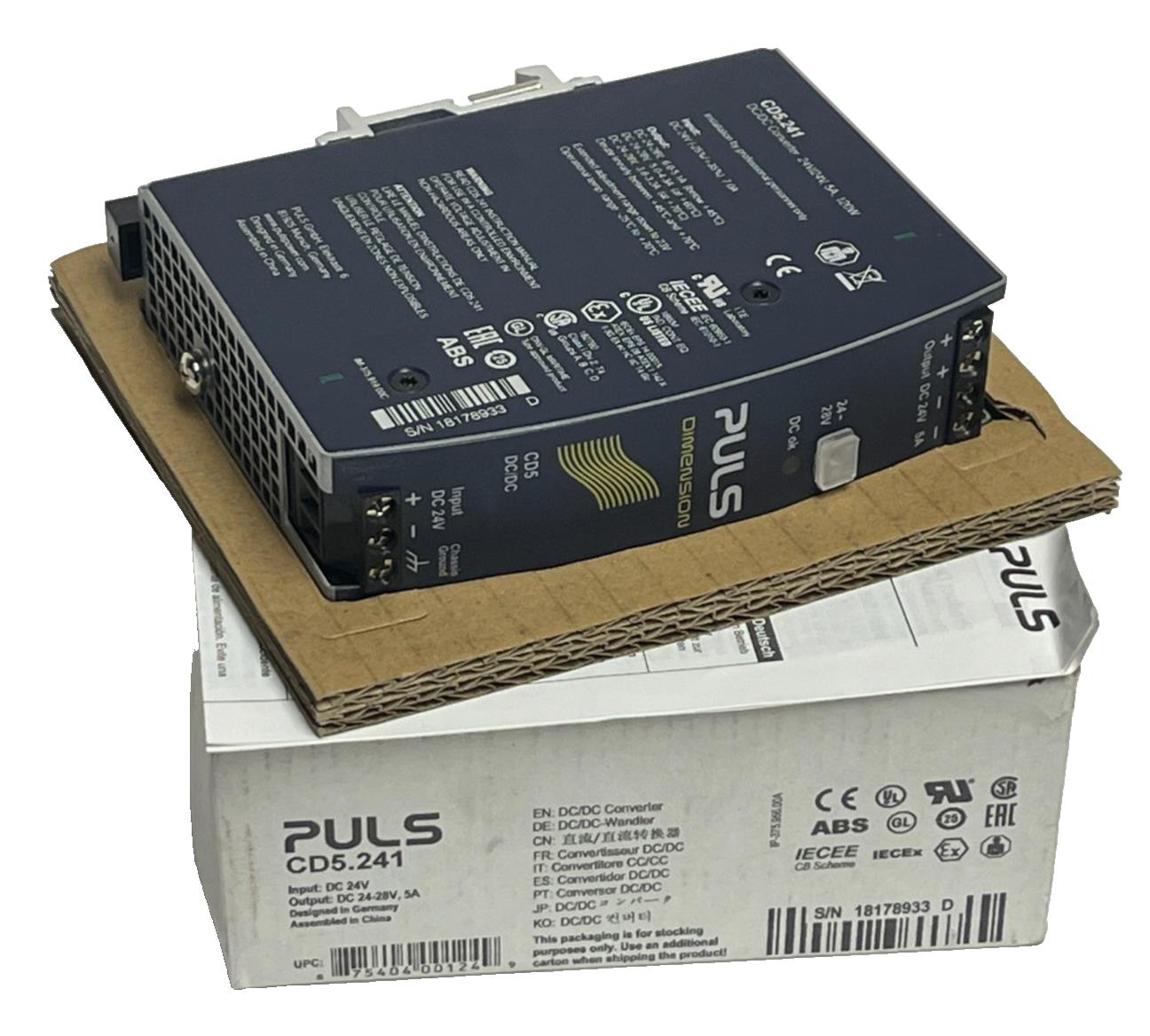

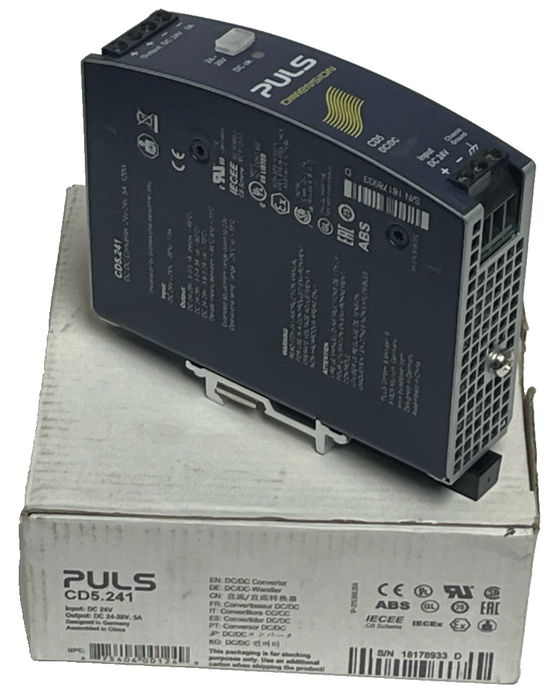

For sale is a PULS CD5.241 DC/DC Converter, brand new in its original factory packaging. This high-efficiency unit (90.3%) is designed for industrial applications requiring a stable 24VDC output from a 24VDC input. It is particularly effective for "refreshing" voltage at the end of long cable runs or isolating sensitive equipment from battery noise.

Key Features & Specs:

• Input Voltage: 24VDC (Range: 18.0–32.4Vdc)

• Output Voltage: 24VDC (Adjustable 23–28V via front potentiometer)

• Output Current: 5A (Continuous); 6A (PowerBoost reserves up to +45°C)

• Power Rating: 120W (144W with PowerBoost)

• Mounting: Standard 35mm DIN rail

• Safety: Isolated output, soft-start function, and reverse polarity protection.

• Certifications: ATEX, IECEx, Marine (GL/ABS), UL 508, and Class I Div 2 hazardous locations.

• Dimensions: Ultra-slim 32mm width to save cabinet space.
