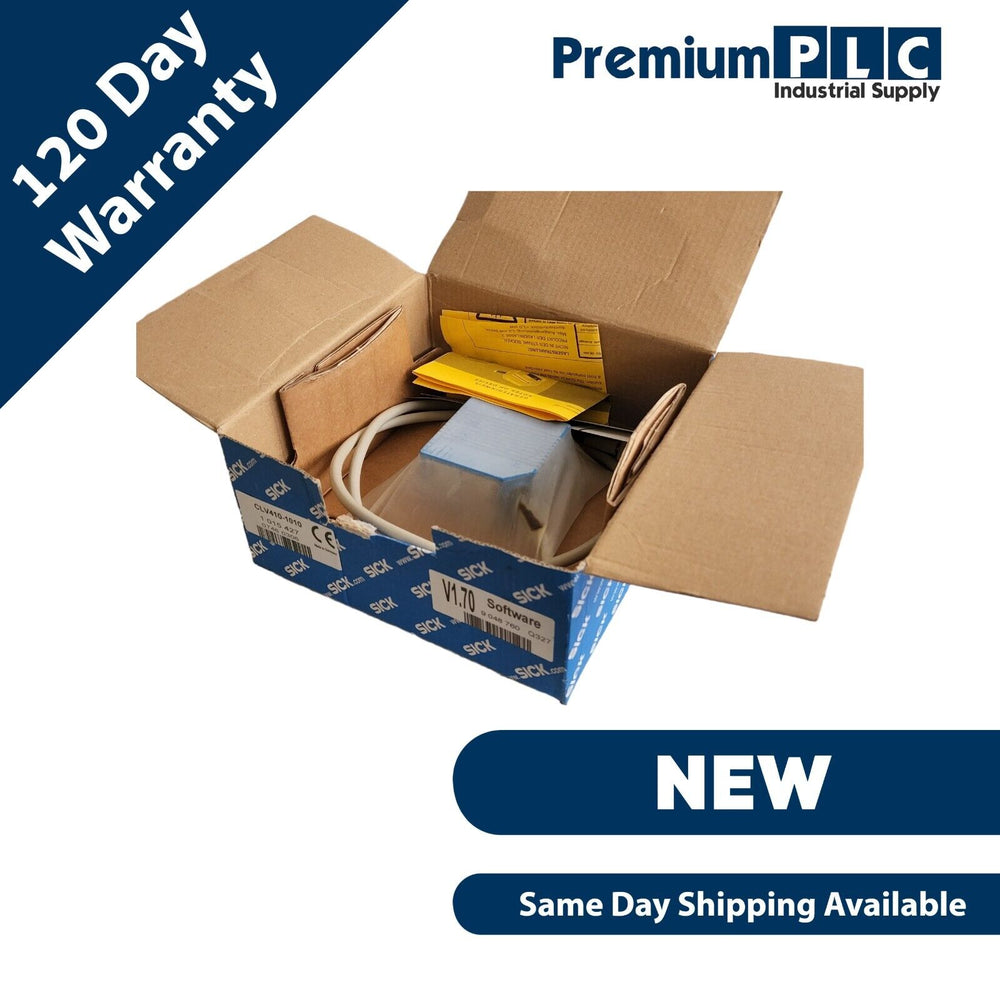

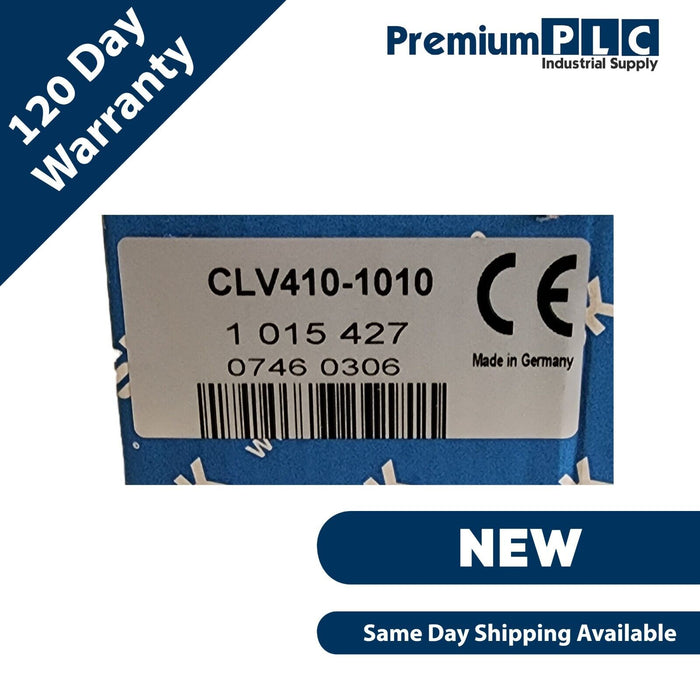

NEW SICK CLV410-1010 / 1015427 MID-RANGE BAR CODE SCANNER V1.70 SOFTWARE

NEW SICK CLV410-1010 / 1015427 MID-RANGE BAR CODE SCANNER V1.70 SOFTWARE

Name: NEW SICK CLV410-1010 / 1015427 MID-RANGE BAR CODE SCANNER V1.70 SOFTWARE
Brand: PremiumPLC
SKU: IF_E58226A7
Price: 1100.0 USD
Availability: InStock

$1,100.00

Quantity

NEW SICK CLV410-1010 / 1015427 MID-RANGE BAR CODE SCANNER V1.70 SOFTWARE

SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST.

______________________________________________________________________________________________________

1003

TECHNICAL DATA:

Features

Version	Mid Range
Connection type	Standard
Reading field	Front
Scanner design	Raster scanner
Focus	Fixed focus
Light source	Visible red light (laser, 670 nm)
MTBF	20,000 h
Laser class	2 (DIN EN 60825-1)
Aperture angle	≤ 60°
Scanning frequency	200 Hz ... 800 Hz
Code resolution	0.2 mm ... 1 mm
Reading distance	50 mm ... 380 mm 1)
Raster height, number of lines, at distance	15 mm, 8, 200 mm

1) For details see reading field diagram.

Performance

Bar code types	All current code types, Code 39, Code 128, Code 93, Codabar, GS1-128 / EAN 128, UPC / GTIN / EAN, Interleaved 2 of 5, Pharmacode
Print ratio	2:1 ... 3:1
No. of codes per scan	1 ... 3
No. of codes per reading interval	1 ... 10
No. of characters per reading interval	100
No. of multiple readings	1 ... 99

Interfaces

Serial (RS-232, RS-422/-485)	✔ , AUX (only RS-232)
Function	Host, AUX
Data transmission rate	300 Baud ... 57,600 Baud, AUX: 9,600 baud

Ethernet

–

CAN bus

–

PROFIBUS DP

–

EtherCAT

–

DeviceNet

–

Switching inputs

2 (“Sensor 1”, “Sensor 2”)

Switching outputs

3 (“Result 1”, “Result 2”, “Result 3”)

Reading pulse

Reflector polling, Switching input “Sensor 1”, non-powered, serial interface

Optical indicators

4 LEDs (function indicator)

Acoustic indicators

Beeper/buzzer (can be switched off, can be allocated as a result indication function)

Mechanics/electronics

Electrical connection	1 x 15-pin D-Sub HD male connector (0.9 m)
Operating voltage	5 V DC ... 30 V DC 1)
Power consumption	3 W
Housing	Die-cast zinc, does not contain paint wetting impairment substances
Housing color	Light blue (RAL 5012)
Enclosure rating	IP 65 (DIN 40 050)
Protection class	III (IEC 1010-1)
Weight	250 g, with connecting cable
Dimensions (L x W x H)	59 mm x 62.7 mm x 35.2 mm

1) UL certified for use with a Class 2 mains supply unit (checked to UL 1310)

Ambient data

Electromagnetic compatibility (EMC)	EN 61000-6-3 / EN 61000-6-2
Vibration resistance	IEC 68-2-6 Test FC
Shock resistance	IEC 68-2-27 Test EA
Ambient operating temperature	0 °C ... +40 °C
Storage temperature	–20 °C ... +70 °C
Permissible relative humidity	± 90 %, Non-condensing
Ambient light immunity	2,000 lx, on bar code
Bar code print contrast (PCS)	≥ 60 %
