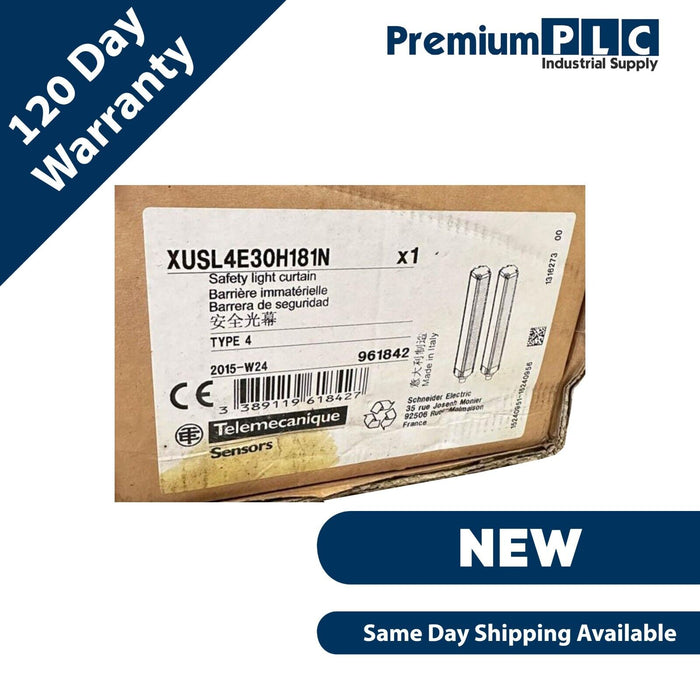

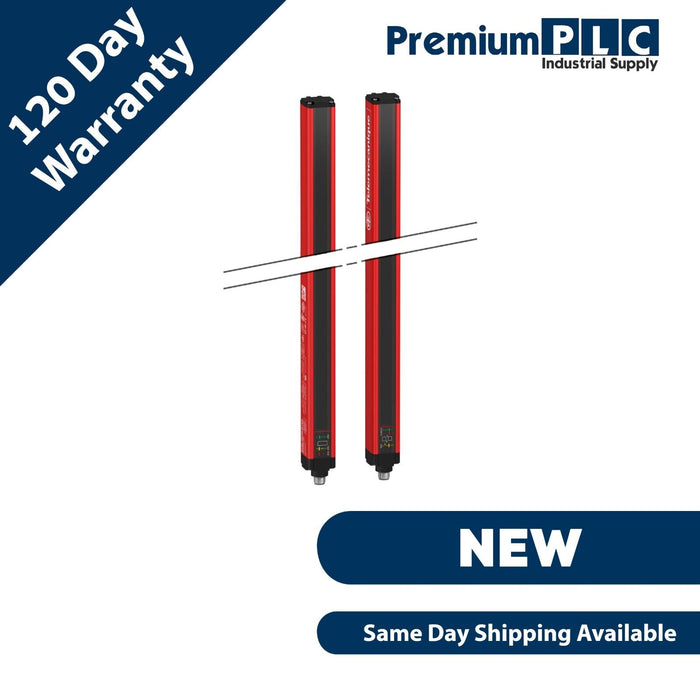

NEW TELEMECANIQUE SCHNEIDER ELECTRIC XUSL4E30H181N SAFETY LIGHT CURTAINS XUSL4E
Sold out
$3,250.00
NEW TELEMECANIQUE SCHNEIDER ELECTRIC XUSL4E30H181N SAFETY LIGHT CURTAINS XUSL4E
| Range of product | Telemecanique Safety light curtains XUSL |
|---|---|
| Product or component type | Safety light curtain type 4 |
| Device short name | XUSL4E |
| Output type | 2 safety outputs OSSD solid-state PNP (arc suppression) |
| Product specific application | For hand protection |
| [R] Resolution | 30 mm |
| [Sn] nominal sensing distance | 0…12 m by cabling 0…4 m by cabling |
| [Hp] Height protected | 1810 mm |
| Number of beams | 91 |
| Type of start / restart | Automatic Manual |
| External Device Monitoring (EDM) | Selected by wiring |
| Detection system | Transmitter-receiver system |
|---|---|
| Response time | 22 ms |
| Kit composition | Adjustable mounting bracket(s) 1 receiver(s) 1 transmitter(s) 1 user guide with certificate of conformity on CD-ROM |
| [EAA] effective aperture angle | 2.5 ° at 3 m |
| Emission | IR LED 950 nm |
| [Us] rated supply voltage | 24 V DC +/- 20 % |
| Supply | Power supply conforming to IEC 61496-1 Power supply conforming to IEC 60204-1 |
| [Ie] rated operational current | 2 A |
| Current consumption | 42 mA no-load transmitter 83 mA no-load receiver 42 mA transmitter 900 mA with maximum load receiver |
| Output current limits | 0.4 A for safety outputs OSSD |
| Output voltage | 24 V |
| Output circuit type | DC |
| Maximum voltage drop | <0.5 V |
| Local signalling | 1 multi-colour LED transmitter 2 dual colour LEDs receiver |
| Electrical connection | 1 male connector M12 5 pins transmitter 1 male connector M12 8 pins receiver |
| Function available | Test Muting through external safety module XPSLCMUT1160 LED display of operating modes and faults |
| Marking | CE |
| Material | Aluminium: casing Polycarbonate: front panel Polypropylene: end caps |
| Housing colour | Red RAL 3000 |
| Fixing mode | By fixing brackets |
| Net weight | 3.3 kg |
| Offer type | Standard distance |

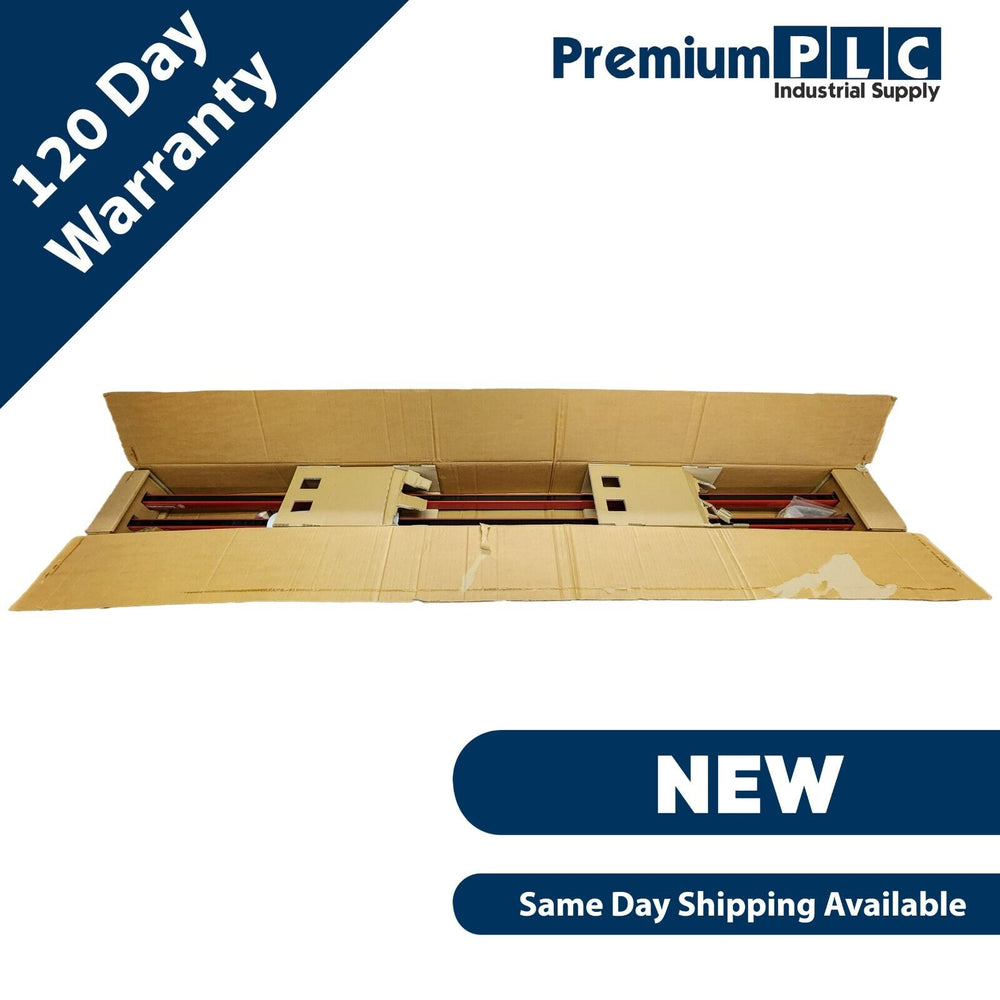

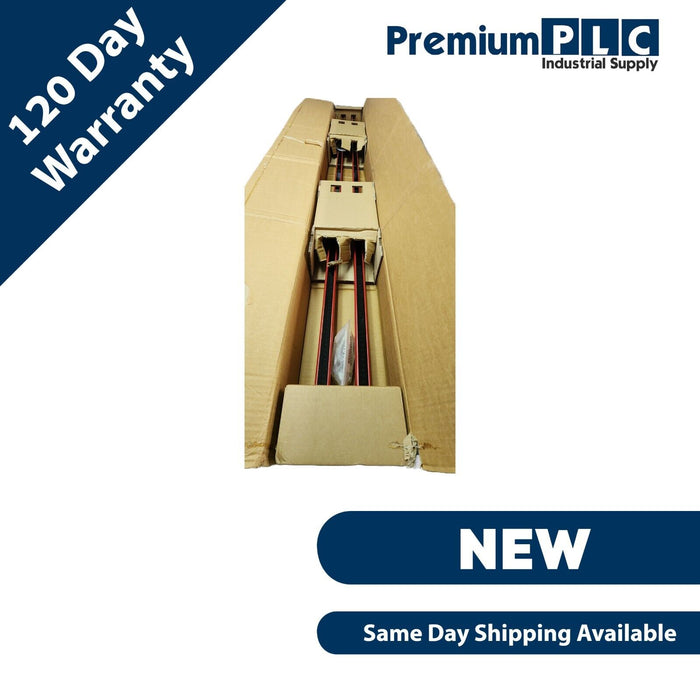

CONDITION: NEW IN BOX
WARRANTY: 120 DAYS
