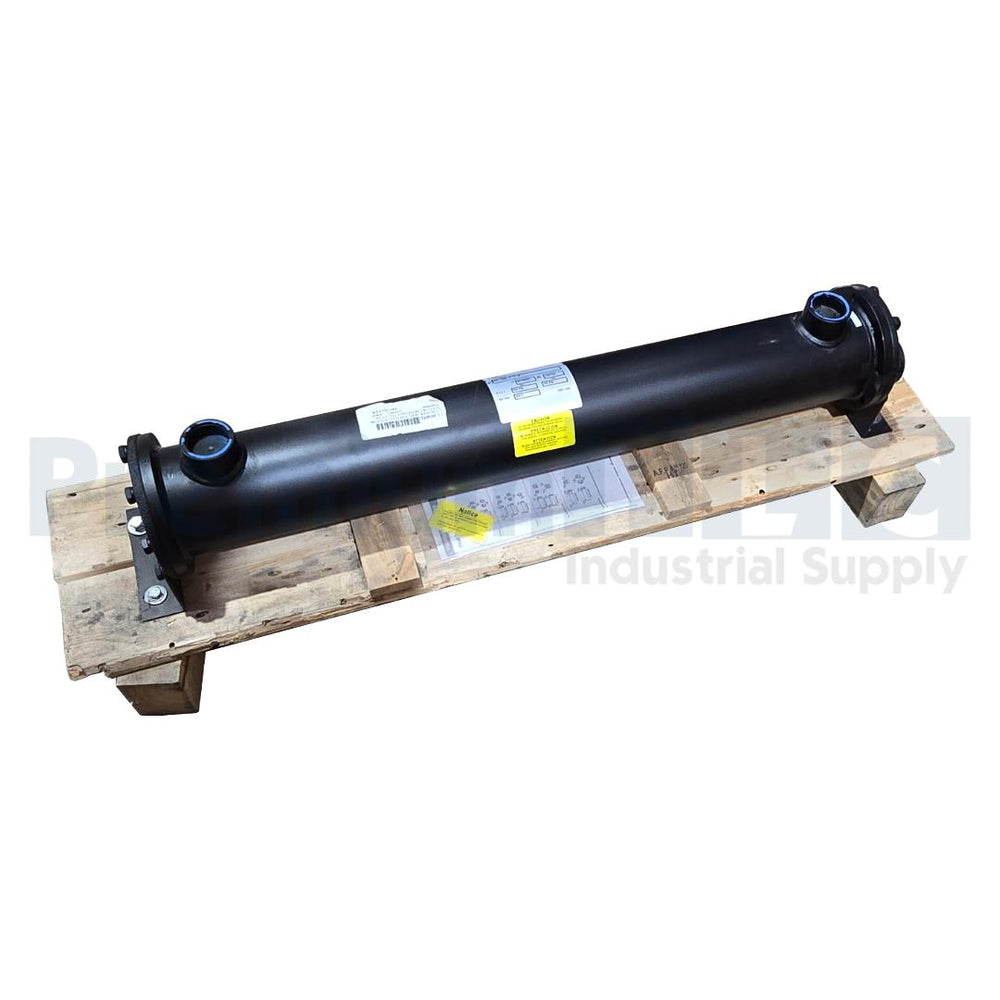

NEW TTP THERMAL TRANSFER PRODUCTS EKS-1036-9-T-R WATER-COOLED OIL COOLER 94582
$1,950.00
NEW TTP THERMAL TRANSFER PRODUCTS EKS-1036-9-T-R WATER-COOLED OIL COOLER 94582
Specifications
| Compatible Hydraulic Fluids | : | Automatic Transmission Fluid, Hydraulic Motor Oil, Hydrostatic Drive Oil and Lube Oil Circuits |
| Dimensions | : | 38.58 in L x 6.5 in W x 7.64 in H |
| Flow Rate | : | 80 gpm, 28 gpm |
| HP Heat Removed | : | Up to 400 hp |
| Maximum Oil Pressure | : | 500 psi |
| Maximum Oil Temperature | : | 110 to 130 deg F Hydraulic Motor Oil, 130 to 180 deg F Hydrostatic Drive Oil, 110 to 130 deg F Lube Oil Circuits, 200 to 300 deg F Automatic Transmission Fluid |
| Maximum Water Pressure | : | 150 psi |
| Model | : | EKS-1036 |
| Mounting Type | : | Bracket |
| Oil Cooler Material | : | Steel |
| Oil Inlet Port Connection Type | : | O-Ring |
| Oil Inlet Port Size | : | #24, 1-7/8-12 |
| Oil Outlet Port Connection Type | : | O-Ring |
| Oil Outlet Port Size | : | #24, 1-7/8-12 |
| Operating Temperature | : | 250 deg F |
| Water Inlet Port Connection Type | : | NPT |
| Water Inlet Port Size | : | 1 in |
| Water Outlet Port Connection | : | NPT |
| Water Outlet Port Size | : | 1 in |
CONDITION: NSMP - New Surplus Manufacturer Package (OEM)
WARRANTY: 120 DAYS
