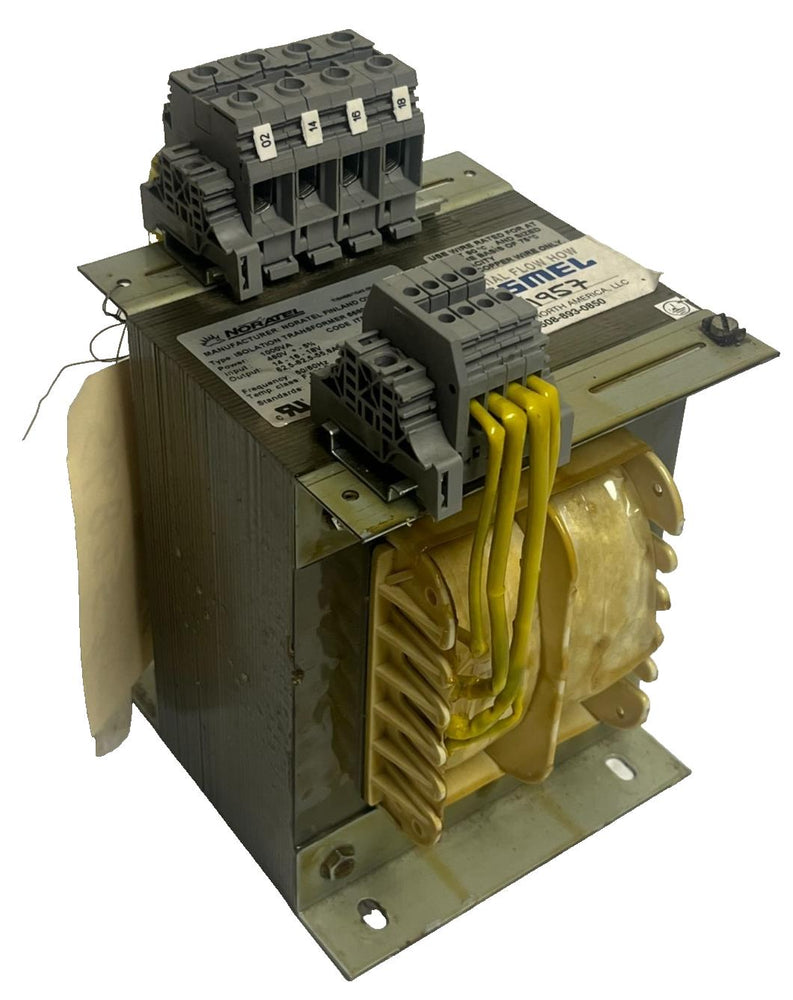

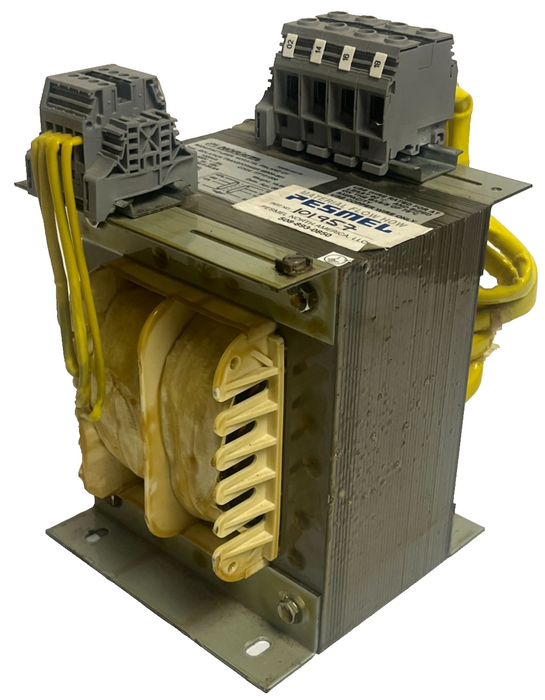

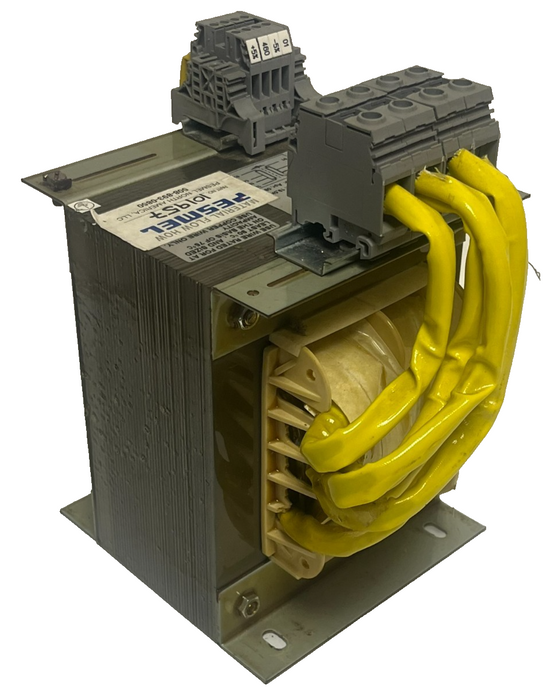

NORATEL 66905-901 Isolation Transformer 1000VA 460V In 14-16-18V Out 6A 50/60Hz
$689.95
NORATEL 66905-901 Isolation Transformer 1000VA 460V In 14-16-18V Out 6A 50/60Hz
Key Features:
- High Current Output: Capable of delivering up to 62.5 Amps of current at 16V, suitable for heavy low-voltage loads.
- Multi-Tap Secondary: Offers 14V, 16V, and 18V output options for application flexibility.
- 460V Input: Designed for standard industrial supply voltages prevalent in North America and globally.
- Isolation Function: Provides galvanic isolation between the input and output, enhancing safety and reducing electrical noise/ground loops.
- Robust Construction: Built with high-quality copper windings and a rugged frame for long-term industrial reliability.
Technical Specifications (2026 Reference Data):
| Feature | Detail |
|---|---|
| Manufacturer | Noratel |
| Part Number | 66905-901 |
| Power Rating | 1000 VA (1.0 kVA) |
| Input Voltage | 460 VAC (+/- 5%) |
| Output Voltage Taps | 14 VAC, 16 VAC, 18 VAC |
| Max Output Current | 62.5 A (at 16V tap) |
| Frequency | 50/60 Hz |
| Phase | Single Phase |
CONDITION: NSNP - New Surplus No Manufacturer Package (OEM)
WARRANTY: 120 DAYS
SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST.
(CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT)
