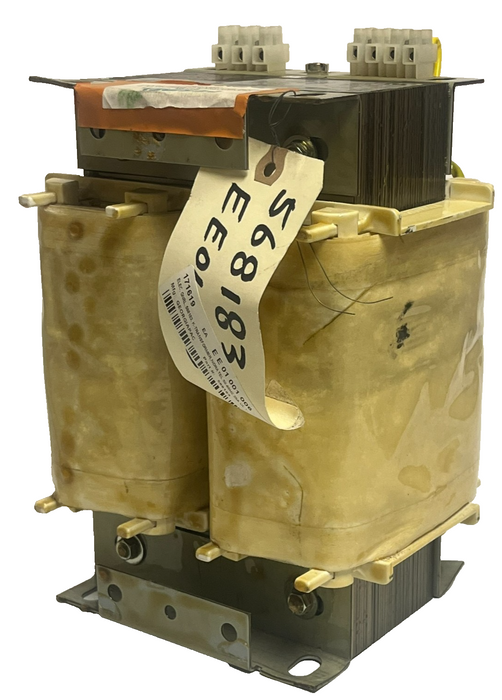

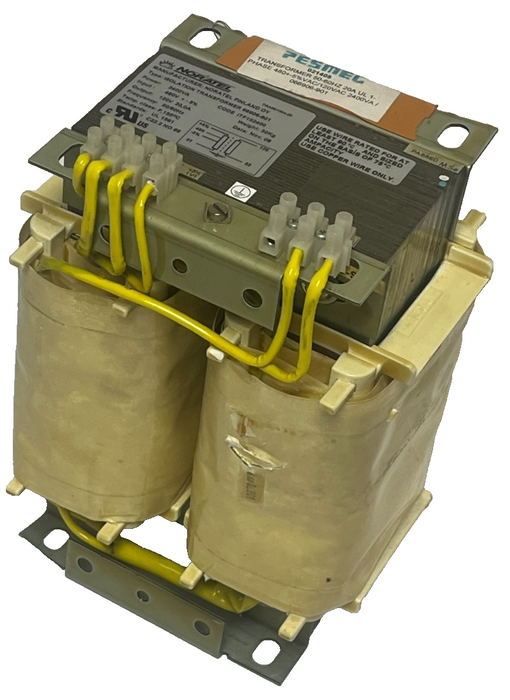

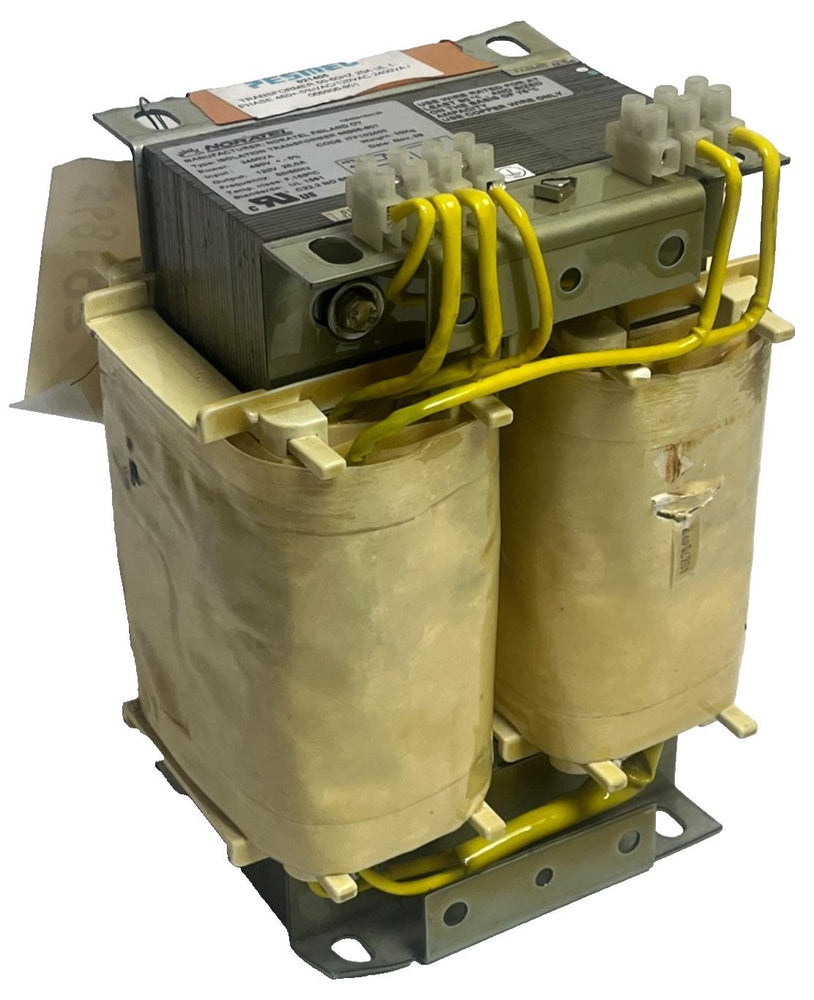

NORATEL 66906-901 Isolation Transformer 2400VA 480V In 120V Out 20A 50/60Hz NSNP
$950.00
NORATEL 66906-901 Isolation Transformer 2400VA 480V In 120V Out 20A 50/60Hz
Key Features:
- High Power Capacity: 2.4 kVA capacity provides ample power for demanding control system requirements.
- 480V to 120V Step-Down: Ideal for North American facilities running 480V power needing reliable 120V control power.
- Isolation Function: Provides galvanic isolation between the input and output, enhancing safety and reducing electrical noise/ground loops.
- 20 Amp Output: Delivers a robust 20 Amps of current at 120V to power multiple devices simultaneously.
- Robust Construction: Built with high-quality copper windings and a rugged frame for long-term industrial reliability.

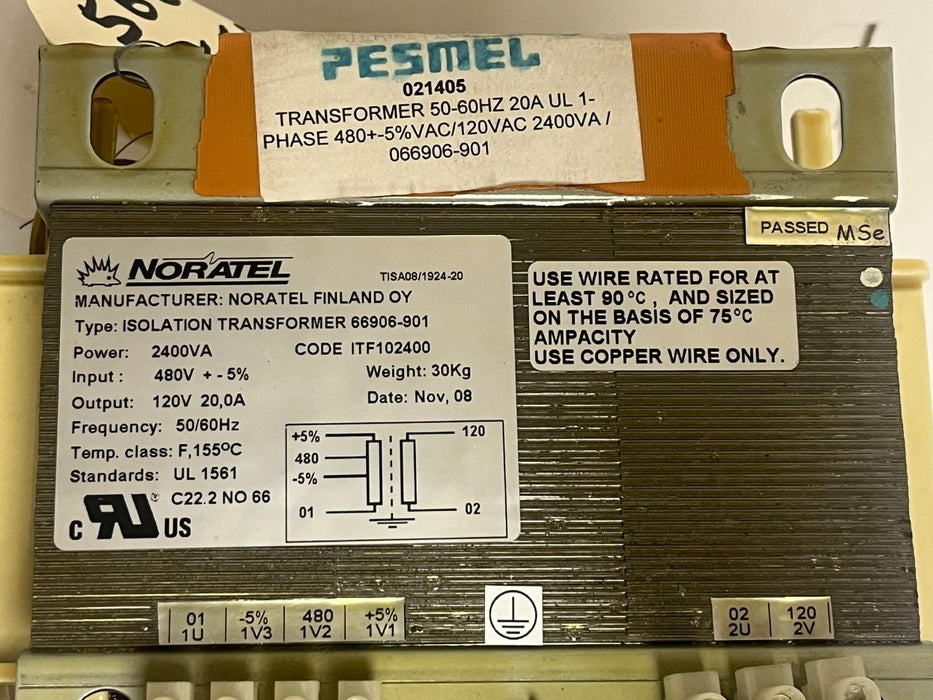

Technical Specifications (2026 Reference Data):
| Feature | Detail |
|---|---|
| Manufacturer | Noratel |
| Part Number | 66906-901 |
| Power Rating | 2400 VA (2.4 kVA) |
| Input Voltage | 480 VAC |
| Output Voltage | 120 VAC (Configured) |
| Output Current | 20.0 Amps (Max) |
| Frequency | 50/60 Hz |
| Phase | Single Phase |
CONDITION: NSNP - New Surplus No Manufacturer Package (OEM)
WARRANTY: 120 DAYS
SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST.
(CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT)
