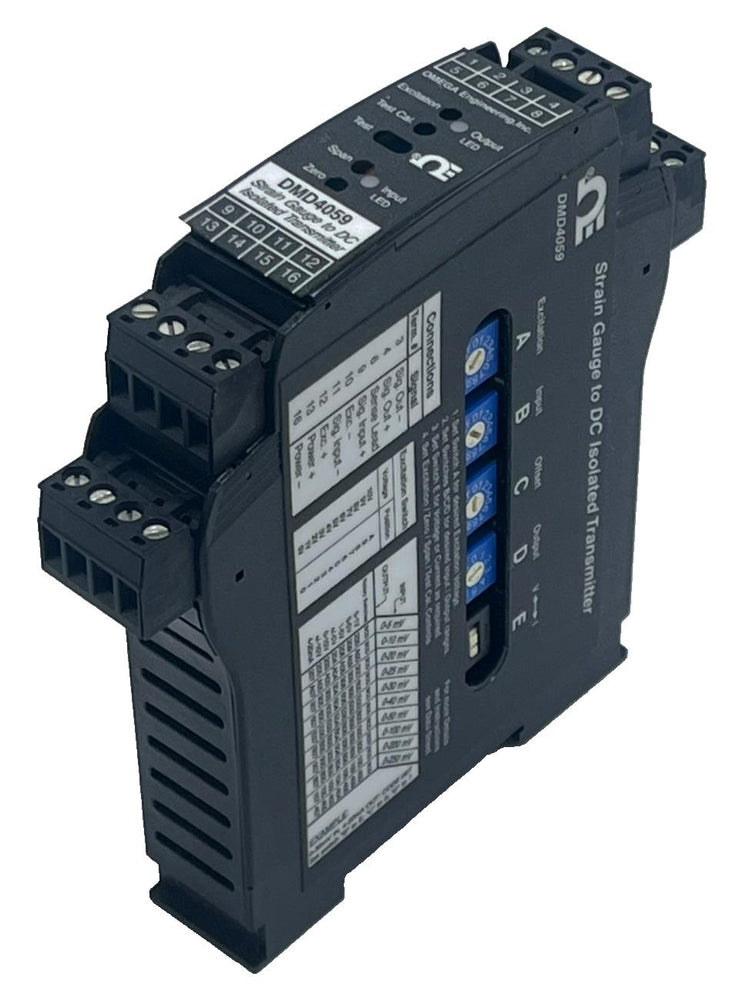

OMEGA DMD4059 Strain Gauge to DC Transmitter Signal Conditioner 1200V Iso, NSNP
$379.95
OMEGA DMD4059 Strain Gauge to DC Transmitter Signal Conditioner 1200V IsoKey Features:
- Field Configurable: Easily set input/output ranges and zero offset via external switches and potentiometers.
- 3-Way Isolation: 1200 Vrms isolation between input, output, and power circuits ensures reliability and safety.
- Adjustable Excitation: Provides an adjustable 0 to 10 VDC excitation voltage supply to power up to four 350Ω bridges.
- Test Button: Features a function test button that sets the output to a specific level (adjustable 0-100% span) for simplified setup and troubleshooting.
- Sense Lead Compensation: Includes circuitry to cancel the effects of lead wire resistance for maximum accuracy.
Technical Specifications (2025 Data Reference):
| Feature | Detail |
|---|---|
| Manufacturer | Omega Engineering |
| Part Number | |
| Input Ranges | 0 to 400 mV max range, 0.5 to 40 mV/V sensitivity |
| Output Ranges | 0-1V to 0-10VDC (10mA max) or 0-2mA to 0-25mA |
| Power Input | Standard: 85-265 VAC / DC; Low Voltage (Option -DC): 9-30 VDC / 10-32 VAC |
| Response Time | 70 milliseconds typical |
| Mounting | 35 mm DIN rail standard |
| Operating Temp | -10°C to +60°C |
CONDITION: NSNP - New Surplus No Manufacturer Package (OEM)
WARRANTY: 120 DAYS
SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST.
(CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT)
