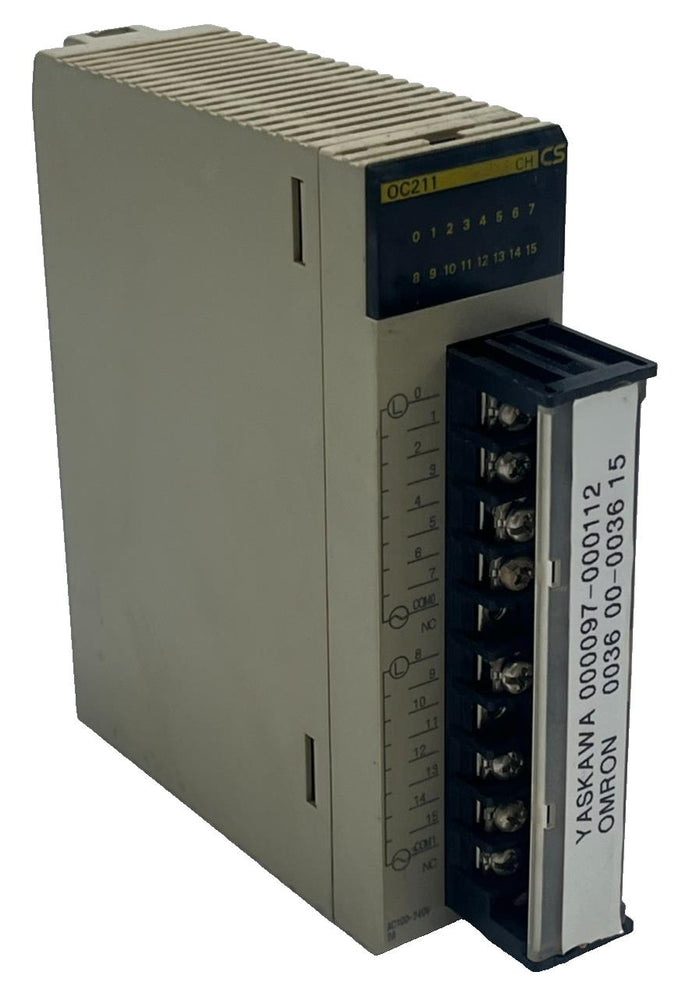

Omron CS1W-OC211 Sysmac CS1 Series Relay Output Unit - 16 Point - 250VAC/24VDC

Omron CS1W-OC211 Sysmac CS1 Series Relay Output Unit - 16 Point - 250VAC/24VDC

LIGHTLY USED IN GOOD CONDITION, MISSING 2 TERMINAL SCREWS

Key Features & Capabilities

• High Load Capacity: Supports up to 2A switching per output point, compatible with both AC (up to 250V) and DC (up to 24V/120V) loads.

• 16 Discrete Channels: Features 16 normally open (NO) relay contacts divided into 2 common circuits (8 points per common).

• Removable Terminal Block: Equipped with a removable screw terminal block, allowing for easy wiring maintenance without disconnecting individual field wires.

• Rack Mounted: Designed for seamless integration into any CS1-series backplane/rack system.

• Isolated Design: Provides 240V isolation between field terminals and the internal PLC logic for superior system protection.

Technical Specifications

• Output Format: Relay Contact (NO)

• Internal Current Consumption: 130mA at 5V DC

• Dimensions: 130mm x 34.5mm x 123mm

• Weight: Approximately 270g (0.6 lbs)
