PARKER J0702FE-KMSN / J0702FEKMSN NeoMetric SERIES SERVO MOTOR 0.45kW IP64 USNP
$3,500.00
PARKER J0702FE-KMSN / J0702FEKMSN NeoMetric SERIES SERVO MOTOR 0.45kW IP64 USNP
Features
Main brand
Parker Hannifin
Main function
AC Servo motor
Product range/family name
Rotary servo motors
Sub-range name
J series (Medium inertia)
Functions
AC servo motor
Design type
1000ppr encod.
keyway shaft
2-stacks
bridged stator
F winding
Poles
4 poles
Courant nominal
4.5A
Rated active power (kW)
699W
Vitesse rotationelle
7500rpm nominal
Couple
1.16Nm / 10.4lb-in (stall)
Couple maximal
3.49Nm / 31.1lb-in
Moment of inertia
0.2kg.cm2
0.00017lb-in-s2

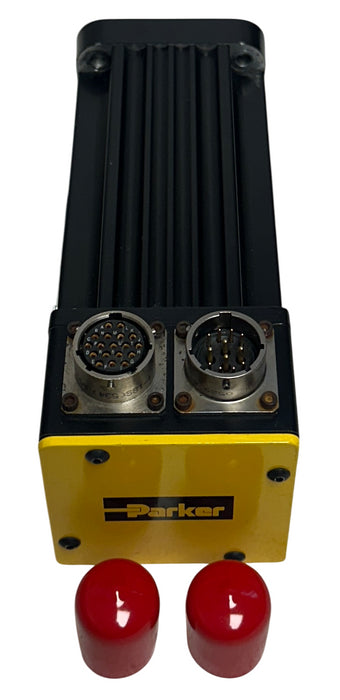

Connection type
Military style connector
Assembly method
Flange
Dimensions
70mm frame size
Product status at the manufacturer
Commercialized
Compliant with standards
THIS
Class
H class
Product Benefits
70mm; 92mm; and size 34
6 to 61 lb-in continuous torque
Brushless construction
High torque density packaging
Outstanding torque-to-inertia ratios
Bridged stator design - quiet operation
High-performance neodymium magnets
Thermoswitch protection
TENV housing; IP65 option
Resolver; encoder; Hall feedback options
10-day deliveries
Two-year warranty
CAD (.dxf) drawings available
CE compliant
CONDITION: USED SURPLUS
WARRANTY: 60 DAYS
