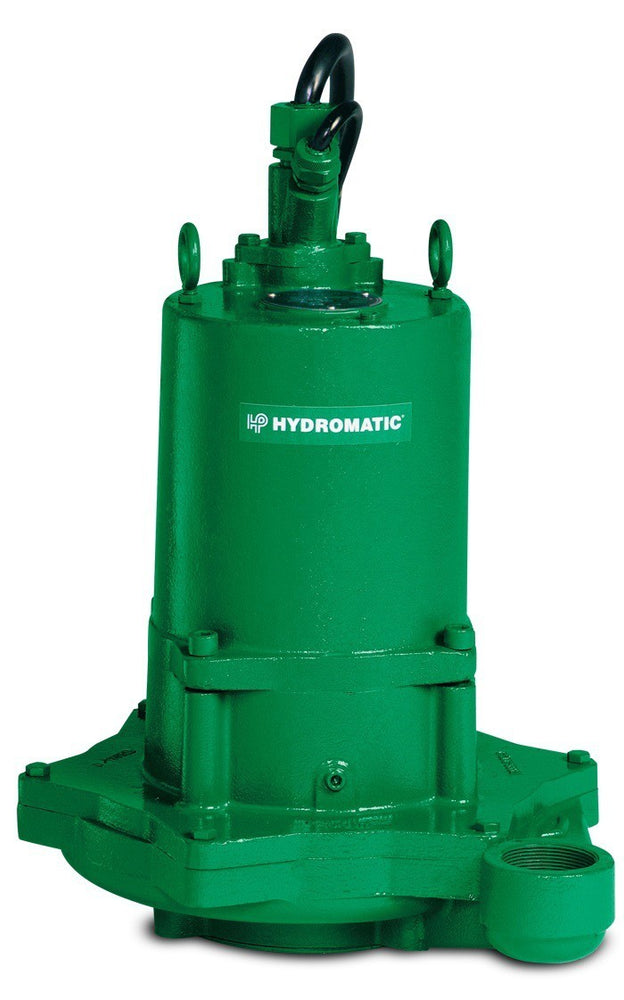

PENTAIR HYDROMATIC HPGF500M4-4 SUBMERSIBLE SEWAGE PUMP 5HP 460V 515111147 NSMP
$8,950.00
PENTAIR HYDROMATIC HPGF500M4-4 SUBMERSIBLE GRINDER PUMP 5HP 460V 515111147 NSMP
Pentair Hydromatic 515111147 HPGF Submersible Sewage Grinder Pump, Model HPGF500M4-4. 5 HP, 460 Volts, 60 Hz, 3 Ph (Three Phase), 1750 RPM, Oil-Cooled Induction Motor. 2" NPT Vertical Discharge, Carbon / Ceramic w/Stainless Steel Body Seal. Cast Iron Housing & Casing, Stainless Steel Shaft, 316 Stainless Steel Semi-Open 5-Vane Impeller, 440C Hardened Cutter, Radial Single Row-Ball (Upper) / Thrust Single Row-Ball (Lower) Bearings. SOOW, W 14-4 Cord.
Technical Details
- BODY CONSTRUCTION: Class 30 Cast Iron
- HORSEPOWER: 5.0 HP
- RPM: 1750
- MAXIMUM HEAD: up to 161'
- MAXIMUM CAPACITY: up to 98 GPM
- DISCHARGE PIPE SIZE: 2" NPT Vertical Discharge
- CORD LENGTH: 35' Standard
- CORD SIZE: 14-4; Type: SOOW, W
- AMP DRAW (full load): 7.6
- VOLTAGE: 3ø, 460V
- MAXIMUM LIQUID TEMPERATURE: 140°F
- MOTOR: Enclosed, Oil Cooled Induction
- IMPELLER CONSTRUCTION: Semi-Open 5 Vane, Red Brass #85-5-5-5, ASTM B584-836
- IMPELLER SIZE: 10.13"
CONDITION: NSMP - New Surplus Manufacturer Package (OEM)
WARRANTY: 120 DAYS
SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST.
(CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT)
