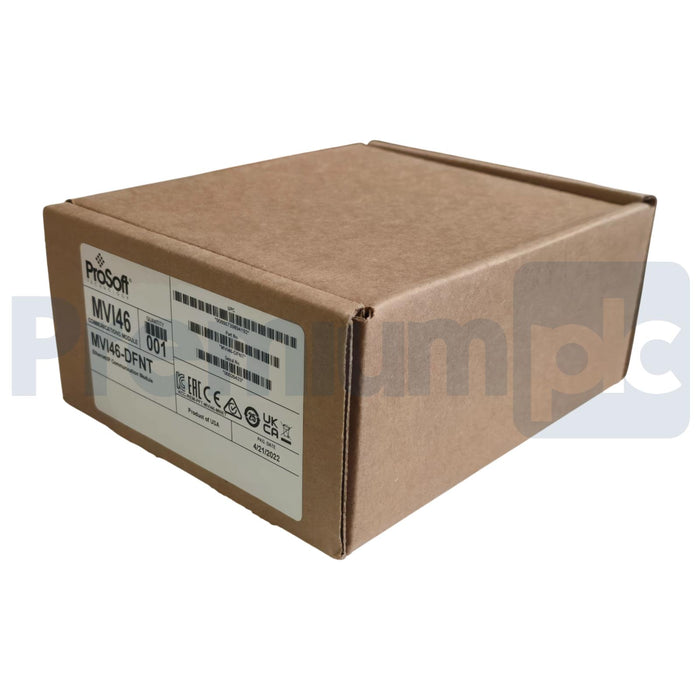

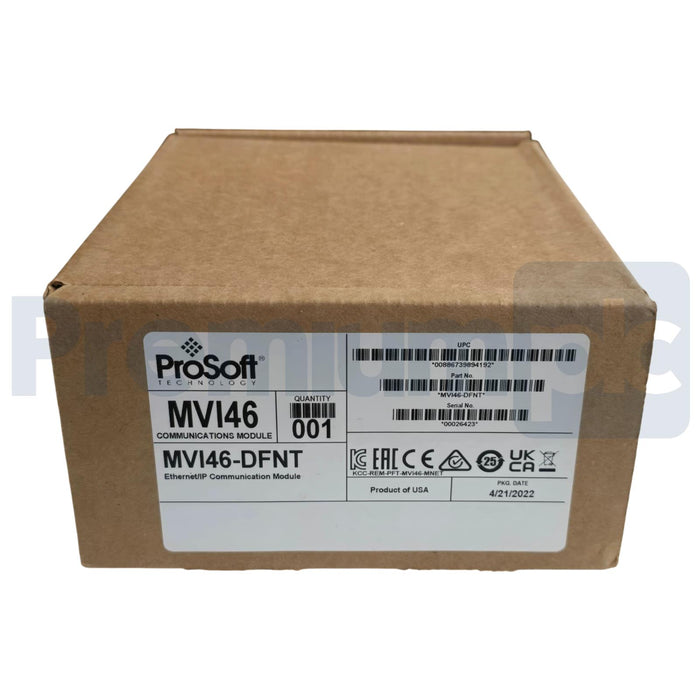

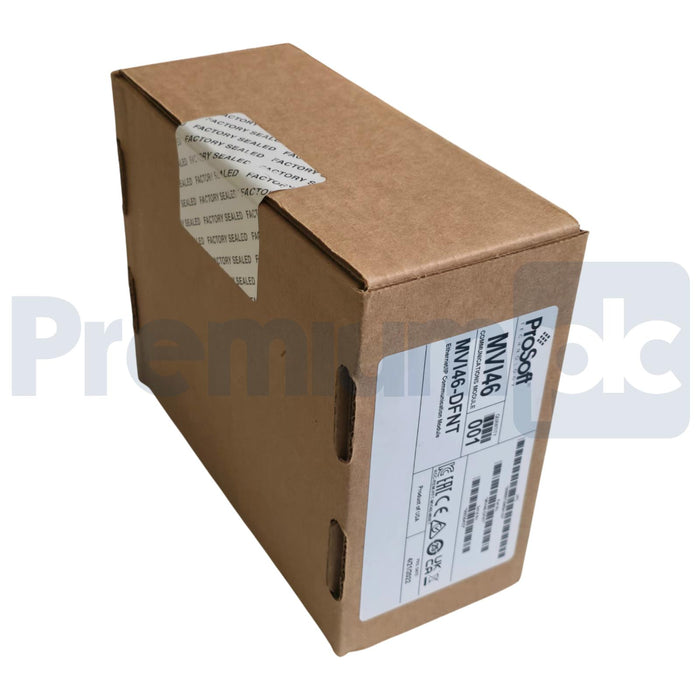

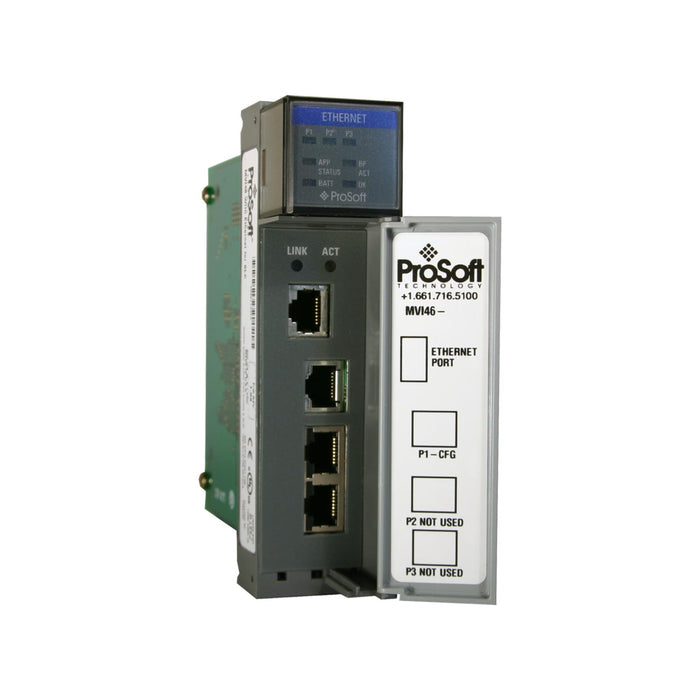

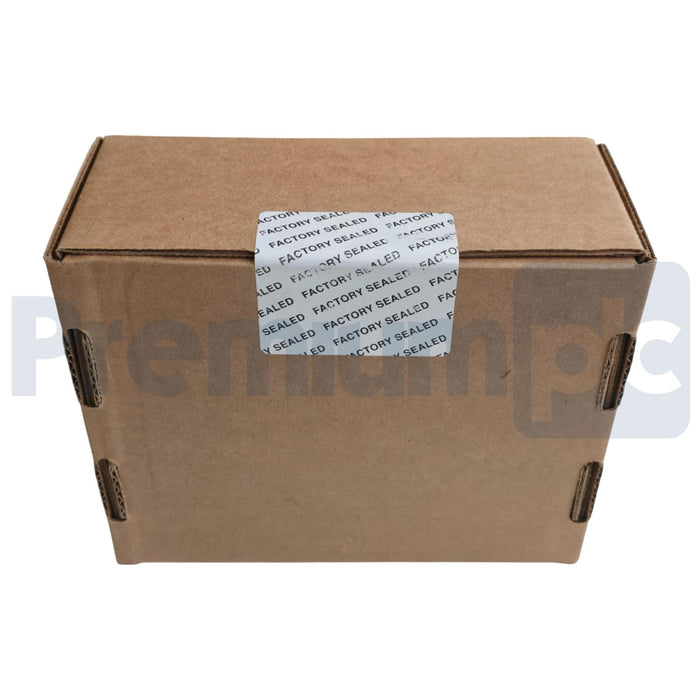

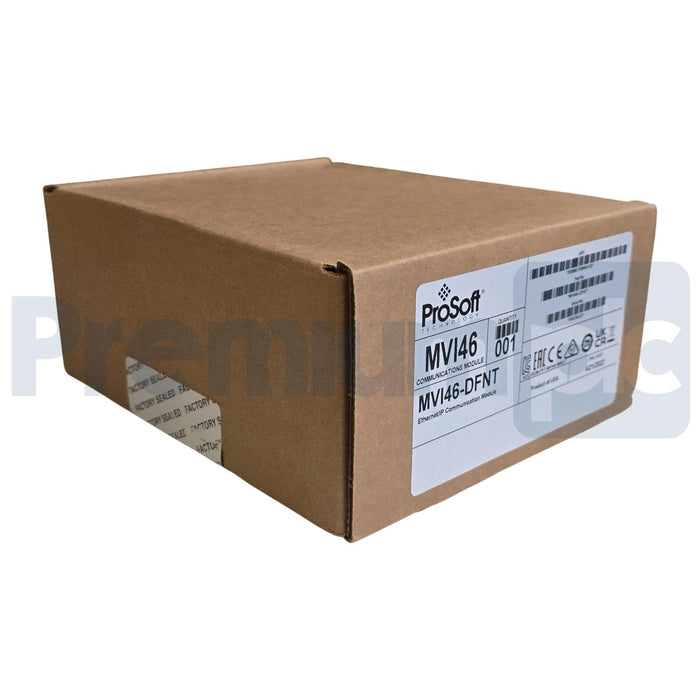

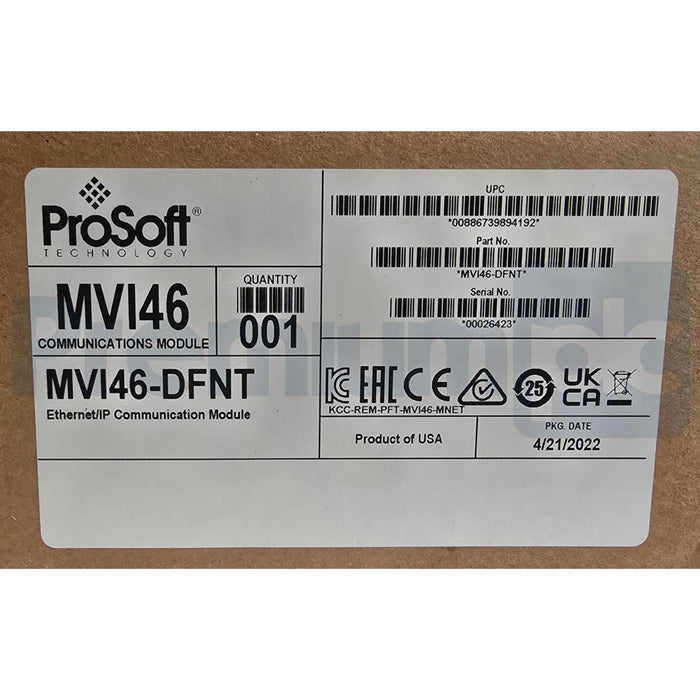

ProSoft MVI46-DFNT MVI46 Ethernet/IP COMMUNICATION MODULE FOR SLC MVI46DFNT NSFS
Applications
EtherNet/IP (Explicit Messaging) Compatible Devices
List of Rockwell Automation material that support EPIC:
- PLC5/E rev C/N, D/E, E/D
- SLC5/05 series A, OS503 frn4
- 1785-ENET Series A, rev D
- Interchange V6.2
- MicroLogix 1100/1400/ANY via 1761-NET-ENI
- CompactLogix 1768-L43/L45 via 1768-ENBT
- CompactLogix 1769-L32E/L35E/ANY via 1761-NET-ENI or PLX51-DF1-ENI
- RSLinx Gateway V1.7+
- ControlLogix 1756-ENET/ENBT/EN2T
Hardware
Specification |
Description |
Backplane Current Load |
800 mA @ 5.1 VDC |
Operating Temperature |
32° F to 140° F (0° C to 60° C) |
Storage Temperature |
-40° F to 185° F (-40° C to 85° C) |
Relative Humidity |
5% to 95% (without condensation) |
Shock |
30 g operational, 50 g non-operational |
Vibration |
5 g from 10 to 150 Hz |
Processor |
Compatible with Rockwell Automation SLC 5/02 M0/M1 capable processors or newer |
LED indicators |
Module status, Backplane transfer status, Application status, Serial activity (debug port), Ethernet link and activity, and error LED status |
Debug/Configuration port (CFG) | |
CFG Port (CFG) |
RJ45 (DB-9M with supplied cable) |
Configuration Connector |
RJ45 RS‑232 Connector (RJ45 to DB-9 cable shipped with unit) |
Application Ports | |
Ethernet Port (Ethernet Modules) |
RJ45 Connector Electrical Isolation 1500 V rms at 50 Hz to 60 Hz for 60 seconds, applied as specified in section 5.3.2 of IEC 60950: 1991 Ethernet Broadcast Storm Resiliency less than or equal to 5000 [ARP] frames-per-second and less than or equal to 5 minutes duration |
