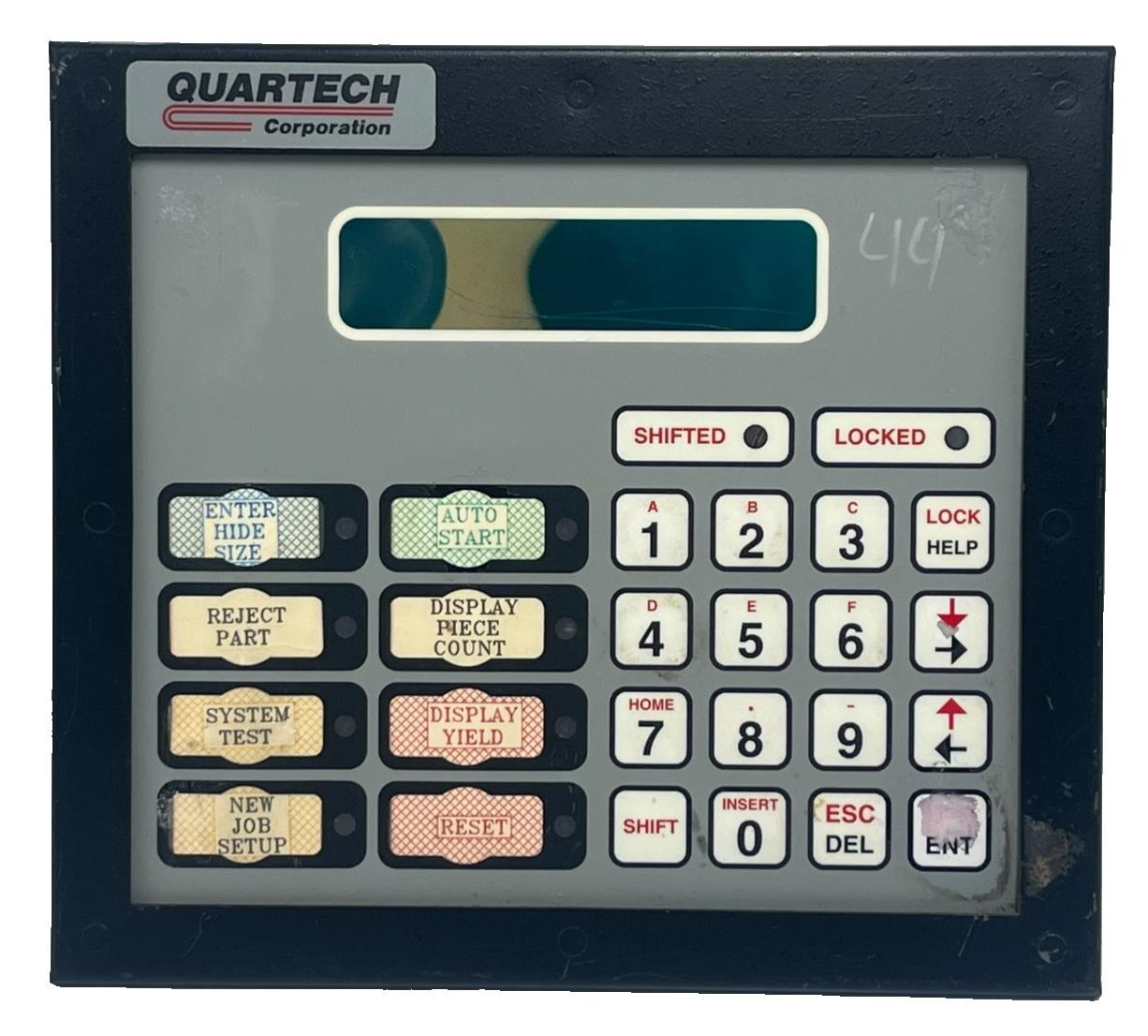

Quartech 601P94H02 9900 Series Circuit Board w/ Operator Interface Keypad

Quartech 601P94H02 9900 Series Circuit Board w/ Operator Interface Keypad

COMES AS SHOWN, NO HOUSING ON BACK OF KEYPAD PANEL, SOME COSMETIC WEAR TO PANEL

Key Features & Capabilities

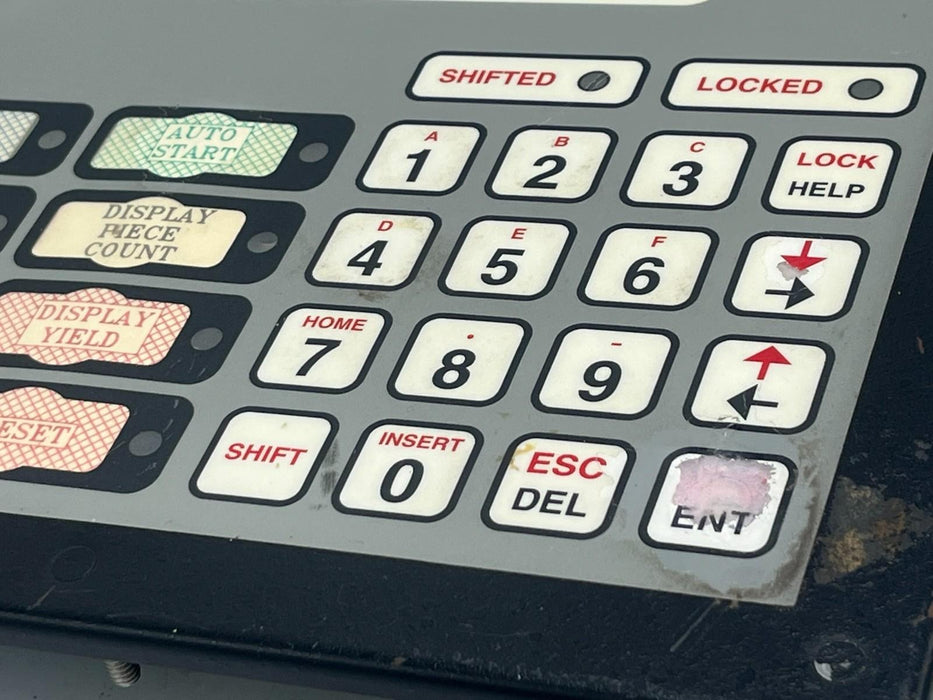

• Integrated Keypad: Includes the tactile membrane keypad used for data entry and navigation within the 9900 Series HMI.

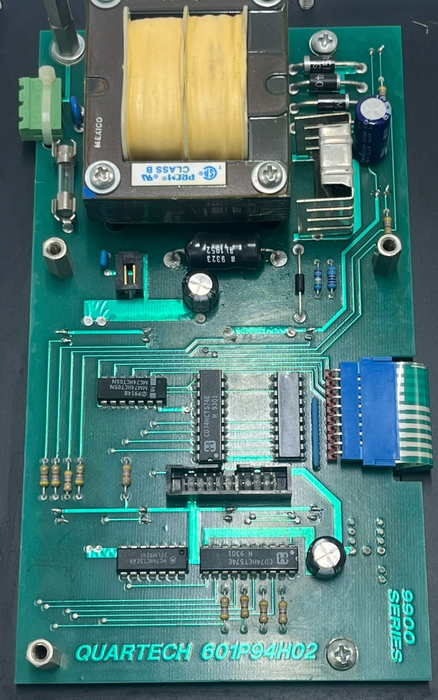

• LED Status Indicators: Features 10 red indicators on the underside of the board for real-time diagnostic feedback and system status monitoring.

• HMI Logic Management: Handles the primary processing and communication between the operator terminal and your PLC (such as Allen-Bradley SLC-500).

• 3-Pin Connection: Standard connector layout for easy integration into existing 9900 series housings.

Technical Specifications

• Board ID: 601P94H02

• Form Factor: Designed for standard Quartech 9900 chassis mounting.

• Application: Ideal for maintaining legacy systems where the physical keypad has worn out or the internal logic board has failed.
