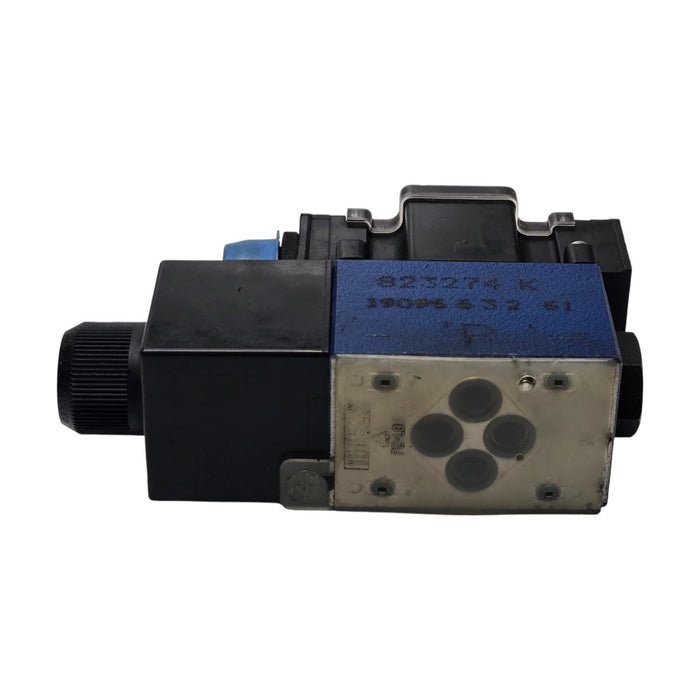

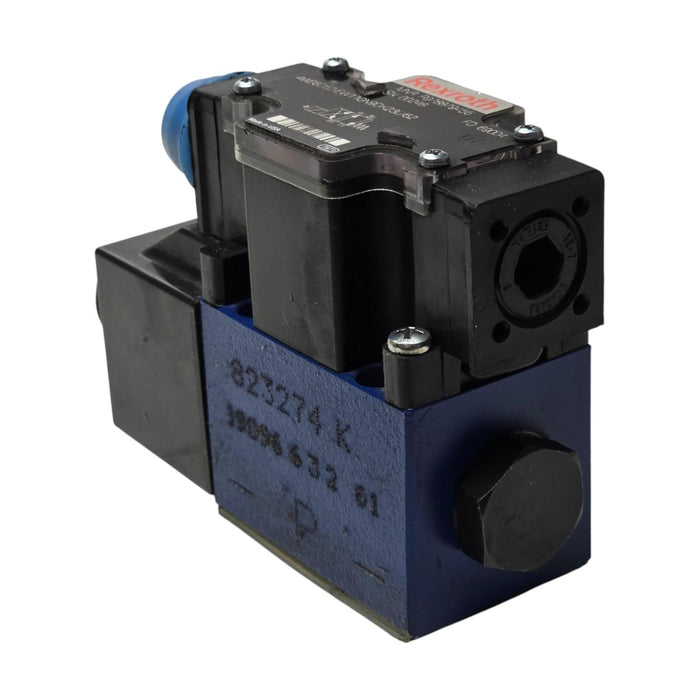

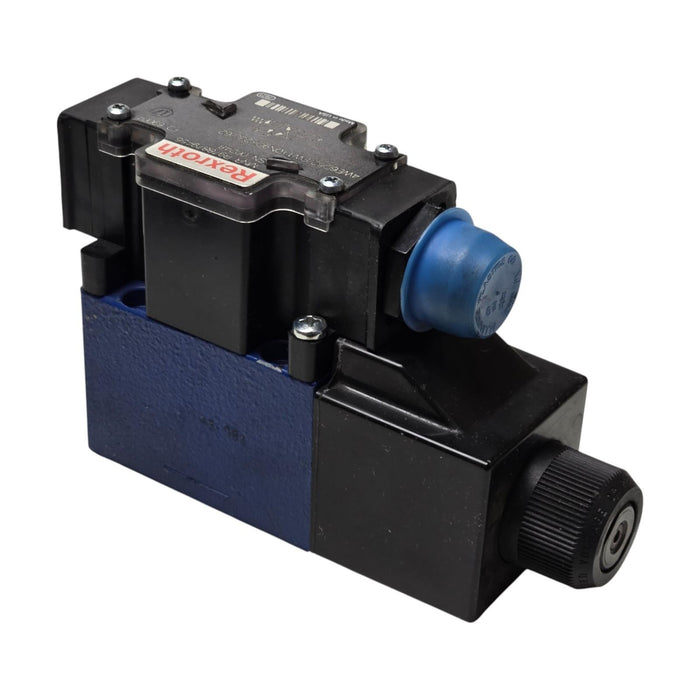

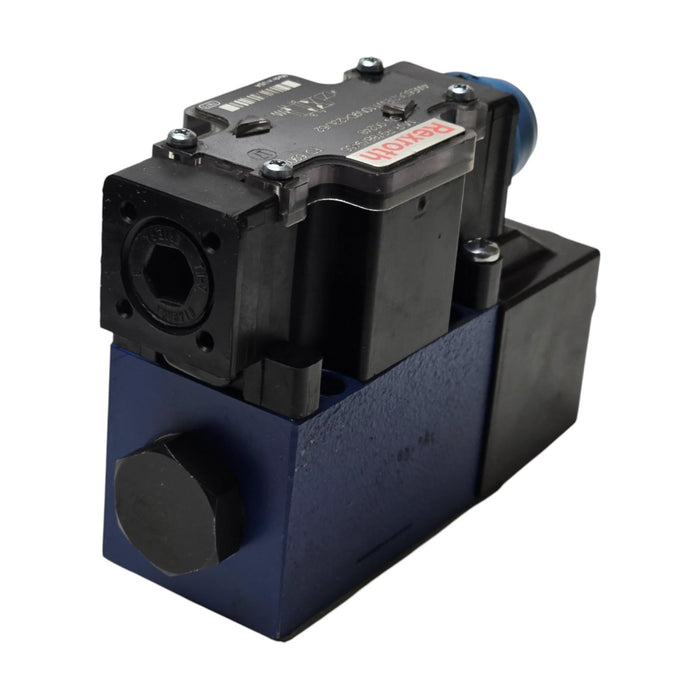

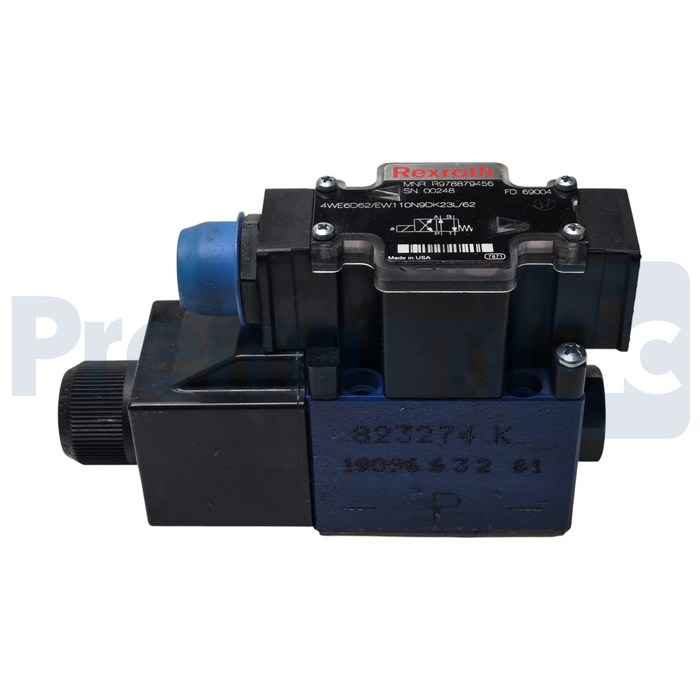

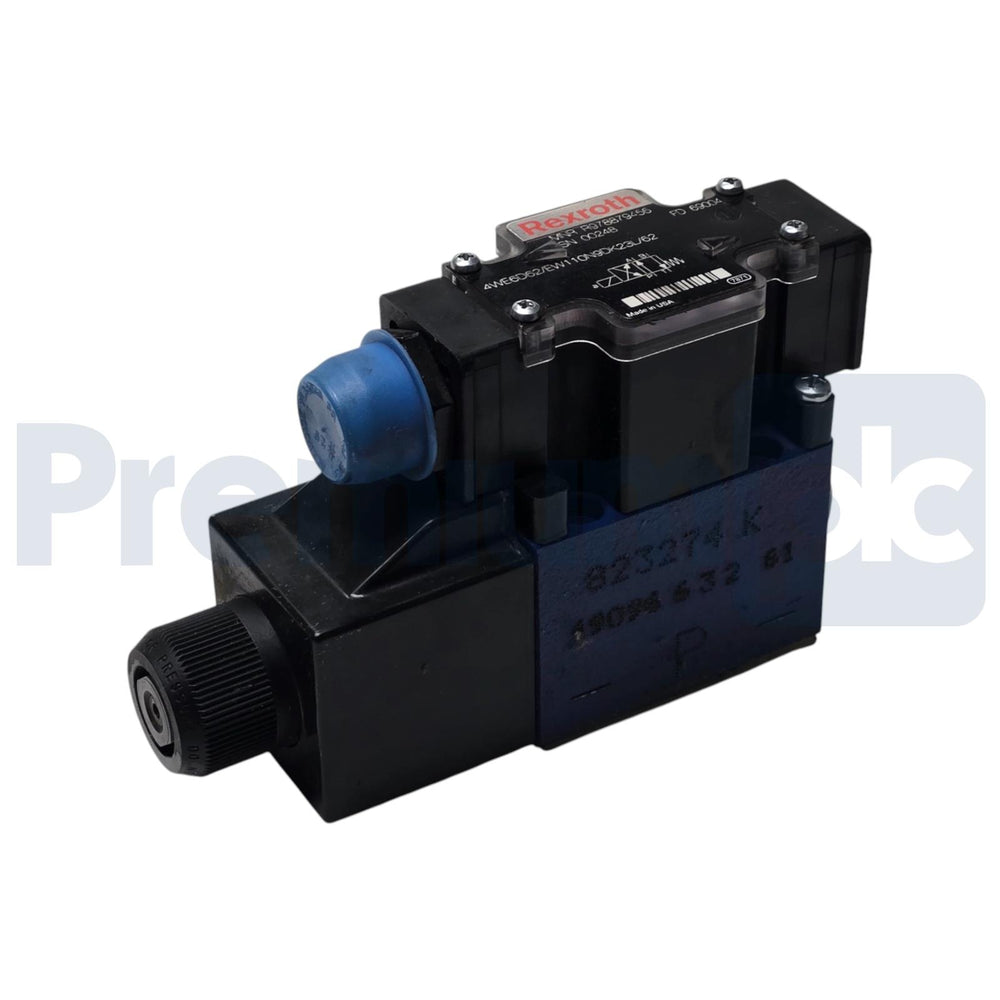

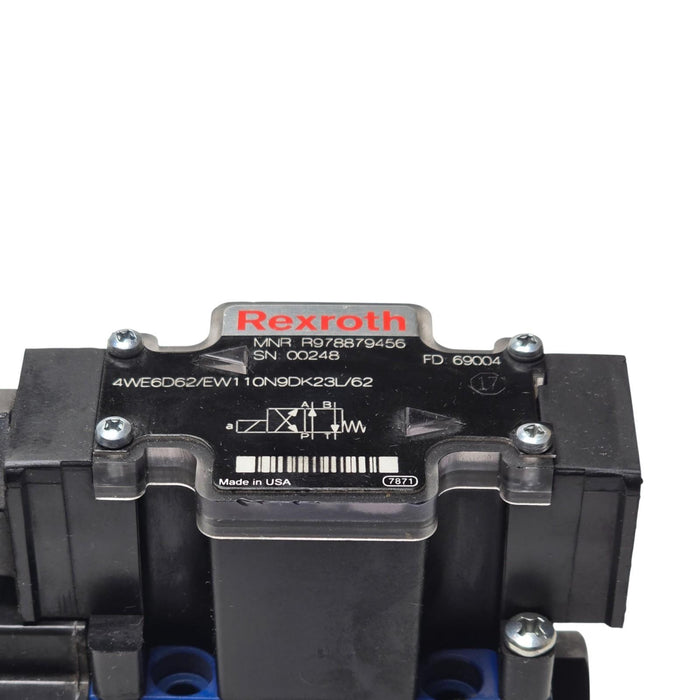

Rexroth R978879456 | 4WE6D6X/EW110N9DK23L/62 Directional Spool Valve 110V NSNP
$425.00
Rexroth R978879456 | 4WE6D6X/EW110N9DK23L/62 Directional Spool Valve 110V NSNP
Enhance your hydraulic system's reliability with this
Bosch Rexroth 4/2-Way Directional Spool Valve
. This high-performance, direct-acting solenoid valve is designed for precise control of fluid start, stop, and direction in industrial applications.Technical Specifications:
- Valve Function: 4/2-way (4 ports / 2 switching positions), single solenoid, monostable.
- Control Voltage: 110V AC (50/60 Hz).
- Max Operating Pressure: 350 bar (5,076 psi).
- Max Flow Rate: 60 L/min (approx. 16 GPM).
- Size: 6 (Component Series 6X).
- Electrical Connection: 3-pin ANSI connector (ANSI/B93.55M-1981) with integrated indicator light.
- Mounting Style: Subplate mounting (ISO 4401-03-02-0-05 and NFPA T3.5.1 R2-2002 D03).
- Seal Material: NBR (Buna-N), compatible with HL, HLP, HLPD, HVLP, HVLPD, and HFC hydraulic fluids.
- Reset Method: Mechanical Spring.
- Manual Override: Flush / Concealed (N9).
CONDITION: NSNP - New Surplus No Manufacturer Package (OEM)
(WITH SOME MINOR SHELF WEAR)
WARRANTY: 120 DAYS
