Allen-Bradley 184699 | SP-184699 | 1336F-MCB-SP1D V2.004 Drive Control Board

Rockwell Allen-Bradley 184699 Rev 17 Drive Control Board with 1336-GM6 Ser. A

Description

Up for sale is a high-quality, professional-grade Rockwell Automation / Allen-Bradley industrial component set. This listing includes the 184699 Rev 17 Drive Control Board paired with the 1336-GM6 Series A Communications Adapter, ideal for maintaining or upgrading legacy 1336 Plus II and other compatible AC drive systems.

Included Components:

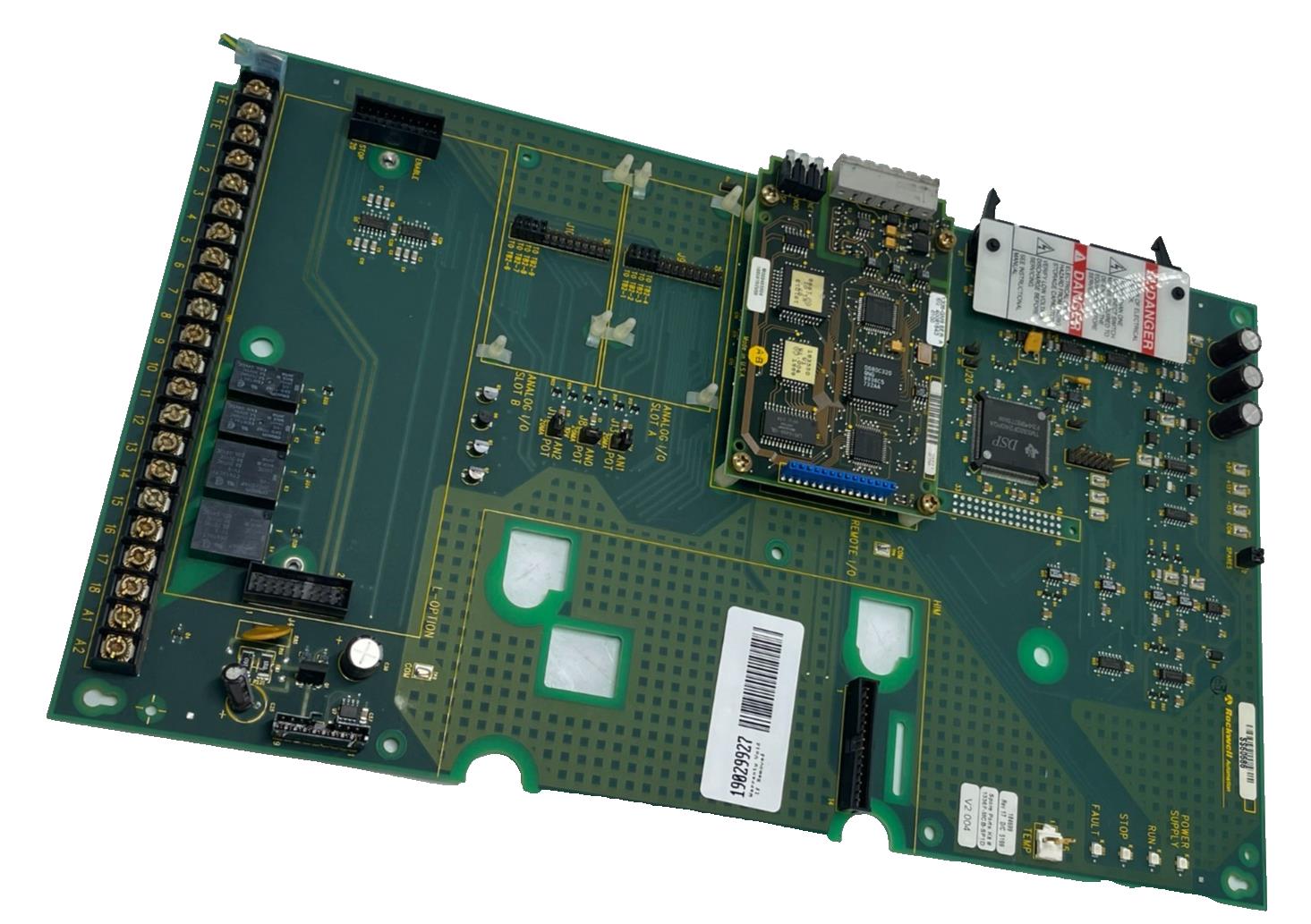

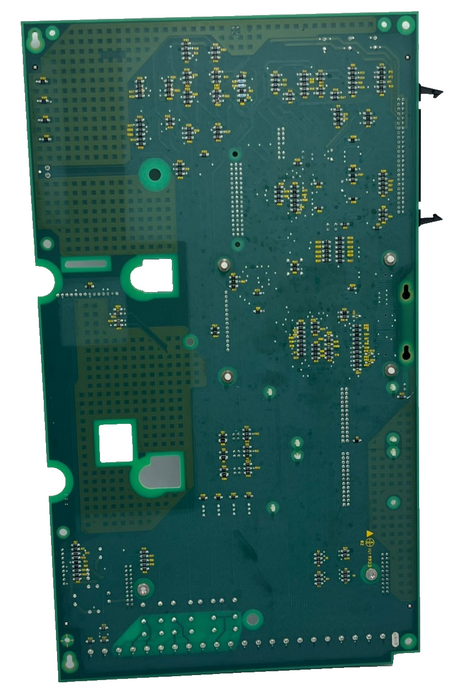

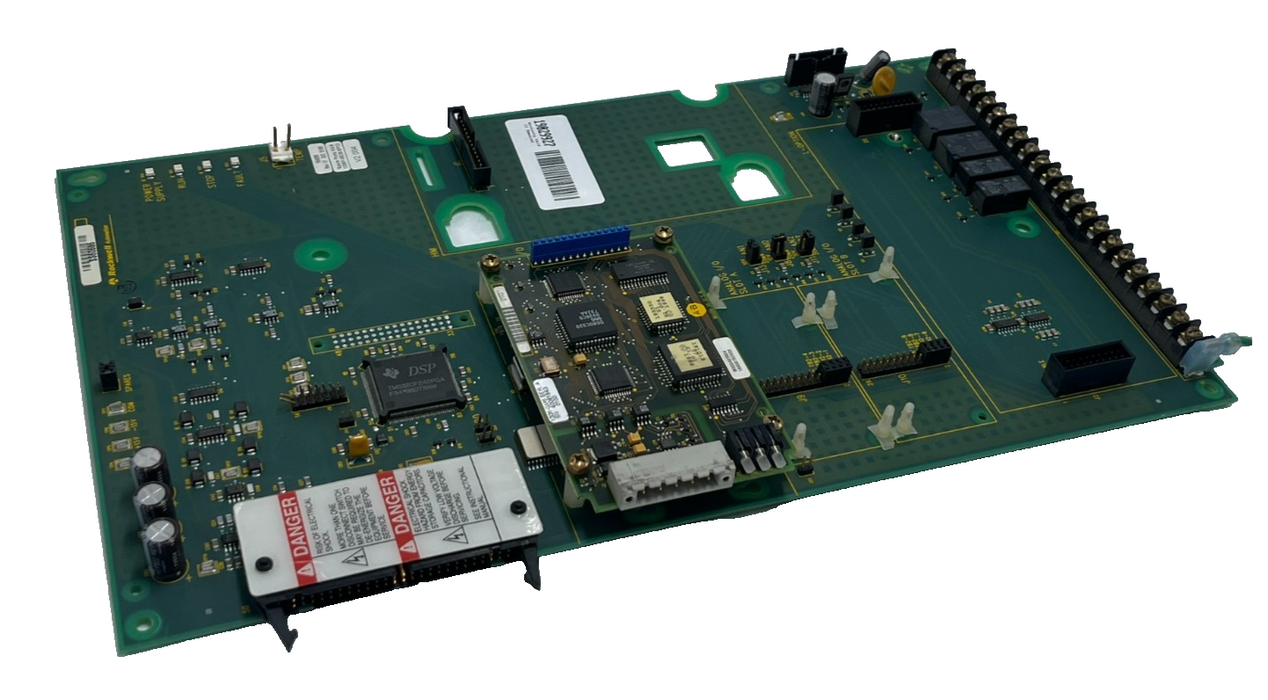

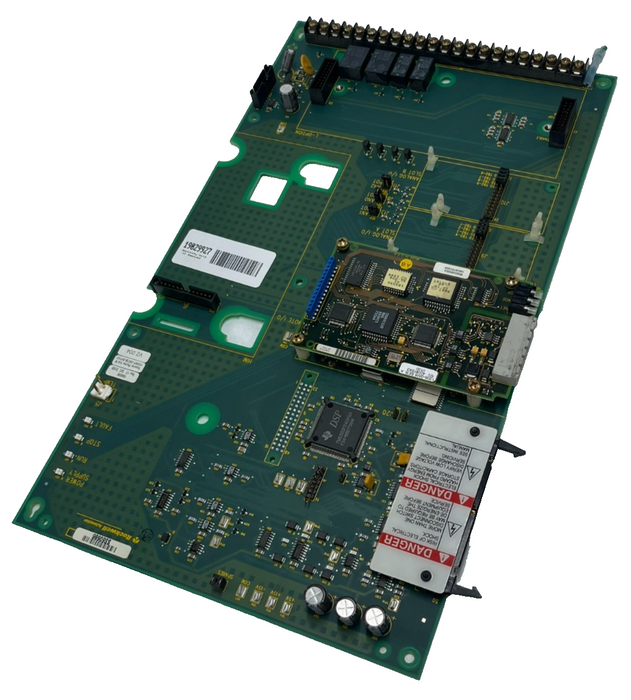

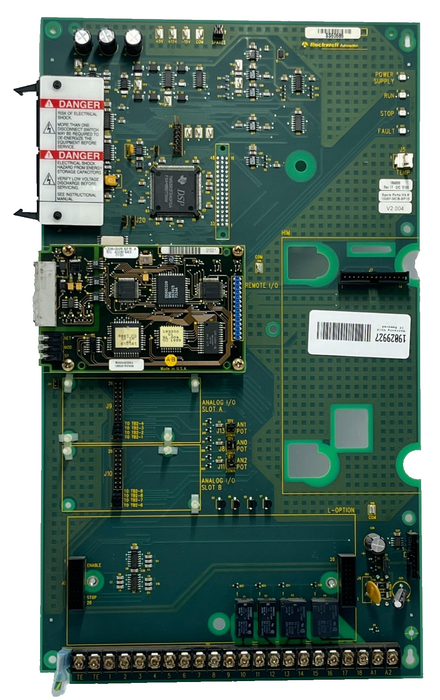

1. Rockwell 184699 Drive Control Board

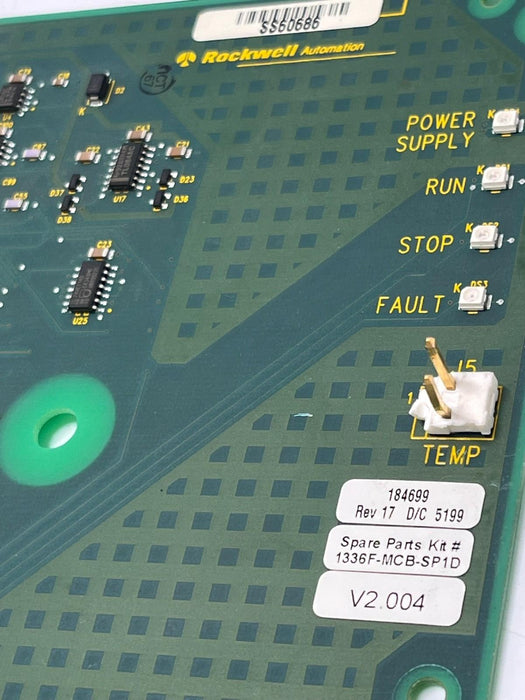

   • Revision: 17

   • Date Code (D/C): 5199

   • Compatibility: This board is a critical control component for the Allen-Bradley 1336 Series AC Drives, often used in high-horsepower (up to 40HP+) applications.

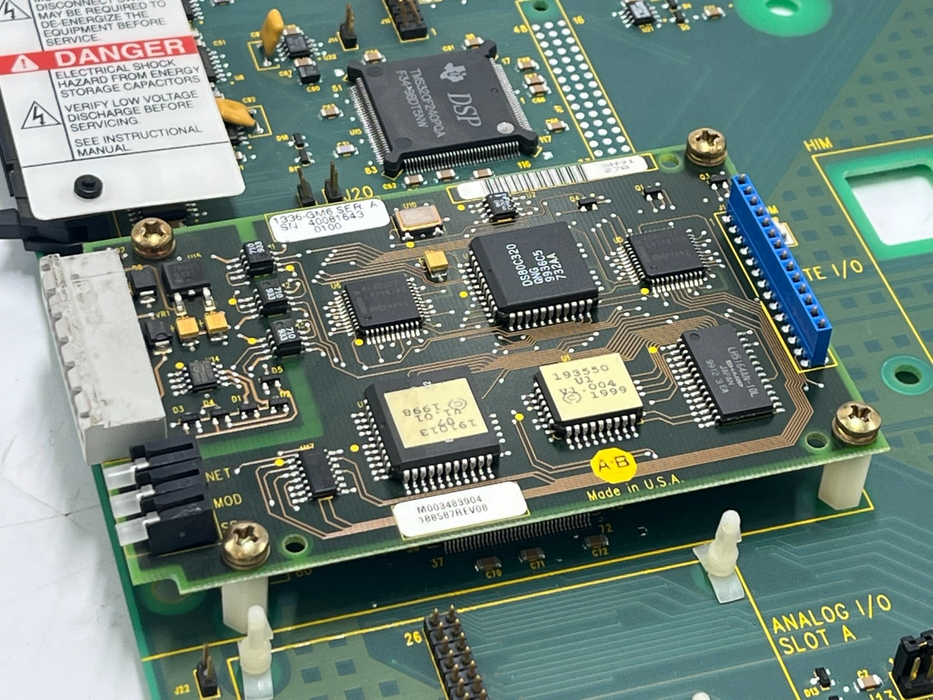

2. 1336-GM6 Communications Adapter

   • Series: A

   • Type: Enhanced DeviceNet Communication Adapter

   • Function: Enables direct connection of the drive to a DeviceNet network via the internal SCANport connector, supporting speeds of 125, 250, and 500 Kbps.

Technical Specifications:

• Manufacturer: Rockwell Automation / Allen-Bradley

• Mounting: Internal (Directly to the drive's main control board)

• Communication Protocol: DeviceNet (Enhanced)

• Power Consumption: Approx. 150mA at 5V DC (SCANport) / 60mA at 24V DC (DeviceNet)
