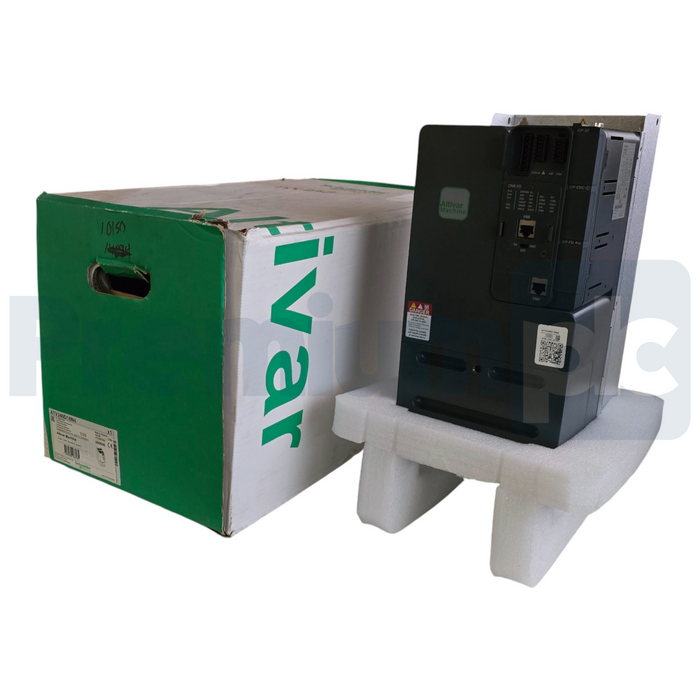

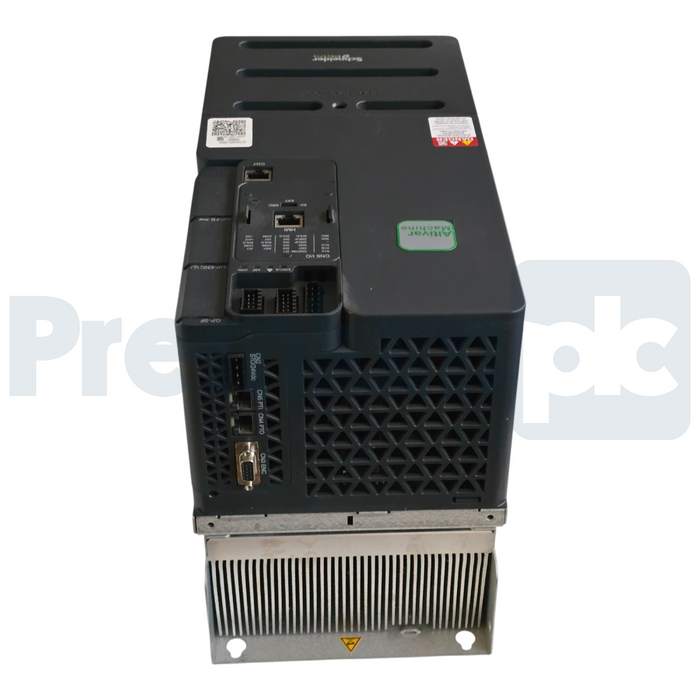

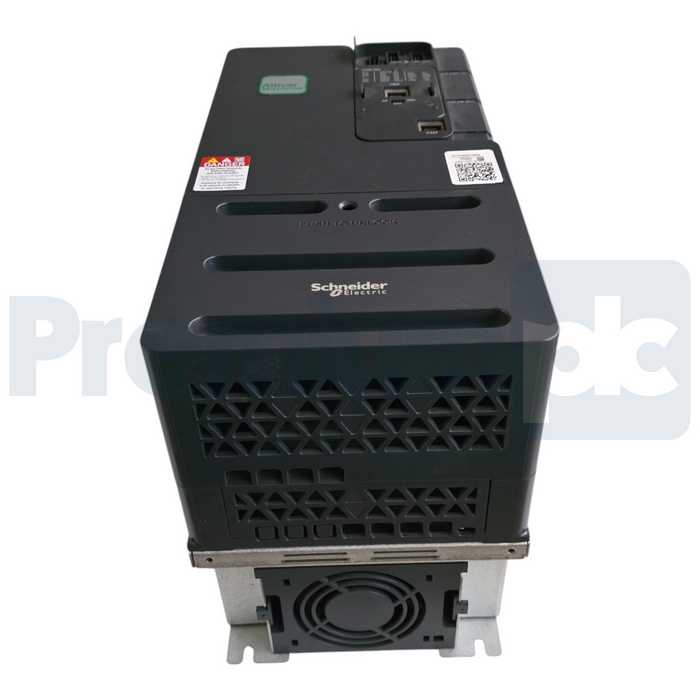

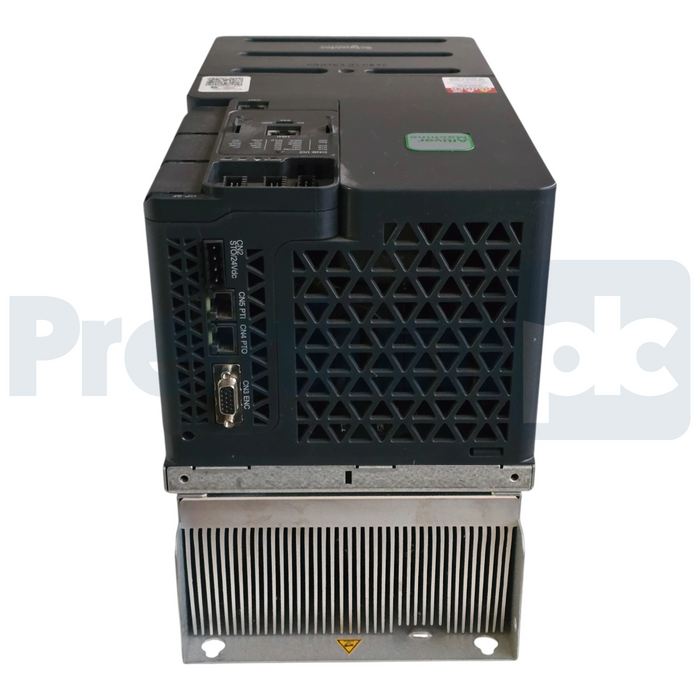

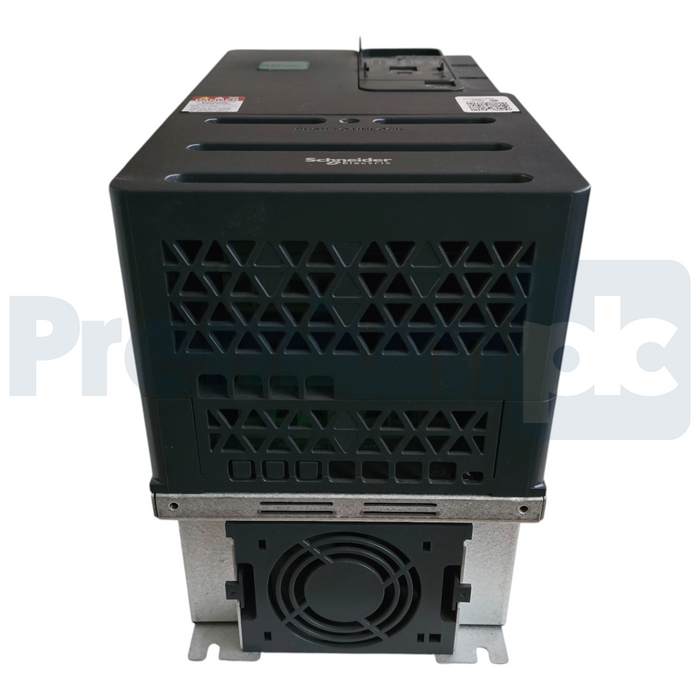

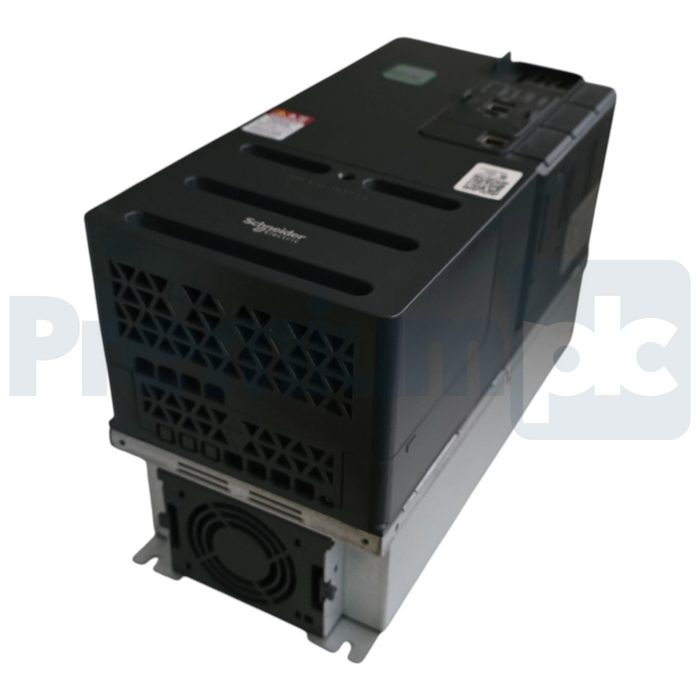

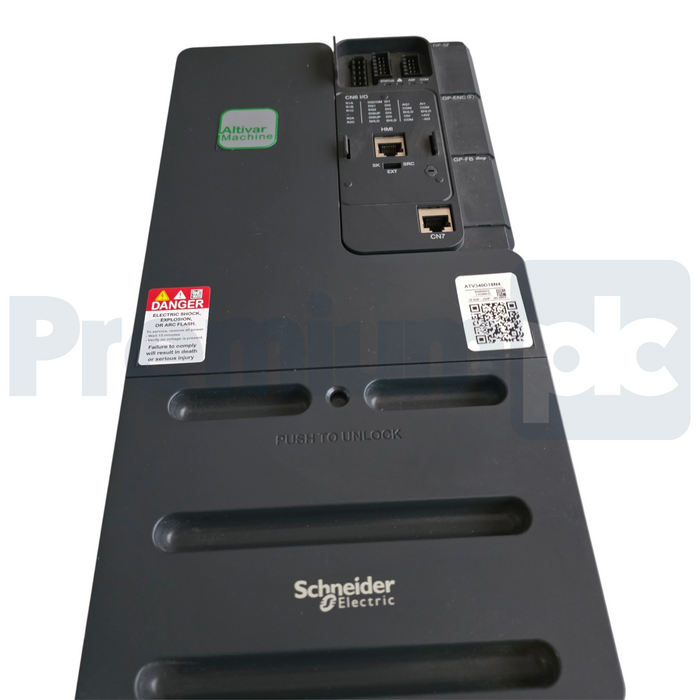

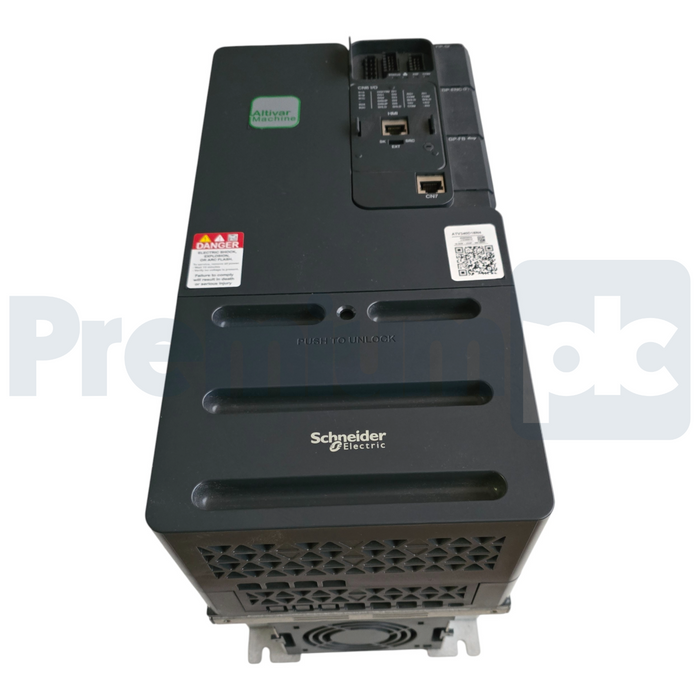

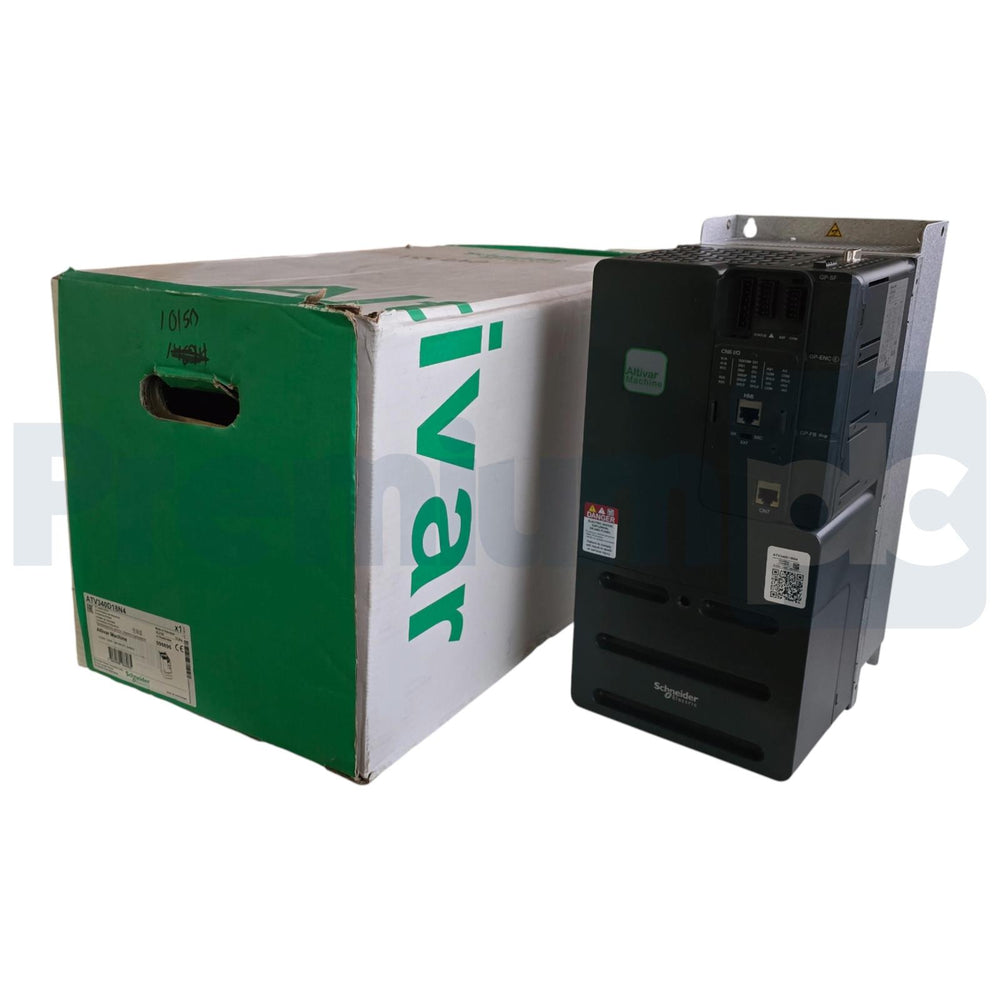

Schneider Electric ATV340D18N4 Altivar ATV340 AC Speed Drive 18kW/22kW 480V NSMP
$3,750.00
Schneider Electric ATV340D18N4 Altivar ATV340 AC Speed Drive 18kW/22kW 480V NSMP
The is a high-performance Altivar Machine ATV340 variable speed drive. Engineered for high-dynamic industrial applications, it is compatible with both synchronous and asynchronous motors, making it ideal for packaging, hoisting, and material handling systems. This unit is built to withstand harsh environments, including high-vibration and non-conductive dust.

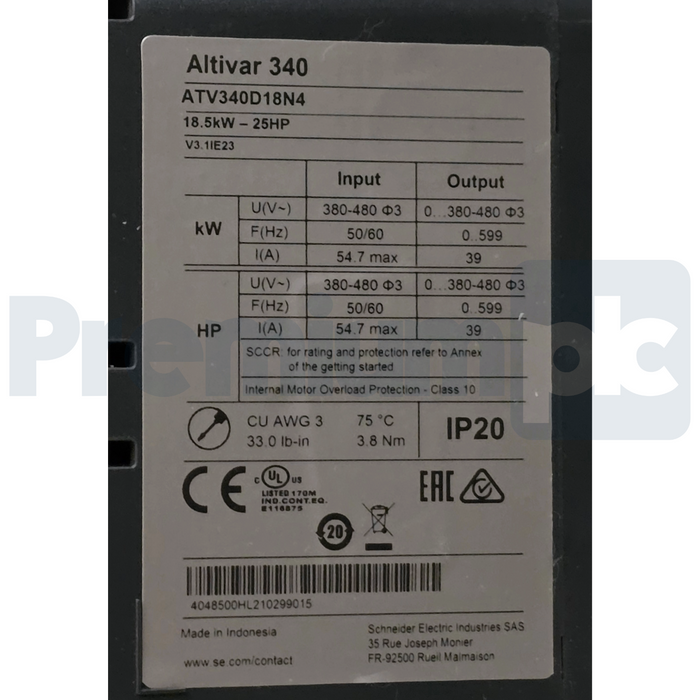

Technical Specifications
- Model:
- Power Rating: 22 kW (30HP) normal duty | 18.5 kW (25HP) heavy duty
- Input Voltage: 3-Phase 380V to 480V AC (50/60 Hz)
- Continuous Output Current: 46A (Normal Duty) / 39A (Heavy Duty)
- Max Transient Current: 62.1A (Normal Duty) / 70A (Heavy Duty) for 2 seconds
- Communication: Integrated Modbus RTU (via RJ45)
- Safety Functions: Integrated Safe Torque Off (STO), SS1, and SLS
- Enclosure Rating: IP20 (Panel Mount)

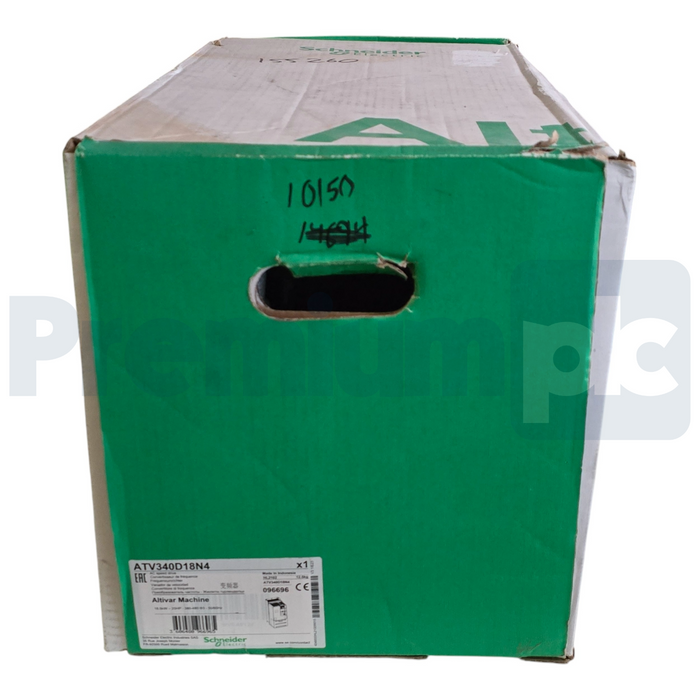

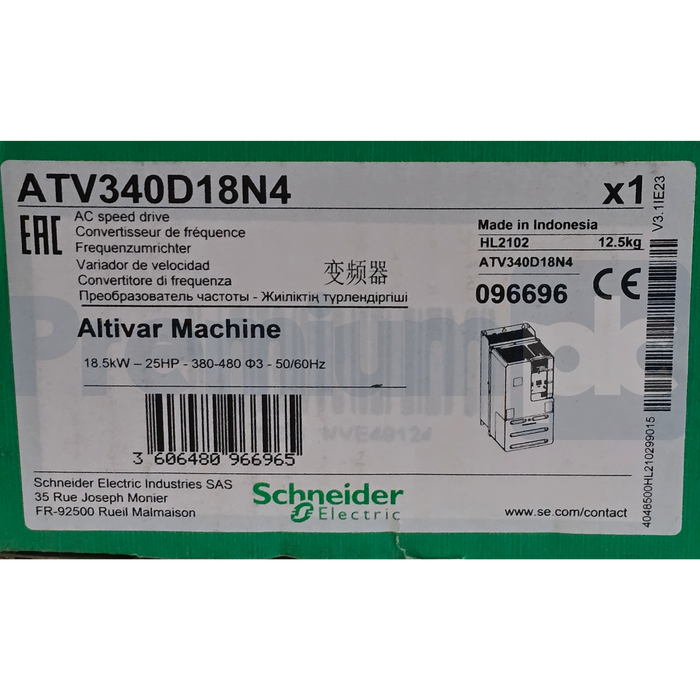

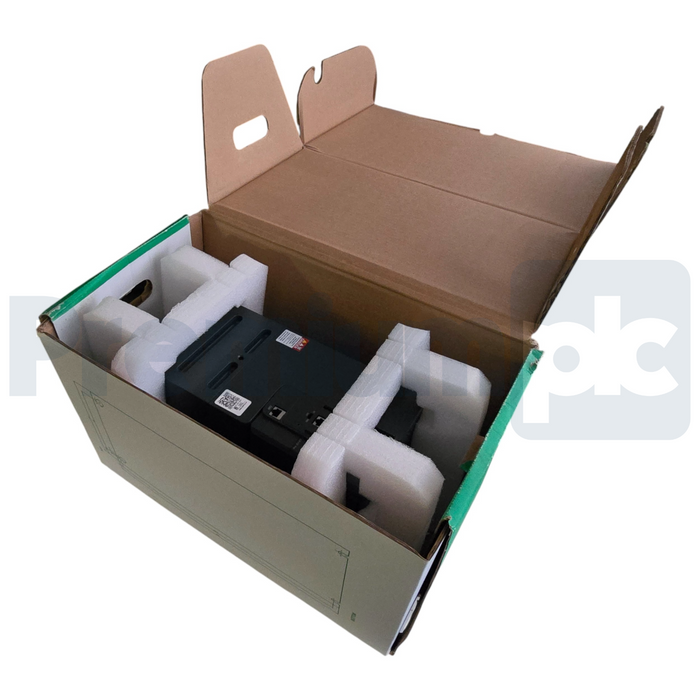

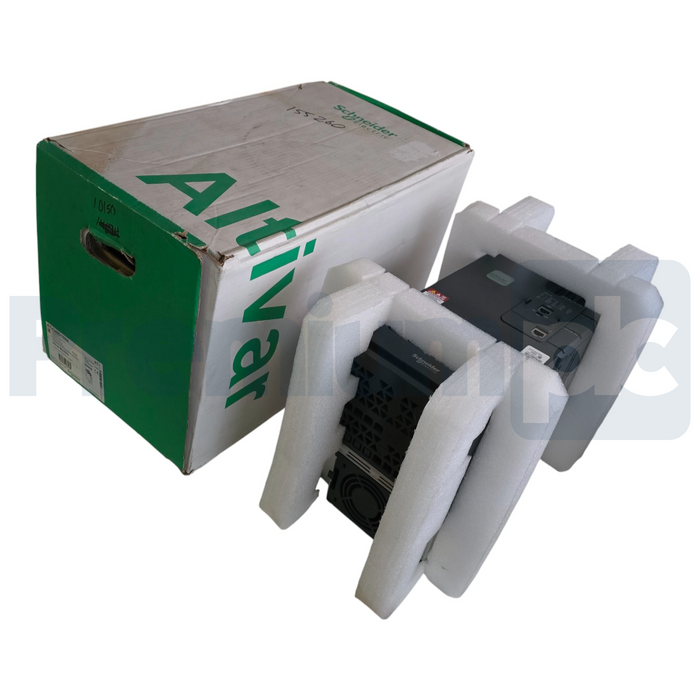

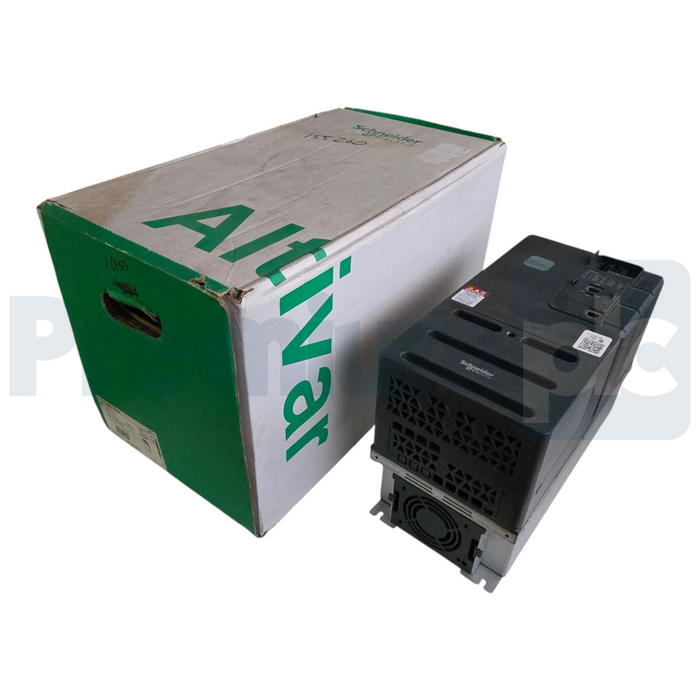

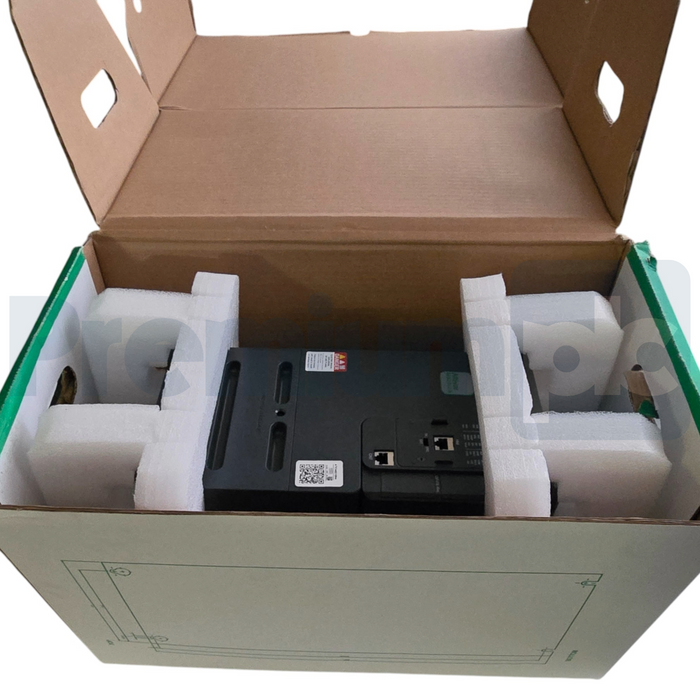

CONDITION: NSMP - New Surplus Manufacturer Package (OEM)
WARRANTY: 120 DAYS
